Quoizel DE8959IB Montageanleitung

Part Description Quantity

A Crossbar 1pc.

2 pcs.

Finial Assembly

Hex Nut

Lock Washer

Package Contents

Quoizel, Inc.

6 Corporate Parkway

Goose Creek, SC

29445

Customer Service

Phone 631.273.2700

Fax 631.231.7102

www.quoizel.com

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

Mounting Ball

Mounting Screw

Assembly Instruction Sheet #IS-DE8959IB

For Styles DE8959IB

1of6

August2015

Rev.B

Pleasegoto forproductcleaningtips.Gotothe

selection.

(2)CandelabraBase60WMaximum

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage

contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissingor

damaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer

serviceforreplacementparts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire

strippers,electricaltape,safetyglasses.

Fixturecanonlybemountedinthedirectionindicatedonpage2.

1pc.

Fixture Body

Alternate Mounting screw

DE8959IB

FINISH: IMPERIAL BRONZE

M280KTIB

G1197PA

G1198PA

M380CCIB

M387FIIB

(2)60W Candelabra

base bulbs

(not Supplied)

KIT IMPR BRNZ REPL

PANL SML CLR BEV REPL DE8959IB

PANL LRG CLR BEV REPL DE8959IB

CDCV IMPBRZ REPL CANDLE COVER

FINL IMPBRZ REPL DE8959/8976IB 1

2of6

PART NUMBER

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

REPLACEMENT PART DESCRIPTION REQ.

NO.

18959IBDE BASE IMPR BRNZ DE8959IB 1

9” 9”

11”

21”

10”

Rev.B

Fixture can only be

mounted in the

direction indicated

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

3of6

STEP 1 Remove Fixture Hood from Glass

Frame

A. Prior to assembly, remove the Fixture Hood from the

Glass Frame by unscrewing the Hex Coupling. Remove

the packaging material inside of the Glass Frame.

Fixture Body

Fixture

Hood

Hex

Coupling

Glass

Frame

Figure 1

Figure 2

Crossbar

Lock Washer

Hex Nut

Fixture

Body

STEP 2 -Attach Mounting Screws, Lock

Washers and Hex Nuts to Crossbar

A. Line up a set of holes on the Crossbar (A) and Holes on

the backplate of the Fixture Body (H).

B. Thread Mounting Screws

(F) into the holes on the Crossbar (A),

pass Lock Washers (C) and thread Hex Nut (D) onto the

Mounting Screws (B)

. Hand tighten until snug.

(B) or Alternate Short

Mounting Screw

or Alternate Short Mounting

Screw (F)

STEP 3 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Crossbar

Outlet

Box

Outlet Box

Screw

Mounting

Hole

Figure 3

Assembly Instruction Sheet #IS-DE8959IB

For Styles DE8959IB

August2015

Rev.B

Mounting Screw

or Alternate Short

Mounting Screw

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

4of6

Assembly Instruction Sheet #IS-DE8959IB

For Styles DE8959IB

Figure 4

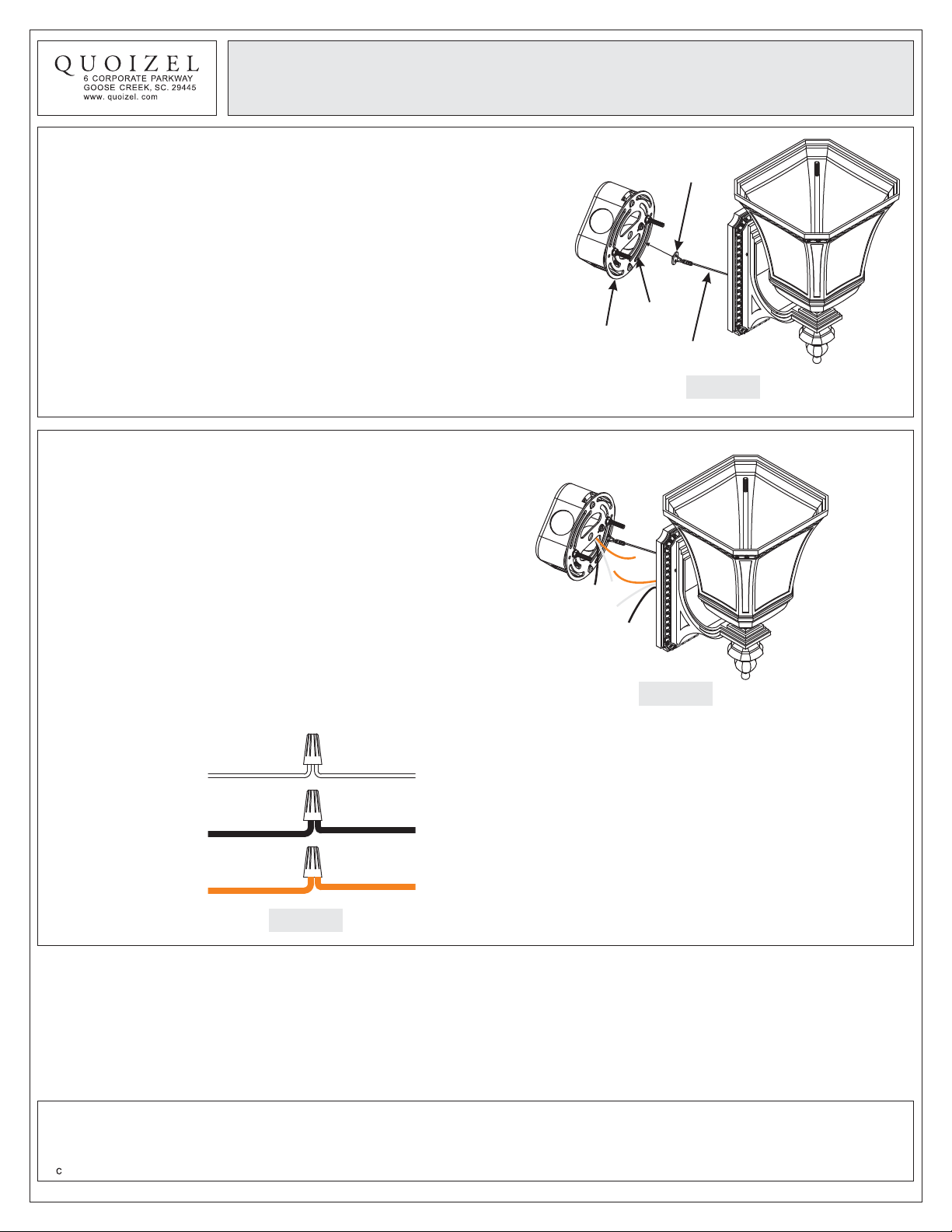

STEP 4 Attach Lanyard-

A. The purpose of the lanyard is to provide the installer a

means to support the fixture from the junction box while

connecting the electrical wires. This enables the fixture

to hang from the junction box and your hands are free to

make the wire connections.

B. TurntheButtonStopsoitmaybeinsertedintothe

crossbar slot. Make sure the Button Stop is completely

inside the crossbar. Slowly release the fixture to make

sure it is supported by the Button Stop. Proceed to the

wiring steps. Once you are complete with the wiring

there is nothing to do with Lanyard. The Lanyard will

push into the junction box when the fixture is placed for

final mounting.

Crossbar

Slot

Button Stop

Lanyard

STEP 5 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Outlet Box to White

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box

to Black Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground

Wire from fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

Figure 6

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

Figure 5

August2015

Rev.B

STEP 6 -Attach Fixture Body to Mounting

Screw

A. Place the backplate of the Fixture Body (G) over the

Mounting Screws (B)

and secure with Mounting Balls (E). Hand

tighten until snug.

or Alternate Short Mounting

Screw (F)

Mounting Ball

Backplate

Figure 7

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

5of6

Assembly Instruction Sheet #IS-DE8959IB

For Styles DE8959IB

STEP 8 Attach Fixture Hood to Glass Frame-

A. Place the center hole of the Fixture Hood over the top end

of the Stem, attach to the top edge of the Glass Frame.

Secure by threading the Hex Coupling onto the Stem.

Tighten until snug.

STEP 7 -Install Bulb

A. standard bulb with a candelabra screw

base 0

This fixture uses

. Maximum 6 watts.

B. Insert bulb and screw snugly into place.

Socket

Bulb

Figure 8

Figure 9

Fixture

Hood

Hex Coupling

Glass

Frame

Stem

August2015

Rev.B

Mounting Screw

or Alternate Short

Mounting Screw

STEP 9 Assemble Strut Member,

Waterproof Washer and Finial

A. Remove the Strut Member, the Waterproof Washer and

the Nipple from the Finial.

B. Screw one end of the Nipple into the Hex Coupling on

the top center of the Fixture Body (H). Hand tighten

until snug.

C. Pass the Strut Member and Waterproof Washer over

the top end of the Nipple. Thread the Finial (G) onto the

Nipple and hand tighten until snug.

Finial

Strut

Member

Nipple

Fixture

Body

Waterproof

Washer

Hex Coupling

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2015 QuoizelInc.

6of6

August2015

Assembly Instruction Sheet #IS-DE8959IB

For Styles DE8959IB

STEP 10 Apply Silicone Sealer to Mounting

Balls

A. To prevent moisture from entering the wire

compartment, apply a small amount of silicone sealer

(not included) to the threaded side of the mounting

balls (E) and then install them onto the mounting

screws (B). Wipe off excess caulk.

Figure 10

Mounting Ball

STEP 11 Apply Silicone Sealer to Backplate-

A. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, start on one side of fixture backplate and

follow contour, where the fixture backplate meets the

exterior wall surface upward. Proceed to caulk over top

of backplate and down other side. Do not caulk bottom

of fixture backplate to ensure proper moisture

drainage.

Your lamp wall fixture is now assembled and ready to

use. Enjoy!

Exterior

Grade Caulk

Outdoor Fixture

Backplate

Exterior Wall Surface

Figure 12

Figure 11

Rev.B
