Quoizel NY8317AC Bedienungsanleitung
Part Description Quantity
A Crossbar 1pc.
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
Fixture Body
B
C
D
E
F
Hex Nut
Lock Washer
Package Contents
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
2012 QuoizelInc.
Mounting Ball
Mounting Screw
Assembly Instruction Sheet #IS-NY8317AC
For Style NY8317AC
1of6
Pleasegoto forproductcleaningtips.Gotothe
selection.
www.quoizel.com Care+Maintenance
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
EstimatedAssemblyTime:20-30 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
A
B
C
D
E
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
F
LightSource: (2) 60WMaximumCandelabraBase
G
2 pcs.
GCandle Cover
RevisedDate:2016-09-13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
NY8317AC
FINISH: AGED COPPER
2of6

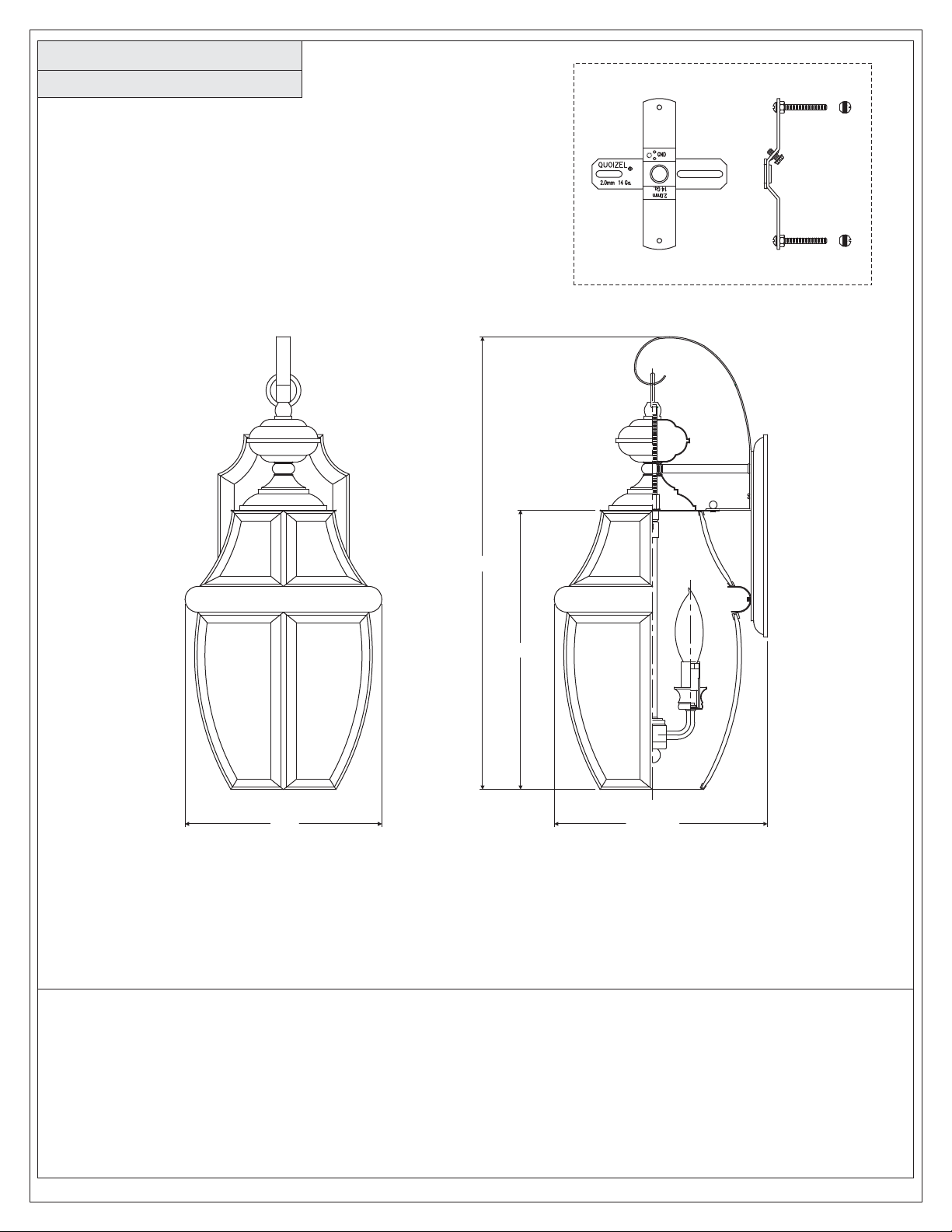

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
20”
13”
9.75”
11”
2012 QuoizelInc.
3of6
STEP 2 -Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Figure 2

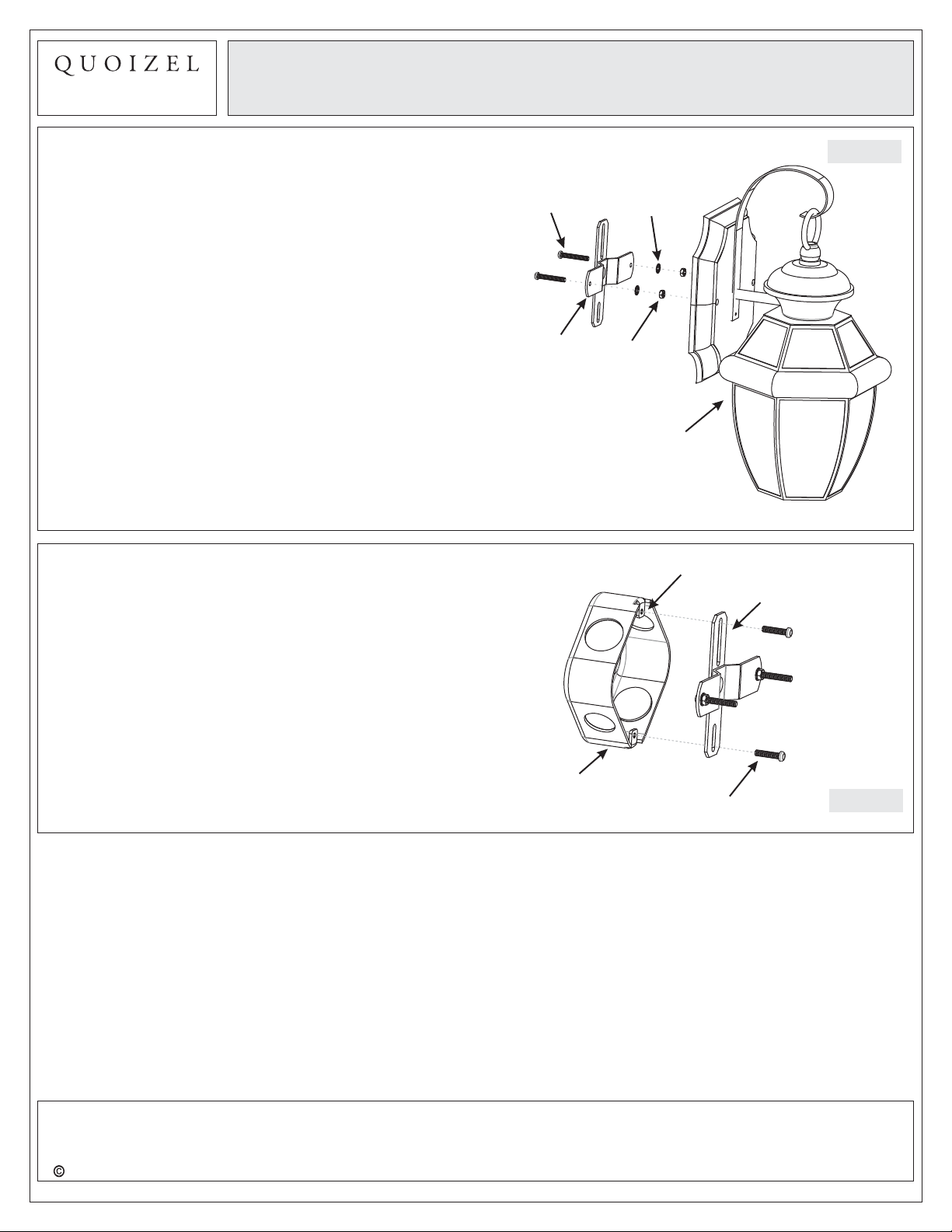

STEP 1 -Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the backplate of the Fixture Body (K).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex
Nut (D) onto the Mounting Screws (B). Hand tighten
until snug.
Fixture
Body
Mounting
Screw
Crossbar
Lock Washer
Hex Nut
Crossbar
Outlet Box Outlet Box
Screw
Mounting Hole
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Assembly Instruction Sheet #IS-NY8317AC
For Style NY8317AC
Figure 1
RevisedDate:2016-09-13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
2012 QuoizelInc.
4of6
STEP 3 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 4
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
STEP 4 -Attach Fixture Body to Mounting
Screw
A. Place the backplate of the Fixture Body (F) over the
Mounting Screws (B) and secure with Mounting Balls
(E). Hand tighten until snug.
Figure 5
Mounting
Screw
Mounting Ball
Backplate
Figure 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Assembly Instruction Sheet #IS-NY8317AC
For Style NY8317AC
RevisedDate:2016-09-13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
2012 QuoizelInc.
5of6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Assembly Instruction Sheet #IS-NY8317AC
For Style NY8317AC
STEP 7 Apply Silicone Sealer to Mounting
Balls
-
A. To prevent moisture from entering the wire
compartment, apply a small amount of silicone sealer
(not included) to the threaded side of the mounting
balls (E) and then install them onto the mounting
screws (B). Wipe off excess caulk.
STEP 6 -Install Bulb
A. This fixture uses standard bulb with a candelabra screw
base. Maximum 60 watts.
B. Place the bulb from the bottom of the glass frame. Insert
bulb and screw snugly into place.
Figure 7
Figure 8
Mounting Ball
Socket
Bulb
Figure 6
STEP 5 Attach Candle Cover to Socket
Assembly
-
A. Place the Candle Cover (G) over the Socket properly.
Socket
Candle
Cover
RevisedDate:2016-09-13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
2012 QuoizelInc.
6of6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Assembly Instruction Sheet #IS-NY8317AC
For Style NY8317AC
STEP 8 Apply Silicone Sealer to Backplate-
A. Make sure exterior wall surface and fixture backplate
are free of dirt before applying caulk. Using exterior
grade caulk, start on one side of fixture backplate and
follow contour, where the fixture backplate meets the
exterior wall surface upward. Proceed to caulk over top
of backplate and down other side. Do not caulk bottom
of fixture backplate to ensure proper moisture
drainage.
Your fixture is now assembled and ready to use.
Enjoy!
Exterior
Grade Caulk
Outdoor Fixture
Backplate
Exterior Wall Surface
Figure 9
RevisedDate:2016-09-13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
