Quick Start uide – OLED DSP05-M
Registration
Please register your OLED Display so that Racelogic
can continue to provide you with notifications about the
latest software releases and firmware upgrades for your
Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a OLED Display DSP05-M, you will find the following items when you open the box:
Product
Code
Quantity Description
VBDSP05-M1 OLED Display with Mini Din connector
RLACS2871 VBOX Lightweight Suction Mount
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
1
Features
• View parameters, such as Live Speed, Max Speed,
Lap Times and Predictive Lap Time
• Internal accelerometer flips the display according to
the mounting direction
• Invert screen colours or change font options for
varying operation conditions
• Shows logging and capacity status of connected
Video VBOX Lite
• Easy operation with the 3-button keypad • Recognises data from standard VBOX CAN and
serial output
• Low power consumption • Splash proof plastic and aluminium case
• Mini Din connector for connection to Video VBOX
Lite
Memory Usage
If the SD card you use in the connected Video VBOX Lite has less than 10 MB of space available you will see a warning symbol flashing
amount of memory available.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
2

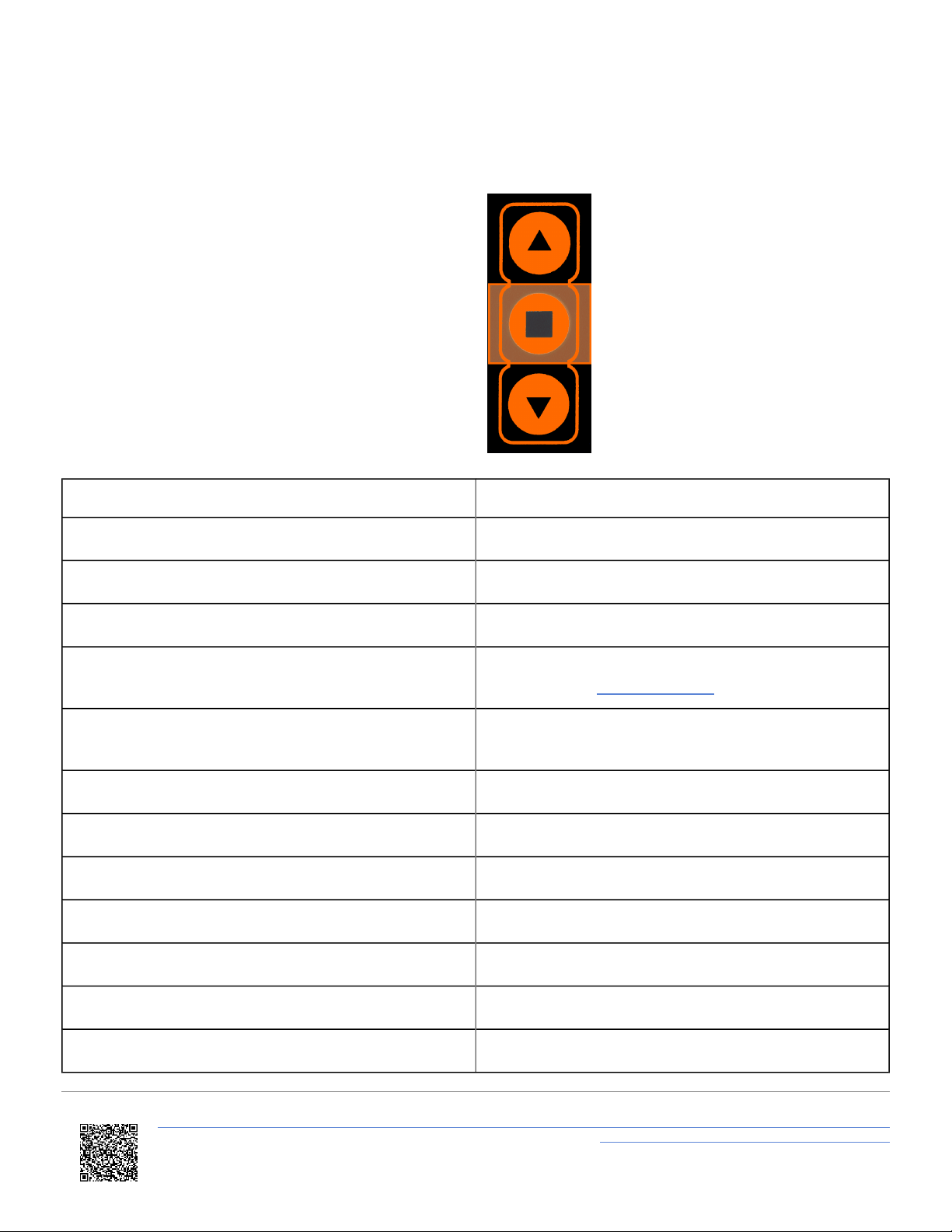

Square Button Functions
Depending on which mode is currently active on the
screen, the function of the square button will change.
The splash screen shown when scrolling through the
menu describes the function of the square button in
each mode.
You can also find the complete list below:
Mode Function
Speed Start and stop logging
Max Speed Reset max speed value
Speed Bar Set centre speed and speed display range
Predictive Lap Timing Single press fixes the current reference lap according to
your settings in Fixed Lap Mode
Predictive Lap Timing Pressing for >4 s clears the stored reference lap and all
lap timing data
Lap Timing Set a new start/finish line
Lap Count No action
Lateral G Reset max g reached
Lateral G Bar Set min g and max g (targets)
Longitudinal G Reset max g reached
Longitudinal G Bar Set min g and max g (targets)
Menu Access the Menu
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
3
No Media
If you do not have an SD card inserted in your VBOX data logger, the OLED Display will show a "No Media"
message while the vehicle is moving at speeds of 5 mph or less. This makes it easier for you to make sure that you
have an SD card inserted before you start your logging.

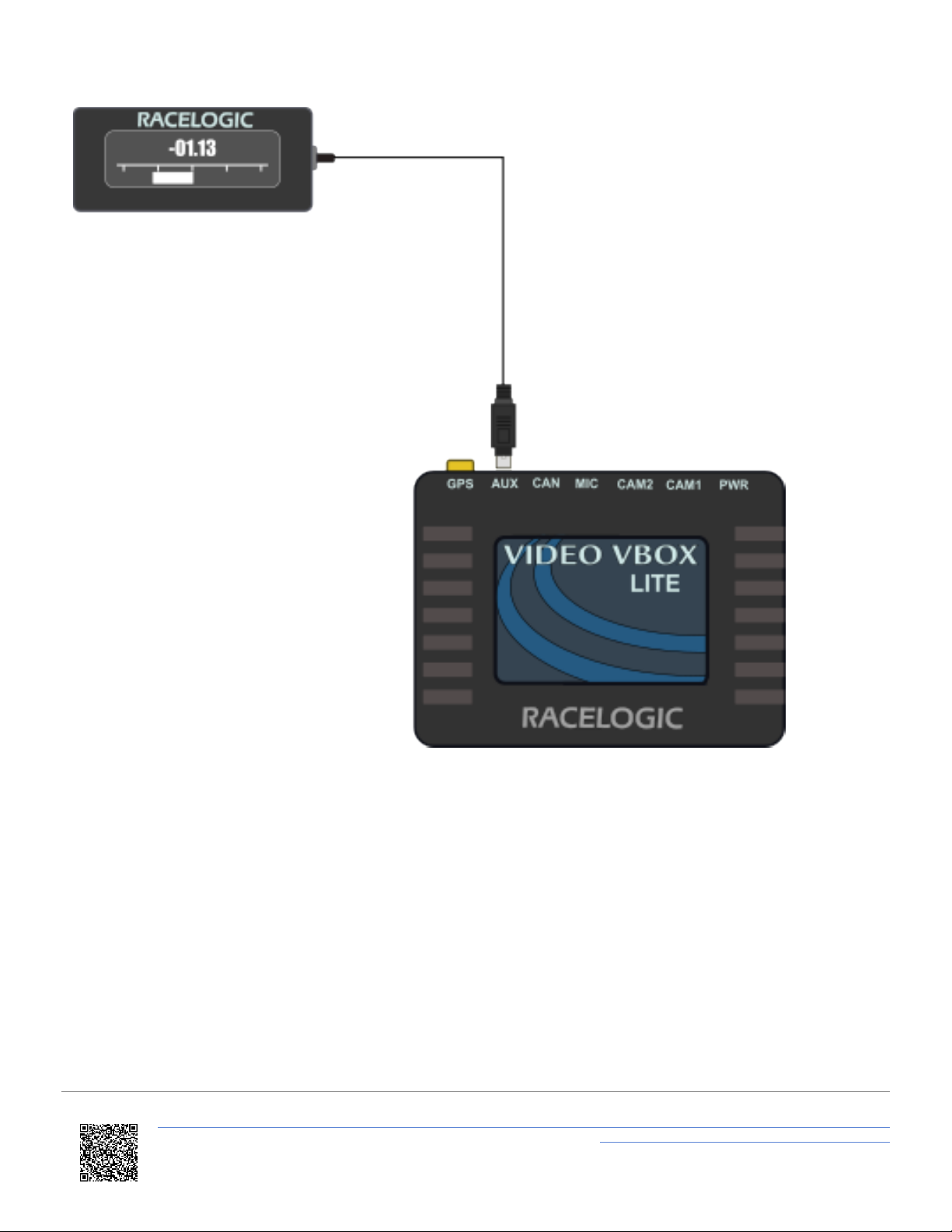

Installing your VBOX OLED Display
Video VBOX Lite
To connect to a Video VBOX Lite, connect the cable into the ‘AUX’ port.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
4

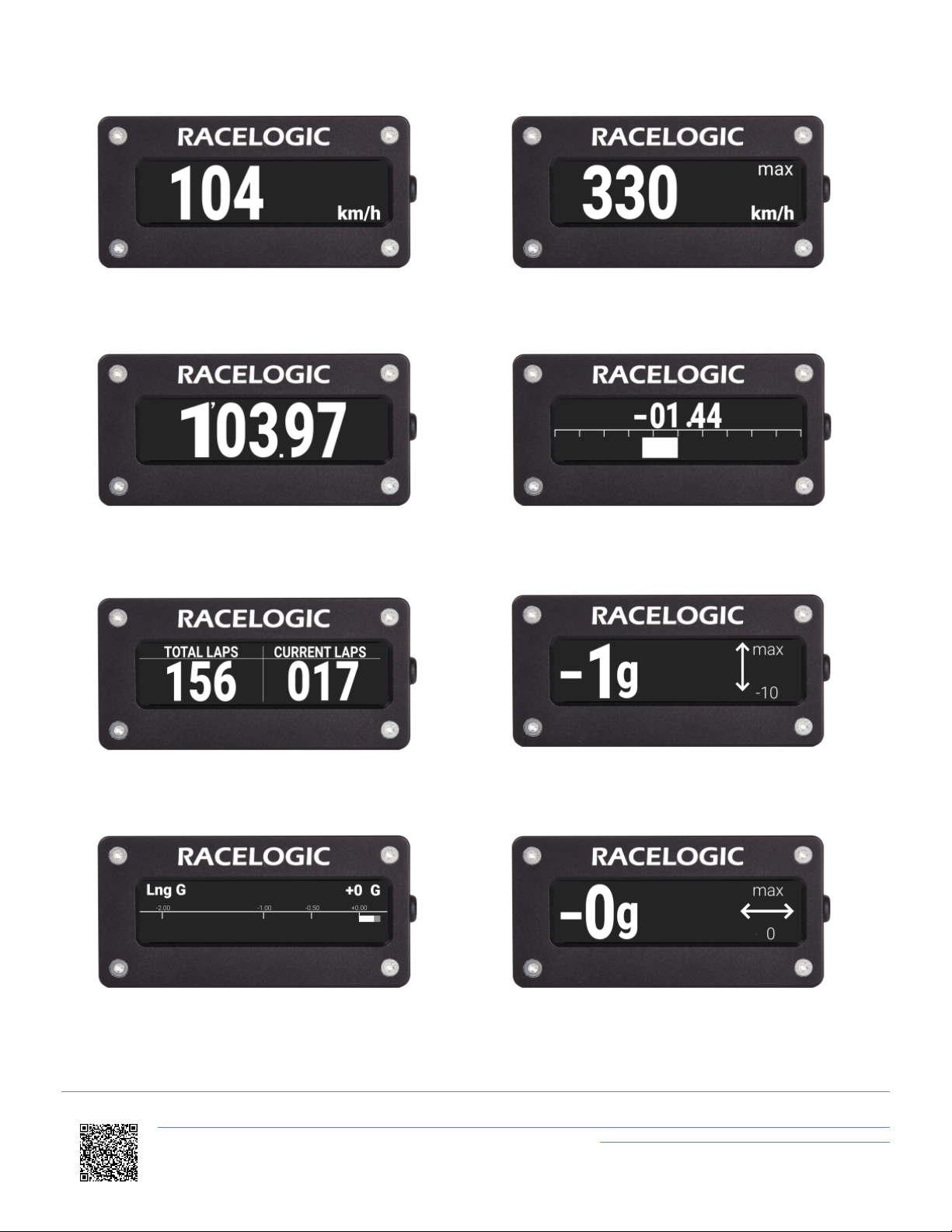

Display Modes overview
The DSP05 OLED Display has different display modes that you can access by using the ▲▼ buttons on the unit.
Even if you choose not to display it, the data displayed on each screen is always calculated by the connected Video
VBOX Lite at all times (with the exception of Delta-T which is calculated by the DSP05 OLED Display). Click on the
name of each mode to find relevant setup information.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
5

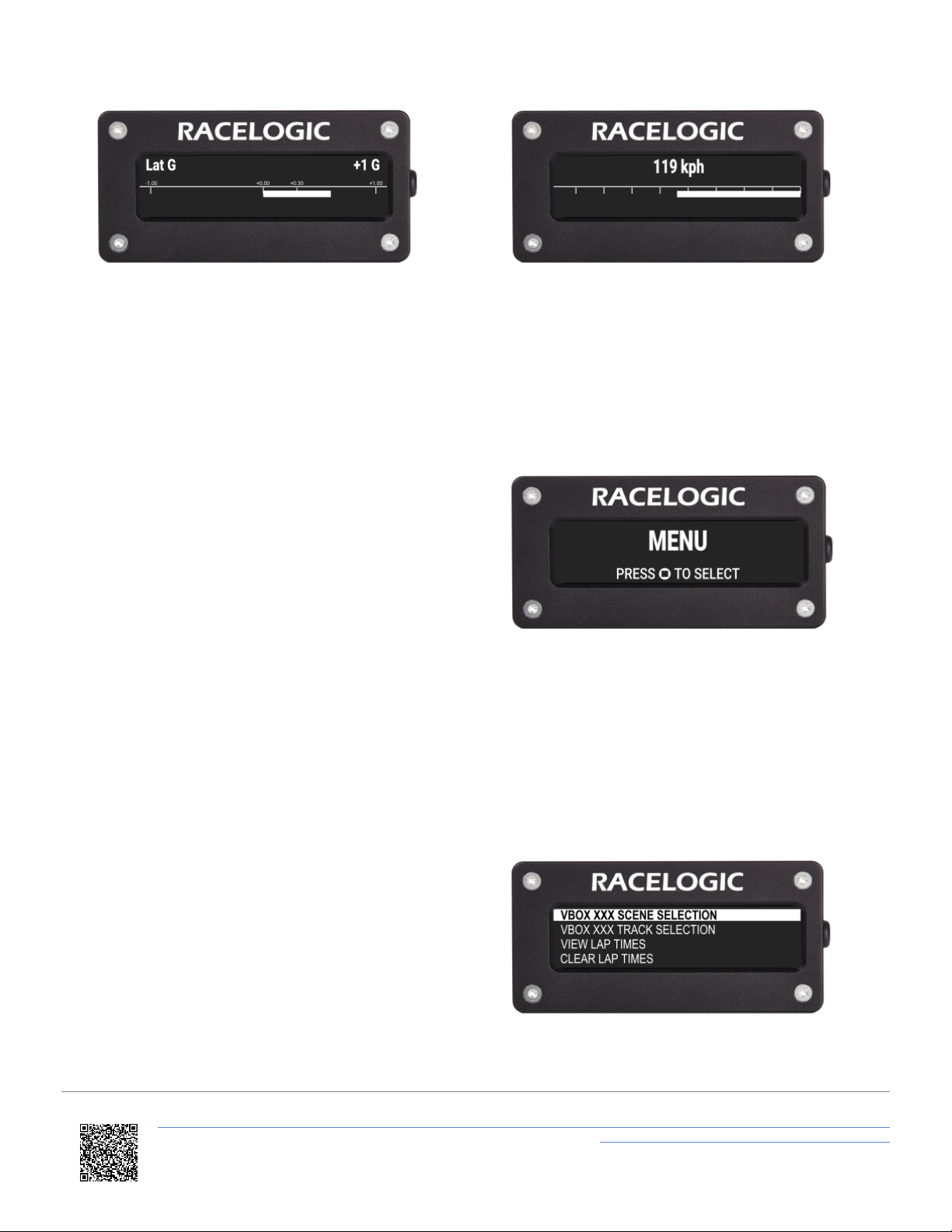

Lateral G Bar Speed Bar
Menu Options
You can access the DSP05 OLED Display menu by
pressing the square button when the ‘Menu’ screen is
displayed. You can navigate the menu with the ▲▼
buttons.
Scene Selection
Specified
You can load up to 8 user-defined scenes by placing
them in the root folder of an SD card and inserting it into
the connected Video VBOX Lite. All the required
scenes must be loaded at the same time.Every time
you load scenes to the Video VBOX Lite, they will
overwrite those previously saved on the unit. You can
select the scene on the DPS05 OLED Display. If there
are scene files on the Video VBOX Lite, a screen will
prompt you to select a scene when you power up the
DSP05 OLED Display.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
7

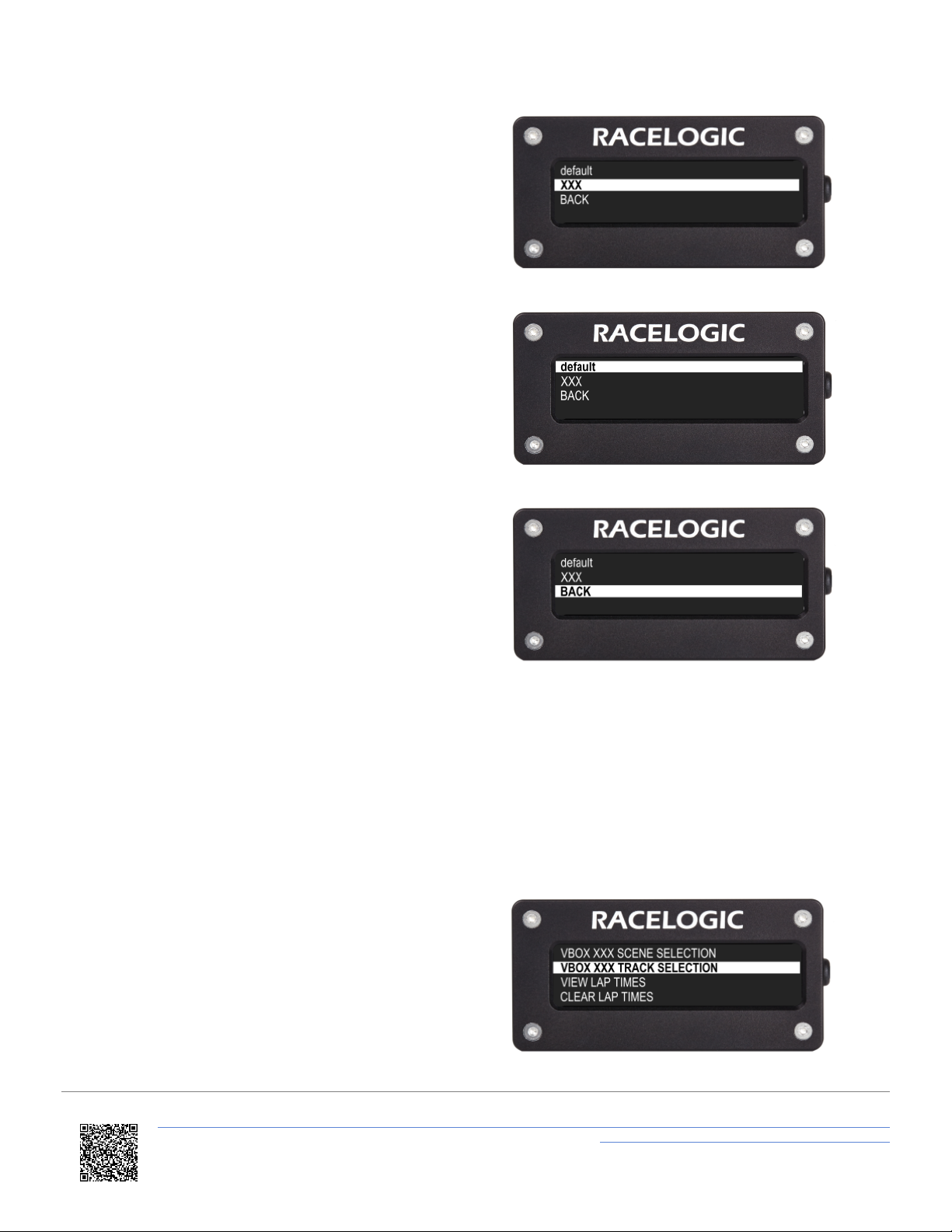

If you press the ▼ button when you see this prompt, the
DSP05 OLED Display will show you a list of available
scenes.
Once the DSP05 OLED Display is powered and in use,
you can access the scene selection through the main
menu.
Default
Each Video VBOX Lite has a default scene included
within the firmware. Press the square button when this
option is highlighted to use this scene.
Back
Press the square button with this line highlighted to exit
the Scene Selection menu and go back to the main
menu.

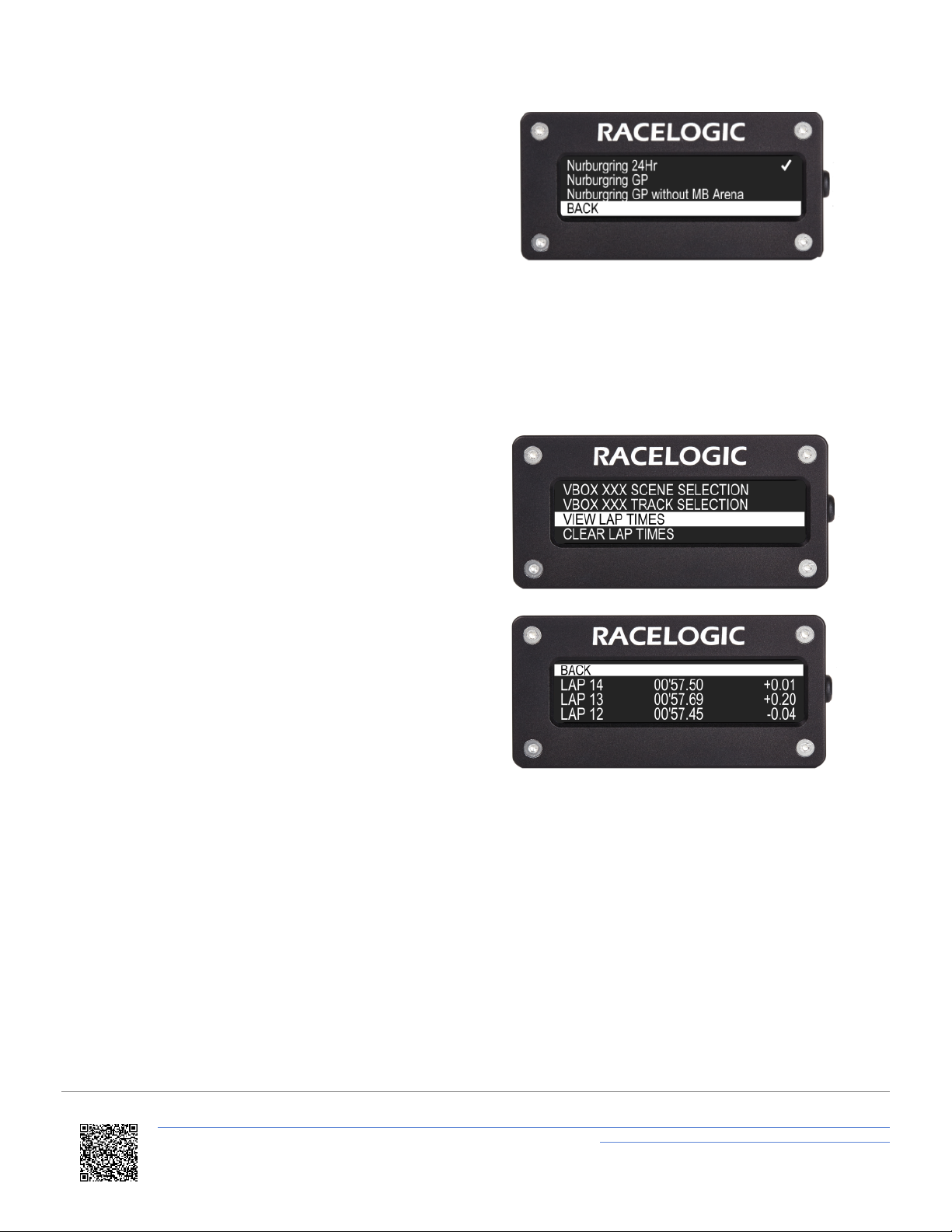

Track Selection
When the Video VBOX Lite has acquired satellites, it
will check the NSS location against Racelogic’s track
map database and load the available layouts.
Where a track has multiple layouts, you must use this
menu option to select the layout you are driving, as this
allows the DSP05 OLED Display to load the correct
start/finish line(s).
If start/finish lines are not available for your location, you
can set them manually.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
8
Back
Press the square button with this line highlighted to exit
the Track Selection menu and go back to the main
menu.
View Lap Times
The DSP05 OLED Display will store all the lap times
from your current session (maximum of 99 lap times).
The lap times will be cleared when you set a new start
line or when you reset the lap timing data.
Back
Press the square button with this line highlighted to exit
the Lap Times and go back to the main menu.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
9

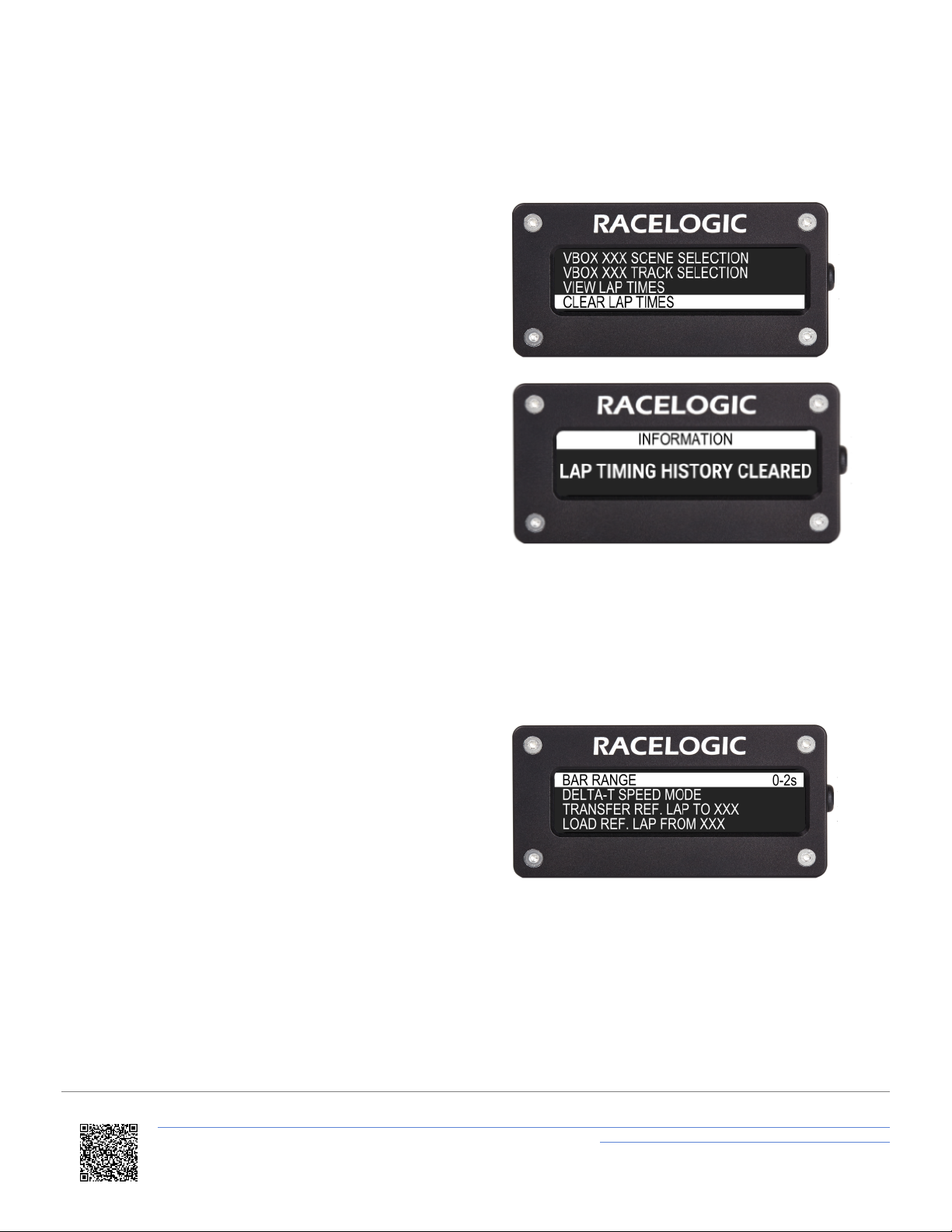

Clear Lap Times
Selecting this option will wipe all stored lap times from
the unit’s memory. It will automatically take you back to
the main menu after clearing the history.
Predictive Lap Timing Settings
Bar Range
This setting alters the amount of +/- time shown on the
bar graph during lap prediction. You can choose either
2, 5, 10 or 30 seconds.
Press the square button when the bar range is
highlighted to scroll through different time options.
Delta-T Speed Mode
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
10
