Connection Box for HD Camera (Outdoor) 9487-A
Assembly manual
Item no. 7000 01 06 / Included in delivery, see back page.
Mark and drill the mounting
holes using the drilling tem-
plate. Then guide the cable
through the mounting plate
and screw the mounting plate
to the wall.
12
34
Guide the camera cable through the
gasket in the cover and screw the cam-
era to the cover.
Connect the cable to the camera cable
and secure with the retaining straps in
the cover.
Screw the cover to the
mounting plate.
RADEMACHER
Geräte-Elektronik GmbH
Buschkamp 7
46414 Rhede (Germany)
info@rademacher.de
www.rademacher.de
Service:
Hotline 01807 933-171*
Fax +49 2872 933-253
service@rademacher.de
* 30 seconds free of charge, subsequently
14 cents / minute from German fixed line
networks and max. 42 cents / minute from
German mobile networks.
Subject to technical modifications, misprints and errors
excepted. Illustrations not binding.

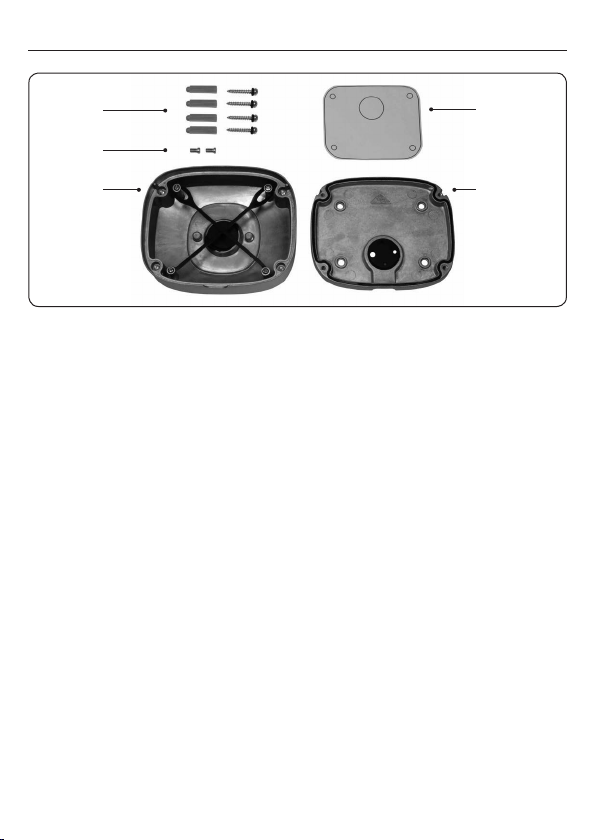

Included in delivery
a)
b)
d)
e)
a) Mounting accessories for wall mounting (4 rawlplugs, 4 screws)
b) Two mounting screws for securing the camera
c) Connection box cover
d) Drilling template
e) Connection box mounting plate
