Fitting Instructions for RAD0171 Radiator Guard

YAMAHA MT-07 2014-/TRACER 700 2016-

In This Kit There Should Be

1x Radiator Guard (RAD0171BK).

4x M6 Nyloc Nuts.

4x M6 Washers.

2x 100mm Lengths of self-adhesive Foam.

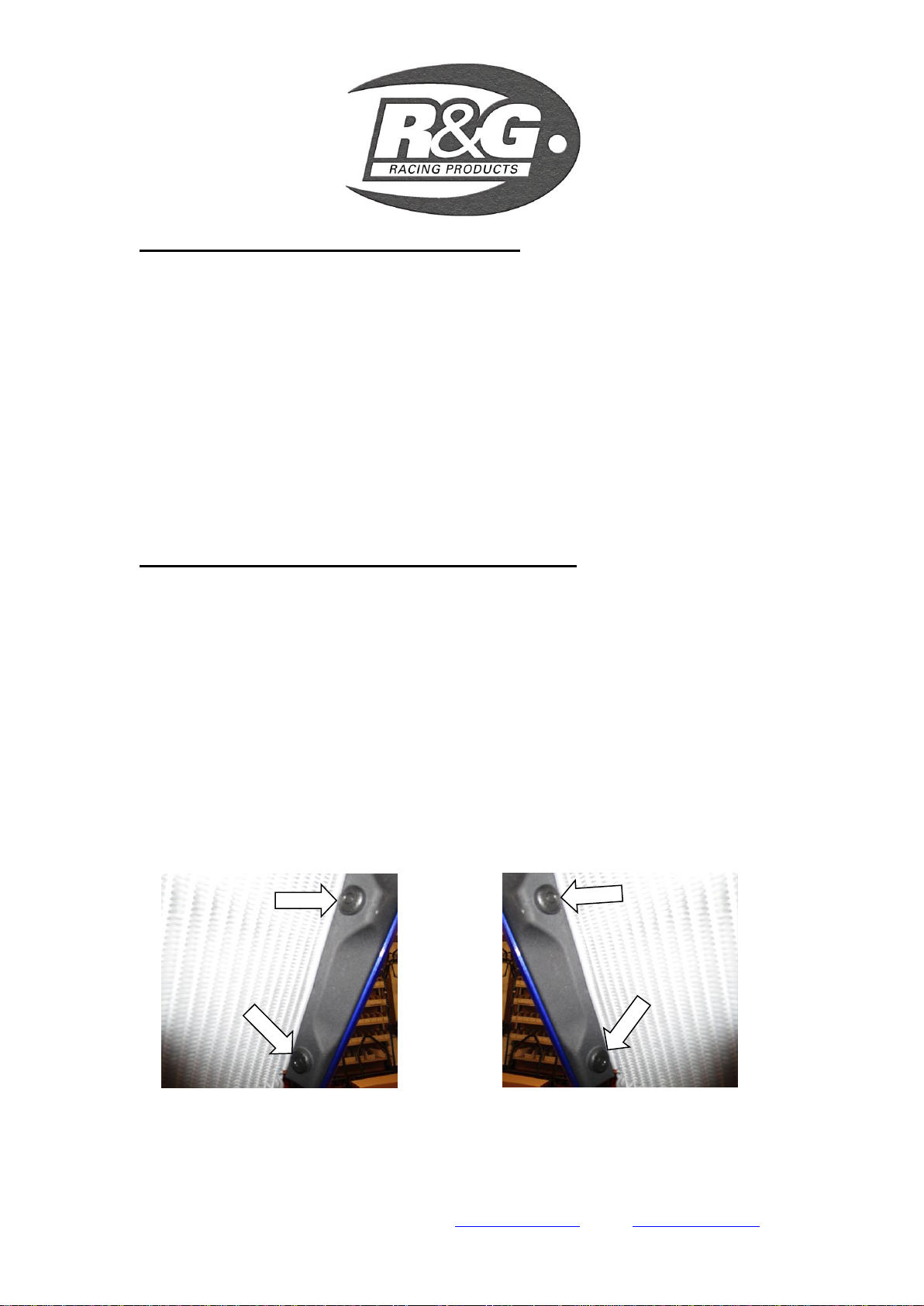

Picture 1

Picture 2

RAD0171

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

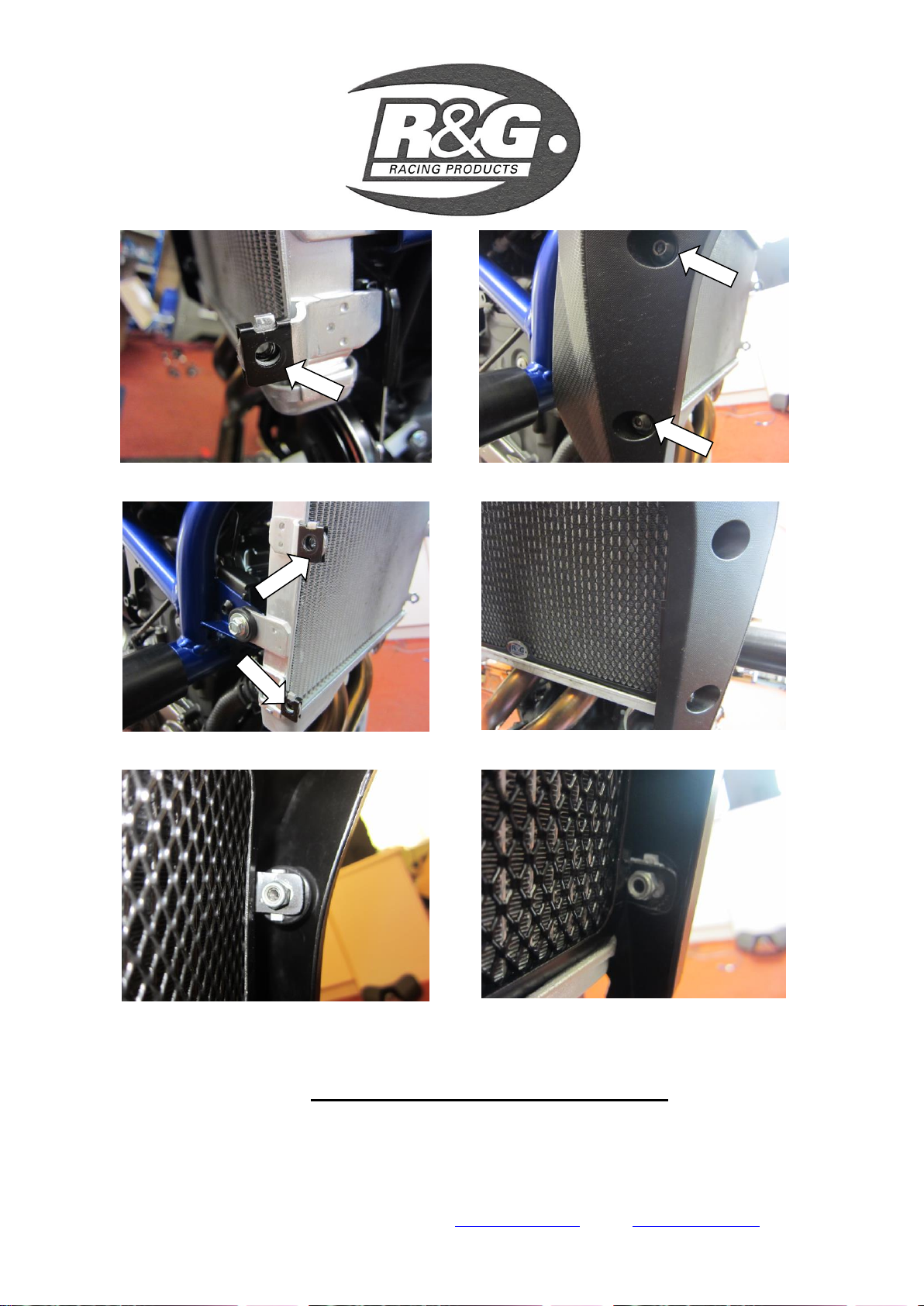

Picture 3

Picture 4

Picture 5

Picture 6

Picture 7

Picture 8

TOOLS REQUIRED

5mm Allen Key.

10mm Spanner.

RAD0171

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

FITTING INSTRUCTIONS FOR MT-07 2014-

To fit the radiator guard to the bike cut the foam strip provided into 10mm wide pieces and

stick them to the back of the radiator guard frame, so that they sit between the radiator guard

and the radiator.

Remove the two bolts arrowed in picture 1 and remove the side cowling from the left hand

side of the motorcycle.

Remove the two ‘J’ clips arrowed in pictures 2 and 3.

Remove the two bolts arrowed in picture 4 and remove the side cowling from the right hand

side of the motorcycle.

Remove the two ‘J’ clips arrowed in picture 5.

Offer the radiator guard into position as shown in picture 6.

While holding the radiator guard in position, offer the left hand side cowling into position and

secure using the original bolts with the washers and nuts from the kit as shown in pictures 7

and 8.

Repeat the above point for the right hand side.

FITTING INSTRUCTIONS FOR TRACER 700 2016-

To fit the radiator guard to the bike cut the foam strip provided into 10mm wide pieces and

stick them to the back of the radiator guard frame, so that they sit between the radiator guard

and the radiator when fitted.

Remove the two push rivets arrowed in picture 9 and remove the infill panel from the left

hand side of the radiator.

Remove the two push rivets arrowed in picture 10 and remove the infill panel from the right

hand side of the radiator.

Offer the radiator guard into position as shown in picture 6.

While holding the radiator guard in position, offer the left hand side infill panel into position

as original and secure using the original push rivets (please ensure the rivets are located

through the mounting holes in the radiator guard).

Offer the right hand side infill panel into position as original and secure using the original

push rivets (please ensure the rivets are located through the mounting holes in the radiator

guard).

Picture 9 Picture 10

RAD0171

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

ISSUE 3 04/08/2016 (NSY)

CONSUMER NOTICE

The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do

not diminish their performance or visual appeal and supplying them in such state shall conform to the order. The Buyer acknowledges no

representation or warranty (other than as to title) has been given or will apply to the Products other than those in R&G’s order or confirmation and

the Buyer confirms it has chosen the Products as being of merchantable quality and suitable for its particular purposes. Where R&G fits the

Products or undertakes other services it shall exercise reasonable skill and care and rectify any fault free of charge unless the workmanship has been

disturbed. The Buyer is responsible for ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any

defective Products R&G shall at its option either supply a replacement or refund the purchase money but shall not be liable if the Products have

been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good engineering practice or if

the defect arises from accident or neglect.

Other than identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or

consequential loss and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned.

These terms do not affect the Buyer’s statutory rights.

R&G RACING RETURNS POLICY (NON-FAULTY GOODS)

Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased

direct from us (customer must prove if necessary). Otherwise to be returned to original vendor. Goods must be in re-sellable condition, in the

opinion of R&G Racing. All returns are subject to a 25% restocking and handling fee (25% of the gross value exc. P&P –at the prevailing price at

time of purchase). The customer must pay any and all carriage charges. No returns of discontinued products, unless within 14 days of purchase.

This policy does not affect your statutory rights and does not refer to faulty goods.

RAD0171

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

INSTRUCTIONS DE MONTAGE POUR RAD0171 Grille de protection

radiateur

YAMAHA MT-07 2014-/TRACER 700 2016-

Le kit doit contenir :

1x Grille de protection radiateur (RAD0171BK)

4x M6 Ecrous Nyloc

4x M6 Rondelles.

2x 100mm Longueurs de mousse autocollante.

RAD0171

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

Photo 1

Photo 2

Photo 3

Photo 4

Photo 5

Photo 6

Photo 7

Photo 8

Outils requis

Clé Allen 5mm.

Clé à molette 10mm.

RAD0171

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

Instructions de montage:

Couper la mousse autocollante en bandeaux de 10mm de large et collez-les au bas

du cadre de support protection radiateur, de façon à ce qu’ils se retrouvent entre la

grille de protection et le radiateur.

Enlever les 2 vis (photo 1) et enlever le capot latéral du coté gauche de la moto.

Enlever les 2 clips ‘J’ fléchés sur les photos 2 et 3.

Enlever les 2 boulons fléchés sur la photo 4 et enlever le capot latéral du coté droit

de la moto.

Enlever les 2 clips ‘J’ fléchés sur la photo 5.

Mettre la grille de protection radiateur en position (photo 6).

Tout en tenant la grille en position, mettre le capot latéral gauche en position et

fixer en utilisant les vis d’origine avec les rondelles et écrous du kit (photos 7 et 8).

Répéter le point ci dessus pour l’installation du coté droit.

Instructions de montage : Tracer 700 2016-

Couper la mousse autocollante en bandeaux de 10mm de large et collez-les au bas

du cadre de support protection radiateur, de façon à ce qu’ils se retrouvent entre la

grille de protection et le radiateur.

Enlever les 2 rivets indiqués sur la photo 9 puis enlever le panneau interne du coté

gauche du radiateur.

Enlever les 2 rivets indiqués sur la photo 10 et enlever le panneau interne du coté

droit du radiateur.

Monter la grille de radiateur en position, voir photo 6.

Tout en tenant la grille de protection radiateur en position, monter le panneau

interne du coté gauche dans sa position d’origine puis fixer les rivets d’origine

(Veiller à ce que les rivets soient correctement placés dans les trous de fixation de la

grille de protection radiateur).

Monter le panneau interne du coté droit comme à l’origine puis fixer à l’aide des

rivets d’origine (Veiller à ce que les rivets soient correctement placés dans les trous

de fixation de la grille de protection radiateur).

Photo 9 Photo 10
