Raven SmarTrax MD Bedienungsanleitung

John Deere 7X00/7X10

SmarTrax™ MD Installation Manual

P/N 016-5030-038 Rev A 06/15 E21956

While every effort has been made to ensure the accuracy of this document,

Raven Industries assumes no responsibility for omissions and errors. Nor is any

liability assumed for damages resulting from the use of information contained

herein.

Raven Industries shall not be responsible or liable for incidental or consequential

damages or a loss of anticipated benefits or profits, work stoppage or loss, or

impairment of data arising out of the use, or inability to use, this system or any of

its components. Raven Industries shall not be held responsible for any

modifications or repairs made outside our facilities, nor damages resulting from

inadequate maintenance of this system.

As with all wireless and satellite signals, several factors may affect the availability

and accuracy of wireless and satellite navigation and correction services (e.g.

GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the

accuracy, integrity, continuity, or availability of these services and cannot

guarantee the ability to use Raven systems, or products used as components of

systems, which rely upon the reception of these signals or availability of these

services. Raven Industries accepts no responsibility for the use of any of these

signals or services for other than the stated purpose.

Disclaimer

©Raven Industries, Inc. 2014

Table of Contents

Manual No. 016-5030-038 Rev. A i

Chapter 1 Important Safety Information................................................. 1

Electrical Safety ........................................................................................................................ 2

Chapter 2 Introduction............................................................................. 3

Preparing for Installation ........................................................................................................... 4

Recommendations .............................................................................................................. 4

Point of Reference ............................................................................................................... 4

Updates ..................................................................................................................................... 4

Kit Contents ............................................................................................................................... 5

Chapter 3 Mechanical Drive Installation ................................................ 9

Disassemble the Mechanical Drive Spline Assembly ................................................................ 9

Remove the Steering Wheel ..................................................................................................... 9

Install the Spline and Ring Gear Assemblies .......................................................................... 12

Reinstall the Steering Wheel ................................................................................................... 14

Install the Anti-Rotation Brackets ............................................................................................ 16

Install the Mechanical Drive ....................................................................................................17

Chapter 4 Node and Wiring Installation ............................................... 21

Install the SmarTrax MD Node ................................................................................................ 21

Node Mounting Locations .................................................................................................. 21

Mount the SmarTrax MD Node .......................................................................................... 22

Install the Foot Switch ............................................................................................................. 25

Install the Node Harness ......................................................................................................... 25

Install the Chassis Cable - SmarTrax MD-Only Systems (If Applicable) ................................. 26

Connect SmarTrax MD to an Existing Chassis Cable (If Applicable) ...................................... 27

Table of Contents

ii John Deere 7X00/7X10 SmarTrax™ MD Installation Manual

CHAPTER

Manual No. 016-5030-038 Rev. A 1

C hapt er 1

Important Safety

Information

Read this manual and the operation and safety instructions included with your implement and/or controller

carefully before installing the SmarTrax™ MD system.

•Follow all safety information presented within this manual.

•If you require assistance with any portion of the installation or service of your Raven equipment, contact

your local Raven dealer for support.

•Follow all safety labels affixed to the SmarTrax MD system components. Be sure to keep safety labels in

good condition and replace any missing or damaged labels. To obtain replacements for missing or damaged

safety labels, contact your local Raven dealer.

When operating the machine after installing SmarTrax MD, observe the following safety measures:

•Be alert and aware of surroundings.

•Do not operate SmarTrax MD or any agricultural equipment while under the influence of alcohol or an illegal

substance.

•Remain in the operator’s position in the machine at all times when SmarTrax MD is engaged.

•Disable SmarTrax MD when exiting the operator’s seat and machine.

•Do not drive the machine with SmarTrax MD enabled on any public road.

•Determine and remain a safe working distance from other individuals. The operator is responsible for

disabling SmarTrax MD when the safe working distance has diminished.

•Ensure SmarTrax MD is disabled prior to starting any maintenance work on SmarTrax MD or the machine.

•The machine must remain stationary and switched off during SmarTrax MD installation or maintenance.

NOTICE

WARNING

Chapter 1

2John Deere 7X00/7X10 SmarTrax™ MD Installation Manual

Electrical Safety

•Always verify that the power leads are connected to the correct polarity as marked. Reversing the power

leads could cause severe damage to the equipment.

•Ensure that the power cable is the last cable to be connected.

CAUTION

CHAPTER

Manual No. 016-5030-038 Rev. A 3

C hapt er 2

Introduction

Congratulations on your purchase of the SmarTrax™ MD system!

SmarTrax MD-assisted steering takes the stress out of driving and makes it quick and easy for you to improve

your operating efficiency and performance. SmarTrax MD is compatible with Cruizer II™ and Cruizer II™ RTK,

Envizio Pro™, Envizio Pro®, Envizio Pro XL™, and Viper Pro™ systems.

The following instructions are designed to assist with the proper installation of the SmarTrax MD system. Refer

to the SmarTrax MD Calibration & Operation Manual (P/N 016-5030-020) for assistance with calibrating the

software and using the SmarTrax MD system.

This manual applies to the following machines:

MAKE: John Deere

MODEL: 7X00 Series - 7200, 7400, 7600, 7700, and 7800

7X10 Series - 7210, 7410, 7510, 7610, 7710, and 7810

FIGURE 1. John Deere 7400

Chapter 2

4John Deere 7X00/7X10 SmarTrax™ MD Installation Manual

Preparing for Installation

Before installing the SmarTrax MD system, park the machine where the ground is level, clean, and dry. Turn off

the machine and leave it turned off for the duration of the installation process.

During the installation process, follow good safety practices. Be sure to carefully read the instructions in this

manual as you complete the installation process.

Recommendations

Raven Industries recommends the following best practices when installing or operating the SmarTrax MD

system for the first time, at the start of the season, or when moving the SmarTrax MD system to another

machine:

•Use part numbers to identify the parts.

•Do not remove the plastic wrap from a part until it is necessary for installation.

•Do not remove plastic caps from a part until it is necessary for installation.

Point of Reference

The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

Updates

Software and manual updates are available on the Raven Applied Technology website:

http://www.ravenhelp.com

At Raven Industries, we strive to make your experience with our products as rewarding as

possible. One way to improve this experience is to provide us with feedback on this manual.

Your feedback will help shape the future of our product documentation and the overall service

we provide. We appreciate the opportunity to see ourselves as our customers see us and are

eager to gather ideas on how we have been helping or how we can do better.

To serve you best, please send an email with the following information to

[email protected]

-John Deere 7X00/7X10 SmarTrax™ MD Installation Manual

-Manual No. 016-5030-038 Rev. A

-Any comments or feedback (include chapter or page numbers if applicable).

-Let us know how long have you been using this or other Raven products.

We will not share your email or any information you provide with anyone else. Your feedback

is valued and extremely important to us.

Thank you for your time.

Manual No. 016-5030-038 Rev. A 5

Introduction

Kit Contents

This section contains a list of the components that are included in the SmarTrax MD kit. Before beginning the

system installation, compare the items in the kit with the components on this list. If you have questions about

the kit, contact your Raven dealer.

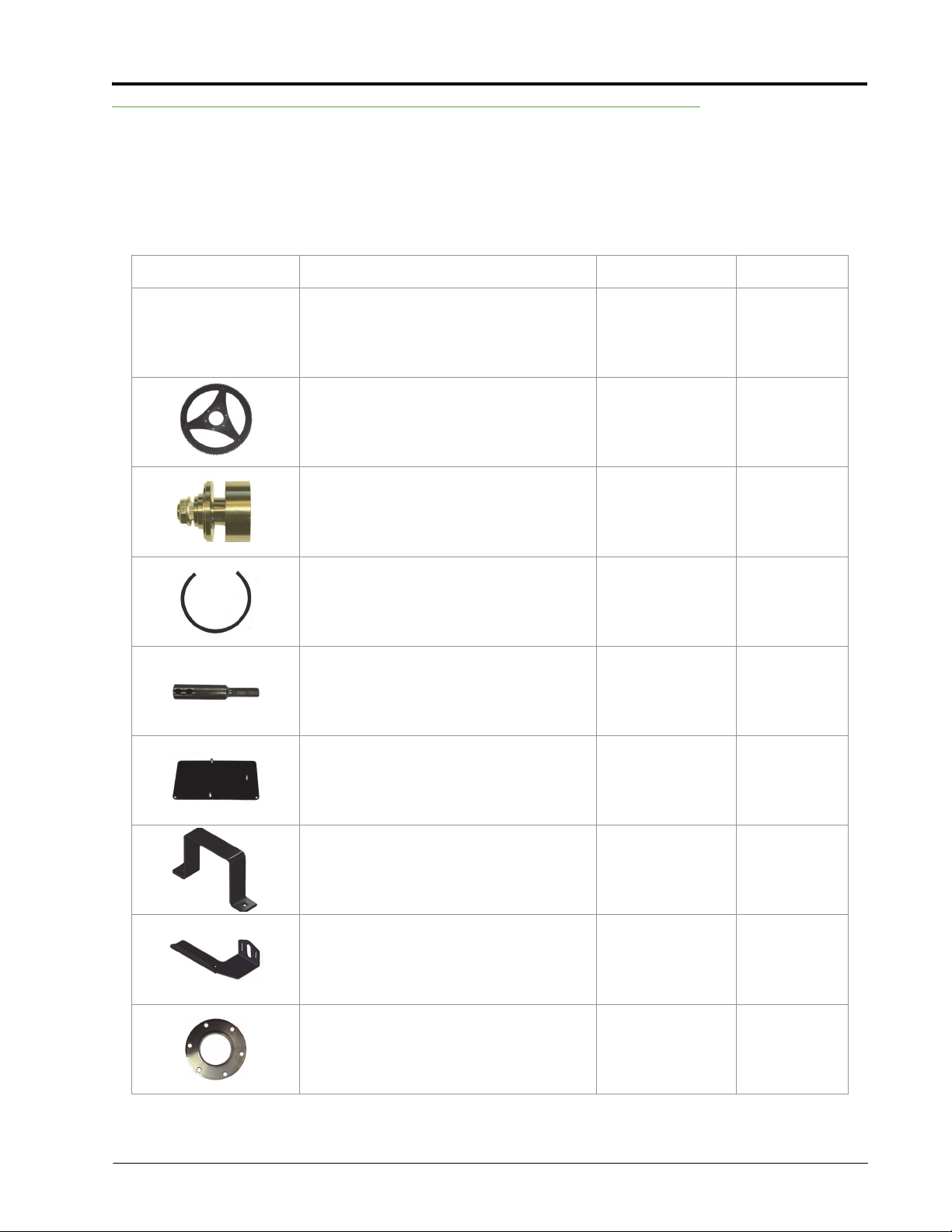

TABLE 1. SmarTrax MD Installation Kit (P/N 117-5030-038)

Picture Item Description Part Number Qty.

Not Pictured Manual - John Deere 7X00/7X10 SmarTrax

MD Installation 016-5030-038 1

Assembly - Ring Gear 063-4001-011 1

Assembly - Spline Adapter 063-4001-024 1

Trim - Ring Gear Protective 019-0159-590 1

Assembly - Telescope Adapter 063-4001-023 1

Bracket - Node Mounting 107-0171-946 1

Bracket - U-Shaped Anti-Rotation 107-0172-294 1

Bracket - L-Shaped Anti-Rotation 107-4001-044 1

Spacer - 1/2” Mechanical Drive 107-4001-027 1

Chapter 2

6John Deere 7X00/7X10 SmarTrax™ MD Installation Manual

Bearing - 1/2” Plastic Flanged 325-0000-036 1

Screw - #10-24 x 2” Black Oxide 311-0068-198 6

Bolt - 1/4”-20 x 1” Hex 311-0050-105 3

Bolt - 1/4”-20 x 1” Carriage 311-0069-004 2

Bolt - #10-24 x 3/4” UNC Zinc Carriage 311-0069-082 2

Nut - 3/8”-16 Zinc Flanged Lock 312-1001-167 3

Nut - #10-24 Wing 312-3000-013 2

Nut - 1/4”-20 Nylon Insert Lock 312-4000-057 2

TABLE 2. SmarTrax MD Controller Kit (P/N 117-5030-020)

Picture Item Description Part Number Qty.

Not Pictured Manual - SmarTrax MD Calibration &

Operation 016-5030-020 1

Not Pictured Sheet - Field Computer Minimum Software

Installation 016-5030-023 1

TABLE 1. SmarTrax MD Installation Kit (P/N 117-5030-038)

Picture Item Description Part Number Qty.
