Raven SmarTrax Bedienungsanleitung

Case IH Patriot 3230/3320/3330 -

Steering Ready SmarTrax™

Installation Manual

P/N 016-5032-013 Rev C 09/15 E22883

While every effort has been made to ensure the accuracy of this document,

Raven Industries assumes no responsibility for omissions and errors. Nor is any

liability assumed for damages resulting from the use of information contained

herein.

Raven Industries shall not be responsible or liable for incidental or consequential

damages or a loss of anticipated benefits or profits, work stoppage or loss, or

impairment of data arising out of the use, or inability to use, this system or any of

its components. Raven Industries shall not be held responsible for any

modifications or repairs made outside our facilities, nor damages resulting from

inadequate maintenance of this system.

As with all wireless and satellite signals, several factors may affect the availability

and accuracy of wireless and satellite navigation and correction services (e.g.

GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the

accuracy, integrity, continuity, or availability of these services and cannot

guarantee the ability to use Raven systems, or products used as components of

systems, which rely upon the reception of these signals or availability of these

services. Raven Industries accepts no responsibility for the use of any of these

signals or services for other than the stated purpose.

Disclaimer

©Raven Industries, Inc. 2012, 2014

Table of Contents

Manual No. 016-5032-013 Rev. C i

Chapter 1 Important Safety Information................................................. 1

Hydraulic Safety ........................................................................................................................ 2

Electrical Safety ........................................................................................................................ 2

Chapter 2 Introduction............................................................................. 3

Preparing for Installation ........................................................................................................... 3

Recommendations .............................................................................................................. 4

Point of Reference ............................................................................................................... 4

Updates ..................................................................................................................................... 4

Kit Contents ............................................................................................................................... 5

Case IH Patriot 3230/3320/3330 - Steering Ready without Phoenix 200 Antenna ......... 5

Case IH Patriot 3230/3320/3330 - Steering Ready with Phoenix 200 Antenna ............. 7

Chapter 3 Cab Component Installation .................................................. 9

Install the Case IH Interface Box ...............................................................................................9

Install the SmarTrax Node .......................................................................................................11

Check the Machine’s Flow Switch Configuration .................................................................... 14

Install the Phoenix 200 Antenna (If Applicable) ....................................................................... 15

Enable Switch ......................................................................................................................... 15

Calibrate the SmarTrax System .............................................................................................. 16

Table of Contents

ii Case IH Patriot 3230/3320/3330 - Steering Ready SmarTrax™ Installation Manual

CHAPTER

Manual No. 016-5032-013 Rev. C 1

C hapt er 1

Important Safety

Information

Read this manual and the operation and safety instructions included with your implement and/or controller

carefully before installing the SmarTrax™ system.

•Follow all safety information presented within this manual.

•If you require assistance with any portion of the installation or service of your Raven equipment, contact

your local Raven dealer for support.

•Follow all safety labels affixed to the SmarTrax system components. Be sure to keep safety labels in good

condition and replace any missing or damaged labels. To obtain replacements for missing or damaged

safety labels, contact your local Raven dealer.

When operating the machine after installing SmarTrax, observe the following safety measures:

•Be alert and aware of surroundings.

•Do not operate SmarTrax or any agricultural equipment while under the influence of alcohol or an illegal

substance.

•Remain in the operator’s position in the machine at all times when SmarTrax is engaged.

•Disable SmarTrax when exiting the operator’s seat and machine.

•Do not drive the machine with SmarTrax enabled on any public road.

•Determine and remain a safe working distance from other individuals. The operator is responsible for

disabling SmarTrax when the safe working distance has diminished.

•Ensure SmarTrax is disabled prior to starting any maintenance work on SmarTrax or the machine.

•When starting the machine for the first time after installing SmarTrax, be sure that all persons stand clear in

case a hose has not been properly tightened.

•The machine must remain stationary and switched off during SmarTrax installation or maintenance.

NOTICE

WARNING

Chapter 1

2 Case IH Patriot 3230/3320/3330 - Steering Ready SmarTrax™ Installation Manual

Hydraulic Safety

•Raven Industries recommends that appropriate protective equipment be worn at all times when working on

the hydraulic system.

•Never attempt to open or work on a hydraulic system with the equipment running. Care should always be

taken when opening a system that has been previously pressurized.

•When disconnecting the hydraulic hoses or purging is required, be aware that the hydraulic fluid may be

extremely hot and under high pressure. Caution must be exercised.

•Any work performed on the hydraulic system must be done in accordance with the machine manufacturer’s

approved maintenance instructions.

•When installing SmarTrax hydraulics or performing diagnostics, maintenance, or routine service, ensure

that precautions are taken to prevent any foreign material or contaminants from being introduced into the

machine’s hydraulic system. Objects or materials that are able to bypass the machine’s hydraulic filtration

system will reduce performance and possibly damage the SmarTrax valve.

Electrical Safety

•Always verify that the power leads are connected to the correct polarity as marked. Reversing the power

leads could cause severe damage to the equipment.

•Ensure that the power cable is the last cable to be connected.

CAUTION

CHAPTER

Manual No. 016-5032-013 Rev. C 3

C hapt er 2

Introduction

Congratulations on your purchase of the SmarTrax system! This system is designed to provide cutting-edge,

hands-free steering of the machine via Global Positioning System (GPS) coordinates.

This manual applies to the following machines:

MAKE: Case IH

MODEL: Patriot 3230, 3320, and 3330 - Steering Ready

FIGURE 1. Case IH Patriot 3230

Preparing for Installation

Before installing the SmarTrax system, park the machine where the ground is level, clean, and dry. Turn off the

machine and leave it turned off for the duration of the installation process. Bleed pressure from the hydraulic

system by loosening the hydraulic fittings slowly, where applicable.

During the installation process, follow good safety practices. Be sure to carefully read the instructions in this

manual as you complete the installation process.

Chapter 2

4 Case IH Patriot 3230/3320/3330 - Steering Ready SmarTrax™ Installation Manual

Recommendations

Raven Industries recommends the following best practices when installing or operating the SmarTrax system

for the first time, at the start of the season, or when moving the SmarTrax system to another machine:

•Install the GPS antenna in the recommended location. Refer to the following table for the machine-specific

antenna mounting location.

Note: If your machine is not listed, install the antenna on the front-center of the cab.

Note: The units in the table below are measured in inches. To convert the values to centimeters, multiply

the listed value by 2.54.

•Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the

machine’s hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic

hoses, etc.).

•Ensure the machine’s hydraulic system is using fresh oil and debris is flushed from the hydraulic hoses,

valves, and filters.

Raven Industries recommends the following best practices when installing the SmarTrax system:

•Use part numbers to identify the parts.

•Do not remove the plastic wrap from a part until it is necessary for installation.

•Do not remove plastic caps from a part until it is necessary for installation.

Point of Reference

The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

Updates

Software and manual updates are available on the Raven Applied Technology website:

http://www.ravenhelp.com

Machine Preset Antenna X Position

(left to right)

Antenna Y Position

(front to back in

inches)

Antenna Z Position

(ground to top of

antenna in inches)

CaseIH SPX 3320/3330 Centered 174 144

CaseIH SPX 33/44x0 120’ Centered 174 144

Manual No. 016-5032-013 Rev. C 5

Introduction

Kit Contents

This section contains a list of the components that are included in the SmarTrax kit. Before beginning the

SmarTrax installation, compare the items in the kit with the components on this list. If you have questions about

the kit, contact your Raven dealer.

Case IH Patriot 3230/3320/3330 - Steering Ready without

Phoenix 200 Antenna

At Raven Industries, we strive to make your experience with our products as rewarding as

possible. One way to improve this experience is to provide us with feedback on this manual.

Your feedback will help shape the future of our product documentation and the overall service

we provide. We appreciate the opportunity to see ourselves as our customers see us and are

eager to gather ideas on how we have been helping or how we can do better.

To serve you best, please send an email with the following information to

[email protected]

-Case IH Patriot 3230/3320/3330 - Steering Ready SmarTrax™ Installation Manual

-Manual No. 016-5032-013 Rev. C

-Any comments or feedback (include chapter or page numbers if applicable).

-Let us know how long have you been using this or other Raven products.

We will not share your email or any information you provide with anyone else. Your feedback

is valued and extremely important to us.

Thank you for your time.

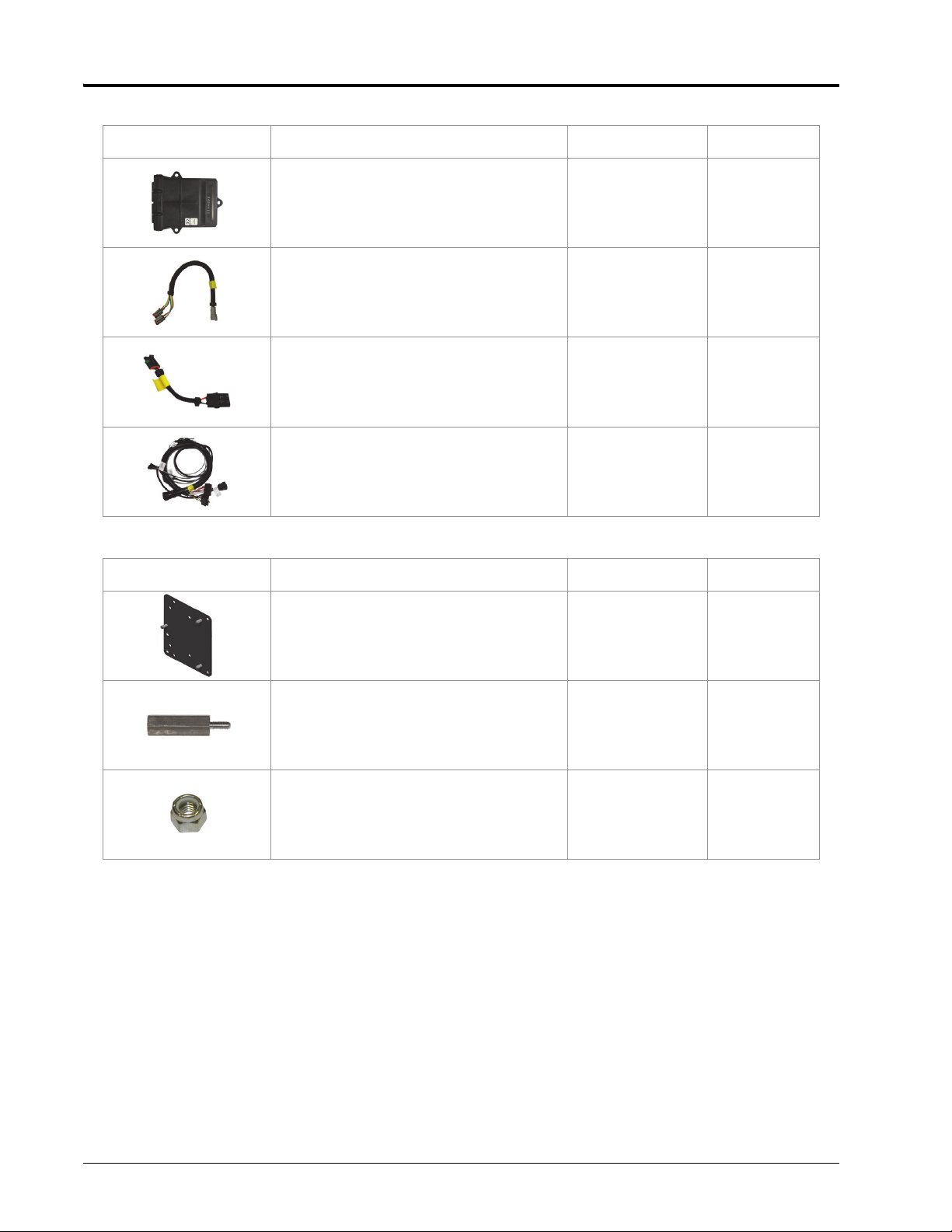

TABLE 1. SmarTrax Installation Kit (P/N 117-5032-013)

Picture Item Description Part Number Qty.

Not Pictured

Manual - Case IH Patriot 3230/3320/3330 -

Steering Ready SmarTrax Installation

Manual

016-5032-013 1

Not Pictured Manual - SmarTrax and SmartSteer

Calibration & Operation 016-0171-277 1

Box - Case IH Interface 063-0173-038 1

Chapter 2

6 Case IH Patriot 3230/3320/3330 - Steering Ready SmarTrax™ Installation Manual

Node - SmarTrax RTK 063-0173-228 1

Cable - 18” CAN Tee Adapter 115-0172-068 1

Cable - 6” Sense Adapter 115-0172-218 1

Cable - Case IH Interface Box to SmarTrax 115-4001-032 1

TABLE 2. Node Installation Kit (P/N 117-0197-078)

Picture Item Description Part Number Qty.

Bracket - Node Mounting 107-0172-084 1

Standoff - M6 x 40 mm M/F,13 mm Hex 305-8000-008 2

Nut - 3/8”-16 UNC-3B Nylon Insert Lock 312-4000-061 3

TABLE 1. SmarTrax Installation Kit (P/N 117-5032-013)

Picture Item Description Part Number Qty.
