Razer ELECTRA V2 USB Gebrauchs- und Pflegehandbuch
RAZER RAZER ELECTRA V2 USB
MASTER GUIDE
F OR G AME R S. B Y G A M ER S .™
1
Great audio is key to effective gaming. The Razer Electra V2 USB is your first
step to winning with the Razer advantage. Designed for all-around balanced
sound, the Razer Electra V2 USB is equipped with custom-tuned 40 mm
audio drivers that deliver well-controlled, punchy bass and clear crisp highs.
Take your gaming to the next level with virtual 7.1 surround sound for 360-
degree immersion.
Outfitted with a unibody aluminum frame and plush leatherette ear
cushions, the Razer Electra V2 USB is built to ensure comfort through the
most intense of battles.
F OR G AM E R S. B Y G A M E RS .™
2
CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS ..................................................................................3
2. REGISTRATION / TECHNICAL SUPPORT..................................................................................................4
3. TECHNICAL SPECIFICATIONS ..................................................................................................................5
4. DEVICE LAYOUT......................................................................................................................................6
5. INSTALLING RAZER SYNAPSE FOR YOUR RAZER ELECTRA V2 USB.........................................................7
6. USING YOUR RAZER ELECTRA V2 USB....................................................................................................8
7. CONFIGURING YOUR RAZER ELECTRA V2 USB.....................................................................................13
8. SAFETY AND MAINTENANCE................................................................................................................24
9. LEGALESE..............................................................................................................................................25
F OR G AM E R S. B Y G A M E RS .™
3
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
▪Razer Electra V2 USB digital gaming and music headset
▪Removable microphone
▪Important Product Information Guide
SYSTEM REQUIREMENTS
PRODUCT REQUIREMENTS
▪PC/Mac/PS4 with a free USB port
RAZER SYNAPSE REQUIREMENTS
▪Windows®7/Mac OS X 10.9 (or higher)
▪Internet connection
▪100 MB of free hard disk space
F OR G AM E R S. B Y G A M E RS .™
4
2. REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Register your product online at razer-id.razerzone.com/warranty to get real-time information on your
product’s warranty status.
If you haven’t registered for a Razer ID yet, register now at razer-id.razerzone.com to get a wide range
of Razer benefits.
TECHNICAL SUPPORT
What you’ll get:
▪1 years limited manufacturer’s warranty.
▪Free online technical support at razersupport.com.
Your product’s serial number is located
on the bottom of its packaging box.
F OR G AM E R S. B Y G A M E RS .™
5
3. TECHNICAL SPECIFICATIONS
HEADPHONES
▪Frequency response: 20 Hz –20 kHz
▪Impedance: 32 ± 15% Ω
▪Sensitivity: 115 ± 3 dB
▪Max input power:50 mW
▪Drivers: 40 mm with Neodymium magnets
▪Cable length:1.3 m / 4.27 ft.
▪Approximate weight: 294 g / 0.65 lbs
MICROPHONE (REMOVEABLE BOOM MIC)
▪Frequency response: 100 Hz –10 kHz
▪Signal-to-noise ratio: >= 50 dB
▪Sensitivity (@1 kHz): -41 ± 3 dB
▪Pick-up pattern: Unidirectional
CONTROLS ON HEADSET
▪Volume up / down, mic mute
F OR G AM E R S. B Y G A M E RS .™
6

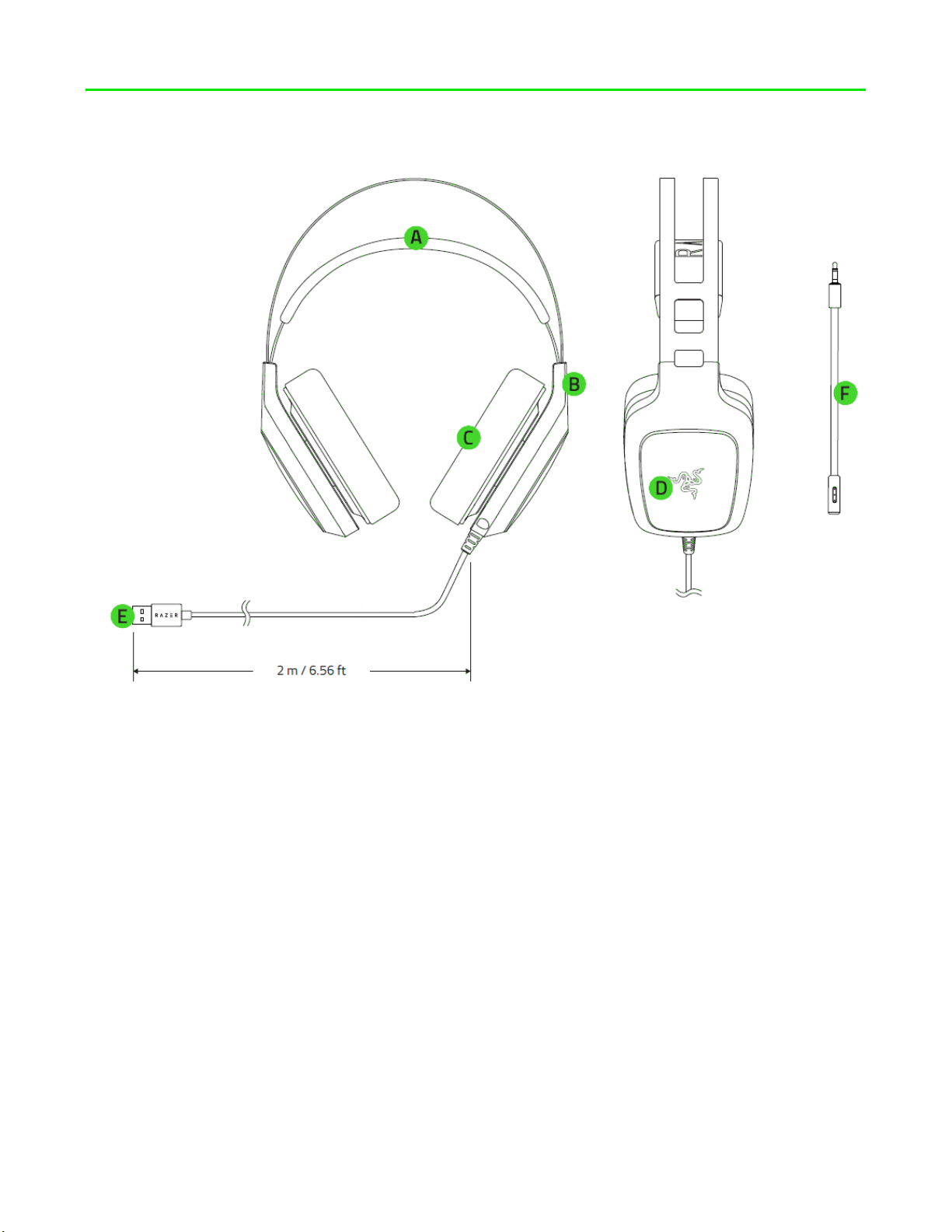

4. DEVICE LAYOUT
A. Adjustable padded headband
B. Circumaural ear cup design
C. Leatherette ear cushions
D. Backlit Razer logo
E. USB connector
F. Removable microphone
F OR G AM E R S. B Y G A M E RS .™
7
5. INSTALLING RAZER SYNAPSE FOR YOUR RAZER ELECTRA V2 USB
Step 1: Connect your Razer device to the USB port of your computer.
Step 2: Install Razer Synapse when prompted* or download the installer from
razerzone.com/synapse.
Step 3: Create your Razer ID or log into Razer Synapse with an existing account.
*Applicable for Windows 8 or later.
Note: The Razer Electra V2 USB headset works out of the box as a stereo headset, please install Razer
Synapse to set up virtual 7.1 surround sound.
F OR G AM E R S. B Y G A M E RS .™
8
6. USING YOUR RAZER ELECTRA V2 USB
SETTING THE DEFAULT PLAYBACK DEVICE
If you are using the Razer Kraken 7.1 Chroma headset for the first time, you may be required to set up
the device as your system’s default playback device.
FOR WINDOWS USERS
Step 1: Open your Sound settings from Control Panel > Hardware and Sound > Manage audio
devices. You can also right-click your sound icon on the system tray and select Playback devices.
Step 2: In the Playback tab, select Razer Kraken 7.1 Chroma from the list and click the Set Default
button.
F OR G AM E R S. B Y G A M E RS .™
9
Step 3: In the Recording tab, select Razer Kraken 7.1 Chroma from the list and click the Set Default
button.
FOR MAC USERS
Step 1: Open your Sound settings from System Preferences > Sound.
Step 2: In the Output tab, select Razer Kraken 7.1 Chroma from the list.
Step 3: In the Input tab, select Razer Kraken 7.1 Chroma from the list.
