Razer RZ04-0346 Bedienungsanleitung
.
GAMING HEADSET (RZ04-0346), USB
WIRELESS TRANSCEIVER (RC30-0346)
IMPORTANT PRODUCT INFORMATION GUIDE
FOR GAMERS. BY GAMERS.™
1
WHAT’S INSIDE / WHAT’S NEEDED
WHAT’S INSIDE
GAMING HEADSET (RZ04-0346)
A. Adjustable padded headband
B. Backlit Razer logo Powered by
Razer ChromaTM RGB
C. Hybrid fabric and leatherette
memory foam cushions
D. HyperSense button
E. Status indicator
F. Microphone jack
G. Charging port
H. 3.5 mm audio + mic jack
I. Power button
J. Volume control wheel
K. Mic mute button
USB WIRELESS TRANSCEIVER (RC30-0346)
FOR GAMERS. BY GAMERS.™
2
Type-C to Type-A charging cable
3.5 mm combo cable
Important Product Information Guide
WHAT’S NEEDED
[Wireless] USB-A port
[Wired] 3.5 mm audio + mic combined jack
RAZER SYNAPSE REQUIREMENTS
Windows® 10 64-bit (or higher)
Internet connection for software installation
Compatible with PC / Mac / PS4 / PS5 / Switch and Xbox (wired).
FOR GAMERS. BY GAMERS.™
3
LET’S GET YOU COVERED
You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now
maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
Got a question? Ask the Razer Support Team at support.razer.com
Your product’s
serial number can
be found here.
FOR GAMERS. BY GAMERS.™
4
GETTING STARTED
CHARGING YOUR HEADSET
Connect the Gaming Headset and USB Wireless Transceiver to a powered USB port using the
charging cable. For best results, please fully charge the headset before using it for the first time. A
depleted headset will fully charge in about 3hours.
CONNECTING YOUR HEADSET
A. TO YOUR PC
1. Plug the wireless USB dongle to any of the USB-A ports on your PC.
Indicator
Battery level
Charging
Fully charged
FOR GAMERS. BY GAMERS.™
5
2. Press and hold the power button until the status indicator is lit, or until you hear a tone.
3. Wait until the status indicator briefly becomes static green indicating that the headset is
now connected to the wireless USB dongle.
4. On your PC, right-click on the sound icon on the system tray, and then select Open Sound
settings.
Indicator
Status
Connected
Press and hold
FOR GAMERS. BY GAMERS.™
6
5. Under Sound, set the Gaming Headset and USB Wireless Transceiver as the default Output
and Input device.
6. Use the Razer Synapse* app to customize your headset’s lighting and other features for an
immersive gaming experience that’s truly yours.
*Install Razer Synapse when prompted or download the installer from razer.com/synapse.
B. TO OTHER DEVICES VIA USB-A PORT
Plug the wireless USB dongle to your device and make sure the Gaming Headset and USB Wireless
Transceiver is the default input and output audio device.
FOR GAMERS. BY GAMERS.™
7

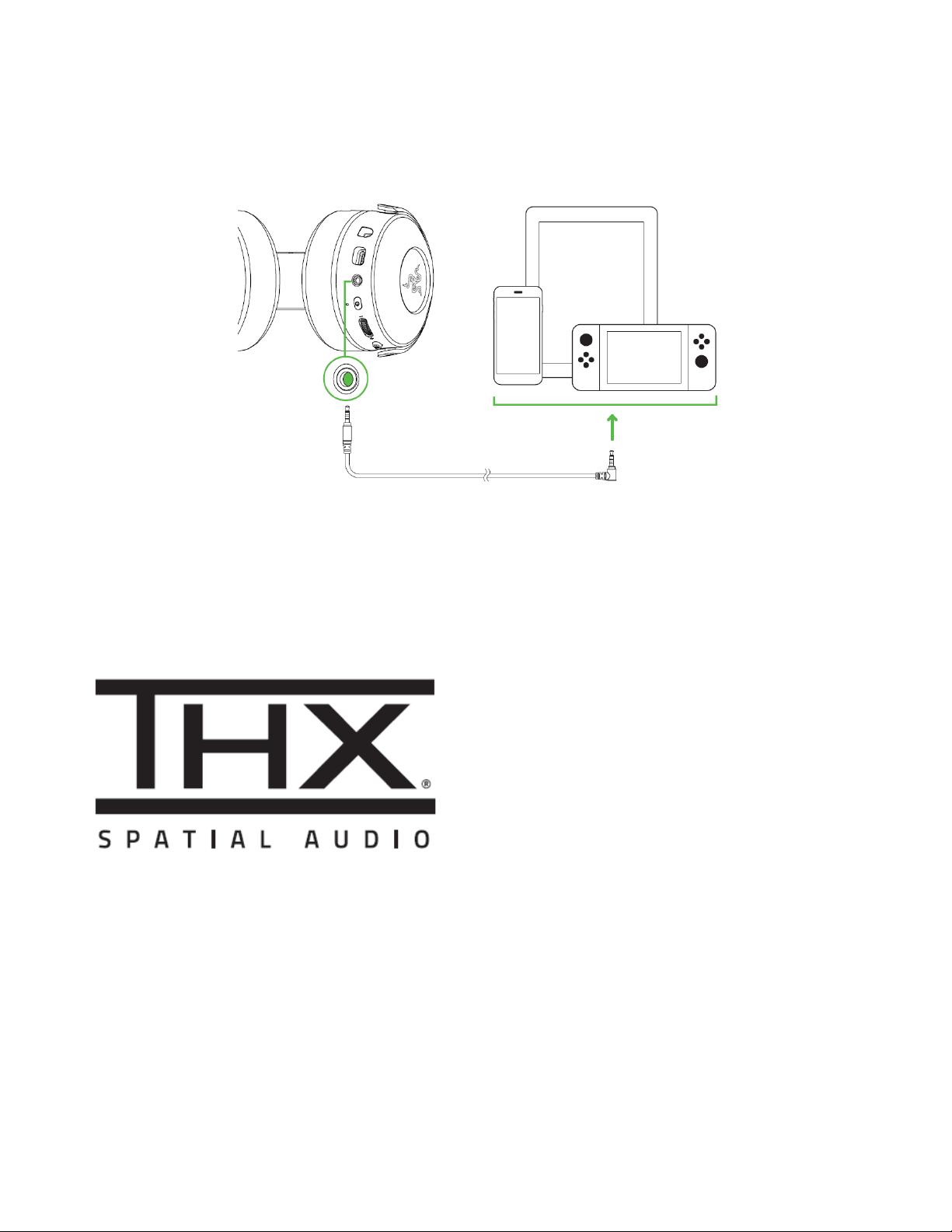

C. TO DEVICES VIA 3.5MM AUDIO + MIC JACK
If your device has a 3.5mm audio + mic combined jack, simply plug the 3.5mm combo cable from
your headset’s microphone jack to your device’s audio jack.
ACTIVATE THX SPATIAL AUDIO*
Unleash the full potential of the Gaming Headset and USB Wireless Transceiver by enabling 360°
positional audio for a natural and lifelike experience through Razer Synapse.
*Only available on Windows 10 64-bit.
FOR GAMERS. BY GAMERS.™
8
USING YOUR HEADSET
POWER BUTTON
Power on or off the headset by holding the Power button until the status indicator is on; and
holding the Power button again to turn off. Two distinct tones will help notify you that the headset
is powered on or off.
Other power button functions are available when the headset is powered on and connected to your
device. These functions operate based on your device’s current activity.
Single press Play/pause
Double press Skip track
Triple press Previous track
FOR GAMERS. BY GAMERS.™
9
BATTERY LEVEL
When unplugged and powered on, the status indicator will show the connection and battery status.
While in use, you’ll hear a tone when the headset needs to be recharged; during such time, the
indicator will continue showing the battery level until you charge the headset.
HYPERSENSE BUTTON
With Razer HyperSense enabled, your headset will produce vibrations that flow in the direction of
different sounds with varying intensities, making you hyper aware in your game. Simply press the
HyperSense button to cycle through Low intensity, Medium intensity, High intensity, and Disable
HyperSense. A distinct tone will be heard when cycling through its settings.
By default, this feature is enabled and set to Medium intensity.
Indicator
Battery Level
Low
Prompt
Tone
