Reed Instruments R9905 Bedienungsanleitung

Instruction

Manual

R9905

Data Logging

Indoor Air

Quality Meter

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Table of Contents

Introduction ................................................................................................ 3

Product Quality........................................................................................... 4

Safety ......................................................................................................... 4

Features...................................................................................................... 4

Included...................................................................................................... 5

Specications..........................................................................................5-6

Instrument Description............................................................................... 7

Display Description .................................................................................... 8

Operating Instructions...........................................................................9-16

Power ON/OFF...................................................................................... 9

Taking Measurements............................................................................ 9

Unit of Measurement Selection (°C/°F) ................................................. 9

Data Hold............................................................................................... 9

Min/Max and Average Readings.......................................................... 10

Backlight.............................................................................................. 11

Setup Mode......................................................................................... 11

Setting the Data Logging Sampling Rate .......................................11-12

Setting the Relative Humidity/Temperature Offset .............................. 12

Setting the CO2Offset......................................................................... 12

Setting Altitude Compensation ......................................................12-13

Set CO2Alarm Values (Hi/Lo).........................................................13-14

Setting the Auto-Power Off Time ........................................................ 14

Setting the Time and Date................................................................... 15

Data Logging ....................................................................................... 16

Upload Recorded Data to PC.............................................................. 16

Software Installation ............................................................................ 16

Clearing Stored Data ........................................................................... 16

continued...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Calibration Mode.................................................................................17-19

CO2Calibration...............................................................................17-18

Humidity/Temperature Calibration..................................................18-19

Calibrating Hi RH .......................................................................18-20

Calibrating Lo RH............................................................................ 18

Calibrating Hi Temp......................................................................... 19

Calibrating Lo Temp...................................................................19-20

Battery Replacement................................................................................ 20

Applications.............................................................................................. 20

Accessories and Replacement Parts ....................................................... 20

Appendix A – Recommended Guidelines................................................. 21

NIOSH Recommendations .................................................................. 21

ASHRAE Standard 62 to 1989: 1000ppm........................................... 21

Building Bulletin 101 (BB101): 1500ppm ............................................ 21

OSHA: 5000ppm ................................................................................. 21

Germany, Japan, Australia: 5000ppm.................................................. 21

Product Care ............................................................................................ 21

Product Warranty ..................................................................................... 22

Product Disposal and Recycling .............................................................. 22

Product Support....................................................................................... 22

Introduction

Thank you for purchasing your REED R9905 Data Logging Indoor Air

Quality Meter. Please read the following instructions carefully before using

your instrument. By following the steps outlined in this manual your meter

will provide years of reliable service.

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Product Quality

This product has been manufactured in an ISO9001 facility and has been

calibrated during the manufacturing process to meet stated product

specications. If a certicate of calibration is required please contact the

nearest authorized REED distributor or authorized Service Center. Please

note an additional fee for this service will apply.

Safety

• Never attempt to repair or modify your instrument. Dismantling your

product, other than for the purpose of replacing batteries, may cause

damage that will not be covered under the manufacturer's warranty.

Servicing should only be provided by an authorized service center.

• Avoid condensation on CO2sensor.

• Do not hold the meter in close proximity to your mouth as exhalation

affects CO2levels.

• Do not calibrate the meter in the air with unknown CO2concentration.

Features

• Triple LCD display simultaneously monitors carbon dioxide (CO2),

temperature and relative humidity

• Calculates time-weighted average (TWA) and short-term exposure

limit (STEL)

• Low-drift NDIR CO2sensor for stable and accurate readings

• Temperature and relative humidity measurements help determine

thermal comfort

• Easy-to-read backlit LCD display

• User adjustable audible alarm

• Data hold, Max/Min and Average functions

• Record up to 32,000 datapoints and keep track with internal time and

date stamp

• User selectable sampling rate from 1 to 60 mins

• Low battery indicator and auto shut-off

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Included

• USB Cable

• Hard Carrying Case

• Batteries

Specifications

Temperature

Measuring Range: -4 to 140°F (-20 to 60°C)

Accuracy: ±1.5°F (±0.8°C)

Resolution: 0.1°F/°C

Humidity

Measuring Range: 0 to 100% RH

Accuracy: 10 to 90% RH: ±3%

<10% & >90% RH: ±5%

Resolution: 0.1% RH

CO2(Carbon Dioxide)

Sensor Type: Nondispersive Infrared (NDIR)

Measuring Range: 0 to 30,000ppm

Accuracy: 0 to 5000ppm: ±(75ppm + 3% rdg.)

5001 to 30,000ppm: ±(150 ppm +5% rdg.)

Resolution: 1ppm

Warm-up Time: 20 seconds

Sampling Rate: 2 seconds

General Speciﬁcations

Display: LCD

Backlit Display: Yes

Data Hold: Yes

Min, Max, Avg Functions: Yes

CO2Short Term

Exposure Limit (STEL): Yes (15 minutes)

continued...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

CO2Time Weighted

Average (TWA): Yes (8 hours)

Datalogging Capabilities: Yes

Real-Time Clock and

Date Stamp: Yes

Selectable Sampling Rate: Yes (between 1s and 60m59s)

Internal Memory: Yes (32,000 datapoints)

Alarm: Yes (Low and High)

Auto Shut-off: Yes (adjustable)

Kick Stand: Yes

Low Battery Indicator: Yes

Power Supply: 9V battery

Battery Life: Approx. 10 hours (continuous use)

PC Connectivity: USB

Software OS Compatibility: Windows 7/8/10

Product Certications: CE

Operating Temperature: 32 to 122°F (0 to 50°C)

Storage Temperature: -4 to 140°F (-20 to 60°C)

Operating Humidity Range: 0 to 90%

Storage Humidity Range: 10 to 75%

Maximum Operating Altitude: 6561' (2000m)

Dimensions: 11.2 x 2.6 x 1.5" (284 x 65 x 39mm)

Weight: 10.7oz (304g)

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

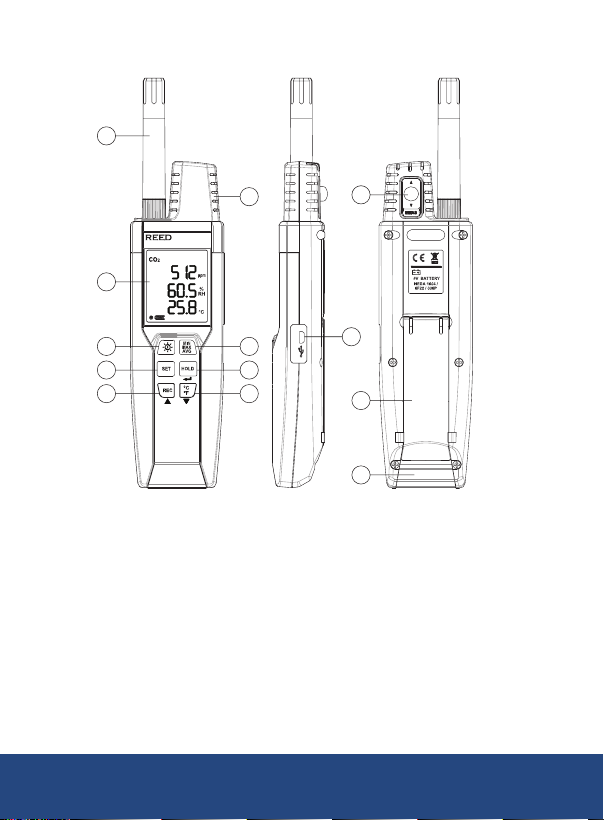

Instrument Description

R9905

Indoor Air Quality Meter

812

511

1. Temp/Humidity Probe

2. CO2Sensor

3. LCD Display

4. Power and Backlight Button

5. MIN MAX AVG Button

6. SETUP Button

7. DATA HOLD Button

8. REC Button

9. °C/°F Button

10. CO2Calibration Inlet

11. USB Interface

12. Tilt Stand

13. Battery Compartment

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Display Description

CALAVGMAXMIN

FULLRECSTELTWA

ppm

CO2

SET ALARM HiLo HOLD

1234 5 6 7 8

129

222120191817

1. Setup Indicator

2. Time Weighted

Average Indicator

3. CO2Alarm Indicator

4. Short-term Exposure

Limit Indicator

5. Hi CO2Alarm Indicator

6. Lo CO2Alarm Indicator

7. Recording Data Logger

Indicator

8. Data Hold Indicator

9. CO2Measurement Indicator

10. CO2Reading

11. Relative Humidity/

Temperature Reading

12. Memory Full Indicator

13. Altitude Measurement Unit

14. CO2Measurement Unit

15. Relative Humidity

Measurement Unit

16. Temperature Measurement

Unit

17. Auto Power Off

Enabled Indicator

18. Battery Status Indicator

19. Minimum Indicator

20. Maximum Indicator

21. Average Indicator

22. Calibration Mode

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Operating Instructions

Power ON/OFF

Turn the meter on by pressing the button. To turn the meter off, press

and hold the button for 3 seconds.

Taking Measurements

The meter starts taking measurements when powered on and updates

readings every 2 seconds.

Note: Make sure the CO2sensor is switched to "MEAS" position and not

the "CAL" position.

Rapid environment changes (i.e., moving your meter from indoors

to outdoors) may cause inaccurate readings, therefore,it is always

recommended to allow your meter to get acclimated to its new

environment (approx. 10 to 15 minutes). Do not

hold the meter close to your mouth or any other source of CO2.

Unit of Measurement Selection (°C/°F)

When the meter is powered on press the button to

toggle between Celsius and Fahrenheit.

Note: The default unit of measurement is Celsius (°C).

The meter will automatically save the last selected unit of

measure when turned off.

Data Hold

Press the button to freeze the current reading on the display.

Press the button again to resume normal operation.

Note: When the Data Hold function is enabled the , and

buttons are disabled.

continued...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Min/Max and Average Readings

When in this mode, the unit simultaneously monitors and stores the

minimum, maximum and average values into the internal memory while

continuously updating/refreshing the measurement values.

1. Press the button once, the MIN indicator will appear on the LCD

display. The minimum values (CO2, humidity and temperature) are

displayed and will automatically update when new minimum data

values are measured.

2. Press the button again and the MAX indicator will appear on the

LCD display. The maximum values (CO2, humidity and temperature)

are displayed and will automatically update when new maximum

data values are measured.

3. Press the button a third time and the short-term exposure limit

(STEL) indicator will now appear on the LCD display. The STEL

average limit for the past 15 minutes will be displayed and will

automatically be updated every minute.

4. Press the button a fourth time and the time weight average

(TWA) indicator will now appear on the LCD display. The TWA limit

for the past 8 hours will be displayed and will automatically be

updated every 10 minutes.

If the meter has been powered on for less than

15 minutes, the STEL and TWA values will only reflect the

weighted average of readings taken since it was powered on.

If the meter does not have enough data to display STEL

and TWA, "----" will appear on LCD display.

5. Press the button a fth time and the "MAX, MIN, STEL and

TWA" indicators will blink simultaneously while continuing to update

the readings in memory and can be viewed by returning to the

appropriate function. While in this function, the meter is displaying

the current measurement values only.

6. Press and hold the button for 2 seconds to exit MAX/MIN/AVG

mode and resume normal operation.

continued...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Reed Instruments Messgerät Handbücher

Reed Instruments

Reed Instruments R5020 Bedienungsanleitung

Reed Instruments

Reed Instruments R8008 Bedienungsanleitung

Reed Instruments

Reed Instruments Smart R1610 Bedienungsanleitung

Reed Instruments

Reed Instruments R3500 Bedienungsanleitung

Reed Instruments

Reed Instruments R3530 Bedienungsanleitung

Reed Instruments

Reed Instruments R5001 Bedienungsanleitung

Reed Instruments

Reed Instruments R9930 Bedienungsanleitung

Reed Instruments

Reed Instruments R7900 Bedienungsanleitung

Reed Instruments

Reed Instruments R3525 Bedienungsanleitung

Reed Instruments

Reed Instruments SD-4023 Bedienungsanleitung

Reed Instruments

Reed Instruments R8180 Bedienungsanleitung

Reed Instruments

Reed Instruments R8085 Bedienungsanleitung

Reed Instruments

Reed Instruments LM-81HT Bedienungsanleitung

Reed Instruments

Reed Instruments R9260 Bedienungsanleitung

Reed Instruments

Reed Instruments R9910SD Bedienungsanleitung

Reed Instruments

Reed Instruments R9510 Bedienungsanleitung

Reed Instruments

Reed Instruments R5065 Bedienungsanleitung

Reed Instruments

Reed Instruments SMART Series Bedienungsanleitung

Reed Instruments

Reed Instruments R8050 Bedienungsanleitung

Reed Instruments

Reed Instruments R9400 Bedienungsanleitung

Reed Instruments

Reed Instruments HT-6510A Bedienungsanleitung

Reed Instruments

Reed Instruments R7150 Bedienungsanleitung

Reed Instruments

Reed Instruments R4700SD Bedienungsanleitung

Reed Instruments

Reed Instruments SMART Series Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
