IQ plus

510/710 Digital Weight Indicators

Relay Rack Option

PN 45408

Use the following procedure to install the IQ plus

510/710 relay rack option:

1. Ensure power to the indicator is disconnected,

then place the indicator face-down on an

antistatic work mat. Remove the screws that

hold the backplate to the enclosure body.

Loosen all in-use cord grips then lift the

backplate away from the enclosure and set it

aside.

Use a wrist strap to ground yourself and

protect components from electrostatic

discharge (ESD) when working inside

the indicator enclosure.

2. Assemble relays onto the relay board

(4-channel) or boards (8-channel).

3. Install standoffs onto the studs on the

indicator backplate. Mount U-brackets on the

standoffs, place protective shield on top of

brackets, and secure with kep nuts (see

Figure 3 on page 2).

4. For IQ plus 710 indicators using output

relays, remove connector J8 from the CPU

board and wire the relay board to the

connector as shown in Figure 1.

For IQ plus 510 or 710 input relays, remove

connectors J7 and J8 from the CPU board and

wire as shown in Figure 2.

NOTE:

For indicators using Rev. 1 CPU boards,

digital input and output connections are made to

the interface board. See the

IQ plus 510/710

Interface Board

addendum, PN 46204, for

connector information.

5. Loosen cord grips and route cables for

external equipment into the enclosure as

shown in Figure 3 on page 2. Attach cables to

relay board as shown in Figure 1 or Figure 2.

(Continued on back…)

Figure 1. IQ plus 710 Output Relay Wiring

Figure 2. IQ plus 510/710 Input Relay Wiring

Caution

RELAY_B1

RELAY_D1

Input A

Input B

Gnd

+5VDC

Logic

RELAY_A1

RELAY_C1

J2 R2 R1

R3R4

Input A

Input B

+5VDC

Logic

Gnd

Input A

Input B

+5VDC

Logic

Gnd

Input A

Input B

+5VDC

Logic

Gnd

+5V GNDABCD

J8-10 (+5V)

J8-2 (DIGOUT 1)

J8-3 (DIGOUT 2)

J8-4 (DIGOUT 3)

J8-5 (DIGOUT 4)

J8-1 (GND)

From Digital Outputs

(J8 connector on

IQ plus 710 CPU board) Relay output

to equipment

A.C.

AC HOT IN

OUTPUT RELAYS

RELAY_B1

RELAY_D1

Input A

Input B

Gnd

+5VDC

Logic

RELAY_A1

RELAY_C1

R2 R1

R3R4

Input A

Input B

+5VDC

Logic

Gnd

Input A

Input B

+5VDC

Logic

Gnd

Input A

Input B

+5VDC

Logic

Gnd

+5V GNDABCD

J8-10 (+5V)

J7-2 (DIGIN 1)

J7-3 (DIGIN 2)

J7-4 (DIGIN 3)

J7-5 (DIGIN 4)

J7-1 (GND)

To Digital Inputs

(J7 connector on

IQ plus 510/710 CPU board) Relay input

from equipment

A.C.

AC NEUTRAL IN

INPUT RELAYS

IQ plus 510/710 Relay Rack Option

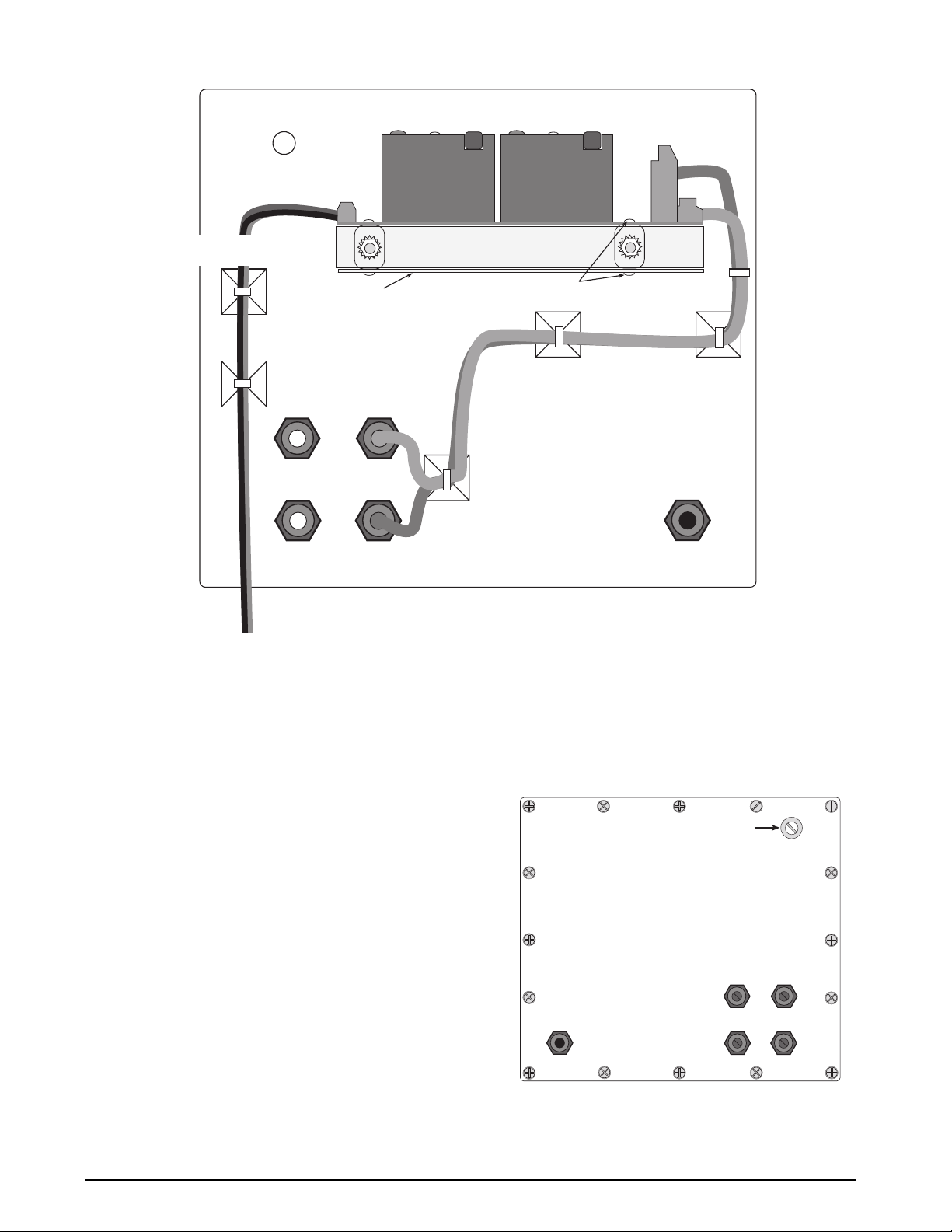

Figure 3. Indicator Backplate, Showing Installed 4-Channel Relay Rack, Mounting Hardware, and Cable Routing

6. For 4-channel (single-board) relay options,

mount the relay board to the U-brackets as

shown in Figure 3 and secure with two of the

screws provided. Use the remaining two

screws to attach the second protective shield to

the opposite side of the U-bracket.

For 8-channel (two-board) options, mount the

second relay board to the U-brackets in place

of the second protective shield.

7. Reinstall wired connector (J8, or J7 and J8) to

the indicator CPU board.

8. Use cable ties and mounts to secure cabling to

the inside of the indicator enclosure as shown

in Figure 3.

9. Position backplate over the enclosure and

reinstall the backplate screws. Use the torque

pattern shown in Figure 4 to prevent distorting

the backplate gasket. Torque backplate screws

to 10 in-lb (1.13 N-m).

10. Ensure no excess cable is left inside the

enclosure and tighten cord grips. Make cable

connections to external equipment as required.

11. See the indicator

Installation Manual

for

information about conﬁguring digital inputs

and outputs.

Figure 4. Torque Pattern for Backplate Screws

TOP SHIELD

MOUNTING SCREWS

for relay boards (8-channel)

or relay board and side shield (4-channel)

SIDE SHIELD

To CPU Board Connector

U-BRACKET and KEP NUT

installed over STANDOFF

Setup switch access screw

Fillister head screws

Torque backplate screws

to 10 in-lb (1.13 N-m)

11 16
