Riotoro CR101BE Bedienungsanleitung
MID TOWER PC CASE
CR101BE
1
Note: This manual is a guide for the CR101BE convertible case. For instructions on installing the motherboard and other components,
please refer to their documentation.
Thank you for purchasing the CR101BE!
The CR101BE mid-tower blends small budgets, style and a vast interior
with flexible storage and cooling options that make building a powerful
PC building effortless.
Equipped with front and side mounts for 120.0 mm fans and 80.0 mm rear
fan mounts it keeps the critical components cool using air or liquid cooling.
Two 3.5” drive bays and two SSD mounts provide plenty of storage, the
front-mounted I/O and ODD bays provides easy access to external
devices and audio ports.
Welcome to RIOTORO
CR101BE MID TOWER CASE
4
5
6
7
Before You Begin
- Exploded view
- What is in the box
- Precautions
- Requirements
1
2Ready, Setup, Go
- Specifications
- Remove the side panels
- Install the motherboard
- Connect the Front Panel Switches and LEDs
- Power Supply Installation
- Fan Installation - Front, back, side
- SSD / HDD / ODD Installation
- Water Cooling Installation - 120.0 mm options
- Water Cooling Installation - 240.0 mm options
- Air Cooling Installation
- GPU Installation
3Top / Front Panel Assembly
- General Maintenance
- Important Safety Information
- Limited product warranty ("Limited Warranty")
- Troubleshooting your new CR101BE
- Recommended parts
21
22
23
24
25
9
10
11
12
13
14
15
16
17
18
19
2
CONTENTS
Before You Begin
1
www.riotoro.com/cases
CR101BE MID TOWER CASE

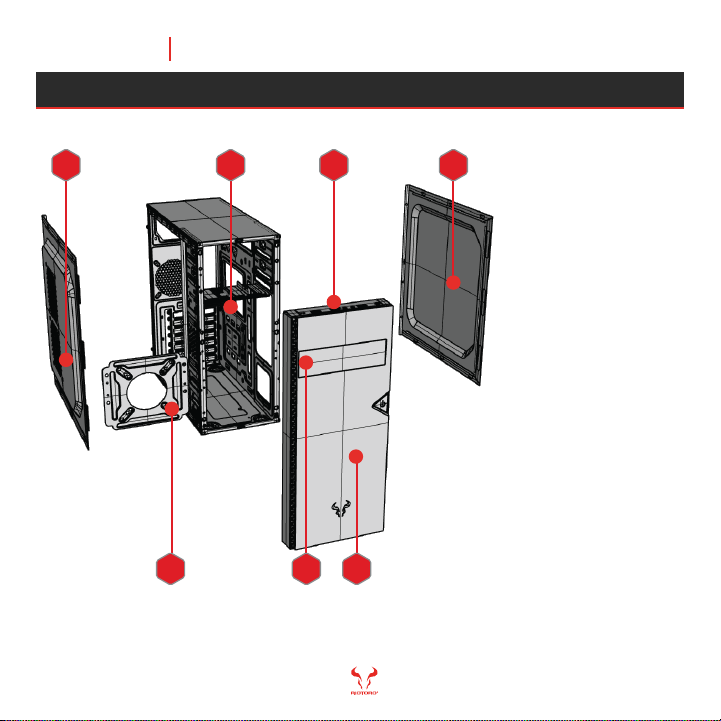

Exploded view
1. Side panel
2. Front panel
3. I/O
4. ODD cover
5. Body
6. Fan bracket
7. Side panel
Before You Begin 4
1
73
5
426
10
1
5
1120.00 mm fan Ventiallation
2Radiator brackets 240.0 mm radiator
installation
4
PSU screws PSU installation
HDD screws HDD installation
6
13
CR101BE MID TOWER CASE
Motherboard screws
5

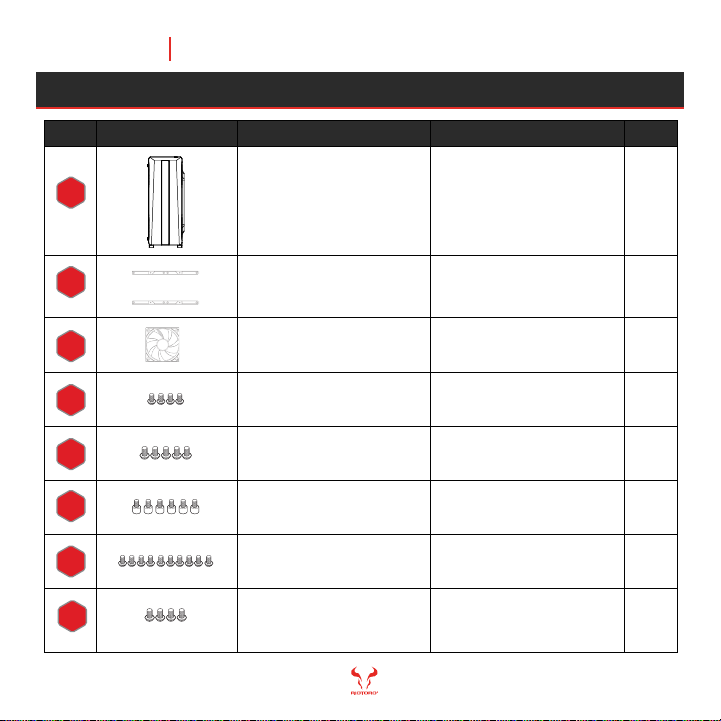

WHAT’S IN THE BOX
QTY
ITEM IMAGE USEDESCRIPTION
CR101BE
MID TOWER Case
Standoffs
Build your gaming
machine
Motherboard
installation
1
2
3
4
6
Phillip screws
Motherboard
installation
Before You Begin 5
Watercooling bracket
installationg
7
8
CR101BE MID TOWER CASE
Please take the following precautions:
- Handle all PC components and cards with care.
- Hold cards and processors by their edges to avoid damaging
components.
- To avoid damaging components by electrostatic discharge, periodically
ground yourself by touching an unpainted metal surface or by using a
wrist grounding strap.
- Before connecting cables, make sure the connectors are
correctly aligned.
- Consult the documentation of your motherboard and other components
for specific installation instructions and troubleshooting.
Before You Begin 6
PRECAUTIONS
CR101BE MID TOWER CASE
Before You Begin 7
Note: Handle all components with care, should you need any assistance go to www.riotoro.com/support
REQUIREMENTS
In order to configure the CR101BE you will need:
1. A flat working area (e.g. desk or table)
with sufficient space
2. A magnetic Phillips screw driver
This means you need to have the Phillips screw driver
available in order to complete this assembly.
Ready, Setup, Go
2
www.riotoro.com/cases
CR101BE MID TOWER CASE
- Water Cooling Mounts:

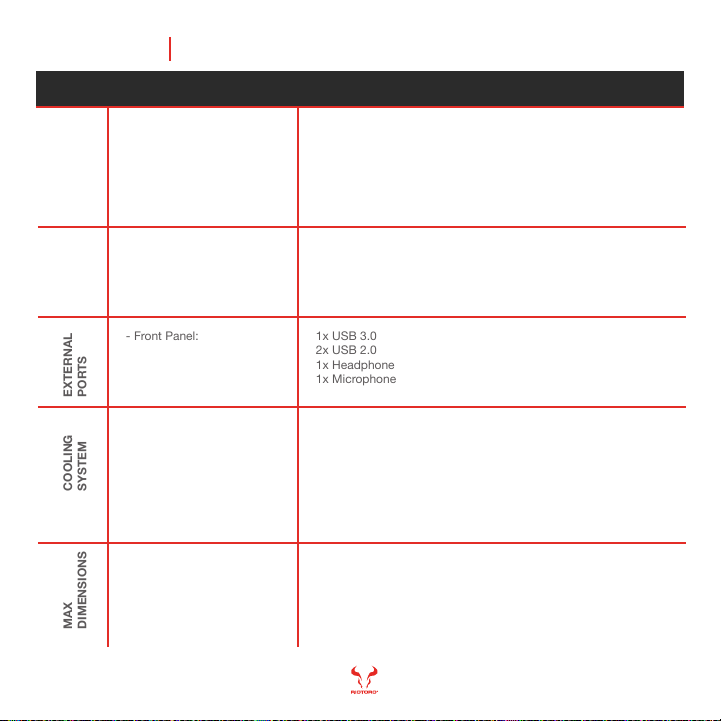

SPECIFICATIONS
Chapter 2 9
- Type:
- Color:
- Case Material:
- Metal Thickness:
- With Power Supply:
- Motherboard Compatibility:
- Side Panel Window:
- External 5.25" Drive Bays:
- External 3.5" Drive Bays:
- Internal 3.5" Drive Bays:
- Internal 2.5" Drive Bays:
- Expansion Slots:
GENERAL
MID TOWER
Black
Steel, ABS Plastic
0.4 mm
No
ATX, Micro ATX, Mini-ITX
No
EXPANSION
- Front Panel:
2
0
2
2
7
EXTERNAL
PORTS
1x USB 3.0
2x USB 2.0
1x Headphone
1x Microphone
COOLING
SYSTEM
- Fan Mounts: Front: 1x 120.0 mm
Side: 2x 120.0 mm
Rear: 1x 80.0 mm or 1x 90.0 mm
- Max GPU Length:
- Max CPU Cooler Height:
- Max PSU Length:
Front: 1x 120.0 mm
Side: 1x 120.0 mm or 1x 240.0 mm radiator
MAX
DIMENSIONS
340.0 mm (with front fans)
140.0 mm
180.0 mm
