Note: This manual is a guide for the CR1088 MINI TOWER case. For instructions on installing the motherboard and other components,
please refer to their documentation.
Thank you for purchasing the CR1088!
The CR1088 Prism takes the core of the award-winning CR1080 and takes it to
the next level with a muscular new black/red exterior, RGB lighting, increased
internal space, and additional dust filters. Dual compartments: one for the
motherboard, CPU, and graphics card, and a second for the power supply
and drives, direct airflow to critical components for improved cooling efficiency.
Additional mount points for fans or liquid radiators add cooling flexibility. To ease
installation, CR1088 has modern builder-friendly features such as tool-free mounts
and cable tie-downs.
Welcome to RIOTORO
CR1088 MINI TOWER CASE
4
5
6
7
Before You Begin
- Exploded view
- What is in the box
- Precautions
- Requirements
1
2Ready, Setup, Go
- Specifications
- Remove the side panels
- Install the motherboard
- Connect the front panel switches and LEDs
- Power supply installation
- Fan installation - front, bottom, rear
- Attaching the case fan cables
- RGB hub details
- Lighting control with RGB motherboards
- Customizing RGB lighting
- SSD / HDD installation
- Water cooling installation - 120.0 mm or 240.0 mm options
- Air cooling installation
- GPU Installation
3Top / Front Panel Assembly
- General Maintenance
- Important Safety Information
- Limited product warranty ("Limited Warranty")
- Troubleshooting your new CR1088
- Recommended parts
24
25
26
27
28
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2
CONTENTS
Before You Begin
1
www.riotoro.com/cases
CR1088 MINI TOWER CASE

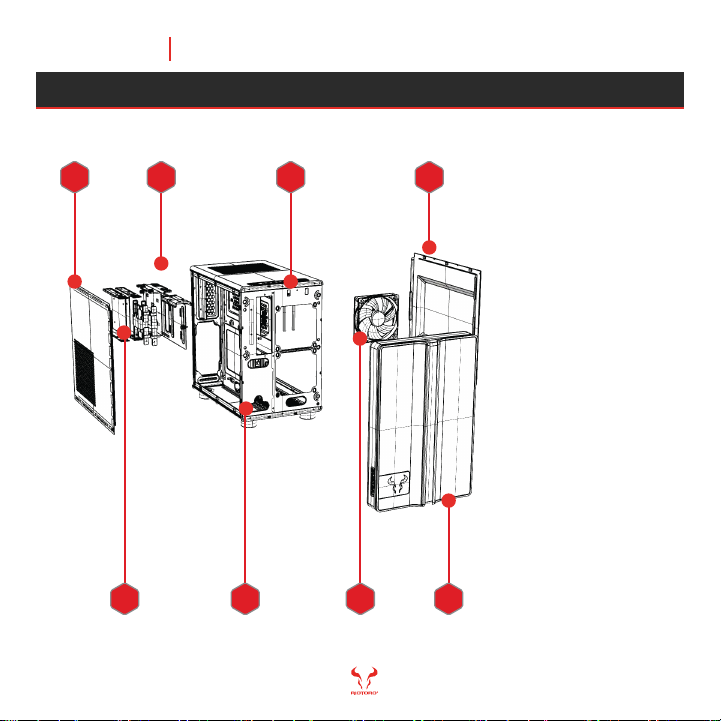

Exploded view
1. RGB front panel
2. Acrylic side panel
3. 120.0 mm fan
4. I/O panel
5. Structure
6. HDD / SSD
storage bracket
7. HDD / SSD caddies
8. Side panel
Before You Begin 4
8624
3
71
5
CR1088 MINI TOWER CASE
7
Standoffs Motherboard
installation 2
5

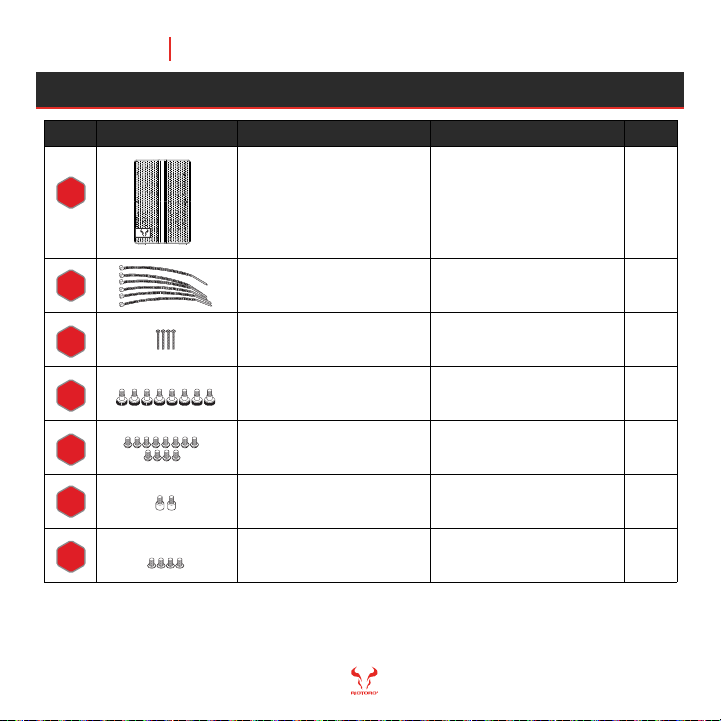

WHAT’S IN THE BOX
QTY
ITEM IMAGE USEDESCRIPTION
CR1088
MINI TOWER Case
Nylon ties
Long screws
Fan screws
1Build your gaming
machine
Cable management
Water cooling
installation
Fan installation
6
4
8
1
2
3
4
6
Phillip screws Motherboard
installation 12
Before You Begin 5
SSD Screws Secure SSD Drives 12
CR1088 MINI TOWER CASE
Please take the following precautions:
- Handle all PC components and cards with care.
- Hold cards and processors by their edges to avoid damaging
components.
- To avoid damaging components by electrostatic discharge, periodically
ground yourself by touching an unpainted metal surface or by using a
wrist grounding strap.
- Before connecting cables, make sure the connectors are
correctly aligned.
- Consult the documentation of your motherboard and other components
for specific installation instructions and troubleshooting.
Before You Begin 6
PRECAUTIONS
CR1088 MINI TOWER CASE
Before You Begin 7
Note: Handle all components with care, should you need any assistance go to www.riotoro.com/support
REQUIREMENTS
In order to configure the CR1088 you will need:
1. A flat working area (e.g. desk or table)
with sufficient space
2. A magnetic Phillips screw driver
This means you need to have the Phillips screw driver
available in order to complete this assembly.
Ready, Setup, Go
2
www.riotoro.com/cases
CR1088 MINI TOWER CASE

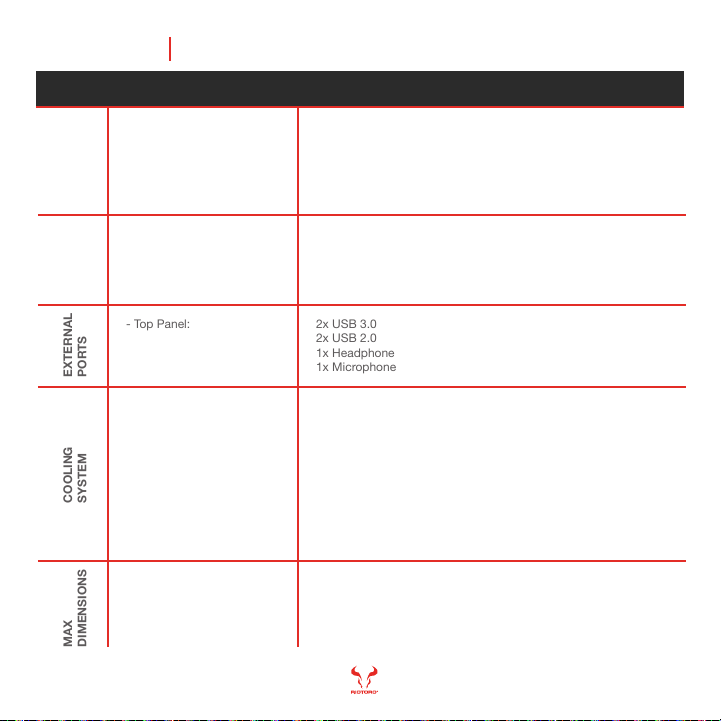

SPECIFICATIONS
Chapter 2 9
- Type:
- Color:
- Case Material:
- With Power Supply:
- Motherboard Compatibility:
- Side Panel Window:
- External 5.25" Drive Bays:
- External 3.5" Drive Bays:
- Internal 3.5" Drive Bays:
- Internal 2.5" Drive Bays:
- Expansion Slots:
GENERAL
MINI TOWER
Black
Steel, ABS Plastic
No
ATX, Micro ATX, Mini-ITX
Yes
EXPANSION
- Top Panel:
0
0
2
2
7
EXTERNAL
PORTS
2x USB 3.0
2x USB 2.0
1x Headphone
1x Microphone
- Included Fans:
- Fan Mounts:
- Water Cooling Mounts:
COOLING
SYSTEM
Front: 1x 120.0 mm
Front: 2x 120.0 mm
Bottom: 2x 120.0 mm
Rear: 1x 80.0 mm
Front: 1x 120.0 or 1x 240.0 mm
- Max GPU Length:
- Max CPU Cooler Height:
- Max PSU Length:
MAX
DIMENSIONS
290.0 mm
135.0 mm
175.0 mm
- RGB button
- Fan Slow/Fast Buttons
