INSTRUCTION MANUAL

Multi-Branch Manifold and Filtration System

Model No.

                                 

MultiVac 310 / 610 - MS

MultiVac 300 / 600 - MS

MultiVac 300 / 301 / 600 / 601 - MB

MultiVac 310 / 610 - MS - T / A

MultiVac 301 / 601 - MB - T / A

Important Notice

This instrument is designed for laboratory usage only. Please read this manual carefully before

installing and operating. The instrument shall not be modiﬁed in any way. Any modiﬁcation will void

the warranty and may result in potential hazard. We are not responsible for any injury or damage

caused by any non-intended purposes and modifying the instrument without authorization.

1. Check the voltage speciﬁed on the name plate and ensure it matches the line voltage in your

location.

2. Install the instrument in a clean, dust-less and ventilated area under 40°C.

3. Never use the pump with any chemical, corrosive, ﬂammable or toxic material.

4. Please use liquid pump with manifold and membrane to prevent clogging.

5. The protection device of Rocker 400 vacuum pump:

- To ensure proper function of the ProteTM protection device, the pump must be installing on a

ﬂat level surface and should not be moved when operation. If the buoy closes during operation,

it must be manually reset by uninstalling and reinstalling the ﬁlter cartridge.

- The ﬁlter cartridge is used to absorb moisture and dust. Please replace the cartridge to maintain

pumping eﬃciency when it becomes dirty or color-changing.

- The pump has a thermal protection device that automatically shuts oﬀ when overheated.

6. Do not use any lubricant, which may damage the pump.

7. In case of any damage, please contact the manufacturer or your service agent for service to

avoid hazard.

8. Please discard packing material according to local related regulations.

9. Operating condition

(a) Ambient temperature: 5~ 40 °C

(b) Relative humidity: 80% RH Max.

Power supply of Rocker 400: 100-120V~, 50/60Hz or 200-240V~, 50/60Hz

(d) Altitude: up to 2000 m

(e) Pollution degree: II

(f ) Alligator 200: IP64, Rocker 400: IP30

(g) Overvoltage category: I

(h) Indoor use

Unpacking

Please check if the package is complete without any damage before unpacking. When unpacking,

please make sure you have all accessories that indicated on the list. If there is any problem, please

keep the serial number along with packing case and contact your local distributor immediately for

assistance.

MultiVac 300 / 310 - MS MultiVac 600 / 610 - MS

MultiVac 300 - MB MultiVac 600 - MB

MultiVac 310 - MS

MultiVac 610 - MS

MultiVac 300 - MS

MultiVac 600 - MS

MultiVac 300 - MB

MultiVac 600 - MB

3 Places Aluminum Manifold

6 Places Aluminum Manifold

3 Places Stainless Steel Manifold

6 Places Stainless Steel Manifold

3 Places Stainless Steel Manifold

6 Places Stainless Steel Manifold

Stopper

Adaptor

Standard Package Includes:

Adaptor

I. Multi-Branch Manifold

Branches / Material

MultiVac 301 - MB

MultiVac 301 / 601 - MB - A MultiVac 310 / 610 - MS - A

MultiVac 601 - MB

MultiVac 301 - MB

MultiVac 601 - MB

100 ml * 3

100 ml * 6

3 Places Stainless Steel Manifold

6 Places Stainless Steel Manifold

Stainless Steel

Funnel

Standard Package Includes:

Adaptor

Branches / Material

MultiVac 301 - MB - A

MultiVac 601 - MB - A

x 1

MultiVac 301 / 601 - MB, 3 / 6 Places Stainless Steel Manifold

Alligator 200, Diaphragm Liquid Pump

Dragon 100, Torch Burner

Pall, MCE Membrane, 47 mm, 0.45 μm, 200/PK

Silicone Tube

Instruction Manual

Standard Package Includes:Model

Model

II. Multi-Branch Manifold with Funnels

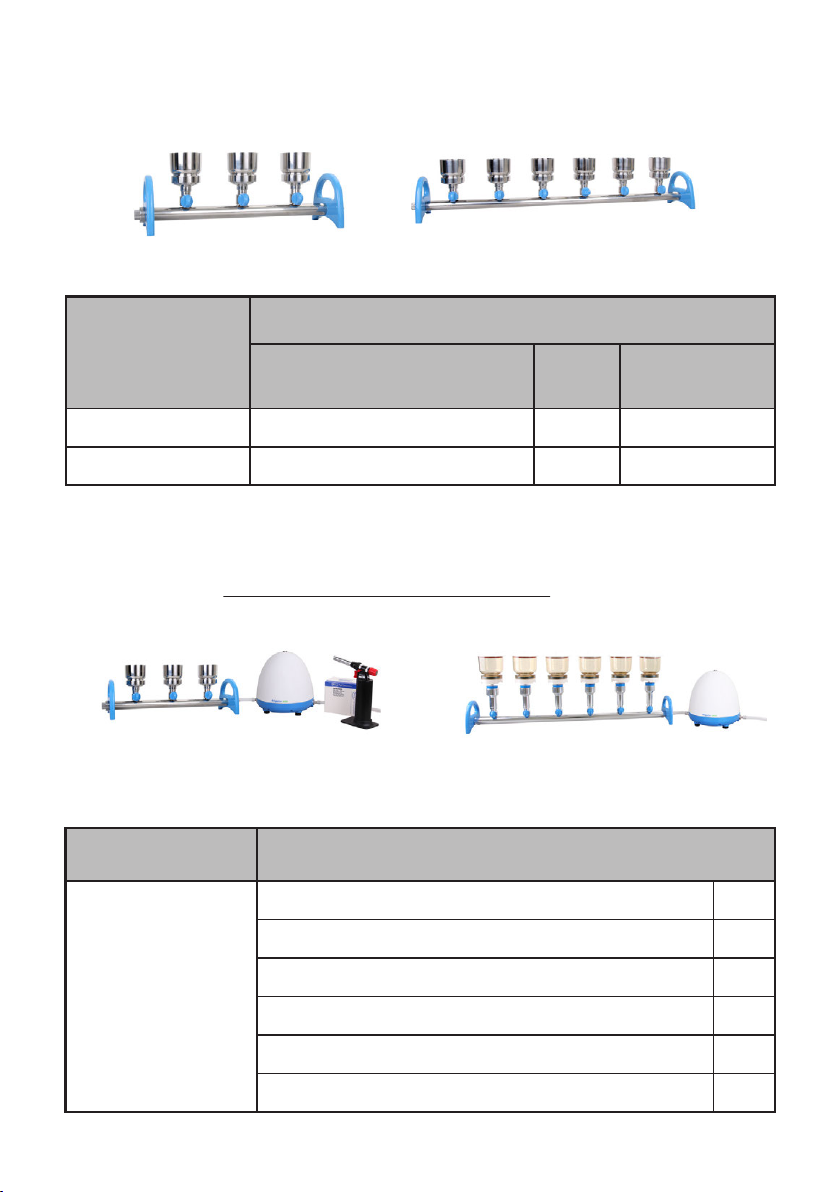

III. Vacuum Filtration System

• Manifold with Alligator 200 Diaphragm Liquid Pump

MultiVac 301 / 601 - MB - T MultiVac 310 / 610 - MS - T

• Manifold with Rocker 400 Vacuum Pump

MultiVac 310 - MS - A

MultiVac 610 - MS - A

x 1

x 3 / 6

x 1

MultiVac 310 / 610 - MS, 3 / 6 Places Aluminum Manifold

MF 3, 300 ml Magnetic Filter Holder with Lid Kit

Alligator 200, Diaphragm Liquid Pump

Silicone Tube

Instruction Manual

Standard Package Includes:Model

MultiVac 301 - MB - T

MultiVac 601 - MB - T

x 1

x 2

x 1

MultiVac 301 / 601 - MB, 3 / 6 Places Stainless Steel Manifold

Rocker 400, Oil Free Vacuum Pump

4000 ml PP Vacuum Bottle with drain

Dragon 100, Torch Burner

Pall, MCE Membrane, 47 mm, 0.45 μm, 200/PK

Silicone Tube

Instruction Manual

Standard Package Includes:Model

MultiVac 310 - MS - T

MultiVac 610 - MS - T

x 1

x 3 / 6

x 1

x 2

x 1

MultiVac 310 / 610 - MS, 3 / 6 Places Aluminum Manifold

MF 3, 300 ml Magnetic Filter Holder with Lid Kit

Rocker 400, Oil Free Vacuum Pump

4000 ml PP Vacuum Bottle with drain

Silicone Tube

Instruction Manual

Standard Package Includes:Model

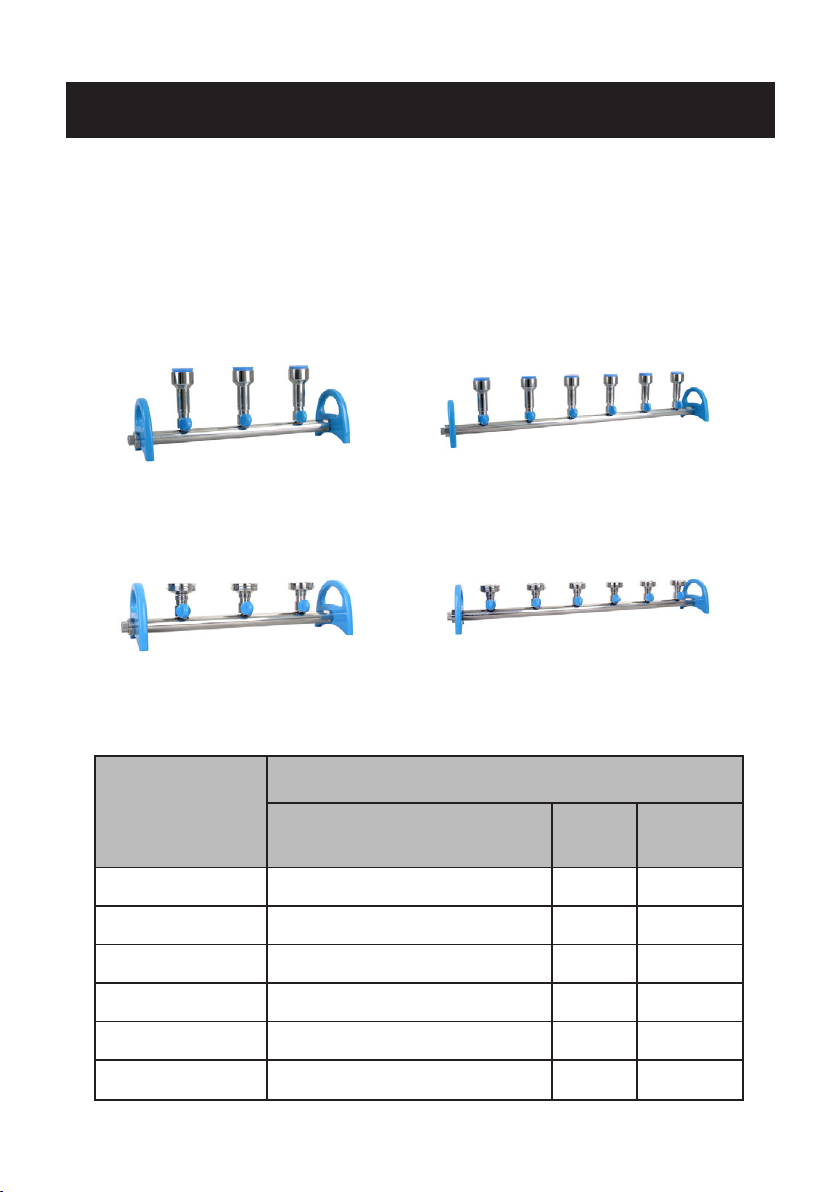

Stainless Steel Multi-Branch Manifold

Rocker 400 Oil Free Vacuum Pump Alligator 200 Diaphragm Liquid Pump

Aluminum Multi-Branch Manifold

• Adjustable vent valve exits only on stainless steel manifold.

Main Part Diagram

Control Valve

Handle

Adjustable Vent Valve

DesignationPosition

Quick-Fit Hose Barb

Funnel Adaptor

DesignationPosition

Power Switch

Air Outlet

Air Inlet

Liquid Inlet (IN)

Liquid Outlet (OUT)

DesignationPosition

Vacuum Gauge

Moisture Trap

Vacuum Regulator

ProteTM Filter Cartridge

Power Adaptor

DesignationPosition

26 3 1

4 5

Preparation and Installation of Manifold

Installation and Operation

A. Make sure all control valves are oﬀ before use, rotate the control valves

counterclockwise to vertical position for ﬁltration.

B. Change the funnel adaptor to ﬁt the desired funnel or ﬁlter holder if necessary.

• Various kind of funnel adaptors are only compatible for Stainless Steel Manifold.

1. No. 8 Stopper Funnel Adaptor

-Compatible with various kinds of ﬁlter holders with No. 8 silicone stopper.

2. Rocker SF Funnel Adaptor (Stainless Steel Manifold only)

- Fitting to (left) Rocker SF 100 / 300 / 500 ml funnel and (right) Pall, Sentino® 4870 (100 ml),

4871 (250 ml) plastic funnel.

3. SS316 Adaptor for Millipore Disposable Funnel (Stainless Steel Manifold only)

- Fitting to Millipore, Microﬁl® disposable plastic funnel 100 / 250 ml.

4. SS316 Adaptor for Sartorius Disposable Funnel (Stainless Steel Manifold only)

- Fitting to Sartorius, Microsart® disposable plastic funnel 16A07.

• How to change the funnel adaptor(s)

1. Loosen the ﬁxing screw on the rear of control valve by L-Type hex key (2 mm).

2. Unscrew the funnel adaptor and change to the desired one.

3. Tighten the ﬁxing screw to prevent new funnel adaptor from rotation.

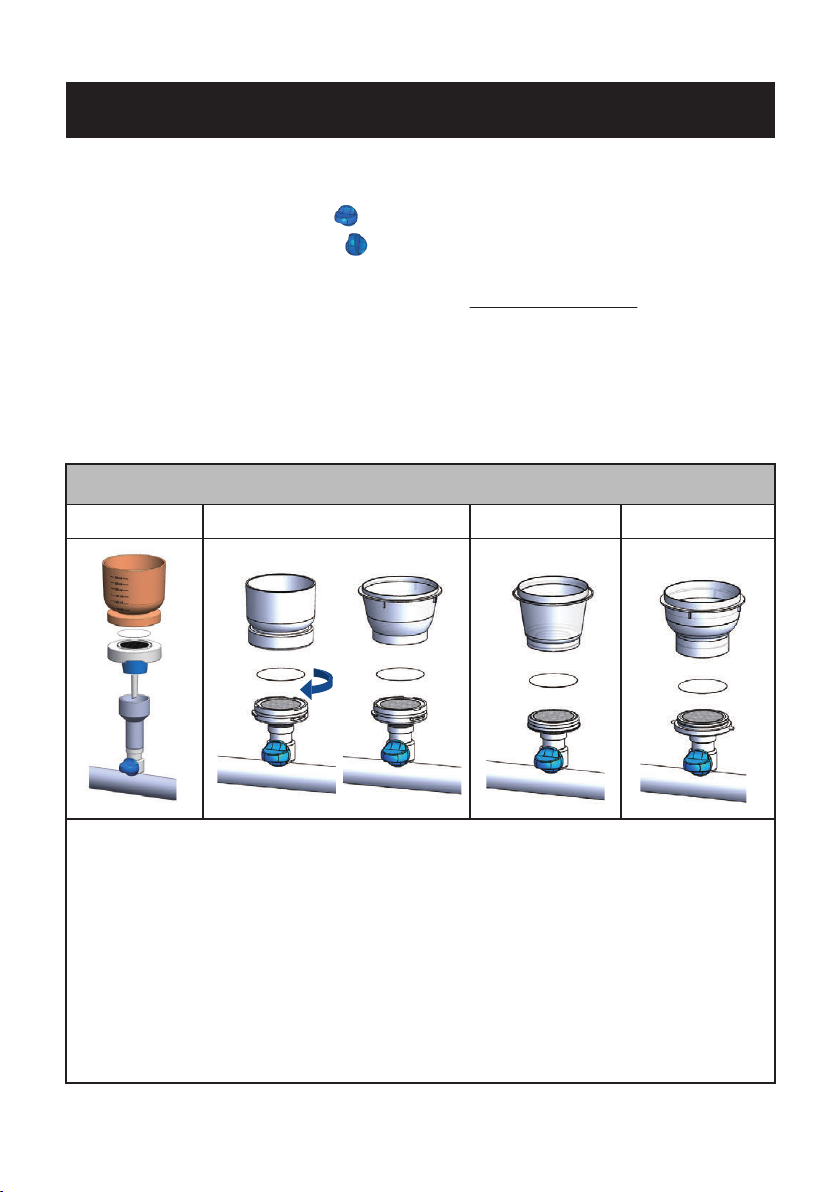

Installation of Various Filter Holder and Funnel

Preparation and Installation of Manifold (continued)

Vacuum Filtration System Operation

C. Connect installed MultiVac manifold to either vacuum pump or liquid pump for ﬁltration.

• Please ensure to install a vacuum bottle between the manifold and vacuum pump to capture the

waste liquid and prevent liquid from being sucked into the vacuum pump.

• The inlet and outlet direction of MultiVac manifold is interchangeable. Please disassembled inlet and

outlet by hands or tool and change to desired direction.

D. The adjustable vent valve can help drain residual liquid in tube and avoid “Water Hammer”.

• Turn the vent valve counterclockwise to drain the remaining liquid out if necessary.

A. Connect the outlet of installed manifold to inlet (IN) of Alligator 200 liquid pump together with silicone

tube as shown below.

• The tube length between manifold and liquid pump should be as short as possible.

• The length of silicone tube can be cut as your needed.

B. Connect a long tube to outlet (OUT) of Alligator 200 and put the other side of tube into sink or a

container to drain and collect the waste liquid.

C. After sample preparation, install the appropriate membrane in ﬁlter holder or funnel.

D. Switch on the pump and pour the sample liquid into the funnel and open the control valve to “vertical”

position to start ﬁltration.

E. After ﬁnishing ﬁltration, close the control valve and retrieval the membrane.

F. SF stainless steel funnel can be fast ﬂame-sterilized by Dragon 100 torch burner or autoclaved before

proceeding next ﬁltration.

* Warning:

(1) Do not bend silicone tube or squeeze it with heavy objects to avoid poor drainage.

(2) Do not pump dirty or impure solution before ltration to avoid clogging or damaging.

Filtration System Assembly Diagram (Left: Alligator 200; Right: Rocker 400)

I. With Alligator 200 Diaphragm Liquid Pump

A. Connect the installed manifold, vacuum bottle and Rocker 400 vacuum pump with 2 silicone tubes as

shown above.

B. After sample preparation, install the appropriate membrane in ﬁlter holder or funnel.

C. Switch on the pump and pour the sample liquid into the funnel and open the control valve to “vertical”

position to start ﬁltration.

D. After ﬁnishing ﬁltration, close the control valve and retrieval the membrane.

E. SF stainless steel funnel can be fast ﬂame-sterilized by Dragon 100 torch burner or autoclaved before

proceeding next ﬁltration.

1. The pump is not autoclavable. Please clean the surface by pure water or 75% ethanol.

2. While doing ﬁltration with Alligator 200 liquid pump, please pump the pure water to clean the tubing

after every use to prevent any dirty is left over. Keep pumping the air for at least 2 minutes to eliminate

the liquid.

3. While doing ﬁltration with Rocker vacuum pump, please remove the liquid in the moisture trap and

keep pumping the air for at least 2 minutes to withdraw the residual steam.

• Please refer to manual of Rocker Series Vacuum Pump to see how to reset the ProteTM protection

device and replace cartridge.

4. MultiVac manifold, ﬁlter holder and vacuum bottle are autoclavable (121°C, 1 bar, 20 min). Please make

sure to rinse manifold with pure water and keep all control valves and vent valve at“OPEN” position to

make a complete sterilization. You can also clean the surface of manifold with pure water or 75%

ethanol.

5. Funnels, support base and membrane support of stainless steel manifold are made of SS316 which can

be fast sterilized by ﬂame or autoclaved.

6. Valve plate(s), O-ring(s), silicone tube(s), muﬄer and diaphragm are consumables, it is recommended

to replace it on a yearly basis or as needed to ensure good operation.

* Warning: Please ensure the liquid level of moisture trap and vacuum bottle do not exceed safety level.

Failure to comply could result in serious damage to the pump and void the warranty. If it occurs, please

contact the distributor immediately for service.

II. With Rocker 400 Vacuum Pump

Maintenance

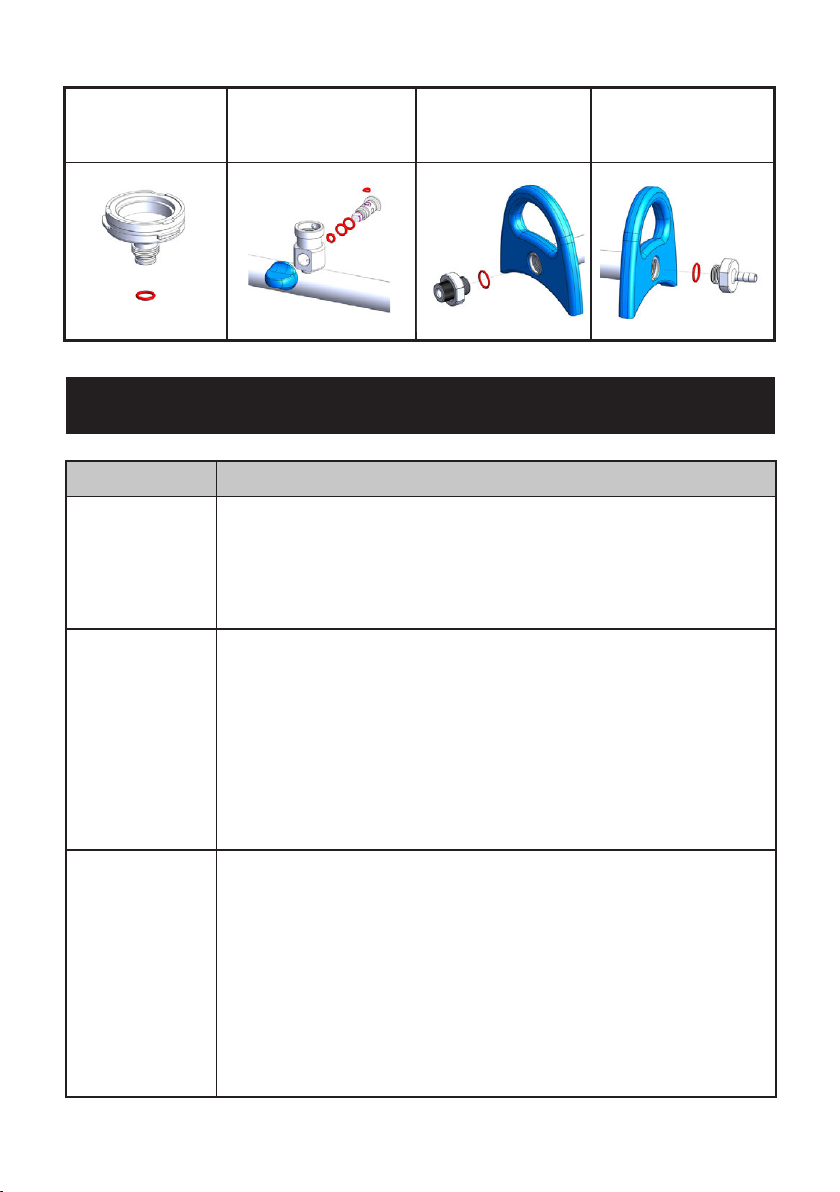

O-ring of

Funnel Adaptor

O-ring of

Control Valve

O-ring of

Plug

O-ring of

Outlet

Troubleshooting

Problem Reason and Solution

Failed to start

Poor vacuum

Low

ltration speed

Loose plug Reconnect plug to socket ﬁrmly.

Wrong voltage Reconnect to power speciﬁed on name plate.

Vacuum exists Release vacuum and restart the pump.

Switch is broken Contact distributor for assistance.

Funnel adaptor O-ring is broken Replace the O-ring.

Outlet is blocked Clean or stretch the outlet tube.

Improperly vacuum setting Adjust the vacuum regulator.

Clogged muﬄer Replace a new muﬄer.

Air leakage Replace or tighten the tubing and accessories that

possible leaks.

Internal wiring loose Contact distributor for assistance.

Funnel adaptor O-ring is broken Replace the O-ring

Air leakage Replace or tighten the tubing and accessories that

possible leaks.

Unsuitable membrane Change an appropriate membrane.

Membrane is blocked Replace a new membrane.

Improperly vacuum setting Adjust the vacuum regulator.

Silicone tube is bent too much Replace or stretch silicone tube.

Internal wiring loose Contact distributor for assistance.

Andere Handbücher für MultiVac 310-MS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rocker Laborausrüstung Handbücher

Rocker

Rocker Rocker 300 Bedienungsanleitung

Rocker

Rocker MultiVac 310-MS Bedienungsanleitung

Rocker

Rocker Lafil 200 Bedienungsanleitung

Rocker

Rocker BioVac 225 Bedienungsanleitung

Rocker

Rocker CR 25 Bedienungsanleitung

Rocker

Rocker Galaxy 330 Bedienungsanleitung

Rocker

Rocker Tanfil 100 Bedienungsanleitung

Rocker

Rocker Rocker 300 Bedienungsanleitung

Rocker

Rocker 197000-36 Bedienungsanleitung

Rocker

Rocker Lafil 300- LF 30 Bedienungsanleitung

Rocker

Rocker CD 200 Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
