Roger Technology B70/2ML Bedienungsanleitung

Quick Start B70/2ML

Rev00 11/11/2020

ROGER TECHNOLOGY

Via S. Botticelli 8 • 31021 Bonisiolo di Mogliano Veneto (TV) • ITALIA

P.IVA 01612340263 • Tel. +39 041.5937023 • Fax. +39 041.5937024

info@rogertechnology.com • www.rogertechnology.com

APower supply B70/2ML - Motors 3x2,5 mm2double insulated cable (max.10 m) - 3x4 mm2 (max. 30 m)

1Photocell - Receiver 5x0,5 mm2double insulated cable (max.20 m)

2Photocell - Transmitter 3x0,5 mm2double insulated cable (max.20 m)

3Flashing lamp unit 2x1 mm2double insulated cable (max.10 m)

4Antenna RG58 50 Ohm cable for external use (max.10 m)

5Selector / Keypad 3x0,5 mm2cable (max.20 m)

1. Typical installation

B70/2ML is the range of 24V DC digital controllers installed in the swing gates product.

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

2. Electrical connections

3. Display: functions and settings

F3.15mA

PROG

WIFI

TEST

Z Y X

X Y Z

MOTORE 2

MOTOR 2

MOTORE 1

MOTOR 1

COR

9 10

+ -

ANT

23 24 25 26 27

COM

COM COM STFT2 FT1

FT2

FT1

COM

ISEL

TRANSFORMER

11 12 13 14 15

SC COM PED PP CH AP COM

COMCOMES LAM 24V

COM

PED

COM

+24V

COM

LA M

COM

+ES

RXTX

12 3 12 3 4 5

-COM

+24

-COM

+24

FT1(N.C)

SYNC

FIFTHY/24

+ -

Accessories illustrated are indicative only

PROG TEST

Back

Programming Check error alarms

PARAMETER PARAMETER

VALUE

Increase value

Decrease value

PROG TEST

All manuals and user guides at all-guidesbox.com

4. Before starting ...

d) Move the gate into the completely CLOSE position.

e) Press the TEST button.

Possible alarms and safety device messages:

SEE ACQUISITION PROCEDURE

00 No safety device in alarm state and no limit switch activated.

27 STOP contact (N.C.) open.

Jumper the STOP contact.

28 Sensing edge contact COS

25 Photocell contact FT1 (N.C.) is open. Check connection. If photocell is not

installed, disable with 50 00.

24 Photocell contact FT2 (N.C.) is open. Check connection. If photocell is not

installed, disable with 53 00.

PROG TEST

PROG

TEST

PROG TEST

a) Select the automation system model installed with the parameter A1.

b) Select the position of the motor relative to the gate with the

parameter 70. This parameter is set for two motors by default.

c) Position the mechanical stops in both the open and closed positions by tightening them very tightly.

1 MOTOR 2 MOTORS

AYRON Series

BE20 Series

MONOS4

All manuals and user guides at all-guidesbox.com

6. Setting basic parameters

30 Motor torque

43 Opening and closing approach

distance setting MOTOR1 44 Opening and closing approach

distance setting MOTOR2

31 Obstacle impact force

sensitivity MOTOR1

33 Motor torque MOTOR2

32 Obstacle impact force

sensitivity MOTOR2

34 Start acceleration MOTOR1

during closing

34 Start acceleration MOTOR1

during closing

35 Start acceleration MOTOR2 during closing

11 Deceleration

MOTOR 1 during closing

12 Deceleration MOTOR2 during closing

26 Closing delay of MOTOR1

19 Stop advance of LEAF1

when opening

20 Stop advance of LEAF2

when opening

14 Position control

13 Position control

14 Position control

25 Opening delay of MOTOR2

11 Deceleration MOTOR 1

during opening

12 Deceleration MOTOR 2

during opening

40 Opening speed

41 Closing speed

35 Start acceleration MOTOR2

during closing

MOTOR 1

MOTOR 2

5. Acquisition procedure

1. Press and hold PROG for 4 seconds.

2. APP- appears on the display.

3. Press PROG.

4. AUTO appears on the display.

5. MOTOR 1 starts opening at low speed.

6. After the delay time set with parameter 25, MOTOR 2 starts an opening manoeuvre.

7. Once the gate is open, the message AUTO ﬂashes on the display.

8. The message AUTO stops ﬂashing.

9. MOTOR 2 starts closing.

10. After a delay set with parameter 26, MOTOR 1 closes.

11. When the gate is closed, the safety device symbols are displayed.

Press

PROG

AP P- AU to

x4 s

Press

PROG

1 click OPEN

MOTOR 1

OPENING

MOTOR 2

OPENING

PARAM. 25

ùDELAY

TIME

AU to

x2 s CLOSED

Yes

MOTOR 1

CLOSING

MOTOR 2

CLOSING

PARAM. 26

DELAY

TIME

CLOSED

All manuals and user guides at all-guidesbox.com

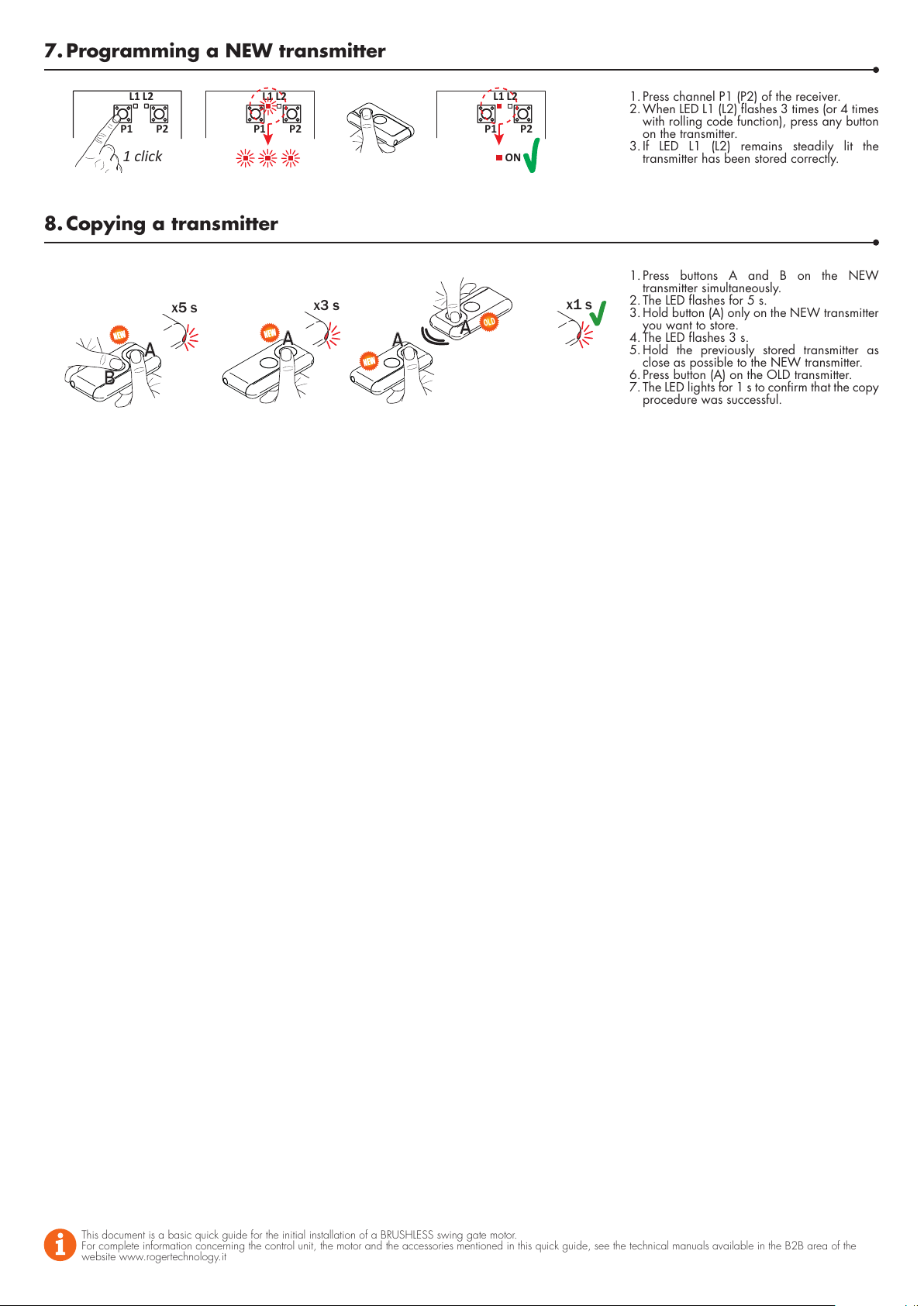

7. Programming a NEW transmitter

8. Copying a transmitter

L1 L2

P2 P1

L1 L2

1 click

This document is a basic quick guide for the initial installation of a BRUSHLESS swing gate motor.

For complete information concerning the control unit, the motor and the accessories mentioned in this quick guide, see the technical manuals available in the B2B area of the

website www.rogertechnology.it

x5 s x3 s x1 s

AAA

OLD

1. Press channel P1 (P2) of the receiver.

2. When LED L1 (L2) ashes 3 times (or 4 times

with rolling code function), press any button

on the transmitter.

3. If LED L1 (L2) remains steadily lit the

transmitter has been stored correctly.

1. Press buttons A and B on the NEW

transmitter simultaneously.

2. The LED ashes for 5 s.

3. Hold button (A) only on the NEW transmitter

you want to store.

4. The LED ashes 3 s.

5. Hold the previously stored transmitter as

close as possible to the NEW transmitter.

6. Press button (A) on the OLD transmitter.

7. The LED lights for 1 s to conrm that the copy

procedure was successful.
