INTRODUCTION

CrystalLink USB2.0 Fiber Extender Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product (See limited warranty).

System Introduction

Thank you for choosing the Rose Electronics CrystalLink USB2.0 fiber extender.

The CrystalLink USB2.0 fiber has proven to be a valuable investment for any business, big or small, that has a

need to access and extend their USB1.1 or 2.0 peripherals up to 6.2 miles (10Km) from a remote location.

The receiver unit’s USB ports connect to your USB peripherals. The number of peripherals can be increased

by using a standard USB hub.

The USB peripherals can be USB1.1 devices (low-speed or full-speed) or USB2.0 high-speed devices

operating up to 480 Mb/s. The receiver unit can supply up to 1 Amp per USB port for driving high-power USB

devices.

Plug-and-play installation makes the product simple and easy to use. Connect the transmitter to the computers

USB port, connect the USB ports on the receiver to your USB devices, connect the transmitter to the receiver

with up to 6.2 miles of industry standard fiber cable and power on the system.

Note:

All references to fiber optic cable distances in this user manual are as follows;

Multimode fiber: Up to 1,640ft (500m) over multimode OM2 fiber or up to 902ft (275m) over OM1 multimode

fiber

Singlemode fiber: Up to 10km (6.2 miles) over singlemode fiber

The instructions in this manual assume a general knowledge of computer installation procedures, familiarity

with cabling requirements, and some understanding of USB device operation.

Features

■Supports transparent extension of USB 2.0 (high-speed) and USB 1.1 (low and full speed) devices

■Extends USB devices up to 6.2 miles (10Km) over fiber cable

■Four-port integrated USB2.0 hub on the receiver unit

■Standard USB hubs can be used to increase the number of connected devices up to 30.

■USB3.0 devices will work at USB2.0 speeds through the extender

■Up to 1 Amp of power is available at each USB port for high-powered USB devices

■Electrical isolation for data integrity

■Plug-and-Play installation, no configuration or set-up needed

■Operating system independent and supports all major operating systems

CrystalLink USB2.0 Fiber Extender Manual 2

Package Contents

The package contents consist of the following:

■Transmitter unit

■Receiver unit

■USB2.0 cable

■24V DC Power Adapter (1) and AC power cable (1)

■Manual

Additional Items Required

■USB compatible computer (host computer) with a USB compliant operating system

■USB compatible device(s) for remote-end connection

■Fiber optic cabling

■Two strands of multimode or singlemode fiber are required to support the extender connection. The cabling

must provide a duplex connection with crossover and must be terminated with Duplex LC connectors at

both ends.

Application Examples

The CrystalLink USB2.0 fiber extender is ideal for use with any USB2.0 device in an office, computer room or

industrial environment where USB devices need to be connected remotely from a host PC.

■Industrial control

■Interactive whiteboard

■Medical applications

■USB extension in hazardous operating environments

■Sensor or data acquisition

■Extension of multiple USB devices including hard drivers, printer, scanner, camera control, touchscreens

Figure 1. CrystalLink USB2.0 fiber extender – front and back panels

MODELS

CrystalLink USB2.0 Fiber Extender Manual 3

CrystalLink USB2.0 Fiber Models

The CrystalLink USB2.0 fiber enables users to extend beyond the standard 15ft (5.0 meter) cable limit for USB

peripherals by locating high-speed USB device(s) up to 6.2 miles (10Km) from the computer.

Transmitter Unit

The transmitter connects to the host device using the supplied USB cable. Power for the transmitter is provided

by the host computer. Power and status LED’s are conveniently located on the front panel for user reference.

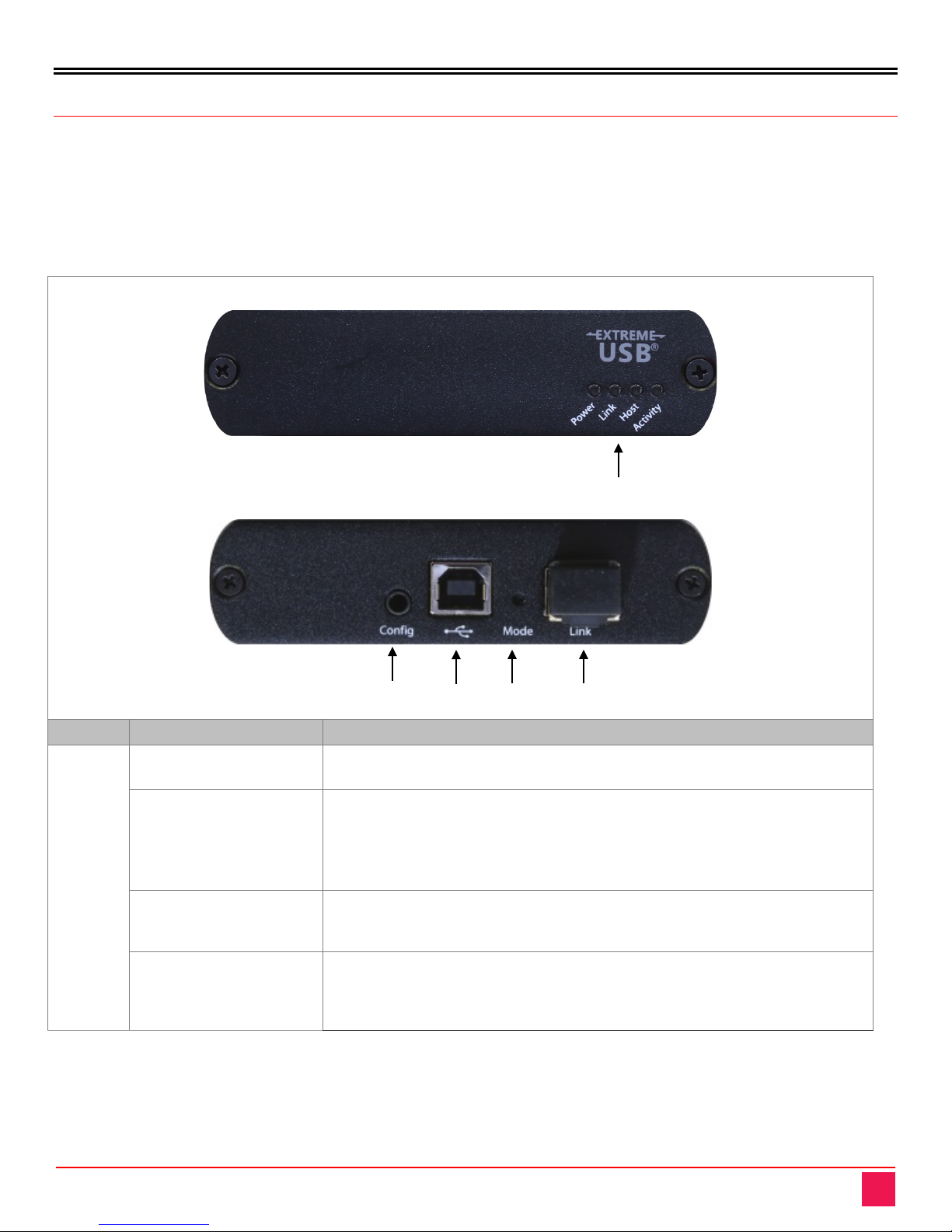

Transmitter unit – front panel view

Transmitter unit – rear panel view

Item Type Description

Power LED (Blue) LED turns on when power is supplied.

LED is off when no power is supplied by the host computer.

Link LED (Green)

Indicates a valid USB link is established between the local and remote

extenders.

LED turns on when link between local and remote extender is established.

LED is off when there is no link between local and remote extenders.

LED is slow blinking when the unit is attempting to establish a link

Host LED (Green) LED turns on when the extender system is properly enumerated on the

host computer.

LED blinks when in a suspended state.

Activity LED (Amber)

Indicates data transmission is occurring between local and remote

extenders.

LED blinks intermittently with or without a USB device connected. When

the local and remote extenders are in suspend mode, the LED is off.

CrystalLink USB2.0 Fiber Extender Manual 4

2 Config Reserved for engineering use

3 USB Host Port Used to connect the

local extender unit to the host computer. Accepts Type

B connector into the local extender unit.

4 Mode Reserved for engineering use

5 Link Port (Duplex LC) Extension link Duplex LC fiber connection

Figure 2. Transmitter unit – LED’s and connectors

Receiver Unit

The receiver has four USB Type-A ports for connecting up to four USB devices. Additional devices may be

connected by attaching a USB hub to the receiver unit. The receiver is powered directly by the included 24V

power supply, delivering 600mA of current per USB port.

Receiver unit – front panel view

Receiver unit – rear panel view

Item Type Description

1 USB Device Ports Accepts USB device(s) using Type A connectors

Power LED (Blue) LED turns on when power is supplied, off when no power is supplied.

Link LED (Green)

Indicates a valid USB link is established between the local and remote

extenders.

LED turns on when link between local and remote extenders is established.

LED is off when there is no link between local and remote extenders.

Host LED (Green) Indicates that the RG2304 system is properly enumerated on the host

computer. The LED blinks when in a suspended state.

Activity LED (Amber)

Indicates data transmission is occurring between local and remote

extenders. LED blinks intermittently with or without a USB device

connected. When the local and remote extenders are in suspend mode,

the LED is off.

CrystalLink USB2.0 Fiber Extender Manual 5

3 DC Power Port Connects to the AC power supply. Required at the remote extender for

proper operation.

4 Config Reserved for manufacturer use.

5 Mode Reserved for manufacturer use.

6 Link Port (Duplex LC) Extension link Duplex LC fiber connection

Figure 3. Receiver unit – LED’s and connectors

INSTALLATION

CrystalLink USB2.0 Fiber Extender Manual 6

Installation Procedure

Before beginning an installation, ensure you have all products and components ready for the installation

Figure 4. CrystalLink USB2.0 fiber extender – standard installation



Determine where the computer is to be located and set up the computer.



Determine where you want to locate the remote USB device(s).



Remember the product supports a maximum distance of 6.2 miles (10Km) for transparent USB devices.

If using patch (stranded) cables or premise wiring, the achievable extension distance may be less.



Avoid potential sources of interference such as electrical wiring, fluorescent lighting and radio

communications equipment.

Ensure that the fiber cable is terminated with Duplex LC type matching connectors. Two strands of multimode

fiber cabling are required for the multimode extender up to 1,640ft (500m) using 50/125μm or up to 902ft

(275m) using 62.5/125μm fiber optic cable.

Installation Using Premise Wiring

If you are using premise cabling, ensure fiber cabling is installed between the two locations, with fiber premise

outlets located near both the computer and the USB devices.

Installing the Transmitter Unit



Place the transmitter unit near the computer.



Install the supplied USB cable between the transmitter and USB port on the host computer.

Installing the Receiver Unit

Place the receiver unit near the USB device(s) in the desired remote location.

USB Host

TX Unit

RX Unit

Fiber Cable

USB2.0

Devices

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rose electronics Extender Handbücher

Rose electronics

Rose electronics CrystalLink CLK-1U4TP-100M/PE Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Mini Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAT5 Bedienungsanleitung

Rose electronics

Rose electronics CLK-4U2TP-100M Bedienungsanleitung

Rose electronics

Rose electronics UltraLink 2 Bedienungsanleitung

Rose electronics

Rose electronics CRK-1USB Bedienungsanleitung

Rose electronics

Rose electronics ORION Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CrystalView TWISTED PAIR KVM... Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Bedienungsanleitung

Rose electronics

Rose electronics XtendVue Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Mini Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Betriebsanleitung

Rose electronics

Rose electronics CrystalView DVI CATx CRK-2DTXPD1D Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Quad Einrichtungshandbuch

Rose electronics

Rose electronics CrystalView DVI EX Bedienungsanleitung

Rose electronics

Rose electronics CrystalView USB2 Bedienungsanleitung

Rose electronics

Rose electronics CLK-4U2FM-500M Bedienungsanleitung

Rose electronics

Rose electronics CRK-1DFMPDVI/SF Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAB-MD6M2MD6F Bedienungsanleitung

Rose electronics

Rose electronics RJ45 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX HDMI Multi CRV-SRDTXT2D-2T-HD6... Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAT5 Rack CRV-12SLP Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
