Rose electronics ORION Bedienungsanleitung

Orion Extender

™

DIGITAL CATx / Fiber KVM EXTENDER for Orion and Orion LC Transmitter / Receiver

10707 Stancliff Road Phone: (281) 933-7673

Houston, Texas 77099 WWW.ROSE.COM

INSTALLATION AND OPERATIONS

MANUAL

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any

means, electronic or mechanical, including photocopying and recording, without the prior written permission of

Rose Electronics.

Rose Electronics Part # MAN-OrEx

Printed In the United States of America – Revision 1.0

Rose Electronics warrants the Orion Extender to be in good working order for one year from the date of

purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working

order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or

replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or

new. All replaced parts become the property of Rose Electronics. This limited warranty does not include

service to repair damage to the Unit resulting from accident, disaster, abuse, or unauthorized

modification of the Unit, including static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to

Rose Electronics or an authorized repair center providing a proof of purchase date. If this Unit is

delivered by mail, you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay

shipping charges to the warranty service location, and to use the original shipping container or its

equivalent. You must call for a return authorization number first. Under no circumstances will a unit be

accepted without a return authorization number. Contact an authorized repair center or Rose

Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN

DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO

WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME

STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL

ROSE ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS,

LOST SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE

USE OF OR THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN

AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR

ANY CLAIM BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY

TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE

OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

IBM, AT, and PS/2 are trademarks of International Business Machines Corp. Microsoft and Microsoft

Windows are registered trademarks of Microsoft Corp. Any other trademarks mentioned in this manual

are acknowledged to be the property of the trademark owner.

FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY

FEDERAL COMMUNICATIONS COMMISSION

AND INDUSTRY CANADA

RADIO-FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses and can radiate radio frequency energy and

if not installed and used properly, that is in strict accordance with the

manufacturer’s instructions may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class B digital

device in accordance with the specifications of Part 15 of FCC rules, which

are designed to provide reasonable protection against such interference when

the equipment is operated in a commercial environment. Operation of this

equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may

be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class B limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation of

Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la classe A

prescrites dans le Règlement sur le brouillage radioélectrique publié par

Industrie Canada.

CE DECLARATION OF CONFORMITY

This equipment is in conformity with the

Council Directives 89/336/EEC

The Declaration of Conformity is based upon

compliance of the product with the following

standards:

EN55022 1999 class B

EN55024 1999

IEC61000-4-2: 2001

IEC61000-4-3: 2001

IEC61000-4.4: 2001

IEC61000-4-5: 2001

EN61000-3-2 2001

EN61000-3-3 2002

TABLE of CONTENTS

Contents

Disclaimer.........................................................................................................1

System introduction..........................................................................................1

Features............................................................................................................2

Compatibility.....................................................................................................2

Package contents.............................................................................................2

Models (Single Video).......................................................................................3

Models (Dual Video).........................................................................................4

Cables...............................................................................................................5

Installation.........................................................................................................6

Applying power............................................................................................7

Operating instructions – Local KVM access.....................................................9

DDC Information...............................................................................................9

Reset DDC table to default values .................................................................11

Color Depth Selection.....................................................................................11

Selecting moment of switching to next frame.................................................11

Figures

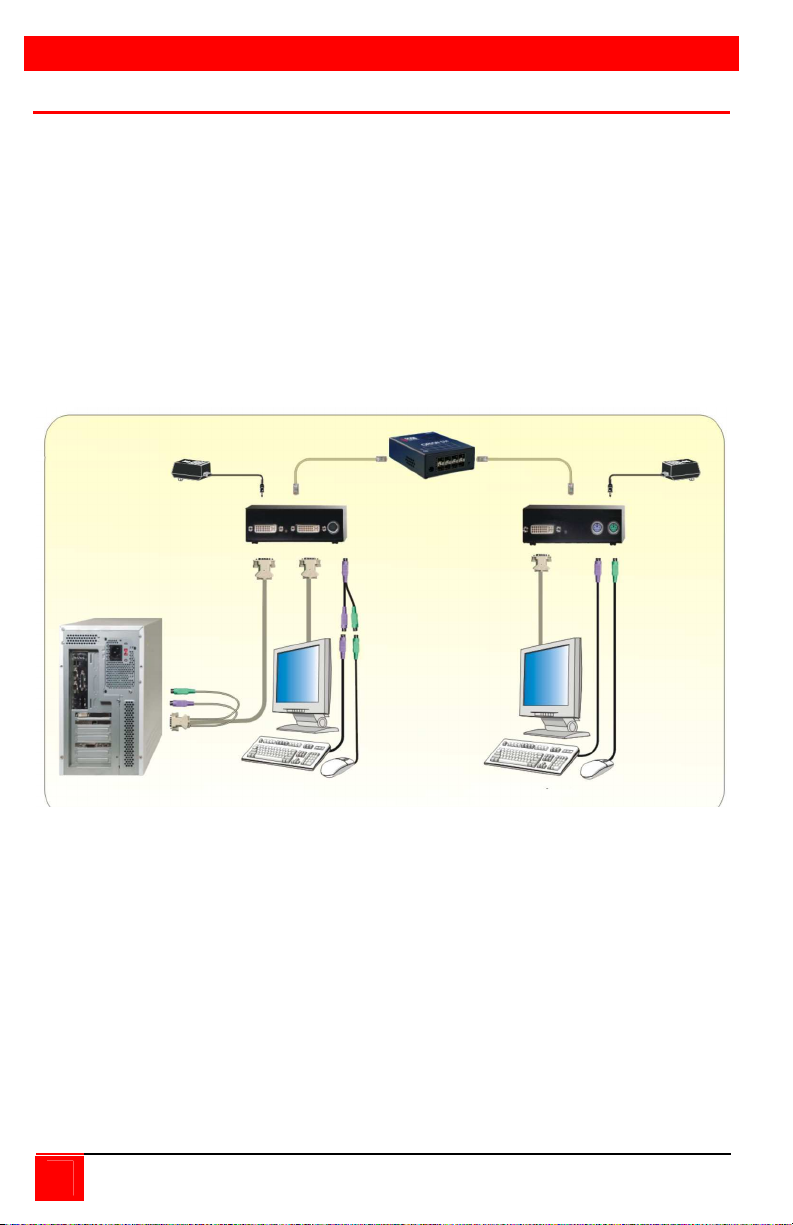

Figure 1. Typical cabling configurations...........................................................6

Tables

Table 1.transmitter to receiver cabling .............................................................7

Appendices

Appendix A. General specifications................................................................16

Appendix B. Parts and cables ........................................................................17

INTRODUCTION

ORION EXTENDER INSTALLATION AND OPERATIONS MANUAL

Disclaimer

While every precaution has been taken in the preparation of this manual, the

manufacturer assumes no responsibility for errors or omissions. Neither does

the manufacturer assume any liability for damages resulting from the use of

the information contained herein. The manufacturer reserves the right to

change the specifications, functions, or circuitry of the product without notice.

The manufacturer cannot accept liability for damages due to misuse of the

product or other circumstances outside the manufacturer’s control. The

manufacturer will not be responsible for any loss, damage, or injury arising

directly or indirectly from the use of this product.

System introduction

Thank you for choosing the Rose Electronics



Orion DVICATx / Fiber KVM

station extender. The Orion Extender is a very versatile KVM extender. It

supports the latest digital DVI video. All combinations of DVI monitors and

video cards are supported.

The system consists of two Units, a transmitter and a receiver. The

transmitter connects to your CPUs keyboard, DVI monitor, and mouse

connectors, or to a Rose KVM switch. The receiver connects to a keyboard,

DVI video monitor and mouse or KVM station. The transmitter and receiver

are connected together with Singlemode/Multimode fiber or CATx industry

standard cable.

All models are available with transmitter and receiver KVM access. With

transmitter KVM access an additional KVM station to be connected to the

transmitter unit. Serial and full stereo audio support is optional on all models.

Using the Orion Extender to remotely access your computer has several

advantages over conventional extenders. The Orion Extender transmits data

digitally which provides a clear, sharp picture. Computers used in hazardous

industrial environments can be accessed remotely, keeping the users safe

and unexposed to any hazards.

ORION EXTENDER INSTALLATION AND OPERATIONS MANUAL

Features

Perfect image quality at resolutions up to 1920 x 1200 @ 60Hz using

CAT5, 5e, 6, or 7 cable

Extend a KVM station from a CPU using fiber or CATx cables

Supports USB keyboards and mouse

Supports all DVI-D graphic cards

Single and dual video models available

Serial and full stereo audio option

All models provide local KVM access to the computer

The Orion DVI uses a microprocessor to emulate the keyboard and

mouse. The keyboard and mouse on the receiver do not have to be

connected for the PC to boot; only the transmitter Unit must be connected

to the PC

Compatible with Rose Electronics family of KVM switches such as

ServeView, UltraView and UltraMatrix (DVI to VGA converter required)

Compatible with all operating systems

Fully automatic KVM sharing on a first-come first-serve basis using the

dual access model

The computer’s video is displayed on both KVM stations monitors.

Rack mount kits available

Compatibility

Computers PCs (all operating systems)

Monitors Digital DVI-D

Keyboards USB type keyboards

Mouse USB

Serial Compatible devices up to 19.2KBaud

Audio Bi-directional CD quality stereo audio

Package contents

The package contents consist of the following:

The transmitter and receiver Units

Power adapter for transmitter and receiver units.

Transmitter to computer cable



Installation and operations manual.

CPU adapter cables, CATX or Fiber cables, and DVI to VGA converters are

usually ordered separately. If the package contents are not correct, contact

Rose Electronics or your reseller, so the problem can be quickly resolved.

MODELS

ORION EXTENDER INSTALLATION AND OPERATIONS MANUAL

Models (Single Video)

USB Transmitter USB Receiver

USB Transmitter w/Serial/Audio USB Receiver w/Serial/Audio

CATx model Fiber model

Receiver / Transmitter – All Single Video models

ORION EXTENDER INSTALLATION AND OPERATIONS MANUAL

Models (Dual Video)

USB Transmitter USB Receiver

USB Transmitter w/Serial/Audio USB Receiver w/Serial/Audio

CATx model Fiber Model

Receiver / Transmitter – All Dual Video models

CABLES

ORION EXTENDER INSTALLATION AND OPERATIONS MANUAL

Cables

(See Attachment B for cable part numbers)

Transmitter unit to CPU cable

CPU cables connect from the transmitter to a CPUs keyboard, video monitor

and mouse ports.

Transmitter / Receiver to KVM station cable

The keyboard, video monitor, and mouse cables on a KVM station can

connect directly to the receiver or transmitter KVM ports.

Orion Extender to Rose switch cable

To connect a transmitter to a Rose switch such as a ServeView, UltraMatrix

or UltraView, use a CPU adapter cable and a DVI to VGA converter.

Transmitter unit to Receiver unit cable

The transmitter is connected to the receiver with up to 450 feet of CATx cable

(CAT5, 5e, 6, or 7) or 33,000 feet (Singlemode cable)

Serial Cables

The transmitter’s serial feature is incorporated in the DVI connector and is

connected to the computer’s serial connector (DB9M) using a DVI to

DVI/DB9F cable.

A serial device connects directly to the receiver’s DB9M connector

Audio Cables

The transmitter audio in/out features are incorporated in the DVI connector

and connects to a computers speaker and microphone ports using a DVI to

3.5mm stereo cable. Stereo speakers and a microphone connect directly to

the receivers audio input/output ports.

INSTALLATION

ORION EXTENDER INSTALLATION AND OPERATIONS MANUAL

Installation

Please refer to the safety section first before proceeding with any installation

or configuration of the Orion Extender.

When installing the Orion Extender, locate the transmitter as close as

possible to the CPU or switch. Keep the cables as short as possible but still

give some freedom of movement. Using shorter cables keeps the video noise

to a minimum and reduces installation costs. You can mount the Orion

Extender in a CPU rack with the optional rack mount kit. When mounting the

units in a rack provide adequate air circulation to assure that the maximum

operating temperature is not exceeded.

Wherever the transmitter and receiver units are located, they should be on a

secure surface and free from obstructions and objects that may cause

damage to the units.

Figure 1. Typical cabling configurations

(See Figure 1 for the connector locations for your model)

NOTE: Local access provides for a second KVM station connected to the

transmitter. Damage to the unit can occur if the DVI connectors are connected

incorrectly. Make sure the DVI connector to the computer is NOT connected

to a DVI monitor.

The serial and audio transmitter connects to the computers serial and audio

ports (Line in / Microphone).

LOCAL KVM REMOTE KVM

ACCESS ACCESS

Orion LC

TRANSMITTER RECEIVER

Andere Handbücher für ORION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rose electronics Extender Handbücher

Rose electronics

Rose electronics CrystalLink CLK-4U2FMB-500M Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAB-MD6M2MD6F Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB-3-2-1 Fiber Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CRK-T1DFXDM-DLT Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CAT5 Serial Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Plus Bedienungsanleitung

Rose electronics

Rose electronics CRK-2DTPPDVI Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Quad Einrichtungshandbuch

Rose electronics

Rose electronics CrystalView Mini Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics Xcion DVI/VGA over CATx Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CLK-1U1TP-40M Bedienungsanleitung

Rose electronics

Rose electronics PS/2 Bedienungsanleitung

Rose electronics

Rose electronics UltraLink 2 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI CATx CRK-2DTXPD1D Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI EX Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CLK-1U4TP-100M/PE Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Extreme Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Exact Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX HDMI Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CLK-4U2TP-100M Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB3.1 Fiber Dual Port Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
