Ruckus Wireless Unleashed H320 Bedienungsanleitung

Published July 2017, Part Number 800-71475-001 Rev B

Unleashed H320 Access Point

Quick Setup Guide

This Quick Setup Guide provides step-by-step instructions on how

to set up your Ruckus Wireless Unleashed H320 Dual Band

802.11ac Wave 2 Wall Switch Access Point. After completing the

steps described in this guide, you will be able to access the

Access Point (AP) and begin providing wired and wireless network

access to users.

The Unleashed H320 has many options:

• It can be mounted on a standard USA- or EU-style single-

gang wall outlet box.

• Provides two stream, dual-band 11ac Wave 2 Wi-Fi (5 GHz -

2x2:2; 2.4 GHz - 1x1:1).

• Includes one 10/100/1000 uplink port and two 10/100 access

ports.

• It can be powered by a customer-supplied IEEE 802.3af- or

802.3at-compliant PoE switch or injector.

THIS GUIDE IN OTHER LANGUAGES

•请从以下网站获得该指南的简体中文版

https://support.ruckuswireless.com

• Vous trouverez la version française de ce guide à l'adresse

suivante https://support.ruckuswireless.com

•このガイドの⽇本語版は https://support.ruckuswireless.com

でご覧ください

•이가이드의 한국어 버전은 웹사이트

(https://support.ruckuswireless.com)에서 확인하시기 바랍니

다

• Veja a versão em português (Brasil) deste guia em

https://support.ruckuswireless.com

• Puede ver la versión en español (América Latina) de esta guía

en https://support.ruckuswireless.com

BEFORE YOU BEGIN

Before deploying Ruckus Wireless products, please check for the

latest software and the release documentation.

• User Guides and Release Notes are available at

http://support.ruckuswireless.com/documents

• Software Upgrades are available at

http://support.ruckuswireless.com/software

• Open Source information is available at

http://opensource.ruckuswireless.com

• Software License and Limited Warranty are available at

http://support.ruckuswireless.com/warranty

PACKAGE CONTENTS

• Unleashed H320 Wall Switch Access Point

• Mounting bracket

• Two 6mm M3x0.5 thread Torx flat head machine screws

• Two 1” 6-32 thread Phillips pan head machine screws

• Product warranty statement

• Regulatory flyer

• Declaration of Conformity, if required

•ThisQuick Setup Guide

STEP 1: COLLECTING TOOLS AND SETUP

REQUIREMENTS

• No. 2 Phillips screwdriver and T10 Torx driver for the mounting

bracket screws

• A standard USA- or EU-style single-gang wall outlet box

• One of the following:

• Customer-supplied IEEE 802.3af/at-compliant PoE switch

• Customer-supplied IEEE 802.3af/at-compliant PoE

injector

• An Ethernet cable (Cat5e, or better) supplying PoE power and

network connectivity run through the wall from your LAN to the

wall outlet box

• A computer with an Ethernet port and a Wi-Fi network adapter

STEP 2: CONNECTING THE UNLEASHED H320 TO

POWER AND YOUR NETWORK

Figure 1: Front view

1After removing your Unleashed AP from its package, connect

it to your network switch or router using an Ethernet cable.

2Using an AC adapter (sold separately), connect the AP 12VDC

port to a protected power source.

• Alternatively, connect the PoE port to a PoE injector or

PoE switch for both power and network connections.

3Verify that the PWR LED on the rear of the enclosure is a

steady green.

Figure 2: Rear and bottom view

Note: The Unleashed H320 does NOT support Mesh.

Note: If you will be using PoE, then you will need a Cat5e (or

better) Ethernet cable to connect the AP to the PoE injector or

switch.

Published July 2017, Part Number 800-71475-001 Rev B

STEP 3: ATTACHING THE MOUNTING BRACKET TO

AN OUTLET BOX

Figure 3: Mounting bracket

1Use either the original wall outlet box screws or the factory-

supplied 1” Phillips pan head machine screws to attach the

H320 mounting bracket to a single-gang wall outlet box.

2Pull the uplink Ethernet cable for the H320 through the wall

outlet box.

3When you have extra bypass cables (one or two) that are to

bypass the H320, pull them through the wall outlet box.

Note: The bypass cables can be Ethernet, coax, or any other

type of cable, as required.

4Drape the bypass cables across one of the upper hooks on

either side of the mounting bracket.

5Continue with Step 4: Attaching the H320 to the Mounting

Bracket.

STEP 4: ATTACHING THE H320 TO THE MOUNTING

BRACKET

1Make sure that the mounting bracket is securely fastened as

described in Step 3: Attaching the Mounting Bracket to an

Outlet Box.

2If you have bypass cables (usually one or two, if any), then

make sure that they are draped across one of the two upper

hooks on the mounting bracket.

Figure 4: Attaching the H320 to the Mounting Bracket

3Pull the uplink Ethernet cable from your LAN through the outlet

box, and plug it into the back of the H320.

4The mounting bracket has two lower hooks that fit into slots

on the bottom of the H320. Rest the bottom of the H320 on

those hooks, and then tilt the H320 until it is up against the

mounting bracket.

Note that any optional bypass cable(s) should slide smoothly

into the slots on the sides of the H320.

5Use a T10 Torx driver to screw the factory-supplied Torx flat

head machine screws through the H320 screw holes into the

threaded inserts on the sides of the mounting bracket.

6Continue with Step 5: Log In and Run the Setup Wizard.

STEP 5: CONFIGURE YOUR UNLEASHED NETWORK

Unleashed can be deployed using either a Mobile App, available for both iOS and

Android, or using your PC’s web browser. Refer to the relevant section depending on

which method you prefer to use:

•Step 5a: Setup Using the Unleashed Mobile App

•Step 5b: Setup Using a Web Browser

Step 5a: Setup Using the Unleashed Mobile App

To perform setup using the Unleashed Mobile App, download the iOS or Android app

from the app store.

1As soon as the Unleashed AP is powered on and connected

to the local network, it boots up and begins broadcasting a

temporary unencrypted WLAN named “Configure.Me-

[xxxxxx]” from both radios.

2Using your client’s Wi-Fi connection settings, select and

associate to the “Configure.Me-[xxxxxx]” WLAN.

3Launch the app, and follow the on-screen instructions to

configure your Unleashed network(s).

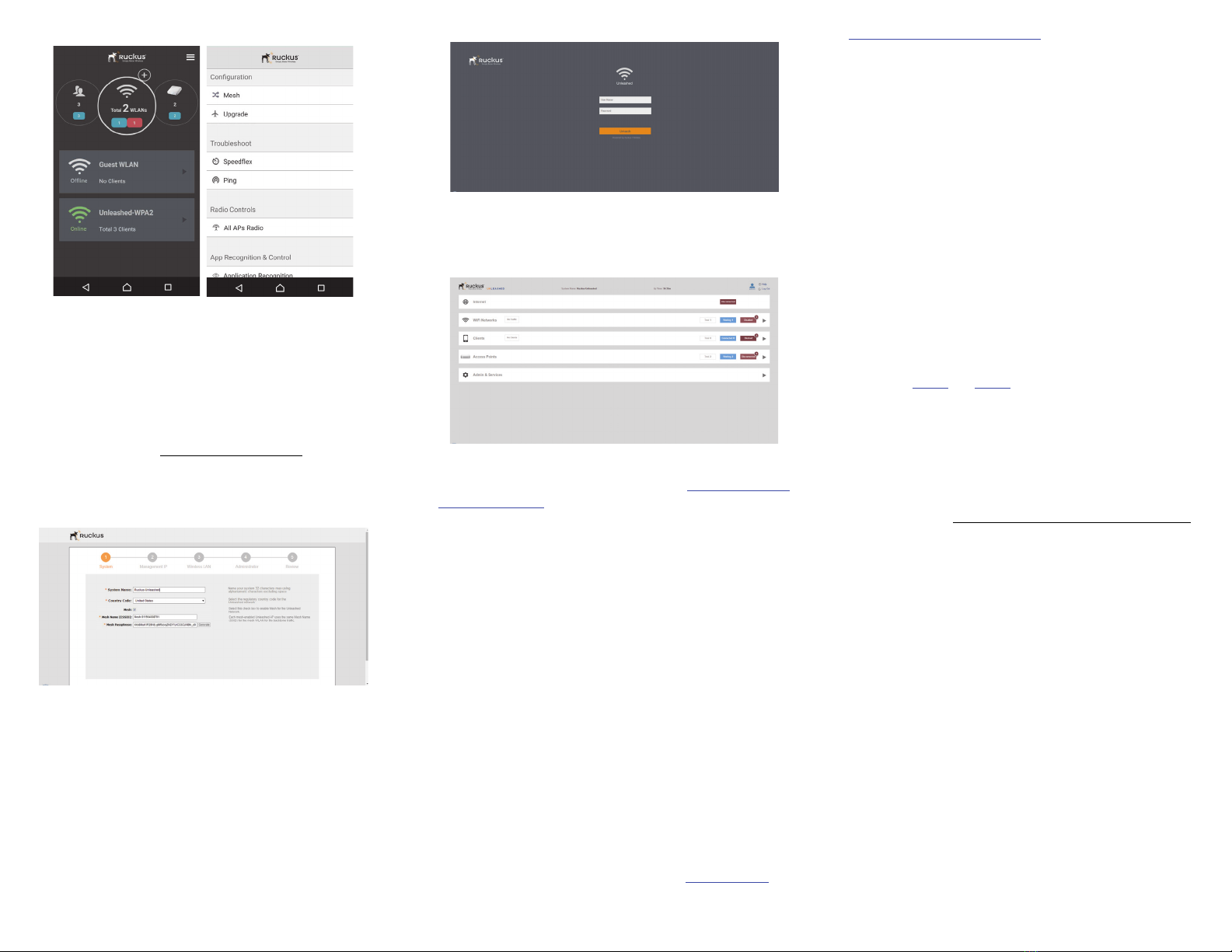

Figure 5. Unleashed Mobile App for iOS and Android

Note: The H320 mounting bracket has four hooks that face UP.

Make sure that the hooks are facing up when attaching the

mounting bracket to the wall outlet box.

Published July 2017, Part Number 800-71475-001 Rev B

Figure 6. Configuring Unleashed from the Mobile App

Step 5b: Setup Using a Web Browser

1As soon as the Unleashed AP is powered on and connected

to the local network, it boots up and begins broadcasting a

temporary unencrypted WLAN named “Configure.Me-

[xxxxxx]” from both radios.

2Using your client’s Wi-Fi connection settings, select and

associate to the “Configure.Me-[xxxxxx]” WLAN.

3Launch a web browser and enter the following into the

browser’s URL bar: unleashed.ruckuswireless.com, and press

Enter.

4You will be redirected to the Setup Wizard. Complete the

steps in the Setup Wizard and click Finish.

Figure 7. Complete the Setup Wizard to set up your Unleashed network

5Once the Setup Wizard is finished, a “Configuring system

settings and rebooting” progress screen appears. Wait until

the process is complete.

6Connect to the WLAN that you configured in the Setup

Wizard, and click OK to reconnect. You will be redirected to

the Unleashed login screen.

7Enter your Admin Name and Password to login.

Figure 8. The Login page

8Upon successful login you will be presented with the

Unleashed Dashboard, which displays an overview of your

Ruckus Unleashed network.

Figure 9. The Unleashed Dashboard

9Click OK to save your changes.

Your changes are put into effect immediately. Continue with Step 6: Customize

Your Wireless LANs.

STEP 6: CUSTOMIZE YOUR WIRELESS LANS

Once the Unleashed Master AP has been initialized, you can

fine-tune the settings of your first WLAN (that you created

during the setup wizard), and create any additional WLANs

needed prior to attaching additional Unleashed member APs.

Then, when you deploy additional member APs in whatever

order you prefer, they will automatically retrieve all WLAN

configuration settings (and any other settings you have

configured) from the Unleashed Master AP.

1From the Dashboard, click anywhere in the WiFi Networks

section to expand the display of your deployed WLANs.

2On the left side of the screen, select the WLAN box for the

WLAN you would like to configure, and click the Edit

button to edit the configuration; or click Create to create a

new WLAN.

3If you made any changes to the original WLAN, you will be

disconnected and will need to reconnect once the changes

have been deployed on the AP radios.

Congratulations! Your Unleashed network is now configured

and ready for use. You may now proceed to Step 7: Deploy

Additional Unleashed Access Points.

STEP 7: DEPLOY ADDITIONAL UNLEASHED

ACCESS POINTS

Deploying additional Unleashed member APs is simply a matter

of connecting them to the same Layer 2 network (subnet) and

providing power. They will discover the Unleashed Master and

join automatically. No additional steps are necessary.

STEP 8: TESTING THE H510 OPERATION

After a short pause to re-establish the Internet connection, you can

test the H510.

1Using any wireless-enabled computer or mobile device,

search for and select the wireless network you previously con-

figured.

2If you can connect, open a browser and navigate to any public

website.

3Using any wired computer or other device and an Ethernet

cable, plug into an Ethernet port on the bottom of the H510.

4Open a browser and navigate to any public website.

5Repeat Step 3 and Step 4 for the rest of the Ethernet ports on

the bottom of the H510.

6Verify that all connected PoE-powered devices and USB

devices are working correctly.

FOR MORE INFORMATION

For more information on managing your Unleashed network,

refer to the Ruckus Wireless Unleashed Access Point Online

Help, available from https://docs.ruckuswireless.com/unleashed/.

Published July 2017, Part Number 800-71475-001 Rev B

Andere Ruckus Wireless Drahtloser Zugangspunkt Handbücher

Ruckus Wireless

Ruckus Wireless T811-CM Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless zoneflex t301s Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex R700 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex R710 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 2925 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex R600 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless T310n Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless MediaFlex 7811 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless R560 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 7962 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless C110 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless zoneflex t301n Installationsanleitung

Ruckus Wireless

Ruckus Wireless H510 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless T305e Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless T310s Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless MediaFlex 2900 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZF7762-AC Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex series Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 7762-S Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless R560 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 7762-T Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless SC8800-S Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZF2925 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex R500 Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
