Safe Fleet PRIME DESIGN HBR-E-6000 Bedienungsanleitung

PRIME DESIGN, A SAFE FLEET BRAND

Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK

Fax: 651-552-1799 ▪ Email: inf[email protected] ▪ Website: www.primedesign.net

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

2

3

4

6

7

8

1

5

10

9

Channels (2X)

Screws (8X) End Caps (4X) Brackets (4X)

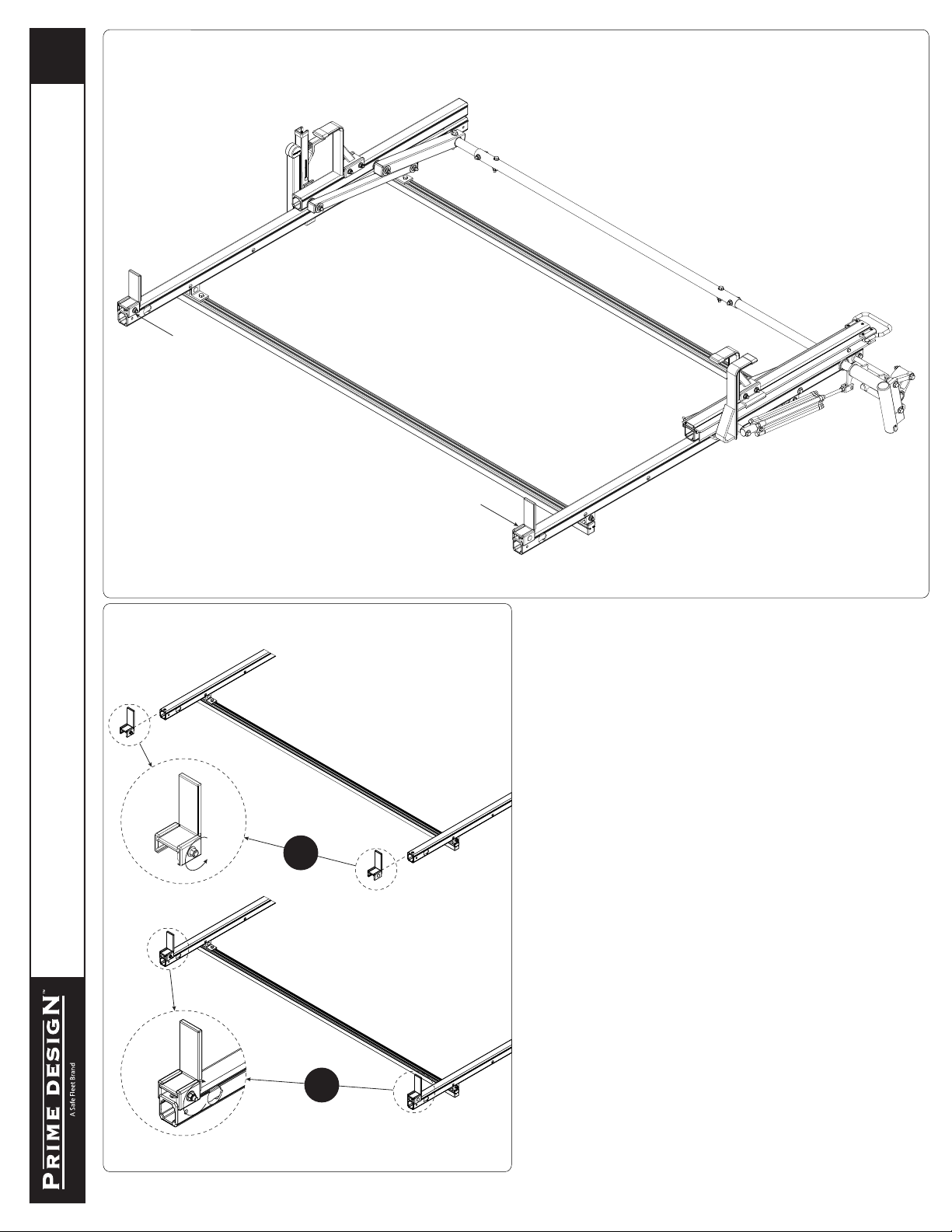

HBR-E-6000 ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

1—FBM-0001......................................................... (Qty 1)

Channels with hardware

CONTENTS OVERVIEW

2—Rear Crossbar Assembly.................................. (Qty 1)

3—Front Crossbar Assembly ................................. (Qty 1)

4—Rear Drive Shaft .............................................. (Qty 1)

Right Hand, G4, 33.50”

INSTALLER NOTE: Mounting Hardware or

Brackets to attach this rack to a vehicle

roof or cap are not included in this kit,

and must be purchased separately.

To purchase Mounting Hardware or

Brackets, please contact Prime Design

Sales & Support.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

3

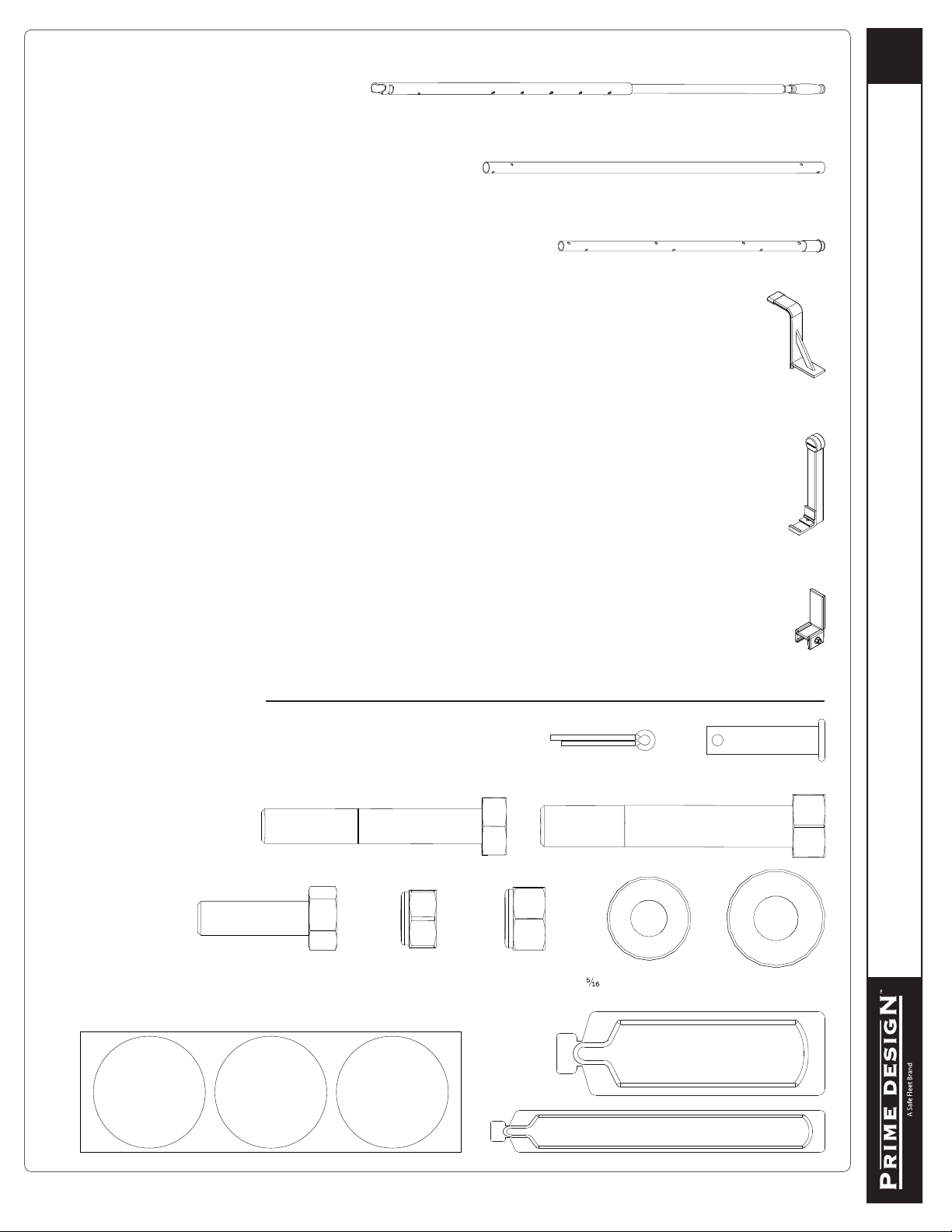

HBR-E-6000 ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

7—Front Drive Shaft ............................................. (Qty 1)

B Version, 35.75”

8—Z Post ............................................................... (Qty 1)

Adjustable 7.25”

10—Ladder Stop Assembly .................................. (Qty 2)

1.75”

5—HRR Handle Assembly .................................... (Qty 1)

35.00”

6—Connecting Bar ................................................ (Qty 1)

48.00”

HKT-8163-Rotation Hardware Kit

9—L Post ............................................................... (Qty 1)

Roller Cap, 9.25”

Anti-Seize (1X)

Lubricant (1X)

Clevis Pin (1X)Cotter Pin (1X)

M8 x 50MM (4X) ⅜" x 2.25" (2X)

1.00" Sealing

Stickers (8X)

M8 Lock Nut (5X) ⅜" Lock Nut (2X) ⅜" Flat Washer (4X)" Flat Washer (10X)

M8 x 25MM (1X)

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

4

HBR-E-6000 ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

Rear

Front

Left

Right

Left Rear

1—9/16” (40mm) from end

Right Rear

Flush to end

Rear

Front

Left

Right

Flush to Channel End

Right Rear

Left Rear

Flush to Channel End

67.00”

*Note: Use Alternate instructions if marked distances exceed 18” (457mm).

*See Note

FBM-0001 FLUSH

CHANNELS TO PRE–INSTALLED

MOUNTING BRACKETS

A.1

A.2

Loosen nuts

A.4

Loosen nuts

A.5 Set to distances then torque Rear Bracket nuts to 90 in-lbs

A.3 Set to distances then torque nuts to 80 in-lbs

INSTALLER NOTE: Mounting Hardware or

Brackets to attach this rack to a vehicle

roof or cap are not included in this kit,

and must be purchased separately.

To purchase Mounting Hardware or

Brackets, please contact Prime Design

Sales & Support.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

5

HBR-E-6000 ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

Rear

Front

Left Rear

Right Rear

Left

Right

*Move Channels rearward until front distance no longer exceeds 18” (457mm).

*See Note

Rear

Front

Left

Right

Right Rear

72.00”

Left Rear

Flush to Channel End

72.00”

FBM-0001 ALTERNATE

CHANNELS TO PRE–INSTALLED

MOUNTING BRACKETS

B.1

B.2

Loosen nuts

B.4

Loosen nuts

B.5

B.3

Set to distances then torque Rear Bracket nuts to 90 in-lbs

Set to distances then torque nuts to 80 in-lbs

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

6

1

3/10

2

4

5

7

Rear

Front

6

Even Front

RearEven

9

8

HBR-E-6000 ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

RIGHT ROTATION ASSEMBLY

SEQUENCE

CROSSBARS CROSSBAR ADJUSTMENT

1.1

Torque to 90 in-lbs

1.2

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

7

REAR DRIVE SHAFT

CYLINDER HARDWARE CONNECTING BAR

2.1

2.2

2.3

Torque to 90 in-lbs

2.4

3.2

4.1

3.1

4.2

HBR-E-6000 ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

8

HBR-E-6000 ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

FRONT DRIVE SHAFT

Z POSTS

SEE QUICK START GUIDE FOR ADJUSTMENTS

CONNECTING BAR FASTENERS

6

7.2

Torque to 90 in-lbs

7.1

L POSTS

SEE QUICK START GUIDE FOR ADJUSTMENTS

5.2

5.3

8.2

Torque to 90 in-lbs

8.1

5.1

5.4

Torque to 90 in-lbs

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

9

CYLINDER ADJUSTMENT

Adjust the Cylinder Flow Control Screw to allow approximately 3

seconds time for the ladder to glide down when operating the

loaded Ladder Rack.

10

9

Apply Silicone Sealant

to Connecting Bar ends

DRIVE SHAFT SEALING

HBR-E-6000 ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

10

11

HBR-E-6000 ASSEMBLY INSTRUCTIONS–LEFT SIDE BASE

LEFT SIDE BASE ASSEMBLY SEQUENCE

LADDER STOPS

11.1

11.2
