Salente L5 Bedienungsanleitung
www.salente.cz
L5
You can download the mobile APP by smart phone to check the cleaning map and running status of
the robot in APP in real time, define the cleaning area and schedule. You can control the robot
remotely.Science and technology makes life better.
It is a high-end intelligent planning cleaning robot which combines high accuracy radar and various
sensors can realize collaboration through navigation algorithm, draw a room map in real time and plan
the cleaning route and features automatic cleaning and automatic charging without manual
intervention. It has ultrastrong suction power, high-capacity drawer type dust box, washable HEPA filter
screen and split type mopping module and adopts an efficient cleaning mode of first cleaning and then
mopping.
May you have a nice usage experience!
Thanks for choosing Smart Robot Vacuum Cleaner!
Wecome to use
Product Introduction
Key Function

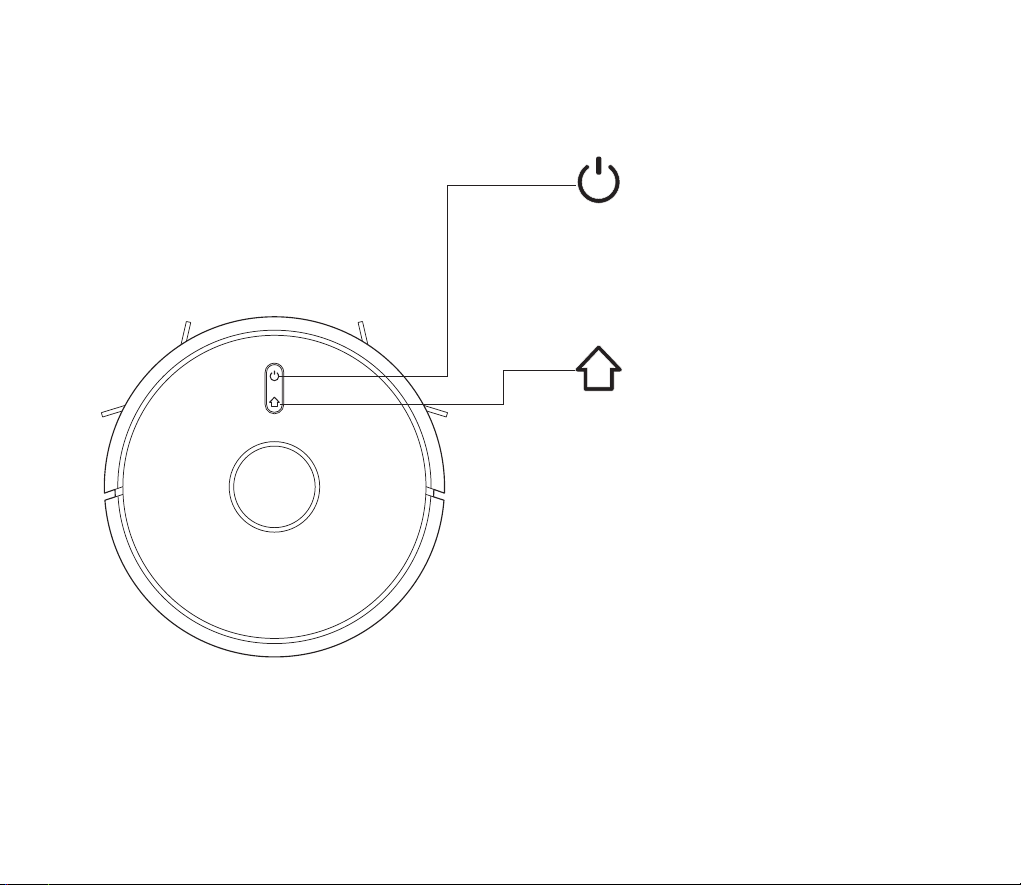

Recharging/ local cleaning
·Short press Recharge/Pause
·Long press to start local cleaning
Sweep/ON &OFF
·Long press for 15s for forced
shutdown under abnormal
circumstances
·Long press for 3s for ON/OFF
·Short press to start Sweep/Pause
Indicator light
·Red: Abnormal condition or low battery
·Purple: Equipment is not connected to
the network
·Blue: Normal operation or charging
Reset WiFi
·Press two buttons simultaneously for
3s
D u s t e r c l o t h X 1
HE PA fi lte r +sp o n ge fi l ter X 1
Ch a rg ing b ase X 1 Ad a pte r X1
Le f t si d e br u shX 2
Ri g ht s i de b r ush X 2
Product Introduction
Parts List
E l e c t r i c - c o n t r o l l e d
w a t e r t a n k
Re m ote c ont r o l
System upgrade port
(This port is only for
professional use)
Product Introduction
Robot
Wall sensor
System reset button
Filter screen
cover
Dust bin
button
Product Introduction

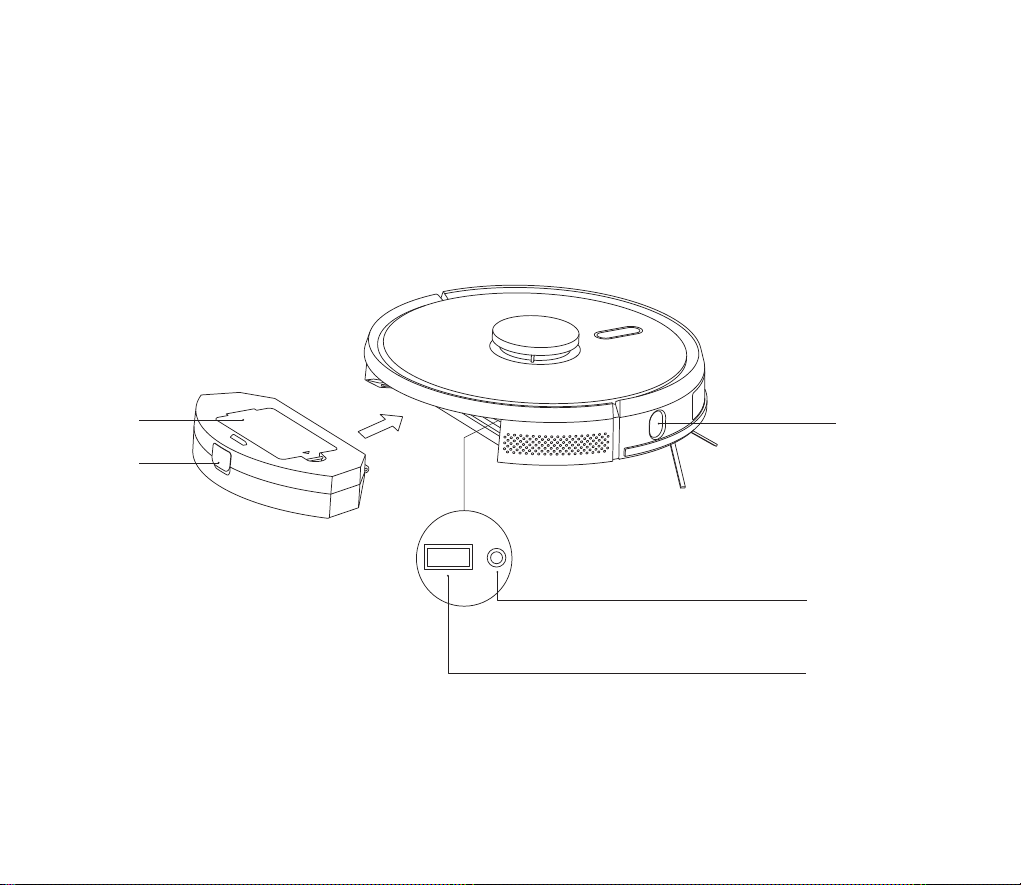

Sensor and Structure
Charging contact
Universal wheel
Side brush
Battery cover
Driving wheel
Rolling brush
LDS laser ranging
sensor
Anti-collision
sensor for radar
Anti-collision
sensor
Infrared
recharging sensor
Anti-drop sensor
Rolling brush
cover buckle
Product Introduction

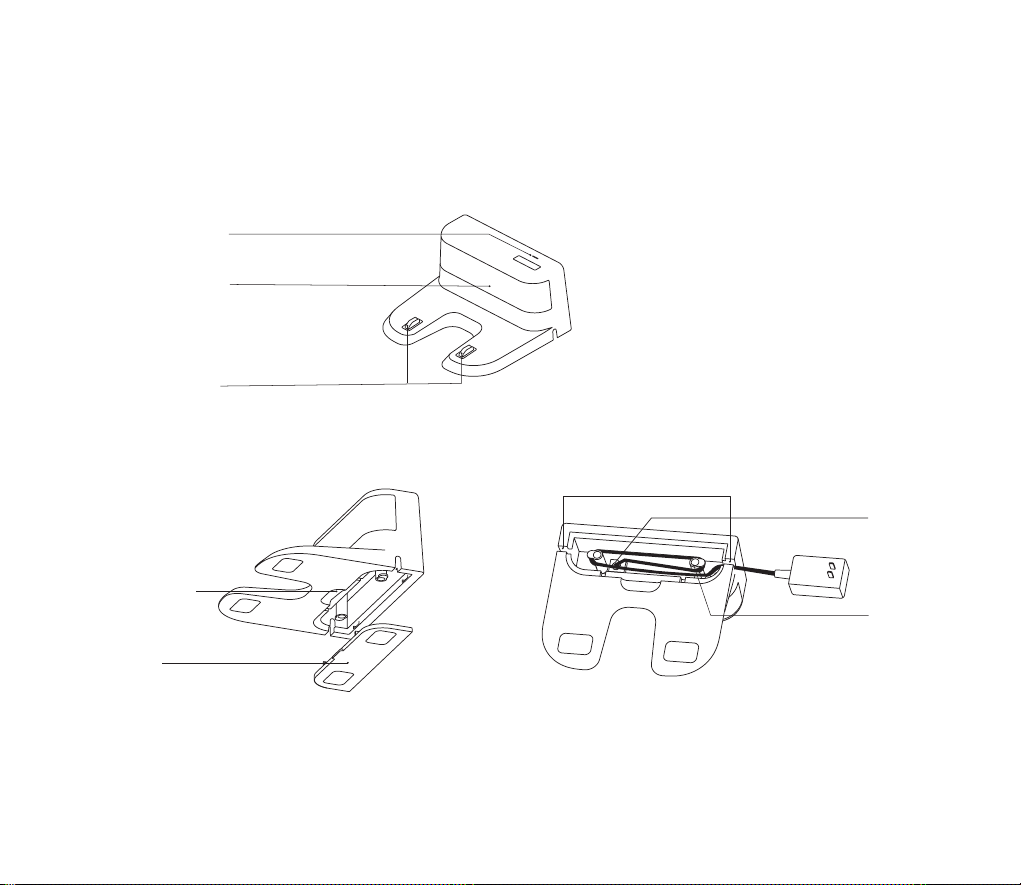

Charging Base
Power indicator light
Signal emission area
Charging base pins
Catching groove
Cover plate
Wire slot
Power adapter
port
Wrapping post
Installation
3Please do not move the charging base arbitrarily and
keep it out of direct sunlight
2Place charging base against the wall and connect
the power
·Ensure a space of above 0.5m on both sides of the charging base
and a space of above 1.5m in the front
·If the power line is vertical to the ground, it may be dragged by the
host and consequently the charging base may be powered off
Note
·The charging indicator is normally on when powered on and off
when charged
>1.5m
>0.5m
>0.5m
4Installation of side brush
Note
·Direct sunlight will interfere with recharging signal and consequently the host
may be unable to return to the charging base
·If the charging base is relocated, the host may fail in positioning and lose the
map. When restarted, the host will rebuild and memorize the map and the
rebuilt map may lose cleaning information of forbidden areas and other areas
Make the left side brush (L) and the right side brush (R) correspond
to L and R on the bottom casing, press L and R and the side
brushes are installed till you hear a “ cracking ” sound
1Connect power line and feed the excess wire
into the slot

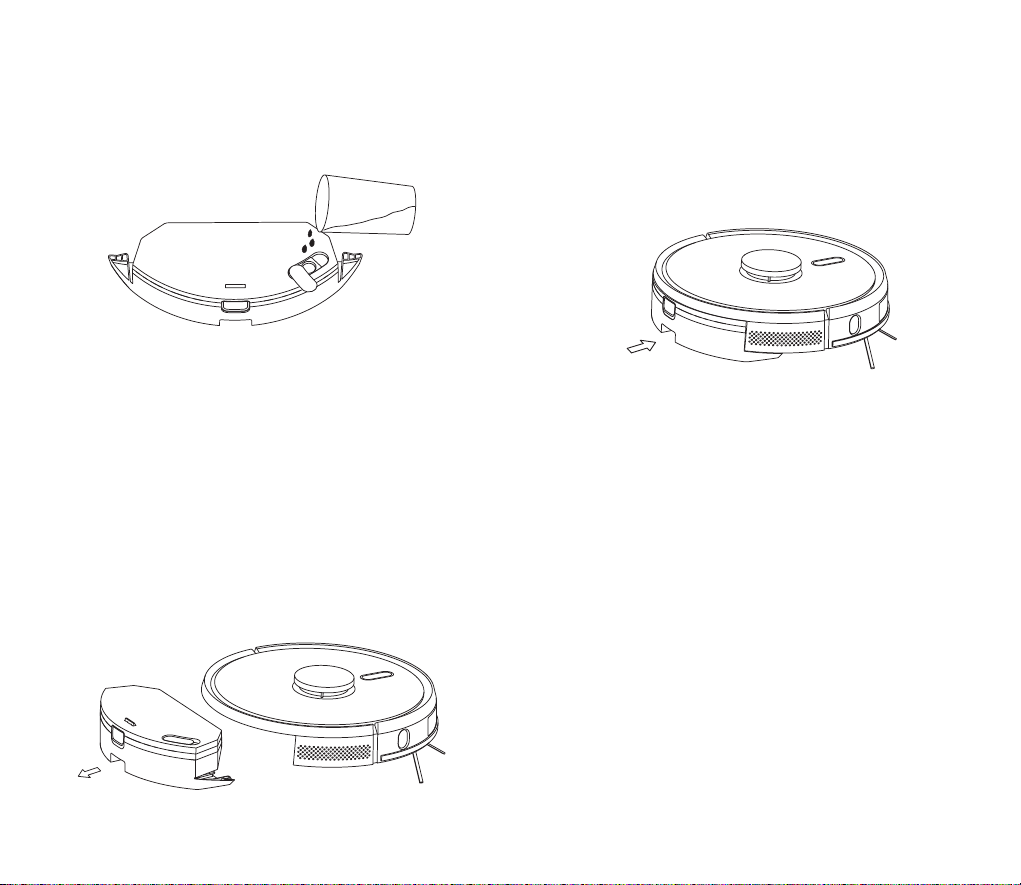

Fill the water tank: uncap the cover and fill with water Intall the module: Push the module horizontally along the rear part
of the robot. The module is installed in place if you hear a "click"
sound
Installation
Electric-controlled water tank
Electric-controlled water tank
9Remove the mopping module
When the robot is finished working, press the button in the middle of
the water tank to remove the mopping module backwards, empty the
water in the water tank and clean the mopping cloth (do not move or
turn the robot over during cleaning)
Electric-controlled water tank
Long press to switch on the robot.Charge the robot on charging
base when the power indictor light is normally on
5Starting up and charging
6Connect mobile APP(this step can be skipped)
Please refer to WiFi connection guideline, then connect mobile APP
7Start cleaning
8Installation of mopping module
Inst a l l a t i o n o f m o p p i n g c l o t h : p a s t e t h e m o p p i n g
cloth flatly to t h e b o t t o m o f w a t e r t a n k
Electric-controlled water tank
Note: please clean the mopping cloth after using to keep it in good cleaning
condition
Installation
Note If the machine cannot be started due to low battery, please charge the
host on the charging base and the machine will be started
automatically. The machine can work normally only when the battery
level is ≥20%
Note
·The sweeping robot cannot be used to remove liquids
·If the battery level is less than 20, the machine cannot work. Please charge it
·The machine will return to the charging base automatically if the battery level
is less than 20% in use and will be powered off and start cleaning
automatically after the battery level reaches 80%
·Please clear various wires (including power line of charging base) on the
ground before use so as to avoid outage and damage of objects or wires
when wires are dragged by the host
After the robot is powered on, short press key on the robot or use
mobile APP to start cleaning.(press any button to pause during
using)
