Salus ERT 52 Bedienungsanleitung
Instruction Manual
Model no. ERT 52
EN Programmable room-thermostat
Menu
Select Cancel
2GB

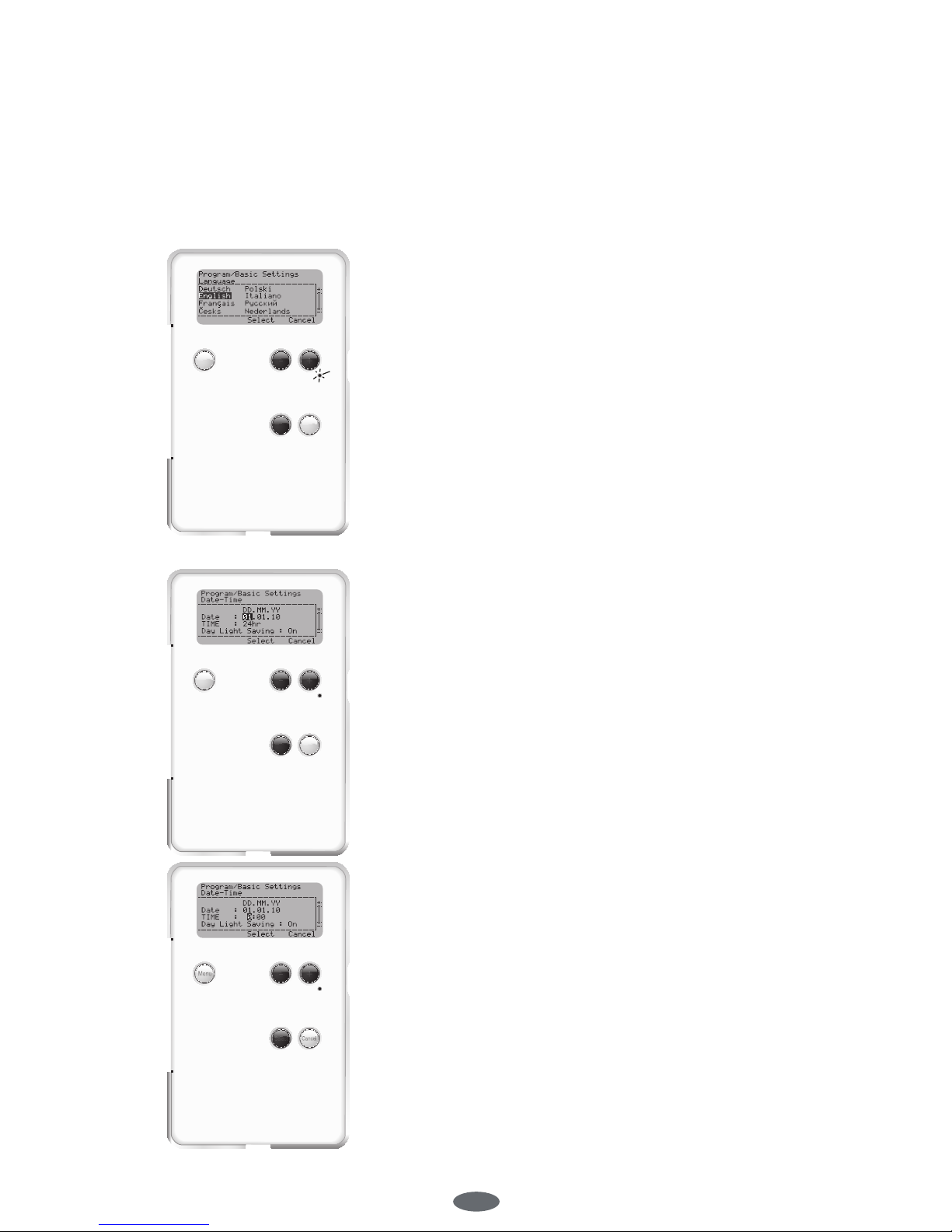

SYSTEM INITIAL
After connecting 230V AC or pressing
reset button, please select the Language,
Date and Time.
Cancel
Menu
Select
Cancel
Menu
Select
Press +or -to select
language then press
Select buttons to
confirm language
Remark: The default is
English.
LCD prompts user to
select Date, time and
Daylight Saving.
Press +or -to change the
value of Date, 24/12hr,
Time and Daylight Saving.
Press Select buttons to
next setting values.
Remark: DD/MM/YY
is different for the
different language.
3
GB
1
2
3
NAVIGATION
In the normal display,
press any key to activate
the display and turn on
the backlight. Access the
Main Menu by pressing
the Menu Button.
Navigate through the
menu by pressing –for
lower and +for higher
entries.
Enter the selected topic
by pressing the select
Button or leave to the
previous menu without
any changes by pressing
cancel.
Select Cancel
Menu
Menu
Select Cancel
Select Cancel
Menu
4GB
BASIC OPERATION
Change Display
The Change Display-Menu
offers the Full Screen,
Selected Screen and Basic
Screen view.
Change Profile
In the Change Profile-Menu
you can choose between
the Family, Single, Office,
Name 1 and Name 2
Profile.
Change Holiday
In the Change Holiday-
Menu you can make your
holidays settings and turn
them On or Off.
Menu
Select Cancel
Menu
Select Cancel
Menu
Select Cancel
5
GB
BASIC OPERATION
Program On/Off
In the Program-Menu
you can choose between
Program or Manual
operation mode.
Key Lock
By pressing the –and +
button for a few seconds,
a Key Lock can be activated
to protect the device from
failure operation.
Manual operation
By pressing the –or +buttons,
the manual operation mode
will be activated. Current
Programs will be overwritten
until the next daytime starts.
Menu
Select Cancel
Menu
Select Cancel
Menu
Select Cancel
6GB
PROGRAM-MENU
Program Menu
To access the program-
menu, open the hatch
and press –button twice
and then press select and
cancel at the same time for
a few seconds.
Basic Settings
Enter the Basic Settings-
Menu to adjust Date/Time
(24, 12 hrs), Language and
Maintenance settings.
Temp. Zones
Enter the Temp. Zones-
Menu to adjust the
temperatures of the
Comfort, Standard and
Reduced zones.
Select Cancel
Menu
Menu
Select Cancel
Menu
Select Cancel
7
GB
Profile
Enter the Profile-Menu to
adjust the detailed settings
of the Family, Single,
Office, Name 1 and Name
2Profiles.
The three temperature zones can be
allocated to the six day times. If you modify
a temperature zone, the temperature-
settings within the profiles will change
as well. The zones are preinstalled with
these temeratures:
Comfort 24°C Standard 20°C Reduced 16°C
Menu
Select Cancel
Daytimes Time Family Single Office Name 1 Name 2
Early Morning 06:00 - 08:00 Comfort Comfort Comfort Comfort Comfort
Morning 08:00 - 12:00 Standard Standard Standard Standard Standard
Noon 12:00 - 14:00 Comfort Comfort Comfort Comfort Comfort
Afternoon 14:00 - 18:00 Standard Standard Standard Standard Standard
Evening 18:00 - 23:00 Comfort Comfort Comfort Comfort Comfort
Night 23:00 - 06:00 Reduced Reduced Reduced Reduced Reduced
Early Morning 06:00 - 08:00 Comfort Comfort Comfort Comfort Comfort
Morning 08:00 - 12:00 Standard Standard Standard Standard Standard
Noon 12:00 - 14:00 Comfort Comfort Comfort Comfort Comfort
Afternoon 14:00 - 18:00 Standard Standard Standard Standard Standard
Evening 18:00 - 23:00 Comfort Comfort Comfort Comfort Comfort
Night 23:00 - 06:00 Reduced Reduced Reduced Reduced Reduced
Mon - Fri
Sat - Sun
8GB
Heat/Cool
Enter the Heat/Cool-Menu
to activate the Heat or Cool
function of the device.
Control
Enter the Control-Menu
to make changes on the
Span, Communicate,
Frost*, Output ,VP and
Temperature Offset
settings.
* Thermostat serves as
protection against frost and
keeps temperature constant
at 5°C.
Menu
Select Cancel
Menu
Select Cancel
Communicate :
NSB On = Night Setback On
NSB Off = Night Setback Off
Com Off = Heat/Cool + Night
Setback Off
Com 4ºC = Heat/Cool + Night
Setback 4ºC
Com 2ºC = Heat/Cool + Night
Setback 2ºC
9
GB
Com signal control not only Night
Setback, but also Heat/ Cool selection to
the slaves
Note : If you install ERT 22 or 32 in your
system, ERT 52 can control them via the
communication terminal.
The Heat/Cool and the Setback 2ºC
or 4ºC can be selected by ERT 52
via communication terminal. At this
moment, the original settings of Heat/
Cool and setback of ERT 22 and ERT 32
will be overridden by ERT 52.
10 GB
Purpose and correct use:
The ERT 52 room thermostat is an
electronic digital temperature control
system for electrical control of hot-water
and heating systems, and functions as a
trigger for electro-thermal actuators or
other electrical devices
It may be used only in dry and closed
rooms. Relative air humidity in the room
may not exceed 95%.
This thermostat may be installed only
by qualified electricians in accordance
with these fitting instructions. These
professionals are responsible for
observing existing standards and
regulations.
Installation must always be implemented
while device is disconnected from
the mains, with due regard for safety
regulations.
The thermostat must be positioned so
that it is not covered by net curtains,
furniture or other objects. The control unit
must not be installed in the immediate
vicinity of heat sources either (e.g. lights,
fireplaces, direct sunlight, etc), and
should not be impaired by draughts.
Only in this way will room temperature
be detected with precision, with exact
control being implemented accordingly.
Important: disconnect thermostat from
mains before opening.
