Salus RT100 Bedienungsanleitung

Instruction Manual

Model No RT100

Electronic Room Thermostat

Salus RT100 Manual 001:89 17/11/10 19:34 Page 1

RT100 INSTRUCTION MANUAL

Salus RT100 Manual 001:89 17/11/10 19:34 Page 2

PRODUCT COMPLIANCE

This product complies with the essential requirements of the following EC

Directives:

•Electro-Magnetic Compatibility directive 2004/108/EC

•Low Voltage Directive 2006/95/EEC

•EC Marking directive 93/68/EEC

SAFETY INFORMATION

These instructions are applicable to the Salus Controls model stated on the front

cover of this manual only, and must not be used with any other make or model.

These instructions are intended to apply in the United Kingdom only, and

should be followed along with any other statutory obligations.

This accessory must be fitted by a Competent person, and installation must

comply with the guidance provided in the current editions of BS7671 (IEE

Wiring Regulations) and Part ‘P’ of the Building Regulations. Failure to comply

with the requirements of these publications could lead to prosecution.

Always isolate the AC Mains supply before carrying out any work on the

RT100 thermostat.

Please leave these instructions with the end user where they should be kept in

a safe place for future reference.

RT100 INSTRUCTION MANUAL 3

Salus RT100 Manual 001:89 17/11/10 19:34 Page 3

INTRODUCTION

A thermostat is a device that is used to switch the heating system in your home

on and off as needed. It works by sensing the air temperature and switching on

the heating when the air temperature falls below the thermostat setting, and

switching it off once the set temperature has been reached.

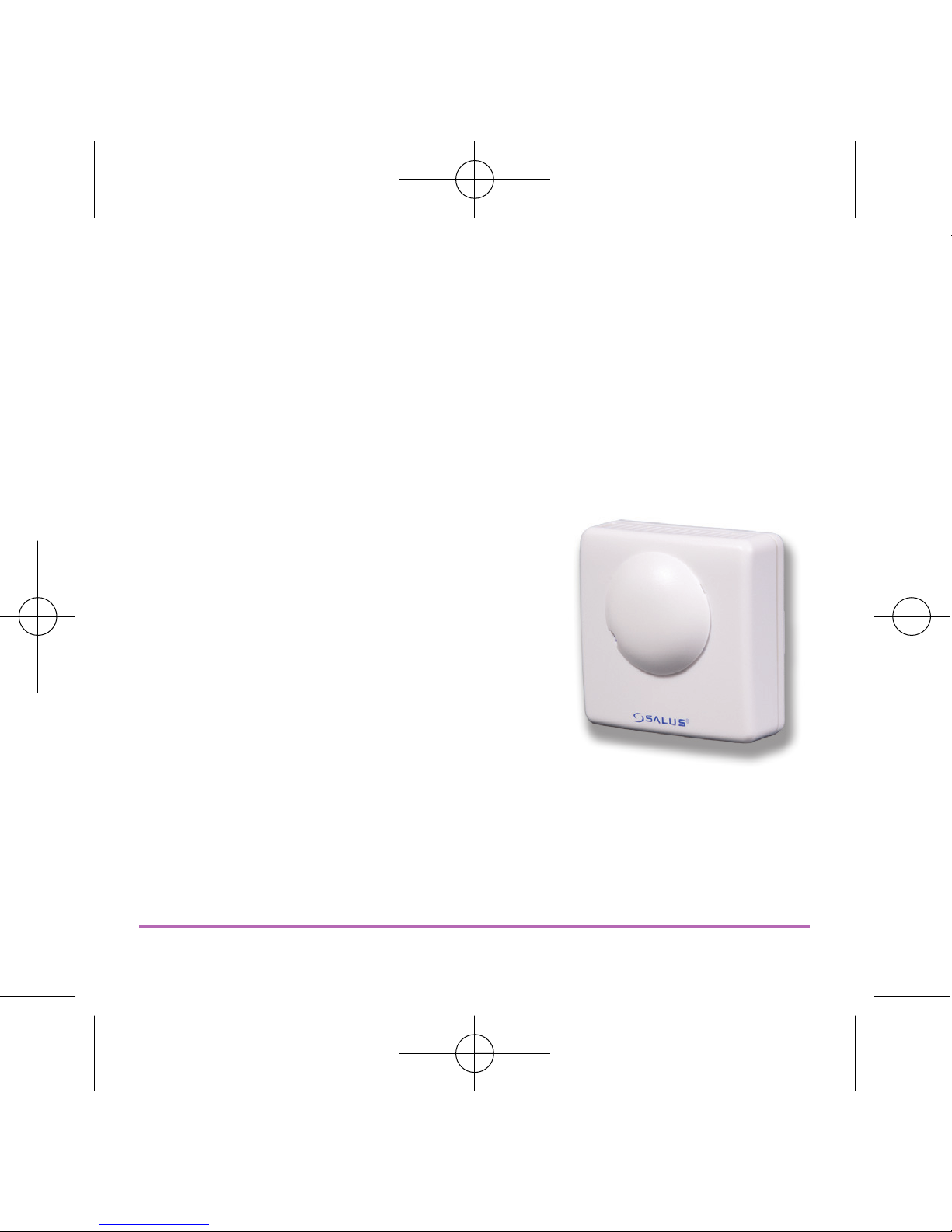

The RT100 from Salus Controls is a stylish and accurate mechanical thermostat

with a large, easy to adjust setting dial. The thermostat has been specifically

designed to be used Volt Free.

Features

•Simple to use

•Large dial

•Stylish Casing

•Volt Free contacts

•Two wire installation

•Temperature range between 10 ºC and 30 ºC

OPERATION

The RT100 is adjusted very easily by turning the rotary dial on the front of the

thermostat to the required temperature setting.

To adjust the set temperature, turn the rotary dial to the left to set a lower

temperature, or to the right to set a higher temperature.

RT100 INSTRUCTION MANUAL

Salus RT100 Manual 001:89 17/11/10 19:34 Page 4

INSTALLATION

Please read the important safety information at the start of this manual before

you begin to install the thermostat.

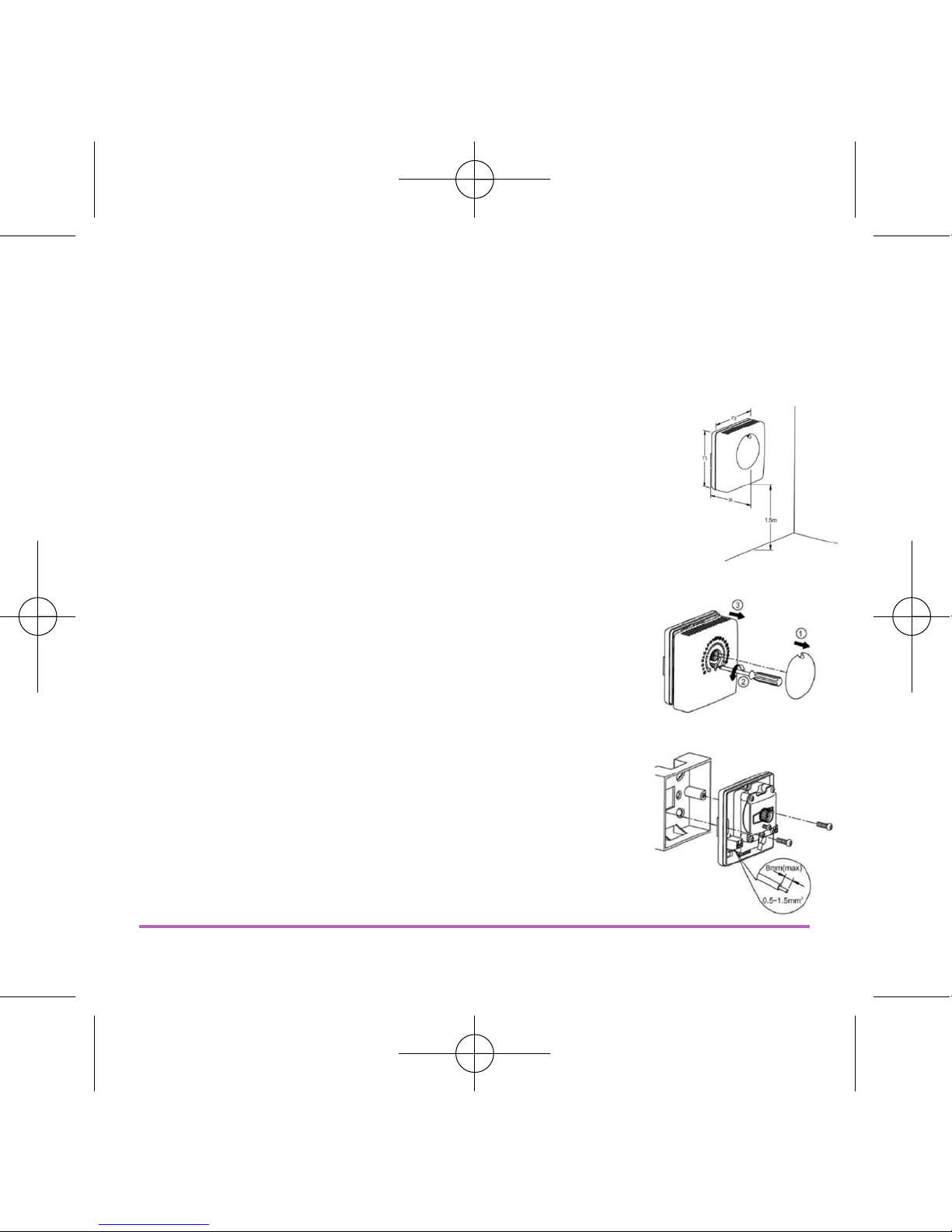

Location

The ideal position to locate the RT100 thermostat is about 1.5m

above floor level, in a location where the thermostat is accessible,

reasonably lit and free from extremes of temperature and draughts.

Do not mount the thermostat on an outside wall, above a radiator

or in a location where it may be subjected to direct sunlight.

The RT100 can be mounted onto a back box, pattress or directly to

the wall.

Preparing for Installation

The electrical connections to the RT100 are made inside the

case. To gain access to the wiring terminals, first remove the

setting dial by gently pulling it forwards. After removing the

dial, undo the case securing screw with a small crosshead

screwdriver; you will now be able to pull the case forwards to

remove it.

Preparing for Electrical Connection

After passing the wiring through the cable entry point, the

RT100 can be secured into position by the use of two screws.

The terminals in the RT100 will accept conductor sizes

between 0.5 mm2 – 1.5 mm2, and the cable ends should be

stripped of no more than 8mm of insulation.

RT100 INSTRUCTION MANUAL 5

Salus RT100 Manual 001:89 17/11/10 19:34 Page 5

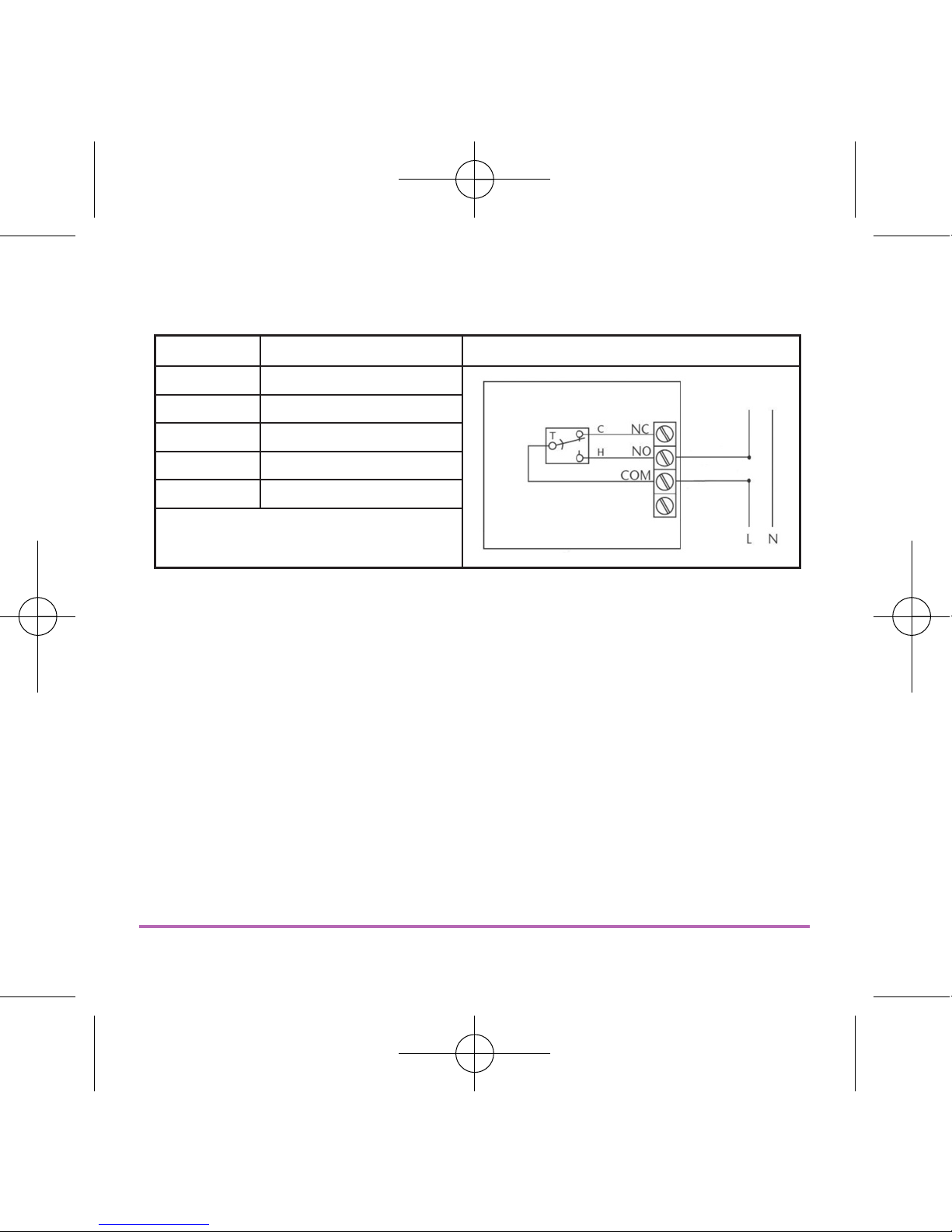

ELECTRICAL CONNECTIONS

Terminal Description Wiring Diagram

N Mains Neutral

L Mains Live

COM Common

NO Normally Open Contact

NC Normally Closed Contact

NO contact is used for heating;

NC contact for cooling

Do not restore the mains supply to the system until all associated items are fully installed.

NOTE: All electrical installation work should be carried out by a suitably

qualified Electrician or other competent person. If you are not sure how to install

this thermostat consult either with a qualified electrician, heating engineer or

your boiler / heating system supplier for advice on how to continue.

RT100 INSTRUCTION MANUAL

Salus RT100 Manual 001:89 17/11/10 19:34 Page 6

REASSEMBLING THE THERMOSTAT

Reassembly of the RT100 is very straightforward; just a reversal of the steps

taken earlier. Refit the cover and secure with the securing screw, and refit the

setting dial: do not force the dial - it will only locate in one position.

Do not remove or refit the cover of the RT100 without the mains supply

to the system being isolated.

RT100 INSTRUCTION MANUAL 7

Salus RT100 Manual 001:89 17/11/10 19:34 Page 7

ENERGY TIP

One way to set and use your room thermostat is to find the lowest temperature

setting that you are comfortable with, and then leave it set at this temperature.

You can do this by setting the room thermostat to a low temperature, (for

example 17 °C) and then increasing the setting by one degree each day until

you are comfortable with the room temperature - you won’t have to adjust the

thermostat further, as adjustment above this setting will waste energy - a 1 °C

increase in temperature is equal to 3% of your heating costs.

MAINTENANCE

TThe RT100 thermostat requires no special maintenance. Periodically, the outer

casing can be wiped clean using a dry cloth (please DO NOT use solvents,

polishes, detergents or abrasive cleaners, as these can damage the thermostat).

There are no user serviceable parts within the unit; any servicing or repairs

should only be carried out by Salus Controls or their appointed agents.

Should the RT100 thermostat fail to function correctly, check:

• The RT100 temperature has been set correctly.

• Heating system time switch or programmer is switched on.

WARRANTY

Salus Controls warrants that this product will be free from any defect in materials

or workmanship, and shall perform in accordance with its specification, for a

period of two years from the date of purchase. Salus Controls sole liability for

breach of this warranty will be (at its option) to repair or replace the defective

product.

RT100 INSTRUCTION MANUAL

Salus RT100 Manual 001:89 17/11/10 19:34 Page 8

PRODUCT SPECIFICATION

Model: RT100

Type: Surface mounted mechanical room thermostat

designed for volt free heating applications.

heating applications.

Switching

Switching Voltage: 230V AC / 50Hz

Switching Current: 1A inductive

Contact Type: Volt Free

Temperature

Range: 5 ºC to 35 ºC

Differential: 0.5ºC to 0.8º

Environment

Operating Temperature: 0 ºC to + 50 ºC

Storage Temperature: - 20 ºC to + 55 ºC

RT100 INSTRUCTION MANUAL 9

Salus RT100 Manual 001:89 17/11/10 19:34 Page 9

Salus Controls warrants that this product will be free from any defect in materials or

workmanship, and shall perform in accordance with its specification, for a period of

two years from the date of purchase. Salus Controls sole liability for breach of this

warranty will be (at its option) to repair or replace the defective product.

RT100 Warranty

Customer Name: ..............................................................

Customer Address: ...........................................................

.........................................................................................

Post Code: ......................... Tel No: ..................................

Email: ...............................................................................

Engineers Company: ........................................................

Tel No: .............................................................................

Email: ...............................................................................

Intallation Date: ...............................................................

Engineers Name: ..............................................................

Engineers Signature: ........................................................

RT100 INSTRUCTION MANUAL
