Salus ST880ZB Bedienungsanleitung

Smart Thermostat

Manufacturer's Installation Guide

2 Smart Home Monitoring | Smart Thermostat | Manufacturer's Installation Guide

Let's get started

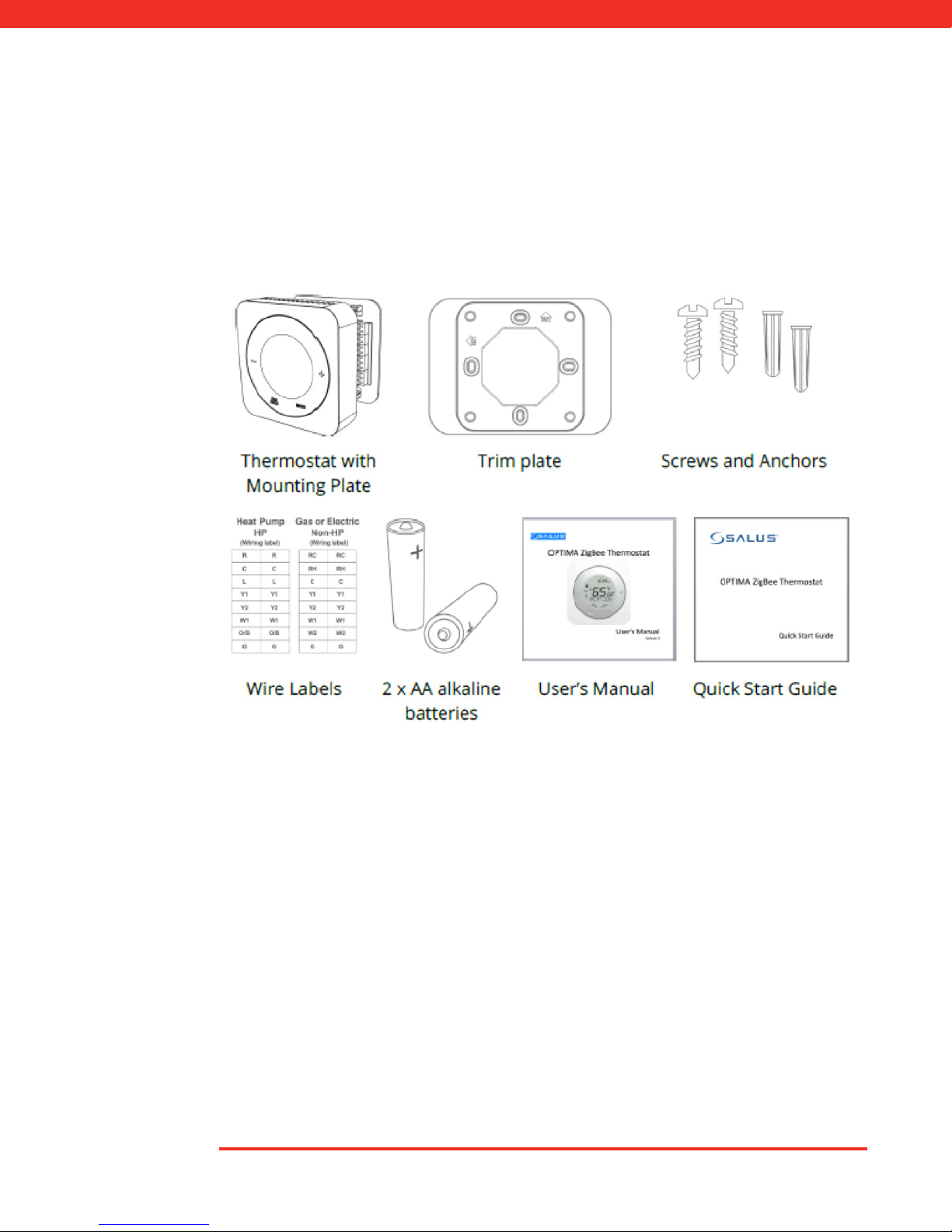

Make sure you have the following items:

Turn o the heating

and/or cooling

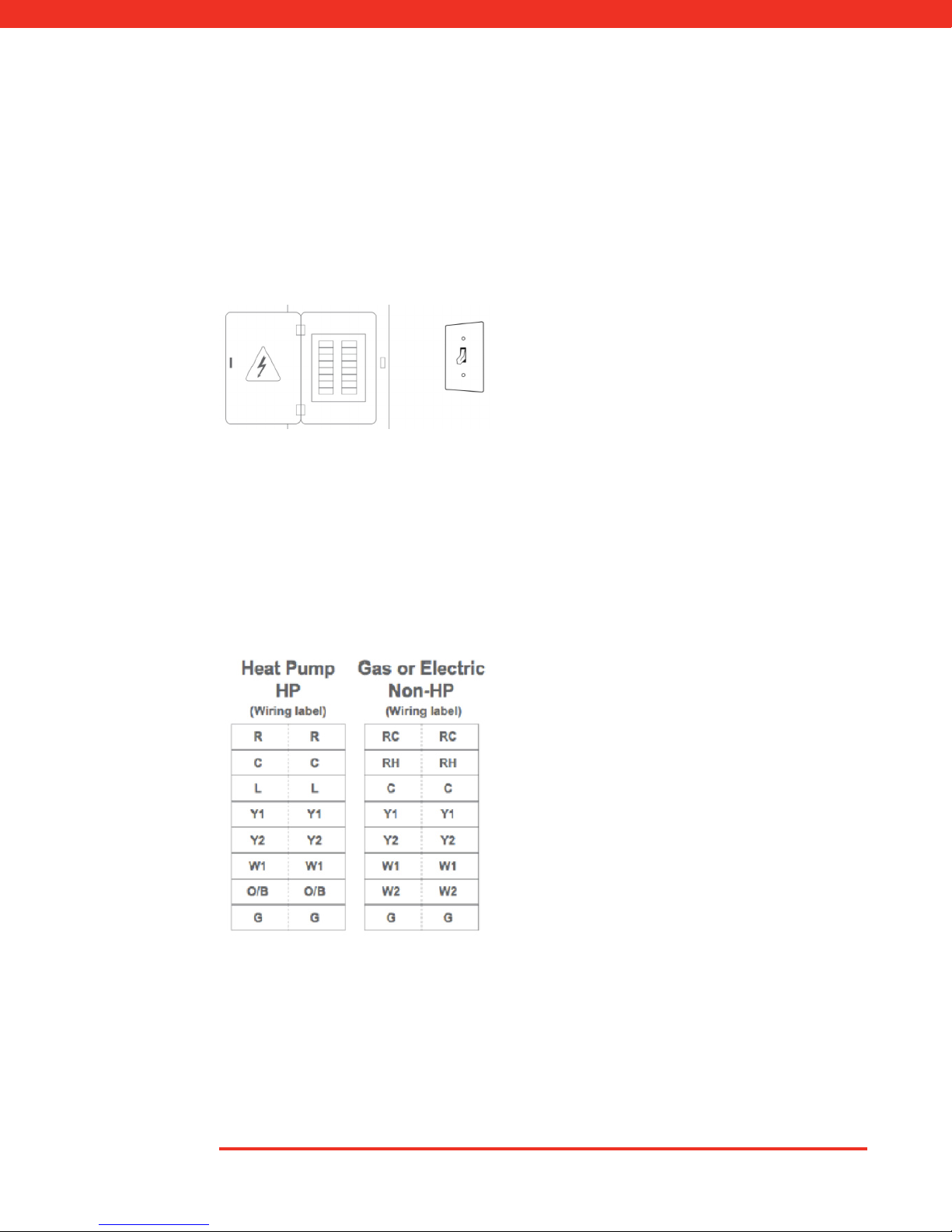

Turn OFF the breakers or remove the fuses to

the heating and/or cooling systems at the

electrical panel. In some regions, there may

be a switch located near the furnace.

Determine wiring

conﬁguration

›Remove the old thermostat to expose

the wiring terminals.

›Take a picture of the wiring for future

reference.

›Note the terminals attached to each wire

and attach the matching label to the ends

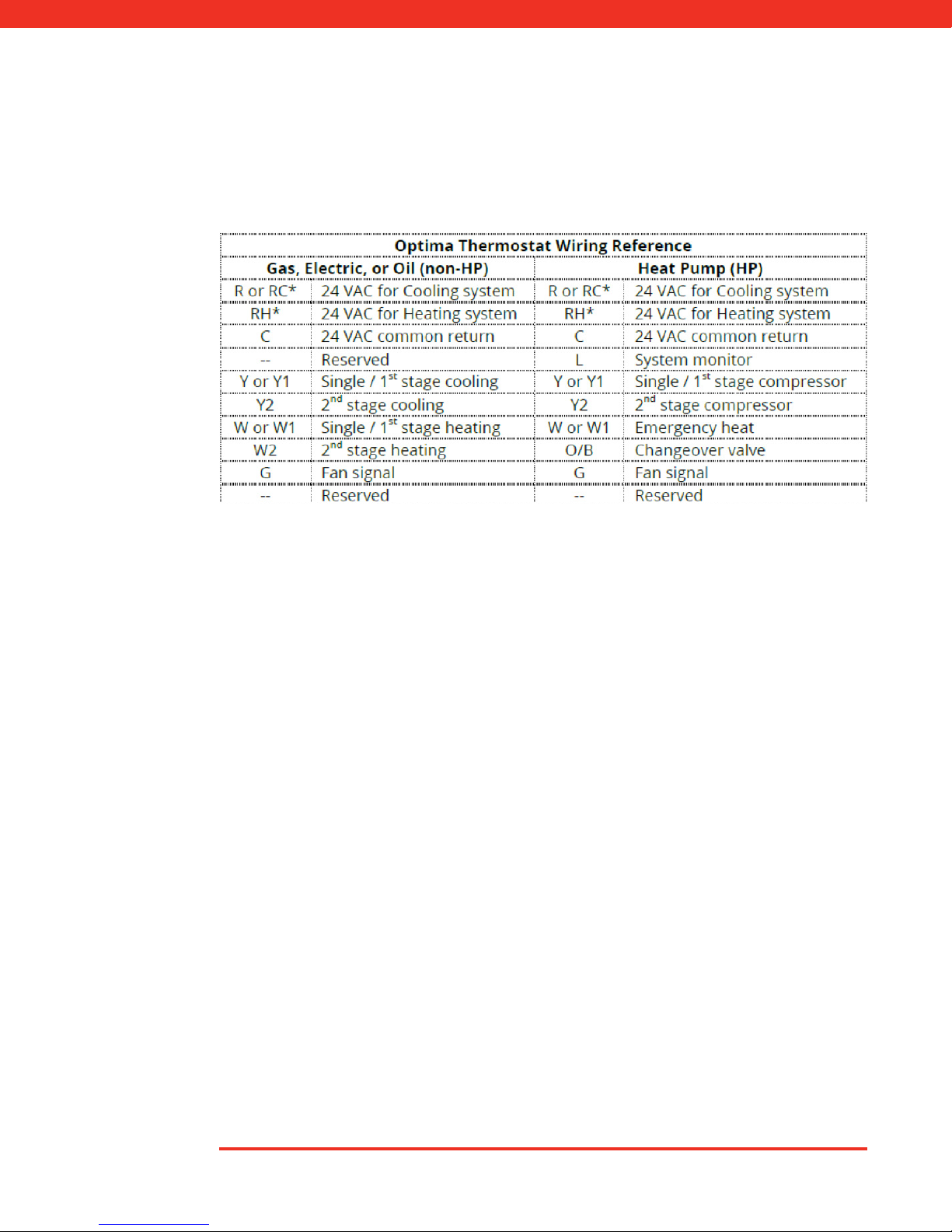

of the wires. Use the following table as a

reference.

3 Smart Home Monitoring | Smart Thermostat | Manufacturer's Installation Guide

Remove old thermostat

terminals

* A jumper connects RC and RH as most combination heat and cooling systems use a single

transformer. For systems where separate transformers are used, remove the jumper in place

across the RC and RH terminals.

Remove the old thermostat wiring terminals from the wall, taking care not to allow the

wiring to fall inside the wall.

TIP: Wrap the wire ends around a long stick, such as a pencil to keep the wires from falling

into the wall.

4 Smart Home Monitoring | Smart Thermostat | Manufacturer's Installation Guide

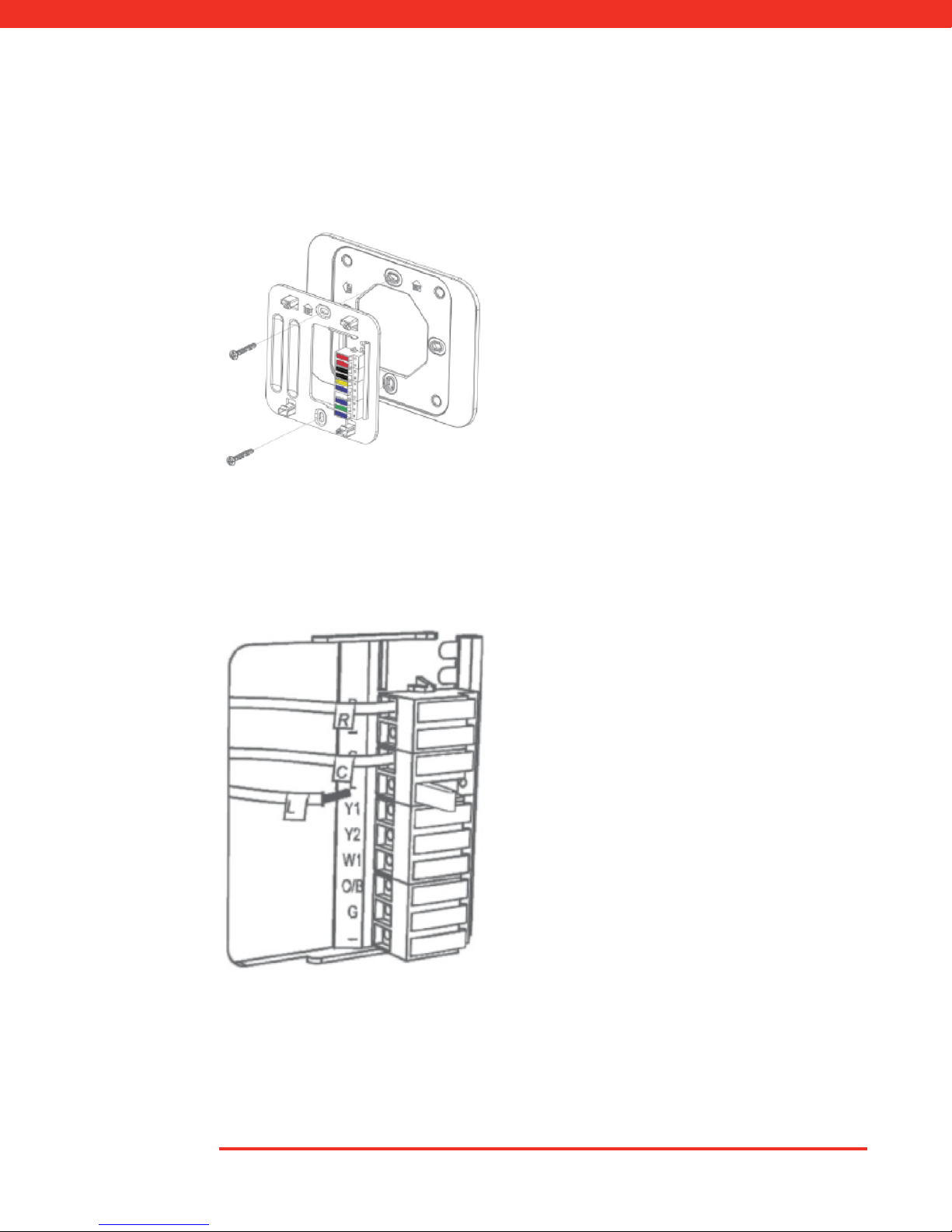

Remove the Mounting Plate from the back of

the Optima thermostat. Use the included wall

anchors and screws to attach the Mounting

Plate to the wall, making sure the wires run

through the center opening. Use the Trim

Plate vertically or horizontally if desired.

Install mounting plate

Before attaching the wires, match the wire

(using the labels) to its corresponding

terminal. Refer to the picture of the wiring

taken earlier if necessary.

›Open the terminal by lifting the latch up.

›Push each wire into the hole of the

terminal and push the latch down to

secure the wire.

Attach wiring

5 Smart Home Monitoring | Smart Thermostat | Manufacturer's Installation Guide

Insert the alkaline batteries into the back of

the thermostat. Make sure the polarity of the

batteries is correct. After inserting the

batteries, the display will ﬂash all the

segments, followed by the version number

of the ﬁrmware, then display US / CA with a

blinking US.

Install batteries

When conﬁguring the thermostat, press the +

or – button or use the slider ring to cause the

desired value to blink, then press MODE to

select the value. Using the table on the left,

select the country, then the type of system.

After this conﬁguration, the thermostat will

display the Home Screen, and be ready for

attachment to the Mounting Plate.

Initial conﬁguration

6 Smart Home Monitoring | Smart Thermostat | Manufacturer's Installation Guide

Attach the thermostat to the Mounting Plate

by aligning the connector pins and the plastic

retention posts and pushing the thermostat

onto the Mounting Plate. Make sure the

connector pins are not bent and that the

thermostat is fully seated on the Mounting

Plate.

Go to the electrical service panel or furnace

switch and turn the HVAC system back on.

Attach thermostat to

mounting plate

Turn power back on to

the HVAC system

7 Smart Home Monitoring | Smart Thermostat | Manufacturer's Installation Guide

The thermostat can now be used as a basic local thermostat. To enable the enhanced

features, additional settings need to be conﬁgured, such as pairing with a connected home

system. See the Conﬁguring the Thermostat section in the User’s Manual for more details.

Conﬁgure thermostat

8 Smart Home Monitoring | Smart Thermostat | Manufacturer's Installation Guide
