Samson QEx Bedienungsanleitung

QEx Headset Microphone

Owner’s Manual

Fitness Headset Microphone

278-B Duffy Ave

Hicksville, New York 11801

Phone: 1-800-3-SAMSON (1-800-372-6766)

www.samsontech.com

Other trademarks and trade names are those of their respective owners.

If you want to dispose this product, do not mix it with general household waste. There is a

separate collection system for used electronic products in accordance with legislation that

requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may return their

used electronic products free of charge to designated collection facilities or to a retailer (if you

purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of

disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery

and recycling and thus prevent potential negative effects on the environment and human health.

3QEx Fitness Headset Microphone

Congratulations on your purchase of the Samson QEx Fitness Headset Microphone. The QEx is a

lightweight, adjustable headset microphone specifically designed for fitness instructors and active

performers. With its bidirectional pickup pattern, the QEx provides superb isolation, resulting

in more gain before feedback with clear and articulate sound in live sound applications. The

comfortable and water and sweat-resistant design adjustable stainless steel metal gooseneck, make

the QEx perfect for fitness and a variety of other high-energy applications.

The QEx Fitness Headset Microphone is well-suited for use with Samson wireless systems, and with

four included adapter cables, the microphone can be used with most popular wireless systems.

Other accessories included in the kit are a clothing collar clip, four windscreens and a carry case

that holds the QEx and all the accessories.

In the box, you’ll find a registration card enclosed, don’t forget to follow the instructions so that you

can receive online technical support and so we can send you updated information about this and

other Samson products in the future. We recommend you keep the following records for reference,

as well as a copy of your sales receipt.

Serial number: ____________________________

Date of purchase: ___________________________

If you have any questions or comments regarding the QEx Fitness Headset Microphone or any other

products from Samson, do no hesitate to contact us at support@samsontech.com.

With proper care and maintenance, your QEx Fitness Headset Microphone will operate trouble-free for

many years. Should your QEx Fitness Headset Microphone ever require servicing, a Return Authorization

(RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not

be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please

retain the original packing materials and, if possible, return the unit in its original carton. If your QEx

Fitness Headset Microphone was purchased outside of the United States, contact your local distributor for

warranty details and service information.

Introduction

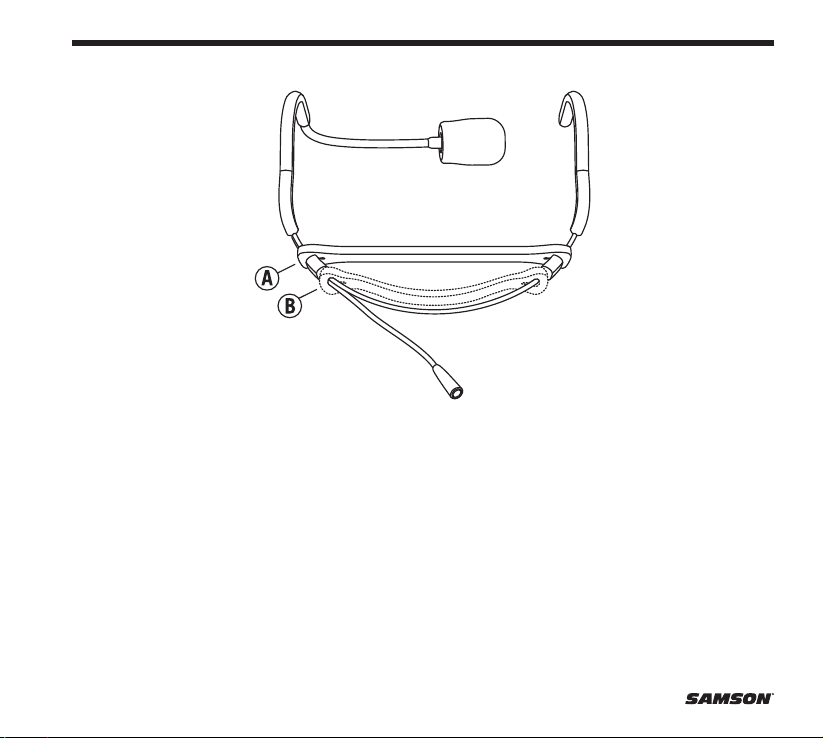

For added comfort and ﬁt, the QEx headset includes an adjustable headband. To ﬁt the headband,

pull elastic strap over the ear hooks and locate in front of the stop point (A). For larger sizing, the

headband can be moved behind the stop point (B) or completely removed by sliding the elastic band

over the ear hooks and microphone capsule.

Note: When removing the headband, ﬁrst take off the microphone windscreen.

Fitting the QEx Microphone

5QEx Fitness Headset Microphone

Connector Cables

The QEx includes four cables with adapters for some of the most popular wireless microphone

beltpack transmitters.

3.5mm Connector

Works with Sennheiser®wireless systems

Hirose®4-Pin Connector

Works with most Audio-Technica®wireless systems

Switchcraft®TA3F Connector

Works with Samson AirLine ATX Series, Concert Series and most AKG®wireless systems

Switchcraft®TA4F Connector

Works with most Shure®wireless systems

To connect the cable to the headset:

• Choose the right cable and connector that works with your wireless system.

• Line the cable up to the threaded terminal

on the back of the QEx and screw the cable

into the headset.

• Do not over tighten the cable.

• Attach the included collar clip on the back

of your shirt collar and run the mic wire from

the QEx Fitness Headset to the wireless body

pack. Leave enough cable to allow you to

turn your head from side to side.

Connector Cables

7QEx Fitness Headset Microphone

Mic Positioning

Position the QEx microphone element about

0.25” –1” behind the corner of your mouth. To

avoid breath noise and p-pops, use the included

windscreen.

If the microphone is too far away from your

mouth you will need to increase the gain and

reduce isolation.

To minimize additional noise, do not locate the

microphone tight against your cheek.

The correct way to wear your QEx fitness headset microphone, is over the ears, as you would wear

a pair of eyeglasses. To avoid feedback problems, take care not to cover the microphone capsule

with your hand.

Note: If wearing glasses, it is recommended to put the QEx microphone on ﬁrst than place glasses

over the microphone.

20 50 100 200 500

Frequency in Hz

1000 2000 5000 10000 20000 Hz

-20

-10

The QEx Fitness Headset employs noise canceling techniques to provide noise reduction, improve

clarity and gain before feedback. These techniques allow the QEx to be used in environments and

facilities where the sound system might not be optimal. First, the small size of the microphone

capsule and the short distance between the microphone and the mouth reduces the sensitivity at 1

kHz for far field noise by 10 dB. And noise at lower frequencies is additionally attenuated. Finally,

the bi-directional polar pattern reduces signal coming from a 90° angle by 15 dB compared to

signal originating from directly in front of the mic capsule.

Using the QEx

Near Field

Far Field

9QEx Fitness Headset Microphone

Specifications

Microphone Element Back electret condenser

Polar Pattern Bidirectional

Frequency Response 50Hz–12kHz

Sensitivity -42dB 1 V/Pa ±4dB at 1kHz

Output Impedance 2.2kΩ ±30%

Max. SPL 110dB

Operating Voltage 1.0–5V DC

Cables 4x ø1.4mm*1.2m

Product Weight 1.4oz / 39.8g

Included Adapter Cables 1/8” (3.5mm), Hirose®4-Pin,Switchcraft®TA 3 F,

Switchcraft®TA4F

Accessories Windscreen, Clothing Collar Clip, Carry Case

At Samson, we are continually improving our products, therefore specifications and images are

subject to change without notice.

Specifications

Polar Pattern

Frequency Response

0°

180°

-5

-10

-15

-20

-25

45°

90°90°

135°

45°

135°

20 50 100 200 500

Frequency in Hz

1000 2000 5000 10000 20000 Hz

-20

-10
