English-1

1-800-SAMSUNG (7267864)

Samsung Electronics America, Inc.

105 Challenger Road Ridgefield Park, NJ 07660-0511

Samsung Electronics Canada Inc., Customer Service

55 Standish Court Mississauga, Ontario L5R 4B2

Call center hours of operation (Mon-Sun 9AM-12AM EST).

To register this product please visit

www.samsung.com/global/register.

LN19A330J1D/LN19A331J1D

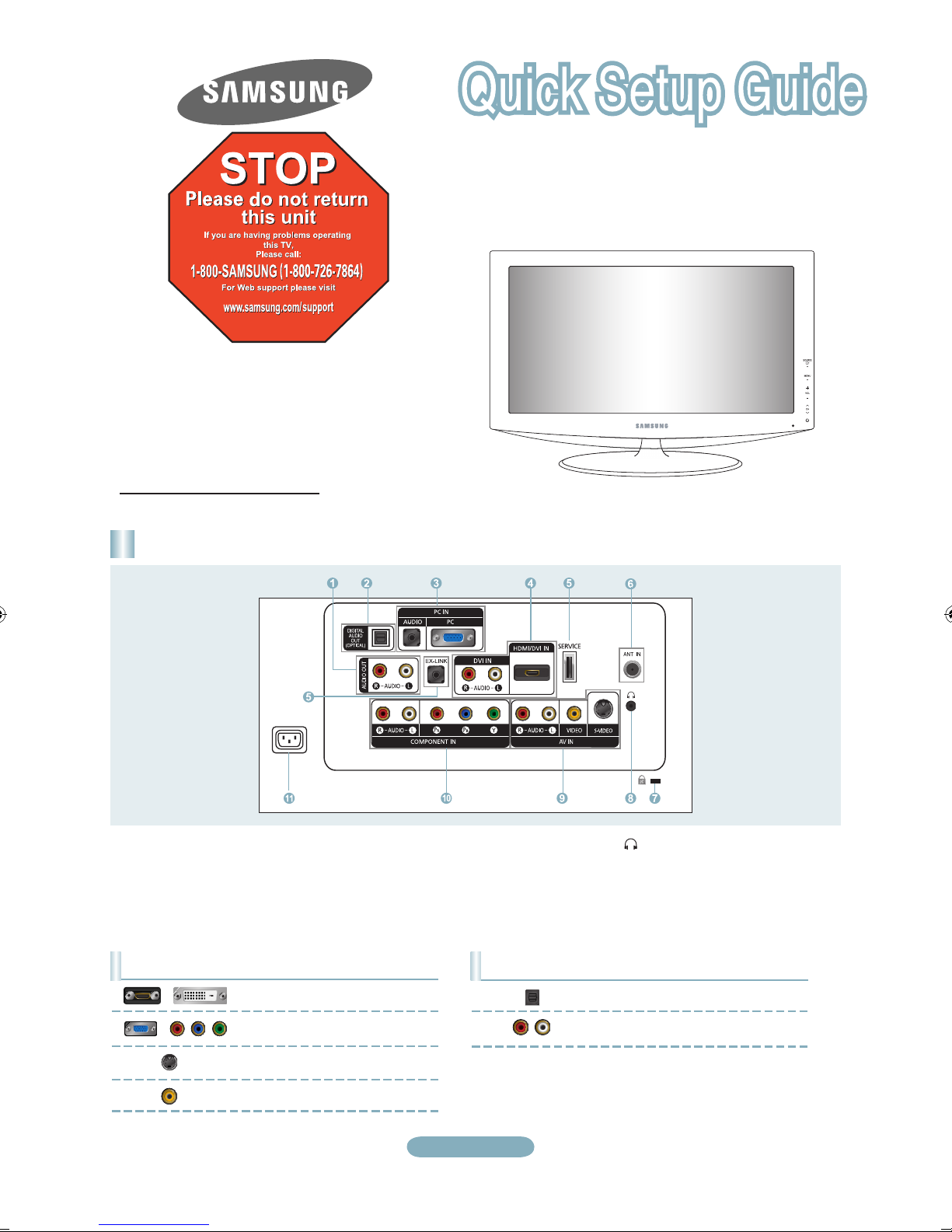

Rear Panel / Side Panel Jacks

1AUDIO OUT

2DIGITAL AUDIO OUT (OPTICAL)

3PC IN [PC] / [AUDIO]

4DVI IN[R-AUDIO-L]

/ HDMI/DVI IN

5SERVICE, EX-LINK

6ANT IN

7KENSINGTON LOCK

8HEADPHONE

9AV IN / S-VIDEO

0COMPONENT IN

!POWER INPUT

Audio Output Performance Comparison

OPTICAL (Digital)

AUDIO (Analog)

Best

Normal

Video Input Performance Comparison

HDMI/DVI

PC/COMPONENT

S-VIDEO

VIDEO

Best

Better

Good

Normal

BN68-0516C-00Eng-0202.indd 1 2008-02-02 ¿ÀÈÄ 10:41:56

English-2

Remote Control

See “Remote Control” in the owner’s instructions for details.

POWER

Turns the TV on and off.

Selects the TV mode directly.

NUMERIC BUTTONS

Press to change the channel.

Press to select additional

channels(digital and analog) being

broadcast by the same station.

For example, to select channel

“54-3”, press “54”, then press “ ”

and “3”.

MUTE)

Press to temporarily cut off the

sound.

VOL

/ VOL

Press to increase or decrease

the volume.

TOOLS

Use to quickly select frequently

used functions.

UP▲ / DOWN▼ / LEFT◄ /

RIGHT► / ENTER

Use to select on-screen menu

items and change menu values.

INFO

Press to display information on

the TV screen.

COLOR BUTTONS

Use these buttons in the

Channel list, etc.

Controls the caption decoder.

MTS

Press to choose stereo, mono

or Separate Audio Program

(SAP broadcast).

SOURCE

Press to display and select the

available video sources.

PRE CH

Tunes to the previous channel.

/ CH

Press to change channels.

RETURN

Returns to the previous menu.

EXIT

Press to exit the menu.

SRS

Selects SRS TruSurround XT

mode.

(

Displays the main on-screen

menu.

)

FAV.CH

Press to switch to your favorite

channels.

P.SIZE

Picture size selection.

BN68-0516C-00Eng-0202.indd 2 2008-02-02 ¿ÀÈÄ 10:41:57

English-3

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI

TV Rear Panel

DVI to HDMI Cable (Not supplied)

2Audio Cable

(Not supplied)

Connect a DVI to HDMI Cable or

DVI-HDMI Adapter between the

HDMI/DVI IN jack on the TV and the

DVI jack on the DVD Player or Cable

Box/Satellite receiver (Set-Top Box).

Connect Audio Cables between the

DVI IN [R-AUDIO-L] jack on the TV

and the DVD Player or Cable Box/

Satellite receiver (Set-Top Box).

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI

What is HDMI?

•

HDMI(High-Definition Multimedia

Interface), is an interface that enables the

transmission of digital audio and video

signals using a single cable.

•

The difference between HDMI and DVI

is that the HDMI device is smaller in

size and has the HDCP (High Bandwidth

Digital Copy Protection) coding feature

installed.

Connect an HDMI Cable between

the HDMI/DVI IN jack on the TV

and the HDMI jack on the DVD

Player or Cable Box/Satellite

receiver (Set-Top Box).

DVD Player or Cable Box/

Satellite receiver (Set-Top Box)

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different

back panel configuration.

When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box),

match the color of the connection terminal to the cable.

When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN

jack.

➣

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different

back panel configuration.

➣

Connections

TV Rear Panel

HDMI Cable (Not supplied)

DVD Player or Cable Box/

Satellite receiver

(Set-Top Box)

BN68-0516C-00Eng-0202.indd 3 2008-02-02 ¿ÀÈÄ 10:41:59

English-4

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box)

via Component cables

TV Rear Panel

1Component Cable (Not supplied)

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

2Audio Cable (Not supplied)

Connect a Component Cable between

the COMPONENT IN [Y, PB, PR] jacks

on the TV and the COMPONENT [Y,

PB, PR] jacks on the DVD Player or

Cable Box/Satellite receiver (Set-Top

Box).

Connect Audio Cables between the

COMPONENT IN [R-AUDIO-L] jacks

on the TV and the AUDIO OUT jacks

on the DVD Player or Cable Box/

Satellite receiver (Set-Top Box).

Component video separates the video

into Y (Luminance (brightness)), Pb

(Blue) and Pr (Red) for enhanced video

quality.

Be sure to match the component video

and audio connections.

For example, if connecting

a Component video cable to

COMPONENT IN, connect the audio

cable to COMPONENT IN also.

Each DVD Player or Cable Box/

Satellite receiver (Set-Top Box) has a

different back panel configuration.

When connecting a DVD Player or

Cable Box/Satellite receiver (Set-Top

Box), match the color of the connection

terminal to the cable.

➣

Connecting a Camcorder

Connect a Video Cable (or S-Video

Cable) between the AV IN [VIDEO]

(or S-VIDEO) jack on the TV and the

VIDEO OUT jack on the camcorder.

Connect Audio Cables between the

AV IN [R-AUDIO-L] jacks on the TV

and the AUDIO OUT jacks on the

camcorder.

Each Camcorder has a different back

panel configuration.

When connecting a Camcorder, match

the color of the connection terminal to

the cable.

➣

TV Side Panel

Audio cable (Not supplied)

Camcoder

Video Cable (Not supplied)

S-Video Cable (Not supplied)

BN68-0516C-00Eng-0202.indd 4 2008-02-02 ¿ÀÈÄ 10:42:01

English-5

Connecting a VCR

If you have a “mono” (non-stereo)

VCR, use a Y-connector (not

supplied) to hook up to the right

and left audio input jacks of the

TV. If your VCR is stereo, you

must connect two cables.

➣

Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.

Each VCR has a different back panel configuration.

When connecting a VCR, match the color of the connection terminal to the cable.

➣

Connect the cable or antenna

to the ANT IN terminal on the

back of the VCR.

Connect an RF Cable between

the ANT OUT terminal on the

VCR and the ANT IN terminal

on the TV.

Connect a Video Cable between

the VIDEO OUT jack on the

VCR and the AV IN [VIDEO] jack

on the TV.

Unplug the cable or antenna

from the back of the TV.

Connect Audio Cables between

the AUDIO OUT jacks on the

VCR and the AV IN [R-AUDIO-L]

jacks on the TV.

Video Connection

S-Video Connection

TV Rear Panel

1RF Cable

(Not supplied)

3Audio Cable (Not supplied)

VCR Rear Panel

Connect an S-Video Cable

between the S-VIDEO OUT jack

on the VCR and the AV IN

[S-VIDEO] jack on the TV.

Connect Audio Cables between

the AUDIO OUT jacks on the

VCR and the AV IN [R-AUDIO-L]

jacks on the TV.

S-Video Cable (Not supplied)

To begin, follow steps 1–3 in

the previous section to connect

the antenna or cable to your

VCR and your TV.

An S-Video cable may be included

with a VCR. (If not, check your local

electronics store.)

Each VCR has a different back

panel configuration.

When connecting a VCR, match

the color of the connection

terminal to the cable.

➣

TV Rear Panel

5Audio Cable (Not supplied)

3RF Cable

(Not supplied)

Video Cable (Not supplied)

VCR Rear Panel

BN68-0516C-00Eng-0202.indd 5 2008-02-02 ¿ÀÈÄ 10:42:03

English-6

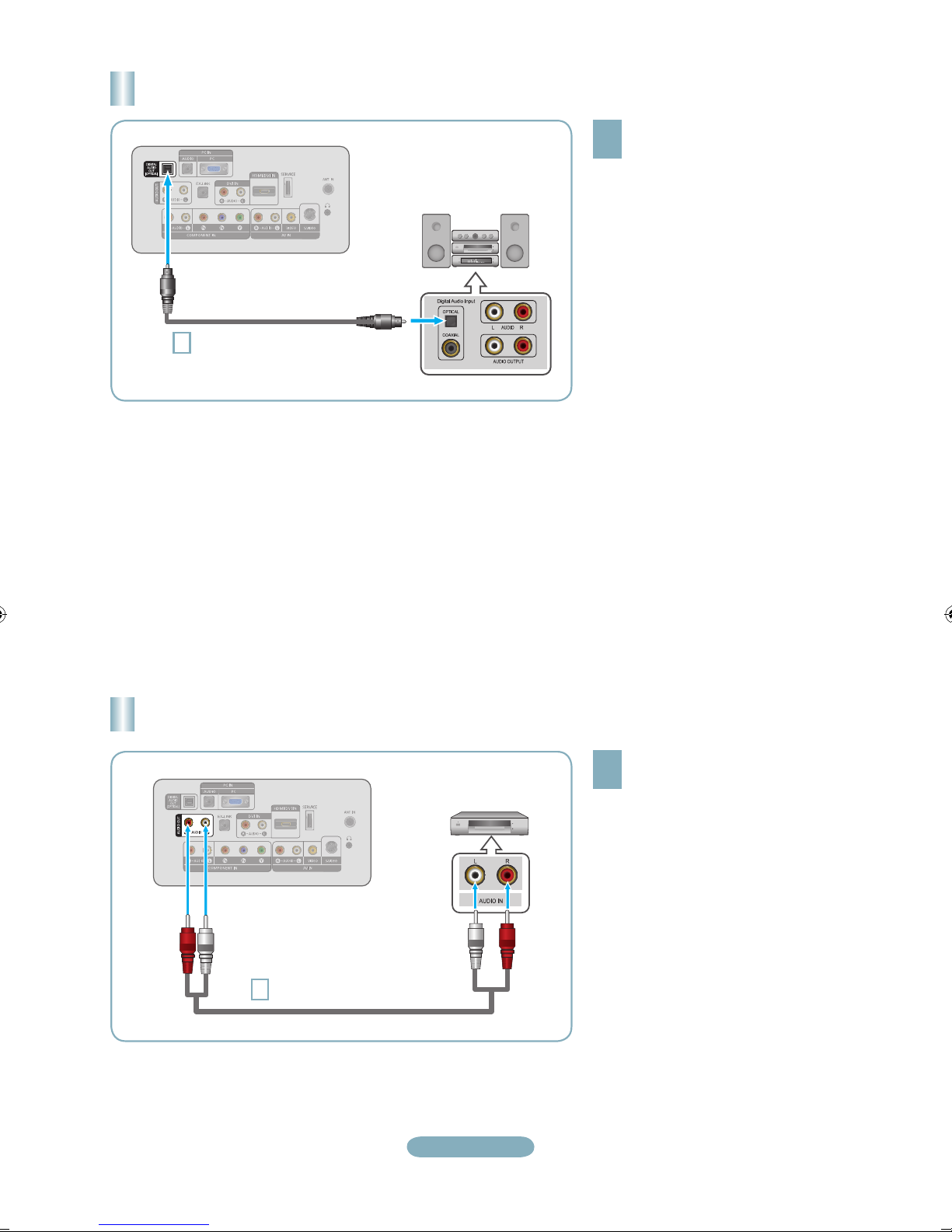

Connecting a Digital Audio System

TV Rear Panel

1Optical Cable (Not supplied)

Digital Audio System

Connect an Optical Cable between

the “DIGITAL AUDIO OUT

(OPTICAL)” jacks on the TV and

the Digital Audio Input jacks on the

Digital Audio System.

When a Digital Audio System is

connected to the “DIGITAL AUDIO

OUT (OPTICAL)” jack: Decrease

the volume of the TV and adjust

the volume level with the system’s

volume control.

5.1CH audio is possible when the TV

is connected to an external device

supporting 5.1CH.

Each Digital Audio System has a

different back panel configuration.

When the receiver (home theater) is

set to On, you can hear sound output

from the TV’s Optical jack. When the TV

is displaying a DTV(air) signal, the TV

will send out 5.1 channel sound to the

Home theater receiver. When the source

is a digital component such as a DVD

and is connected to the TV via HDMI,

only 2 channel sound will be heard from

the Home Theater receiver. If you want

to hear 5.1 channel audio, connect the

DIGITAL AUDIO OUT (OPTICAL) jack

on the DVD player or Cable/Satellite

Box directly to an Amplifier or Home

Theater, not the TV.

➣

Connecting an Amplifier/DVD Home Theater

TV Rear Panel

1Audio Cable (Not supplied)

Amplifier/DVD Home Theater

Connect Audio Cables between the

AUDIO OUT [R-AUDIO-L] jacks on

the TV and AUDIO IN [R-AUDIO-L]

jacks on the Amplifier/DVD Home

Theater.

When an audio amplifier is

connected to the "AUDIO OUT

[R-AUDIO-L]" jacks: Decrease the

volume of the TV and adjust the

volume level with the Amplifier’s

volume control.

Each Amplifier/DVD Home Theater has

a different back panel configuration.

When connecting an Amplifier/DVD

Home Theater, match the color of the

connection terminal to the cable.

➣

BN68-0516C-00Eng-0202.indd 6 2008-02-02 ¿ÀÈÄ 10:42:05

English-7

Connecting a PC

TV Rear Panel

1D-Sub Cable (Not supplied)

2PC Audio Cable (Not supplied)

Connect a D-Sub Cable between

PC IN [PC] connector on the TV

and the PC output connector on

your computer.

Connect a PC Audio Cable

between the PC IN [AUDIO] jack

on the TV and the Audio Out jack of

the sound card on your computer.

Each PC has a different back panel

configuration.

When connecting a PC, match the

color of the connection terminal to the

cable.

When using an HDMI/DVI cable

connection, you must use the

HDMI/DVI IN

jack.

➣

Using the D-Sub Cable

Connect an HDMI/DVI cable between

the HDMI/DVI IN jack on the TV and

the PC output jack on your computer.

Connect a 3.5 mm Stereo mini-plug/

2RCA Cable between the DVI IN

[R-AUDIO-L] jack on the TV and the

Audio Out jack of the sound card on

your computer.

Using the HDMI/DVI Cable

TV Rear Panel

1HDMI/DVI Cable (Not supplied)

3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)

BN68-0516C-00Eng-0202.indd 7 2008-02-02 ¿ÀÈÄ 10:42:07

English-8

Turning the TV On and Off

Press the POWER button on the remote control.

You can also use the POWER button on the TV.

With the power on, press the MENU button.

The main menu appears on the screen.

The menu’s left side has icons: Picture, Sound,

Channel, Setup, Input.

Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER

button to access the

icon’s sub-menu. Press the EXIT button to exit.

The on-screen menus disappear from the

screen after about one minute.

➣

Storing Channels in Memory

(Automatic Method)

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then

press the ENTER button.

Press the ▲ or ▼ button to select “Auto Program”,

then press the ENTER button.

Press the ▲ or ▼ button to select the antenna

connection, then press the ENTER button.

When selecting the Cable TV system:

Press the ENTER button to start the auto

program.

Press the ◄ or ► button, then press the ▲ or ▼ to

select the correct analog signal cable system source

among “STD”, “HRC”, and “IRC”.

Press the ENTER button.

If you have Digital cable TV, select the cable system

signal source for both Analog and Digital.

Viewing the Menus

The TV begins memorizing all available stations.

After all the available channels are stored, it start to

remove scrambled channels.

Press the EXIT button to exit.

To Stop the Auto Program Function

Press the MENU button while the Auto Program function is

being executed. You can also press the ENTER button

to stop the setup.

Checking to see if Channels were Stored in Memory

Press the CH button. Only the channels stored in memory

will be selected (in order).

Selecting the antennas

• Air: “Air” antenna signal.

• Cable: “Cable” antenna signal.

• Auto: “Air” and “Cable” antenna signals.

Move Enter Return

Selects the antenna to execute the Auto

Program function.

Auto Program

Move Enter Return

Start

Air

Cable

Auto

Start

Move Enter Return

Selects a cable signal type for your location.

Auto Program

Move Enter Return

Analog

Start

STD

HRC

IRC

Digital

STD

HRC

IRC

Auto Program

Plug & Play

Enter Return

Auto Program

Auto Program in Progress.

DTV Cable : -- Cable : 11

Cable 24

11 %

Stop

Auto Program

Plug & Play

Enter Return

Auto Program

Removing scrambled channel.

DTV Cable 55

80 %

Stop

BN68-0516C-00Eng-0202.indd 8 2008-02-02 ¿ÀÈÄ 10:42:09

English-9

Setting the Channel List

Using this menu, you can Add/Delete or set Favorite

channels and use the program guide for digital broadcasts.

To use the Channel List function, first run “Auto Program”.

Press the MENU button. Press the ▲ or ▼ button to

select “Channel”, then press the ENTER button.

Press the ▲ or ▼ button to select “Channel List”,

then press the ENTER button.

Press the ENTER button to select “All”.

Press the ◄, ►, ▲ or ▼ button to select a channel

to delete, then press the ENTER button.

Press the ▲ or ▼ button to select “Delete”, then

press the ENTER button to delete the channel.

Press the ◄, ►, ▲ or ▼ button to select a channel

to add, then press the ENTER button.

Press the ▲ or ▼ button to select “Add”, then press

the ENTER button to add the channel.

Changing the Picture Standard

You can activate either Dynamic, Standard, Movie by

making a selection from the menu.

Press the MENU button to display the menu.

Press the ENTER button, to select “Picture”.

Press the ENTER button to select “Mode”.

Press the ▲ or ▼ button to select “Dynamic”,

“Standard” or “Movie”.

Press the ENTER button.

Customizing the Picture Settings

Your television has several setting options that allow you to

control the picture quality.

To select the desired picture mode, follow the

“Changing the Picture Standard” instructions

numbers 1 and 2.

Press the ▲ or ▼ button to select “Backlight”,

“Contrast”, “Brightness”, “Sharpness”, “Color” or

“Tint”, then press the ENTER button.

Picture Mode

• Dynamic: Selects the picture for high-definition in a bright

room.

• Standard: Selects the picture for the optimum display in a

normal environment.

• Movie: Selects the picture for viewing movies in a dark

room.

Press the ◄ or ► button to decrease or increase

the value of a particular item. Press the EXIT button

to exit.

When you make changes to “Backlight”,

“Contrast”, “Brightness”, “Sharpness”, “Color”

or “Tint”, the OSD will be adjusted accordingly.

In PC mode, you can only make changes to

“Backlight”, “Contrast” and “Brightness”.

Settings can be adjusted and stored for each

external device you have connected to an input

of the TV.

➣

Picture Adjustment

• Backlight: Adjusts the brightness of LCD back light.

• Contrast: Adjusts the contrast level of the picture.

• Brightness: Adjusts the brightness level of the picture.

• Sharpness: Adjusts the edge definition of the picture.

• Color: Adjusts color saturation of the picture.

• Tint: Adjusts the color tint of the picture.

Channel List / All

DTV Air 2-1

Air3

Air4

Air 5

Air 6

Air 7

DTV Air 7-1

Air 8

Air 9

Air 10

DTV Air 10-1

DTV Air 10-2

DTV Air 10-3

DTV Air 10-1

DTV Air 10-2

DTV Air 10-3

DTV Air 10-1

DTV Air 10-2

DTV Air 10-3

Air 12

DTV Air 13-1

DTV Air 13-2

DTV Air 13-3

DTV Air 13-4

Air 5 1 / 2

Watch

Add

Delete

Favorite

List Mode Delete AllAdd All

Move Enter Return

Mode : Dynamic

Backlight 7

Contrast 95

Brightness 45

Sharpness 50

Color 50

Tint G 50 R 50

▼ More

PictureTV

Dynamic

Standard

Movie

▲

Backlight

▼

Move Adjust Return

Move Enter Return

Mode : Standard ►

Backlight 7

Contrast 95

Brightness 45

Sharpness 50

Color 50

Tint G 50 R 50

▼ More

PictureTV

BN68-0516C-00Eng-0202.indd 9 2008-02-02 ¿ÀÈÄ 10:42:11

English-10

To Select the Source

Press the SOURCE button on the Remote Control

You can select the TV mode or an input source connected to the TV set. Use this button to choose an input source that you

would like to watch.

Available signal sources: TV, AV, S-Video, Component, PC, HDMI.

You can choose only those external devices that are connected to the TV.

➣

Source ListTV

Move Enter Return

AV : ----

S-Video : ----

Component : ----

PC : ----

HDMI : ----

BN68-0516C-00Eng-0202.indd 10 2008-02-02 ¿ÀÈÄ 10:42:12

Andere Handbücher für LN19A330J1D

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Flachbildfernseher Handbücher

Samsung

Samsung HLP5085W - 50" Rear Projection TV Bedienungsanleitung

Samsung

Samsung S19C300B Bedienungsanleitung

Samsung

Samsung UN85S9AF Bedienungsanleitung

Samsung

Samsung S22C650D Bedienungsanleitung

Samsung

Samsung LN19B650 - 19" LCD TV Bedienungsanleitung

Samsung

Samsung LN32A540P2D Montage- und Bedienungsanleitung

Samsung

Samsung PN42B430P2D Bedienungsanleitung

Samsung

Samsung LN46A850S1F Bedienungsanleitung

Samsung

Samsung LN26C450E1D Bedienungsanleitung

Samsung

Samsung LN22B460 Bedienungsanleitung

Samsung

Samsung LN40C610N1F Bedienungsanleitung

Samsung

Samsung LN40B530 Bedienungsanleitung

Samsung

Samsung PN50B540S3F Bedienungsanleitung

Samsung

Samsung HPS6373 - 63" Plasma TV Bedienungsanleitung

Samsung

Samsung UN60F8000BFXZA Leitfaden

Samsung

Samsung FP-T5094W Bedienungsanleitung

Samsung

Samsung UN55B7000 - 55" LCD TV Montageanleitung

Samsung

Samsung BN68-03088A-02 Bedienungsanleitung

Samsung

Samsung UN46C9000ZF Bedienungsanleitung

Samsung

Samsung UN19C4000PD Bedienungsanleitung

Samsung

Samsung UN55D6500VF Bedienungsanleitung

Samsung

Samsung PN50A510P3F Bedienungsanleitung

Samsung

Samsung LN3B460 Bedienungsanleitung

Samsung

Samsung OFFICESERV 7100 Bedienungsanleitung

Beliebte Flachbildfernseher Handbücher anderer Marken

Philips

Philips 32PFL7602D - annexe 1 Bedienungsanleitung

Philips

Philips 42PF7321 Bedienungsanleitung

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Bedienungsanleitung

JVC

JVC LT-26DX7BFN Bedienungsanleitung

Philips

Philips Match Line 29PT9006/12 Bedienungsanleitung

Philips

Philips 37PFL5522D - annexe 2 Bedienungsanleitung

Westinghouse

Westinghouse TX-42F970Z Bedienungsanleitung

Philips

Philips 32PFL5332S Bedienungsanleitung

Philips

Philips 40PFL5705D Bedienungsanleitung

Toshiba

Toshiba 32BV500B Bedienungsanleitung

Philips

Philips MathLine 32PW9765 Bedienungsanleitung

Philips

Philips MatchLine FlatTV 50PF9965 Bedienungsanleitung

RCA

RCA MR53R400 Bedienungsanleitung

Philips

Philips 28PW8818/12 Bedienungsanleitung

JVC

JVC GGT0362-001A-H Bedienungsanleitung

Philips

Philips Magnavox 37MF331D/37 Bedienungsanleitung

Sanyo

Sanyo FVM4212 Bedienungsanleitung

Philips

Philips 47PFL7623D Bedienungsanleitung
