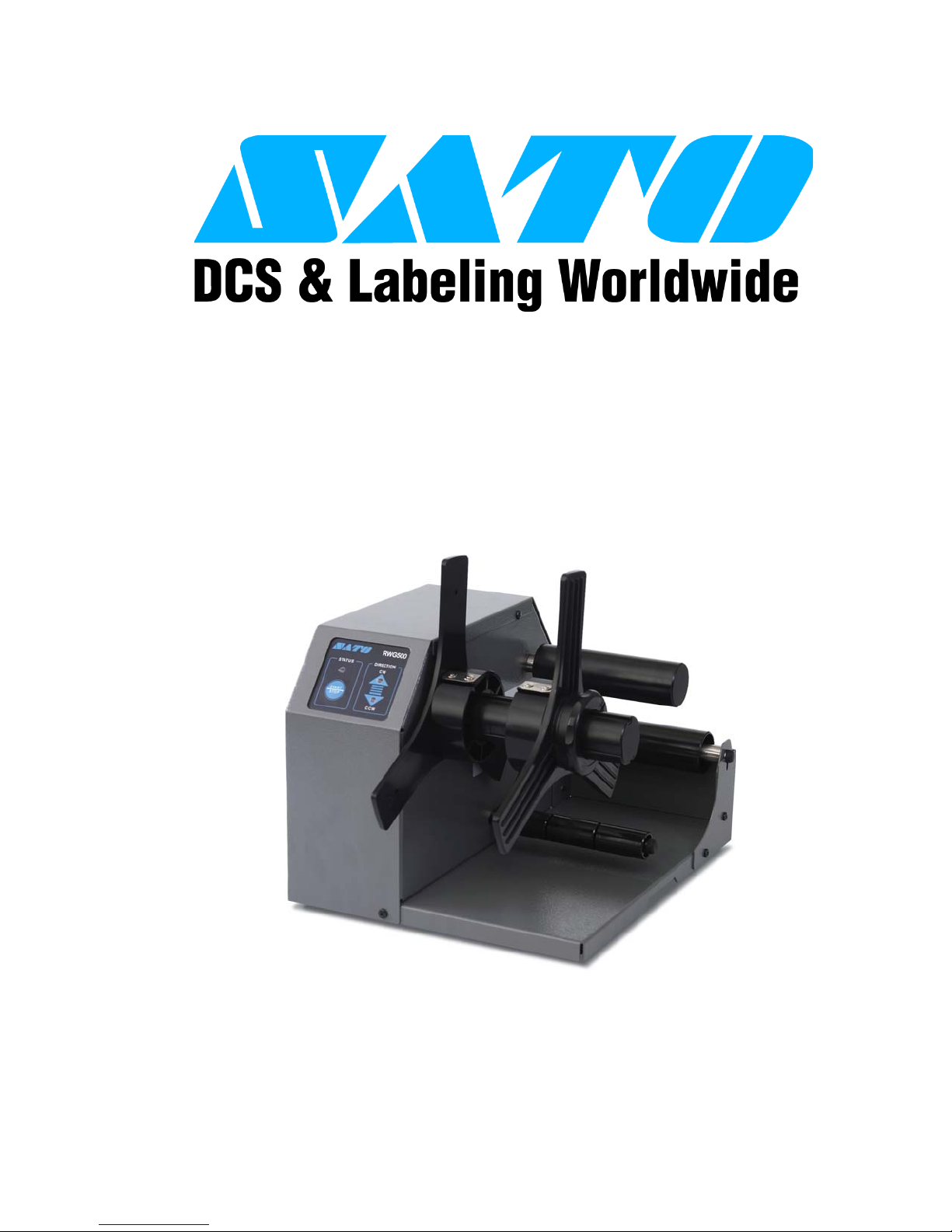

SATO RWG500 Bedienungsanleitung

PN 9001130A

RWG500

Label Rewinder

PARTS LIST

SATO America, Inc.

10350A Nations Ford Road

Charlotte, NC 28273

Main Phone: (704) 644.1650

Technical Support Hotline: (704) 644.1660

Technical Support Fax: (704) 644.1661

E-Mail: satosale[email protected]

technicalsupport@satoamerica.com

www.satoamerica.com

SATO RWG500 Parts List PN 9001130A Page 1

BASE ASSEMBLY

Figure PL1, Base Assembly

BASE ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION

1 R05581001 BASE FRAME

2 PT6680100 BOOTS, BLACK RUBBER

SATO RWG500 Parts List PN 9001130A Page 2

FRAME ASSEMBLY

Figure PL2a, Frame Assembly

Figure PL2b, Frame Assembly

SATO RWG500 Parts List PN 9001130A Page 3

Figure PL2c, Frame Assembly

Figure PL2d, Frame Assembly

SATO RWG500 Parts List PN 9001130A Page 4

Figure PL2e, Frame Assembly

Figure PL2f, Frame Assembly

SATO RWG500 Parts List PN 9001130A Page 5

Figure PL2g, Frame Assembly

SATO RWG500 Parts List PN 9001130A Page 6

FRAME ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION

4 R05582001 CENTER FRAME ASSEMBLY

5 MD4400822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

6 PT6700200 SPACER

7 MD3300822 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER

8 P13558000 PANEL BOARD SHEET

10 P12761000 REWIND SHAFT

11 P00097100 REWIND CORE

12 MD3301022 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER

13 PT1112080 BALL BEARING

14 P14049000 STOPPER PLATE (B)

15 P13284001 REWIND CORE COLLAR

16 P13888001 COLLAR GUIDE

17 PE1761320 STOPPER PLATE (A)

18 PE1760820 GUIDE BOSS

19 MH0301221 PAN HEAD P-TIGHT SCREW

21 P12770001 SHAFT (ARM 1)

22 P12768001 SHAFT (ARM)

23 PB3010110 GUIDE ROLLER

24 PT2107050 BUSHING

25 P11150000 SCREW CAP

26 ND0060030 SNAP RING, TYPE E

32 R05951000 GUIDE CORE ASSEMBLY, 3 INCH

33 PR7693600 GUIDE CORE SET, 3 INCH

34 P13285000 CORE COLLAR, 3 INCH

35 MD3301022 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER

37 P04532000 BUSHING

38 MA0201022 PAN HEAD SCREW

40 P13282000 PULLEY, 60

41 P14518000 TORQUE LIMITER

43 P12750001 ARM

44 MT1400722 HEX NUT

45 MA0201022 PAN HEAD SRCEW

47 P13286001 ARM GUIDE

48 MD4301422 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

62 ND0050030 SNAP RING, TYPE E

63 PT1112060 BALL SUPPORTER

64 PC0730100 SPRING, BACK

65 P13140000 FLAG WHEEL, SLIT

66 P13943000 WINDING TYPE SPACER

SATO RWG500 Parts List PN 9001130A Page 7

67 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

69 P12771001 SHAFT, GUIDE

70 PE1760920 BOSS (A)

71 PT2016010 SLEEVE, DRY METAL

72 ND3160024 SNAP RING, TYPE C

73 MD4400822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

74 P14339000 CAP, ROLL

75 P14340000 CAP, REWIND

77 P08439000 TIMING BELT

78 P13296000 GUIDE PLATE

79 MA0301222 PAN HEAD SCREW

80 P13942000 SPACER, WINDING TYPE

82 K00113000 STEPPER MOTOR

83 P12752000 MOTOR PLATE

84 MD4400822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

85 P14637000 MOTOR PULLEY (16), L12

86 MJ1400524 ALLEN SCREW

92 P13288000 SHAFT, GUIDE 1

93 P13290000 UPPER GUIDE BRACKET

94 P13291000 LOWER GUIDE BRACKET

95 M16220000 HEX SCREW

96 P11150000 SCREW CAP

97 MA2400824 BINDING HEAD SCREW, M4x8, BLACK

99 P12772000 CONNECTOR PLATE

100 M16220000 HEX SCREW

101 NB2040022 TOOTHED LOCK WASHER, 2TW4

102 R05902000 POWER SWITCH ASSEMBLY

103 R06012000 ADAPTER CONNECTOR ASSEMBLY

104 MA0301222 PAN HEAD SCREW

105 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

106 JG900411A DUST CAP

107 P14083000 DUST CAP

135 P13287001 COVER

136 MA2400824 BINDING HEAD SCREW, M4x8, BLACK

137 PE6740300 DIP SWITCH COVER

139 Q01127000 STICKER, “ROUTE”

FRAME ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION

SATO RWG500 Parts List PN 9001130A Page 8

MAIN CIRCUIT BOARD ASSEMBLY

Figure PL3, Main Circuit Board Assembly

MAIN CIRCUIT BOARD ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION

99 P12772000 CONNECTOR PLATE

100 M16220000 HEX SCREW

101 NB2040022 TOOTHED LOCK WASHER, 2TW4

102 R05902000 POWER SWITCH ASSEMBLY

103 R06012000 ADAPTER CONNECTOR ASSEMBLY

104 MA0301222 PAN HEAD SCREW

105 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

106 JG900411A DUST CAP

107 P14083000 DUST CAP

109 R06303000 MAIN CIRCUIT BOARD ASSEMBLY W/ ATTACHING HARDWARE

110 R05891000 MAIN CIRCUIT BOARD ASSEMBLY

111 PT9800800 SPACER

112 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
