Sauter CR P1 Bedienungsanleitung

Sauter GmbH

Ziegelei 1

D-72336 Balingen

E-Mail: info@kern-sohn.com

Tel.: +49-[0]7433- 9933-0

Fax: +49-[0]7433-9933-149

Internet: www.sauter.eu

Instruction Manual / Data sheet

SAUTER CR P1

V. 1.0

02/2019

CR P1-BA-e-1910.docx

2 CR P1-BA-e-1910.docx

SAUTER CR P1

V. 1.0 02/2019

Instruction Manual / Data sheet

Summarize:

1Short description................................................................................... 3

2Available models................................................................................... 3

3Introduction ........................................................................................... 3

4Warning notes ....................................................................................... 3

5Warranty................................................................................................. 4

6Detailed specifications.......................................................................... 4

7Wiring..................................................................................................... 4

8Dimesnsions in mm............................................................................... 5

8.1 60kg, 130kg..................................................................................................................... 5

8.2 250kg, 500kg, 1000kg, 2000kg ...................................................................................... 6

9Certificate of Compliance..................................................................... 6

CR P1-BA-e-1910.docx 3

1 Short description

Stainless steel IP68 (acc. To EN 60529) compression load cell with low

profile

Suitable for mass and force Measuring

RoHS conform

Suitable for vehicle and hopper scales and vehicle testing facilities, test

stands, etc.

Built in surge arrestors

Accuracy C3 OIML R60

2 Available models

Capacity

Model

60kg (≈600N)

CR 60-3P1

130kg (≈1,3kN)

CR 130-3P1

250kg (≈2,5kN)

CR 250-3P1

500kg (≈5kN)

CR 500-3P1

1000kg (≈10kN)

CR 1000-3P1

2000kg (≈20kN)

CR 2000-3P1

3 Introduction

Please pay attention to the notes of the operating manual: read these operating

manual carefully before commissioning, even if you already have experience with

SAUTER measuring cells.

After receiving the measuring cell, it should be checked in advance whether no

transport damage has occurred, whether the outer packaging or other parts or

even the article itself has been damaged. If any damage is evident, please inform

SAUTER GmbH immediately.

4 Warning notes

Observe the national accident prevention regulations.

Not correct executed use of the measuring cell can lead to serious injuries, death,

material damage and personal injuries. Use only by trained and experienced

people.

Never load more than the max. capacity to a measuring cell. Overloaded

measuring cells no longer have the required accuracy. Overloaded or deformed

measuring cells are no longer allowed to use and must be changed quickly.

Never step under suspended loads.

Always fasten overload- or break security to your construction.

Pay attention to the allowed static and dynamic loads of the used equipment.

Let the measuring cells calibrate at regular intervals.

Only load the measuring cell in its specified load direction. Avoid lateral forces.

Control the measuring cells to deformations and cracks.

Measuring cells with 4-Conductor cable will change their characteristic value

when shortened or extended the cable length.

4 CR P1-BA-e-1910.docx

5 Warranty

The warranty expires at:

Disregard of the specifications of the operating manual

Modification or opening the measuring cell

Overload

Mechanical damages

Damage caused by liquids or media

Natural loss

Not correct installation

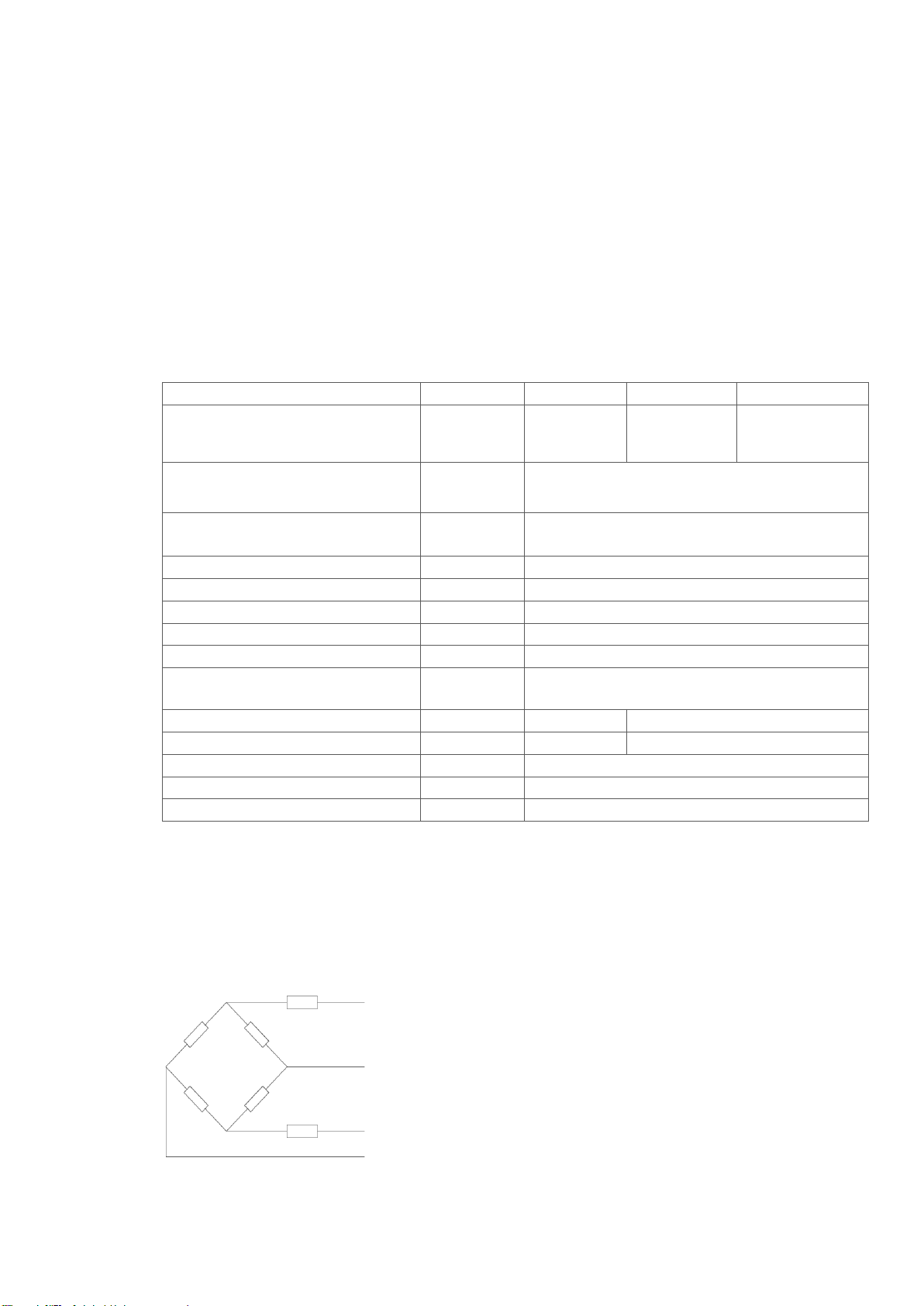

6 Detailed specifications

Output sensitivity ( FS )

mV/V

1.0 ± 0.01

1.75 ± 0.2

2.0 ± 0.1

Maximum capacity ( Emax )

60, 130

250

500, 1000,

2000

Max.number of load cell

intervals

nLC

3000

Ratio of min. LC verification

interval

Y = Emax

/ vmin

10000

Combined Error

%FS

≤± 0.05

Minimum dead load

Of Emax

Safe overload

of Emax

150 %

Ultimate overload

of Emax

200 %

Zero balance

of FS

< ± 2.0 %

Excitation, recommended

voltage

10 ~ 15

Input resistance

1260 ±

100

1100 ± 100

Output resistance

1020 ±

0.5

1025 ± 25

Insulation resistance

MΩ

≥5000 ( at 50VDC )

Compensated temperature

°C

-10 ~+40

Operating temperature

°C

-50 ~ +70

7 Wiring

Shielded, 4 conductor cable. Cable Ø6mm. Shield not connected to element

Standard cable length 60kg…1000kg: 3m.

Standard cable length 2000kg: 6m

4-wire diagram

Input(+)

Output(-)

Input (-)

Output(+)

Pink

White

Gray

Brown

CR P1-BA-e-1910.docx 5

8 Dimesnsions in mm

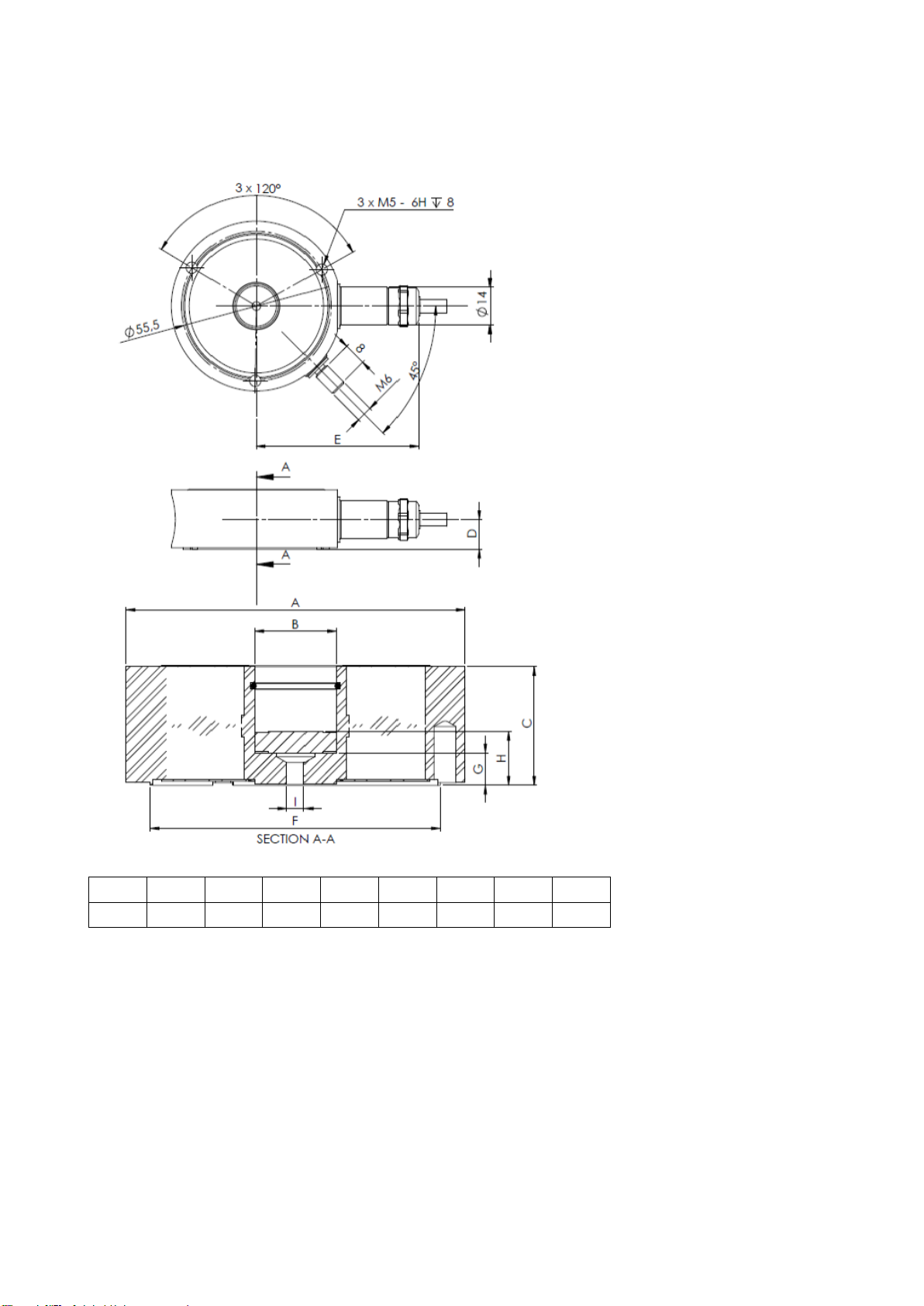

8.1 60kg, 130kg

ØA

ØB

ØF

15.1

Ø3.2

6 CR P1-BA-e-1910.docx

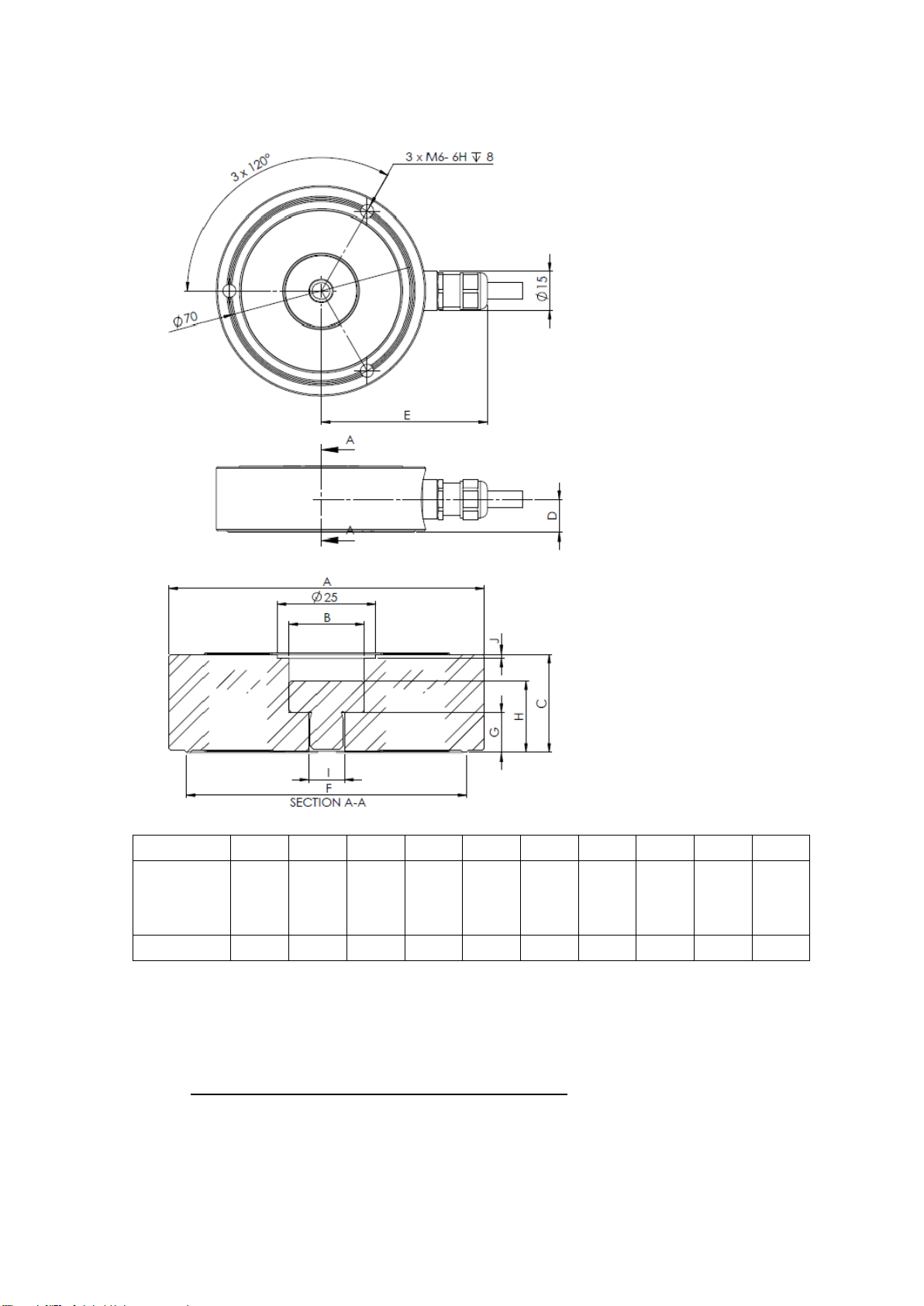

8.2 250kg, 500kg, 1000kg, 2000kg

ØA

ØB

ØF

250kg

500kg

1000kg

12.5

M10

2000kg

12.5

Ø15

9 Certificate of Compliance

To have a look at the CE Declaration of Conformity, please click onto the following

link: https://www.kern-sohn.com/shop/de/Downloads
