Sauter CT P1 Bedienungsanleitung

Sauter GmbH

Ziegelei 1

D-72336 Balingen

E-Mail: info@kern-sohn.com

Tel.: +49-[0]7433- 9933-0

Fax: +49-[0]7433-9933-149

Internet: www.sauter.eu

Instruction Manual / Data sheet

CT P1 / CT P2

V. 1.0

12/2018

CT P1 / CT P2 -BA-e-1810

2 CT P1 / CT P2 -BA-e-1810

SAUTER CT P1 / CT P2

V. 1.0 12/2018

Instruction Manual / Data sheet

Summarize:

1Short description........................................................................................... 3

2Available models............................................................................................ 3

2.1 Models CT P1............................................................................................................................ 3

2.2 Models CT P2............................................................................................................................ 3

3Introduction.................................................................................................... 3

4Warning notes................................................................................................ 3

5Warranty......................................................................................................... 4

6Detailed specifications.................................................................................. 4

7Wiring.............................................................................................................. 5

7.1 4-wire diagram .......................................................................................................................... 5

7.2 6-wire diagram (option on request) ........................................................................................ 5

8Dimensions in mm......................................................................................... 5

9Certificate of Compliance.............................................................................. 6

CT P1 / CT P2 -BA-e-1810 3

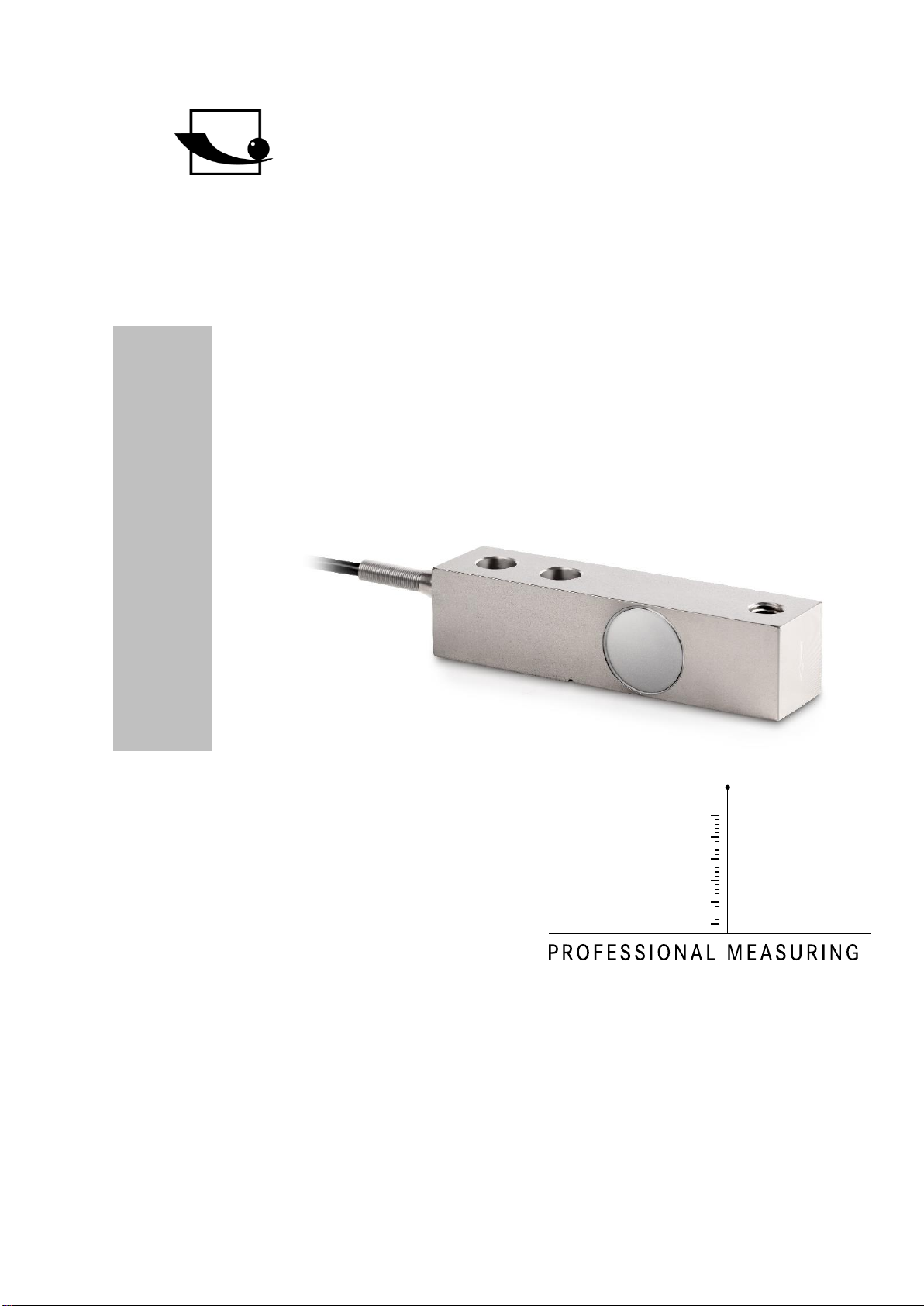

1 Short description

Stainless steel IP67 (acc. to EN 60529) shear beam load cell

Suitable platform, hopper, bed and other weighing

adhesive sealed

Accuracy OIML R60 C3

OIML certificated

RoHS conform

Option on request: EX, Accuracy C4 / C5, 6 Conductor cable

2 Available models

2.1 Models CT P1

Capacity

Model

500kg

CT 500-3P1

1000kg

CT 1000-3P1

1500kg

CT 1500-3P1

2500kg

CT 2500-3P1

3000kg

CT 3000-3P1

5000kg

CT 5000-3P1

10000kg

CT 10000-3P1

2.2 Models CT P2

with adjusted characteristic value (when ordering more than one cell, this saves time

by reducing the effort required for corner adjustment)

Capacity

Model

500kg

CT 500-3P2

1000kg

CT 1000-3P2

3000kg

CT 3000-3P2

5000kg

CT 5000-3P2

10000kg

CT 10000-3P2

3 Introduction

Please pay attention to the notes of the operating manual: read these operating

manual carefully before commissioning, even if you already have experience with

SAUTER measuring cells.

After receiving the measuring cell, it should be checked in advance whether no

transport damage has occurred, whether the outer packaging or other parts or even

the article itself has been damaged. If any damage is evident, please inform

SAUTER GmbH immediately.

4 Warning notes

Observe the national accident prevention regulations.

Not correct executed use of the measuring cell can lead to serious injuries, death,

material damage and personal injuries. Use only by trained and experienced people.

Never load more than the max. capacity to a measuring cell. Overloaded measuring

cells no longer have the required accuracy. Overloaded or deformed measuring cells

are no longer allowed to use and must be changed quickly.

4 CT P1 / CT P2 -BA-e-1810

Never step under suspended loads.

Always fasten overload- or break security to your construction.

Pay attention to the allowed static and dynamic loads of the used equipment.

Let the measuring cells calibrate at regular intervals.

Only load the measuring cell in its specified load direction. Avoid lateral forces.

Control the measuring cells to deformations and cracks.

Measuring cells with 4-Conductor cable will change their characteristic value when

shortened or extended the cable length.

5 Warranty

The warranty expires at:

Disregard of the specifications of the operating manual

Modification or opening the measuring cell

Overload

Mechanical damages

Damage caused by liquids or media

Natural loss

Not correct installation

6 Detailed specifications

Output sensitivity ( FS )

mV/V

3.0 ± 0.003

Maximum capacity ( Emax )

500, 1000, 1500, 2500, 3000, 5000, 10000

Max.number of load cell

intervals

nLC

3000

Ratio of min. LC verification

interval

Y = Emax /

vmin

10000

Combined Error

%FS

≤± 0.023

Minimum dead load

Of Emax

Safe overload

of Emax

150 %

Ultimate overload

of Emax

300 %

Zero balance

of FS

< ± 1.0 %

Excitation, recommended

voltage

5 ~ 12

Excitation maximum

Input resistance

350 ± 3.5

Output resistance

350 ± 3.5

Insulation resistance

MΩ

≥5000 ( at 50VDC )

Compensated temperature

°C

-10 ~+40

Operating temperature

°C

-35 ~ +65

Storage temperature

°C

-40 ~ +80

Recommended torque on

fixation bolts

M12: 75 M18:500 M24:750

CT P1 / CT P2 -BA-e-1810 5

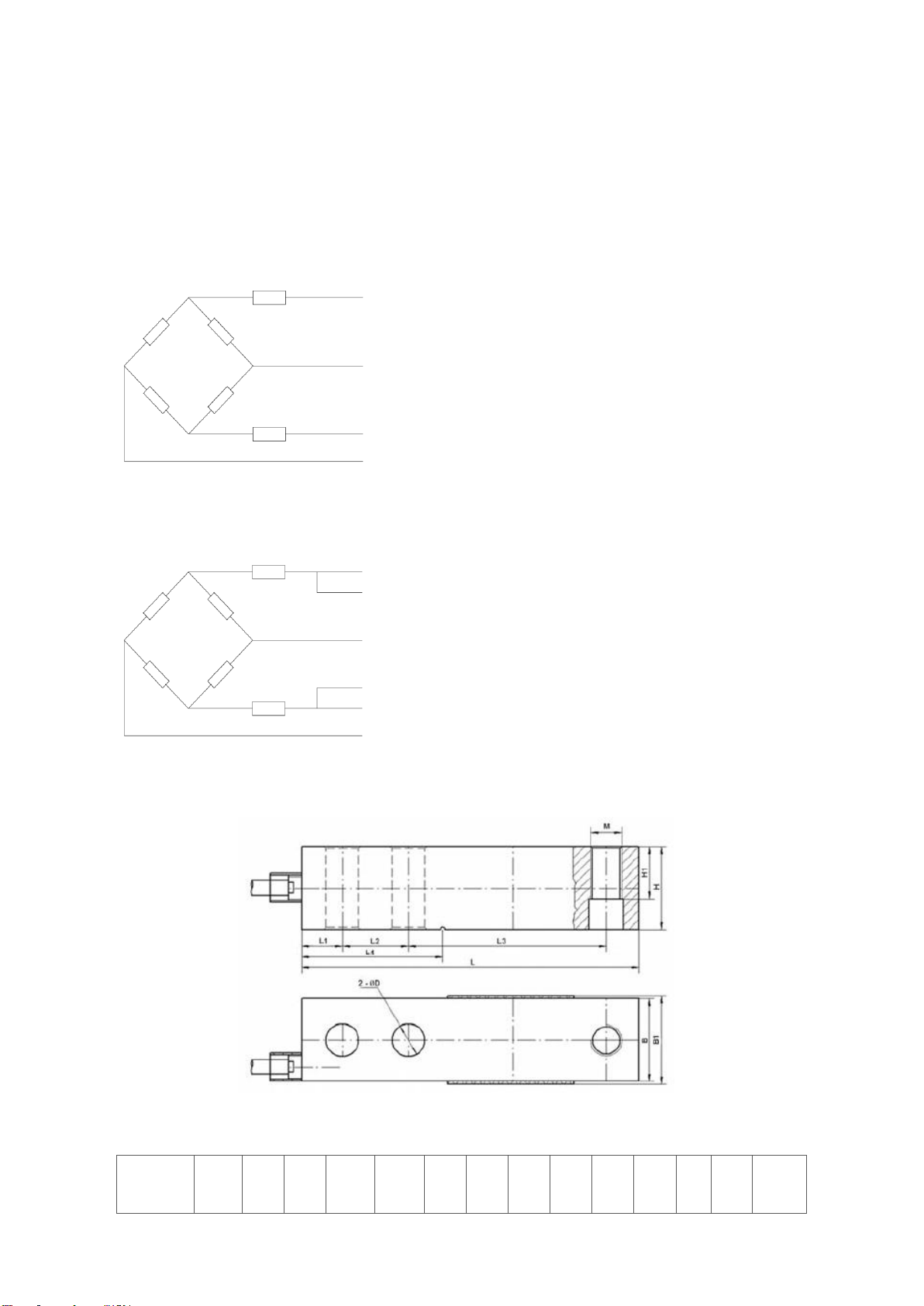

7 Wiring

Shielded, 4 cable. Shield not connected to element.

Cable diameter: Ø5mm.

Standard cable length for 500kg –1000kg: 4m

Standard cable length for 1500kg –10000kg: 6m

7.1 4-wire diagram

Input(+)

Output(-)

Input (-)

Output(+)

Red

White

Black

Green

7.2 6-wire diagram (option on request)

Input(+)

Sense(+)

Output(-)

Sense(-)

Input(-)

Output(+)

Red

Blue

White

Yellow

Black

Green

8 Dimensions in mm

Dimension

Capacity

ØD

6 CT P1 / CT P2 -BA-e-1810

9 Certificate of Compliance

The Certificate of Compliance can be downloaded from the website www.sauter.eu

500kg –

1500kg

130

15.8

25.4

76.2

54.2

31.8

15.8

14.5

15.8

4.8

13.5

x 1.75

2500kg –

5000kg

171.5

19.1

38.1

95.3

77.2

38.1

18.8

17.5

18.8

4.8

19.8

x 1.5

10000kg

222.3

25.4

50.8

120.7

101.6

50.8

52.4

50.8

25.4

24 x 2
