SCAN

You have purchased a product by one of Europe’s leading manufacturers of

wood-burning stoves, and we are sure that you will have years of pleasure from your

purchase.

To make the best possible use of your stove, it is important that you

follow our advice and instructions. Read through this Assembly and Instruction

Manual carefully before you start to assemble your stove.

CONGRATULATIONS

ON YOUR NEW SCAN

WOOD-BURNING STOVE

HANDLES AND TRIMS

IN BLACK / BRUSHED

ALUMINIUM

SCAN 85-7

BLACK ALU.

SCAN 85-8

BRUSHED ALU.

SCAN 85-1

BLACK ALU.

SCAN 85-2

BRUSHED ALU.

SCAN 85-5

BLACK ALU.

SCAN 85-6

BRUSHED ALU.

SCAN 85-3

BLACK ALU.

SCAN 85-4

BRUSHED ALU.

TABLE OF CONTENTS

¬¬

TECHNICAL DATA 4

Installation 4

Safety 4

Technical data and dimensions 5

Dimension sketch and minimum distances 6

Type plate 8

Product registration number 8

¬¬

ASSEMBLY 9

Tools needed for mounting of the stove 9

Loose parts 9

Additional accessories 9

Disposal of packaging 9

Fresh air intake 9

Closed combustion system 10

Existing chimney and pre-fabricated element chimney 10

Connection between built-in stove and steel chimney 10

Requirements for chimney 11

Positioning the stove at a non-ﬂammable wall 11

Distance to furniture 11

Safety distance 11

Removal of packaging 12

Height adjustment of stove 13

Opening of the door 13

Fitting the ﬂue connection piece 14

Height adjustment of the top module 16

Heat-storage system 17

Load-bearing foundation 18

Floor plate 18

¬¬

INSTRUCTIONS FOR USE 19

CB-technology (Clean Burn) 19

Primary air 19

Secondary air 19

Bafﬂe plates 19

Handle for riddling grate 19

Refueling on to a low ﬁre bed 19

Ash container 20

¬¬

INSTRUCTIONS FOR HEATING 22

Environmentally-friendly ﬁring 22

Lighting 22

Continuous operation 23

Warning about over-ﬁring 23

Using the stove in various weather conditions 23

Firing in the spring or autumn 23

The function of the chimney 23

Chimney ﬁre 23

General notes 24

¬¬

HANDLING OF THE FUEL 25

Selecting wood/fuel 25

Preparation 25

Storing 25

Moisture 25

Use of the following as fuel is illegal 25

Caloriﬁc value of the wood 25

¬¬

MAINTAINANCE 26

Sweeping the chimney and cleaning the stove 26

Checking the stove 26

Servicing 26

Combustion chamber lining 26

Gaskets 26

Painted surfaces 26

Removal of bafﬂe plates and combustion chamber lining 27

Cleaning the glass 29

Disposal of stove parts 29

¬¬

TROUBLESHOOTING 30

¬¬

WARRANTY 31

TECHNICAL DATA

INSTALLATION

¬ The house owner is responsible for ensuring that installation and assembly are in accordance with national and local building

regulations as well as the information provided in this Assembly and Instruction Manual

¬ When you install any kind of ﬁreplace or stove, you must inform the local building and housing authorities. In addition you are

obliged to have the installation inspected and approved by a local chimney sweep prior to commissioning

¬ To ensure best-possible functionality and safety for your installation, we advise you to call a professional ﬁtter. Your Scan

Dealer will be able to recommend a qualiﬁed ﬁtter in your area. For information on Scan Dealers, please go to

www.scan-stoves.com

SAFETY

Any changes made to the product by the dealer, ﬁtter or user could result in the product and safety functions not functioning as

intended. The same applies to the ﬁtting of accessories or extra equipment not supplied by Scan A/S. This could also be the case

if parts that are necessary for the operation and safety of the stove are dismantled or removed.

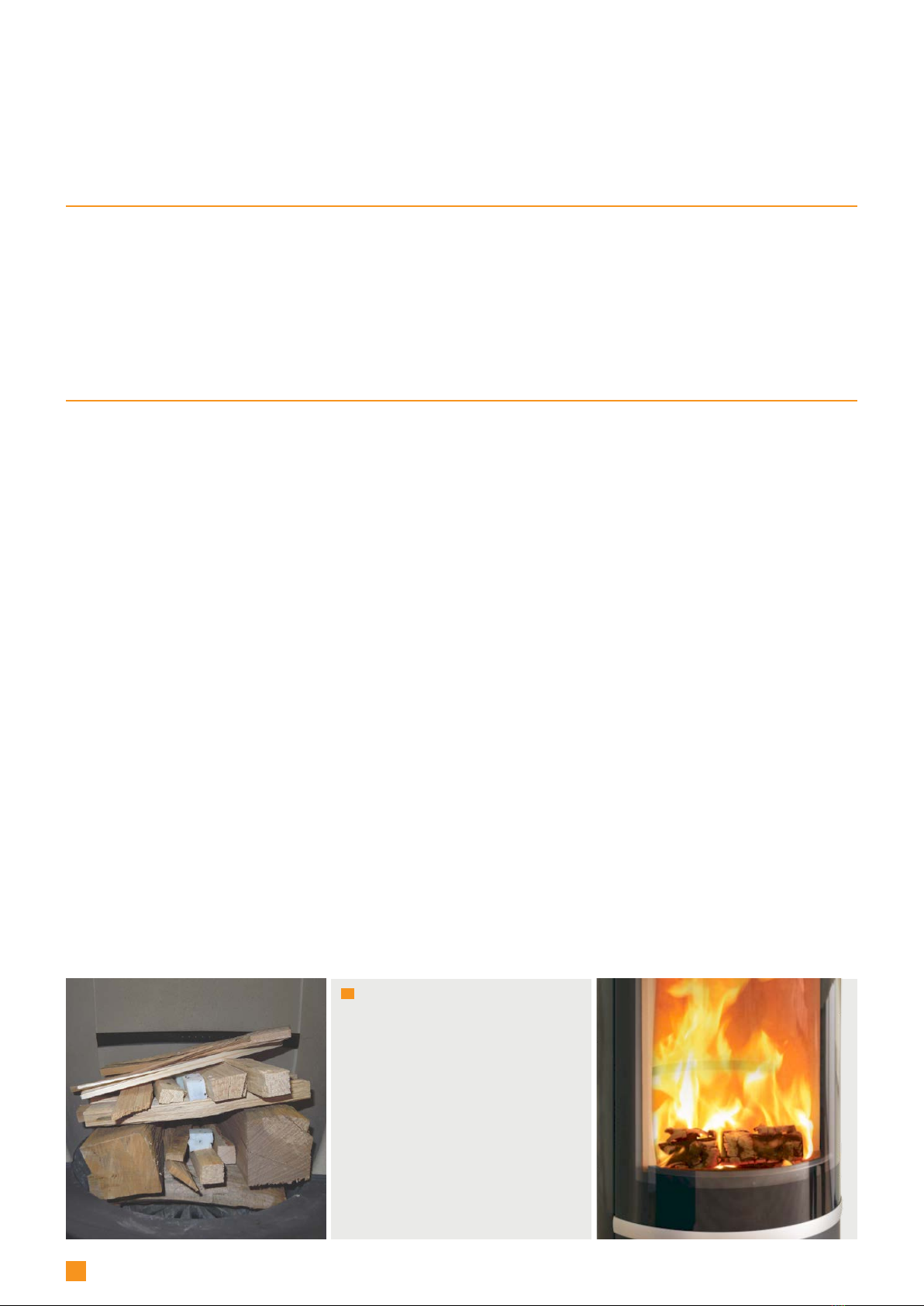

YOU GET THE BEST USE OF

THE STOVE BY USING

A TOP-DOWN

LIGHTING METHOD

SEE

"INSTRUCTIONS FOR HEATING"

PLEASE NOTE!

TECHNICAL DATA AND DIMENSIONS

Test in compliance with EN 13240

CO Emission at 13% O20,06 %

CO Emission at 13% O2801 mg/Nm3

Dust @ 13% O27 mg/Nm3

Nox@ 13% O287 mg/Nm3

Efﬁciency 78 %

Energy efﬁciency index 103

Energy efﬁciency class A

Nominel output 8 kW

Chimney temperature EN 13240 272 °C

Temperature in ﬂue conn. piece 326 °C

Amount of smoke 7,8 g/sek

Sub-pressure EN 13240 12 Pa

Recommended sub-pressure in

connecting piece 18-20 Pa

Required combustion air supply 21,6 m3/h

Fuel Wood

Fuel consumption 2,5 kg/h

Amount of fuel 2,2 kg

Amount of fuel, max. 2,6 kg

Materials

Steel plate

Cast iron

Galvanised sheet

Ceramic stone/vermiculite

Surface treatment Senotherm

Max. wood length

(horizontal position) 30 cm

Max. wood length

(vertical position) 50 cm

Weight Scan 85 series ca. 204-220 kg

Connecting piece internal diameter 144 mm

Connecting piece external diameter 148 mm

Fresh air connection piece external diameter 100 mm

Approval type Intermittent fuelling*

Intermittent operation in this context means normal use of

a wood-burning stove. In other words, you should let the ﬁre

die down until only the embers are left before refueling.

This stove is produced in accordance with type approval for

the product, which also covers the product’s Assembly and

Instruction Manual.

The Declaration of Performance (DoP) is available from

www.scan-stoves.com

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan 84\90184008.idw

90184008

Opstillingstegning (afstand til brændbart materiale)

23-06-2020 KEN

Scan 84

VÆGT:

AREAL:

N/A

900**

1464

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585001.idw

90585001

Målskitse for vejledning, Scan 85

08-02-2019 BC

Scan 85

VÆGT:

AREAL:

N/A

520

1464

260****

112***

293

1347**

1430*

520

293

1430***

1347

112*

260*

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585016.idw

90585016

Målskitse for vejledning, Scan 85 Maxi

07-11-2018 KEN

Scan 85

VÆGT:

AREAL:

N/A

1864

520

260****

112***

1642*

1547**

493

260*

112*

1642***

1547

493

520

1864

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585061.idw

90585061

Scan 85 - High top målskitse

07-11-2018 KEN

Sacn 85

VÆGT:

AREAL:

N/A

1664

260****

1347**

112***

1442*

520

293

260*

112*

1442***

1347

293

520

1664

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585062.idw

90585062

Scan 85 - High base målskitse

07-11-2018 KEN

Scan 85

VÆGT:

AREAL:

N/A

1664

520

1547**

112***

1642*

260****

493

260*

112*

1642***

1547

493

520

1664

1000**

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585016.idw

90585016

Målskitse for vejledning, Scan 85 Maxi

07-11-2018 KEN

Scan 85

VÆGT:

AREAL:

N/A

1864

520

260****

112***

1642*

1547**

493

Scan 85-1 / 85-2 Scan 85-3 / 85-4

Scan 85-7 / 85-8

Scan 85-5 / 85-6

DIMENSION SKETCH AND MINIMUM DISTANCES

All distances are in mm.

All distances are minimum distances

* Connection of fresh-air intake - external diameter Ø 100 mm

** Min. distance to furniture/ﬂammable material

*** Height to the beginning of ﬂue connecting piece at top outlet

Floor plate

X / Y according to national laws and regulations

Radiation zone

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585002.idw

90585002

Opstilling mod brændbar væg

26-02-2018 KEN

Scan 85

VÆGT:

AREAL:

N/A

100

600

509

100

900

360°

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan 87\90087007.idw

90087007

Opstillingstegning (afstand til brandmur)

02-02-2021 KEN

Scan 87

VÆGT:

AREAL:

N/A

500

304

680

1480

1693

800

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan 87\90087007.idw

90087007

Opstillingstegning (afstand til brandmur)

02-02-2021 KEN

Scan 87

VÆGT:

AREAL:

N/A

500

304

680

1480

1693

800

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585047.idw

90585047

Afstand til loft

15-03-2011 BC

Scan 85

VÆGT:

AREAL:

N/A

Brændbart materiale

600

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585002.idw

90585002

Opstilling mod brændbar væg

26-02-2018 KEN

Scan 85

VÆGT:

AREAL:

N/A

100

600

509

100

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:

EMNE:

C:\Working Folder\Designs\Scan85\90585003.idw

90585003

Opstilling mod brandmur

18-09-15HMS

Scan 85

VÆGT:

AREAL:

N/A

400

100

800

1420

1070

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

DK-5492 Vissenbjerg©

TG.NR:

EMNE:

C:\Working Folder\Designs\Scan85\90585003.idw

90585003

Opstilling mod brandmur

18-09-15HMS

Scan 85

VÆGT:

AREAL:

N/A

400

100

800 1420

1070

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

TG.NR:

EMNE:

C:\Working Folder\Designs\Scan85\90585003.idw

90585003

Opstilling mod brandmur

18-09-15HMS

Scan 85

VÆGT:

AREAL:

N/A

400

100

800 1420

1070

Flammable ceiling

MINIMUM DISTANCES

Flammable material

Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick

or other material with corresponding ﬁreproof and

insulating abilities

All distances are in mm.

All distances are minimum distances

These distances apply for an uninsulated ﬂue pipe/insulated ﬂue pipe, all the way down to the stove

Minimum distance to ﬂammable materials

Minimum distance to ﬂammable wall protected by a ﬁre wall

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Scan A/S

TG.NR:

EMNE:

C:\Working Folder\Designs\Scan85\10585900 Manual.iam

10585900 Manual

21-10-2013 SR

VÆGT:

AREAL:

N/A

Typeplate

PRODUCT REGISTRATION NUMBER

All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear

page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.

The product registration number is located at the rear of the stove.

Type plate

Product

registration number

Product registration number

TYPE PLATE

All Scan wood-burning stoves are ﬁtted with a type plate that speciﬁes the approval standards and the distance to ﬂammable

materials.

The type plate is located at the rear of the stove.

ASSEMBLY

TOOLS NEEDED FOR MOUNTING OF THE STOVE

¬ Spirit level ¬ Open-end spanner

¬ Cutting nippers ¬ 4 mm Allen key

LOOSE PARTS

In the stoves combustion chamber you will ﬁnd the following loose parts:

¬ 4 pcs. screws for fastening the connecting piece ¬ Seal for the connecting piece

¬ Repair lacquer for coloured stoves ¬ Glove

ADDITIONAL ACCESSORIES

¬ Small shaped ﬂoor plate in glass or steel ¬ Large shaped ﬂoor plate in steel

(not for corner installation) (not for corner installation)

¬ Large base ﬂoor plate in glass ¬ Scan 85-3/4/5/6: Heat accumulating stones

(not for corner installation)

¬ Adjustment key for height adjustment

DISPOSAL OF PACKAGING

Your Scan stove may come supplied with the following packaging:

Wood packaging The wood packaging can be reused and after final use can be incinerated as a CO2neutral

product or sent for recycling.

Foam Send for recycling or waste disposal

Plastic bags Send for recycling or waste disposal

Stretch/plastic ﬁlm Send for recycling or waste disposal

FRESH AIR INTAKE

In a well-insulated house, the air used up by the burning process has to be replaced. This particularly applies to houses with

mechanical ventilation. There are different ways of making sure that an air exchange takes place. The most important thing is to

ensure that there is a supply of air to the room where the wood stove is located. The external wall vent must be located as close

to the wood stove as possible, and you must be able to close it when you are not using the wood stove.

National and local building regulations must be followed with regard to the connection of fresh-air intake.

D ( 1 : 5 )

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585025.idw

90585025

Afmontage dækplader med bidetang

01-11-2010 BC

Scan 85

VÆGT:

AREAL:

N/A

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

TG.NR:EMNE:

C:\Working Folder\Designs\Scan85\90585031.idw

90585031

Friskluft via gulv eller væg

15-11-2010 BC

Scan 85

VÆGT:

AREAL:

N/A

NAVN:

STI:

DIMENSION:

MATERIALE: DATO: SIGN:

Krog Iversen & Co A/S

TG.NR:EMNE:

C:\Working Folder\Designs\Scan 68\90068058.idw

90068058

klargøring til vægbeslag

12-05-2015 hms

Scan 68

VÆGT:

AREAL:

N/A

EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY

If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim-

ney sweep, for advice. These experts will also let you know if your chimney needs renovating.

¬ When connecting a pre-fabricated element chimney, follow the manufacturer’s connection instructions for the

relevant chimney type.

CONNECTION BETWEEN BUILT-IN STOVE AND STEEL CHIMNEY

Your Scan dealer, or local chimney sweep, can advise you on choosing a make and type of steel chimney. This ensures that the

chimney will match your wood-burning stove.

Connect external combustion air

via the connection piece under-

neath the combustion chamber

If you want external combustion

air via a wall, remove the cover

plate at the rear of the stove with

a pair of cutting pliers

External

combustion air

via wall

External

combustion air

via ﬂoor

CLOSED COMBUSTION SYSTEM

You should use the closed combustion system for the wood-burning stove if you live in a newly-built, airtight home.

External combustion air is connected through a ventilation pipe via the wall or ﬂoor.

We recommend mounting a valve in the ventilation pipe in order to avoid condensate in the stove and the pipe system, when the

stove is not in use. It can also be an advantage to insulate the ventilation pipe.

Minimum Ø 100 mm ventilation pipe, maximum length: 6 metres with a maximum of one bend. We recommend smooth steel

pipes.

NOTE: if the stove has a fresh air connexion or closed combustion, the ventilation pipe must be open, when the stove is in use!

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Beliebte Herd Handbücher anderer Marken

Arada

Arada Cassette Stove Bedienungsanleitung

Parmco

Parmco FS 600 Bedienungsanleitung

MCZ

MCZ SUITE AIR 10 M2 Bedienungsanleitung

HearthStone

HearthStone Stowe DV 8321 Fehlerbehebungshandbuch

Cattara

Cattara FAMILY Bedienungsanleitung

Stanley

Stanley Argon F500 OVAL Bedienungsanleitung

Avalon

Avalon B-VENT Bedienungsanleitung

Nordpeis

Nordpeis Vega Bedienungsanleitung

Exquisit

Exquisit EKC601-5 Bedienungsanleitung

Stanley

Stanley Oisin Oil MK II Betriebsanleitung

Thermocet

Thermocet Brookfield S/CC Bedienungsanleitung

HASE

HASE delhi Bedienungsanleitung

Vermont Castings

Vermont Castings Intrepid 2 Bedienungsanleitung

Italiana Camini

Italiana Camini CLASSICA Kurzanleitung

Avalon

Avalon Vashon Avanti DVS FS Bedienungsanleitung

Spartherm

Spartherm ambiente a1 Bedienungsanleitung

Dimplex

Dimplex MCFSTV12AU Bedienungsanleitung

Warmlite

Warmlite WL46040 Bedienungsanleitung
