Schlage XE360-M Series Bedienungsanleitung
*47570180*
47570180
Mortise
XE360-M Series
Installation Instructions

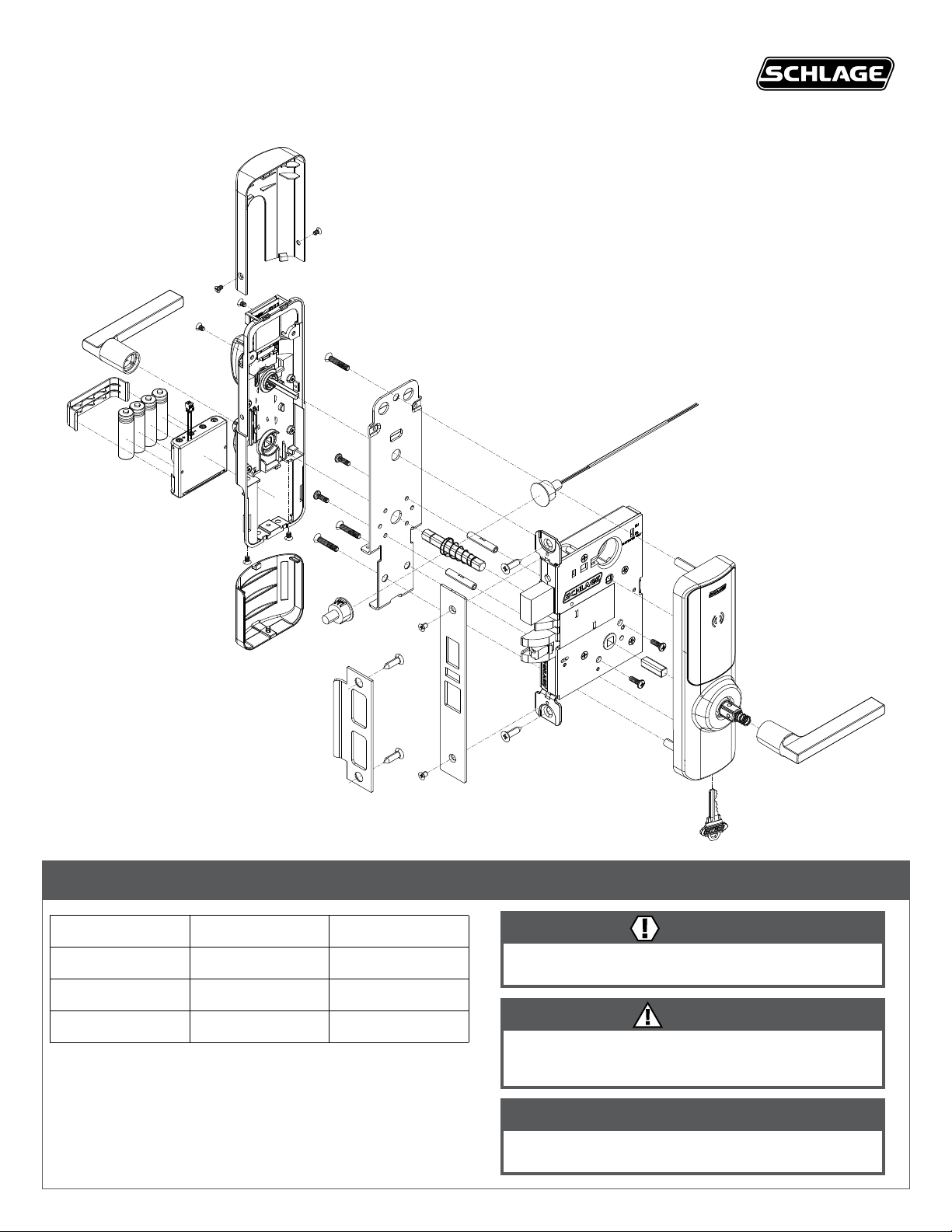

Specifications and Certifications Warnings and Cautions
WARNING
Warnings indicate potentially hazardous conditions, which if
not avoided or corrected, may cause death or serious injury.
CAUTION
Cautions indicate potentially hazardous conditions, which if
not avoided or corrected, may cause minor or moderate injury.
Cautions may also warn against unsafe practices.
NOTICE
Notices indicate a condition that may cause equipment or
property damage only.
Deadbolt Model Shown

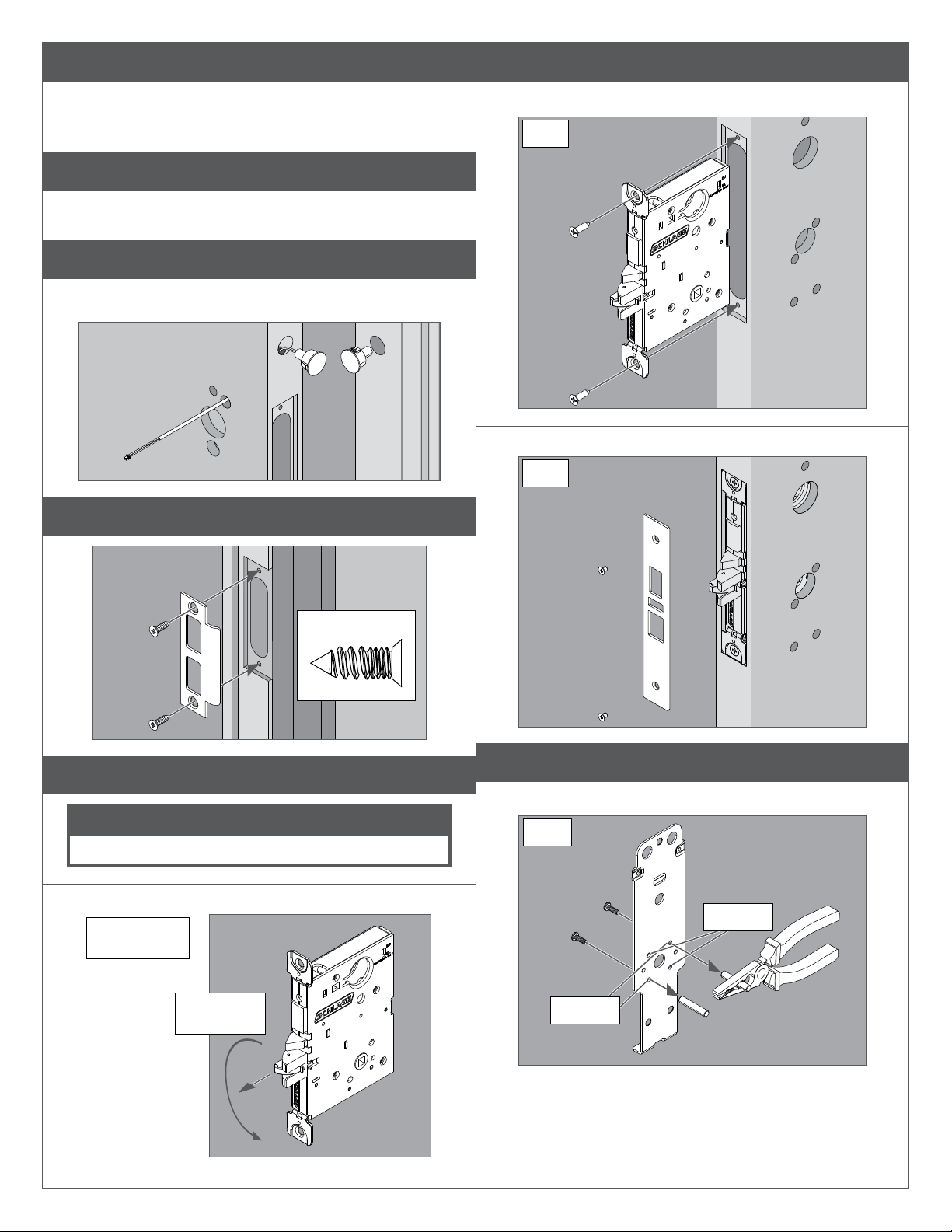

Installation
LBags of fasteners are labeled to match the labels in the
installation steps. Look for the labels on the steps before
opening bags of fasteners.
1 Prepare door, if needed.
Check the included door template to complete the door
preparation.
2 Install DPS (door position switch), if desired.
Route the cable through the hole and then push the DPS into the
hole.
3 Install strike.
Actual Size (2)
4 Install chassis.
NOTICE
Check lock handing before installation.
4a To change handing, if necessary, pull latch out and rotate 180°.
Pull and
rotate 180°
Deacbolt
model shown
4b Insert chassis into mortise and secure with screws.
BAG 1
4c Install cover plate.
BAG 1
5 Install posts onto interior plate.
Use hole pair that matches handing.
LH/LHR
RH/RHR
BAG 2

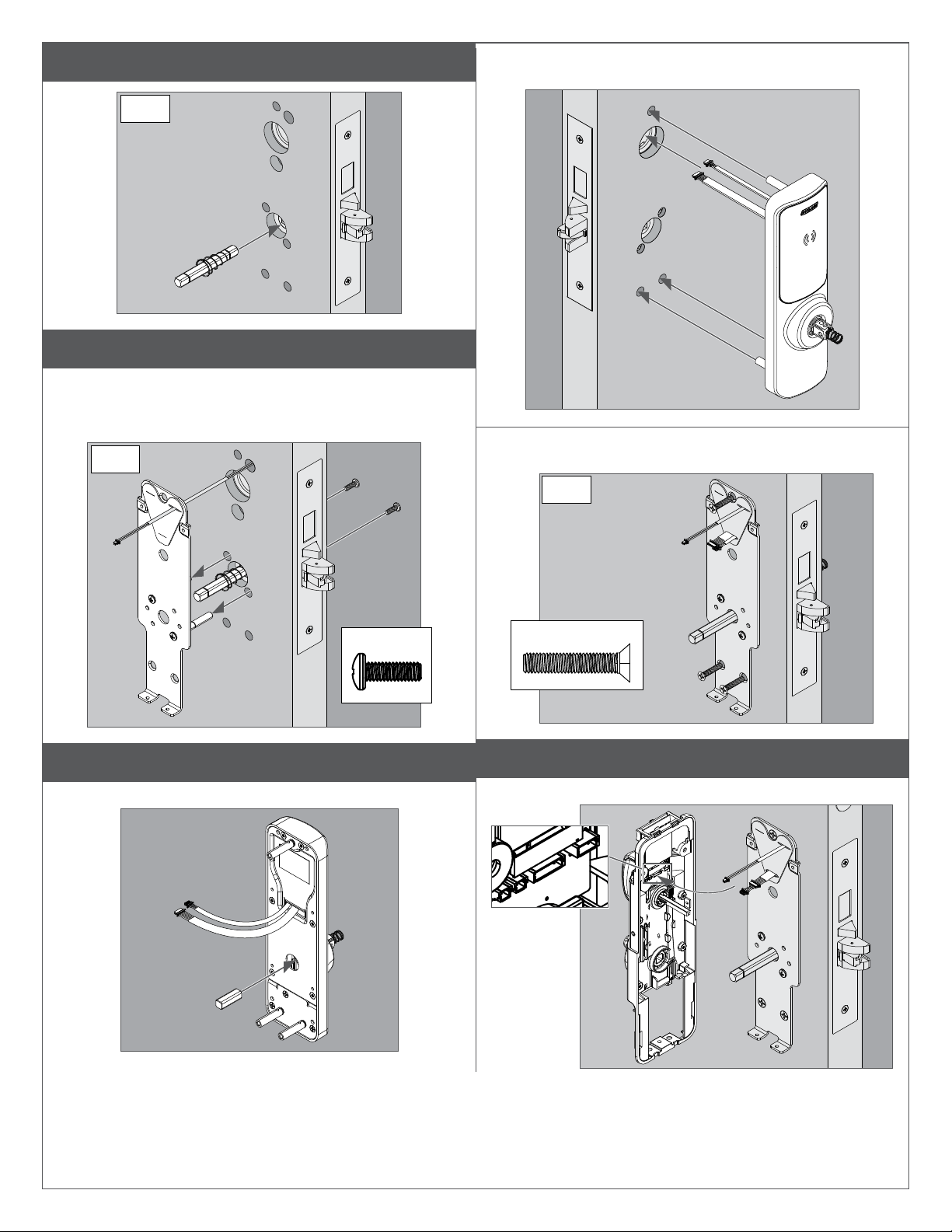

6 Install interior spindle.
BAG 3
7 Install interior plate.
7a Route spindle through hole in plate.
7b Route DPS wire through gasket as shown.
7c Push the plate against the door.
7d Secure with two (2) screws.
Actual size
BAG 2
8 Install exterior assembly.
8a Install spindle into assembly.
8b Route cables and posts though holes as shown. Push
assembly against door and hold.
8c Route cables through gasket on interior plate. Install three (3)
screws.
BAG 4
Actual size

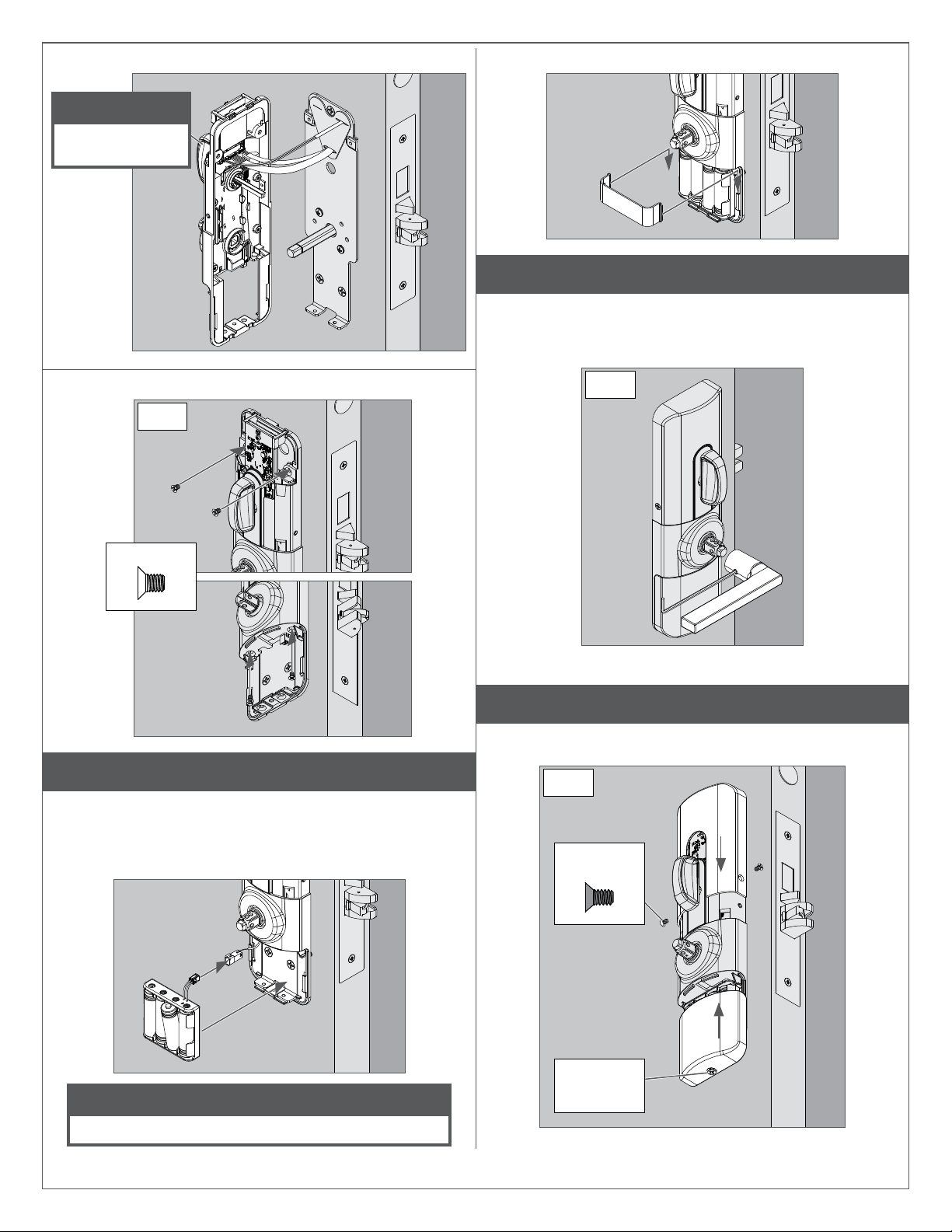

9 Install interior assembly
9a Connect three (3) cables. The cables are color-coded.
9b Push assembly onto spindle.
NOTICE
Thumbturn must
remain vertical.
9c Secure assembly.
Actual size
BAG 5
10 Install batteries and tray.
10a Install batteries into tray.
10b Connect battery connector.
LThe lock will begin to initialize when the batteries are
connected. See Testing.
10c Install tray into lock.
NOTICE
Do not crimp cables.
10d Install retainer.

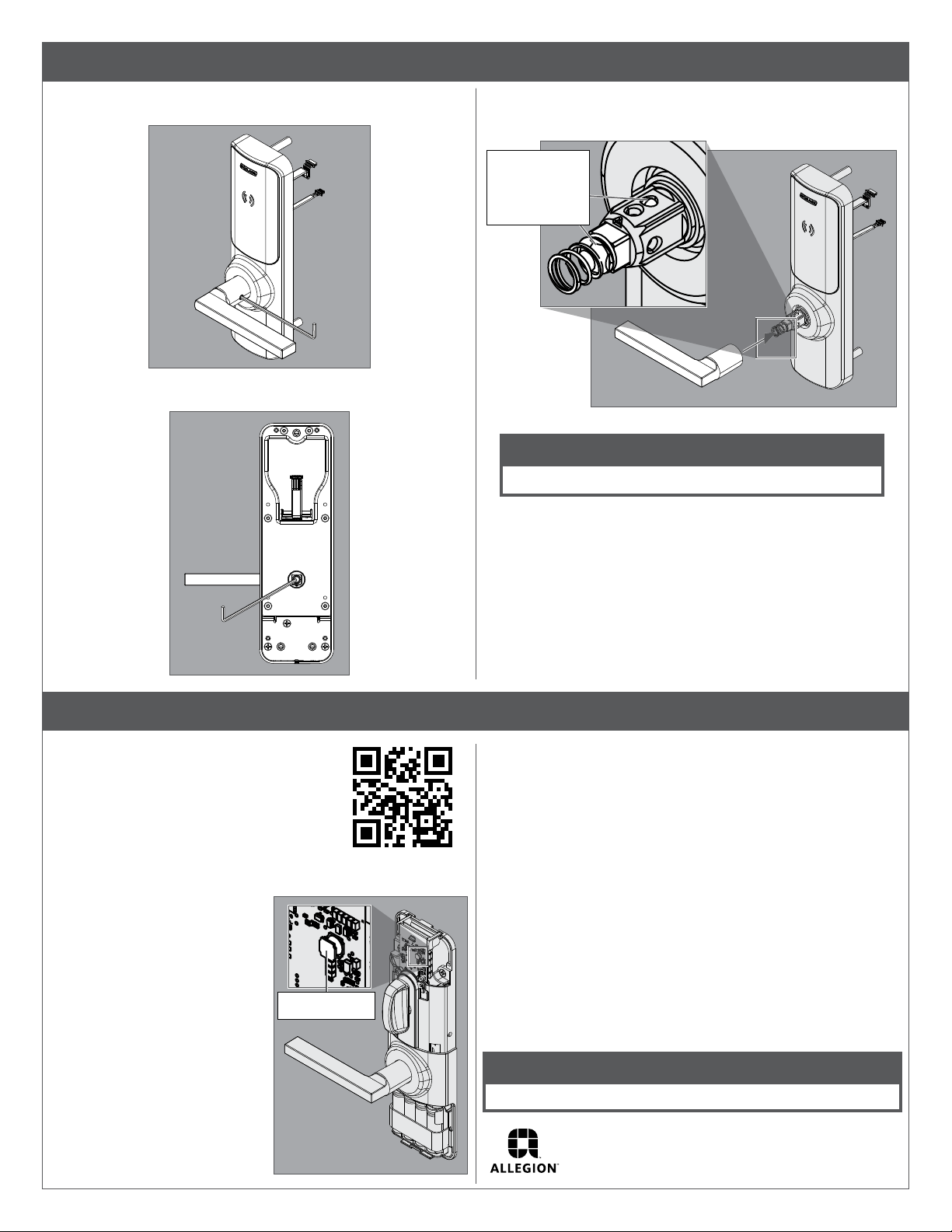

11 Install levers.
11a Loosen set screw in lever, using included hex wrench.
11b Push lever on.
11c Tighten set screw firmly using included hex wrench.
11d Repeat for other side of door.
BAG 6
LComplete Testing now, before installing covers.
12 Install covers.
12a Slide covers on.
12b Secure with screws.
Screw
retained in
cover.
Actual size
(black)
BAG 6
© Allegion 2023
Printed in U.S.A.
47570180 Rev. 01/23-5
Rehanding
a. Remove exterior assembly from door.
b. Loosen set screw.
c. Use hex wrench to press center of assembly to release the
lever.
d. Ensure lever catch is recessed, and then reinstall the lever,
facing the opposite direction. Lever will click when fully
installed. Tighten set screw.
Pull spindle
out to allow
lever catch to
fall down.
e. Reinstall all remaining parts.
NOTICE
Repeated lever removal may lead to failure of the set screw.
Testing
LSee the User Guide for detailed
troubleshooting.
See alle.co/XE360UG.
Basic operation
1. Install the batteries. See step 10.
2. Allow the system to initialize.
3. Verify three (3) green blinks on the
exterior assembly.
DPS
1. Ensure the DPS is installed
and connected correctly. See
steps 2and 9a.
2. The lock should be in factory
(FDR) mode.
3. Aer power is applied and
the system completes
initialization (3 green blinks),
cancel advertising by
pressing and releasing the
mode switch.
4. Open the door, The interior
and exterior indicators will
blink blue (1X) and beep (1X)
5. Close the door. The interior
and exterior indicators will
blink blue (2X) and beep
(2X)
Mode switch
Customer Service Servicio al cliente Service à la clientèle
1-877-671-7011 www.allegion.com/us
