SCHOTT EasyLED Spotlight Plus Bedienungsanleitung

EasyLED Spotlight Plus

Gebrauchsanweisung

User Manual

Distribution in the UK & Ireland

Lambda Photometrics Limited

Lambda House Batford Mill

Harpenden Herts AL5 5BZ

United Kingdom

E: [email protected]

W: www.lambdaphoto.co.uk

T: +44 (0)1582 764334

F: +44 (0)1582 712084

EasyLED Spotlight Plus - Operating Instructions

Operating instructions

EasyLED Spotlight Plus

Status: March 2016

EasyLED Spotlight Plus - Operating Instructions

PI_69 2/10

Contents

1. Important information .......................................................................... 4

2. Operation and use........................................................................ 6

2.1 Installation.......................................................................................... 6

2.2 Power connection……........................................................................... 6

2.3 Start-up procedure............................................................................... 7

2.4 Light intensity setting...................................................................... 7

2.5 Operating mode selection….. ............................................................... 7

3. Maintenance ..........................................................................................7

4. Troubleshooting ........................................................................... 8

5. Accessories ...........................................................................................8

6. Technical data ............................................................................. 9

EasyLED Spotlight Plus - Operating Instructions

PI_69 3/10

The instrument at a glance

(1) LED head 2.2

(2) Indicator light 2.4

(3) On/Off switch 2.4

(4) Mains connection socket (back of instrument) 2.3

(5) Mounting adapter holder (bottom of instrument) 2.1

(6) Heat sink

(7) Electronic light intensity setting 2.5

(8) Rating plate (base of instrument)

584

EasyLE

PI_69

1. Imp

Symbols

Intended

The Easy

used in in

ccording

Class 1.

The Easy

Communit

2014/35/E

2014/30/E

2011/65/E

The tech

conformity

EN 61326

EN 61010

EN 50581

Saf

Please re

guarante

Never loo

of ophtha

Spotligh

rtant in

used:

bol Me

use:

ED Spotlig

ustry and l

to the EN

ED Spotli

U (Low Vol

U (EMC Di

U (RoHS)

ical docu

with the e

1:2013

1:2010

2012

ty infor

ad and o

d unless

k directly

lmic injur

Plus - O

ormatio

ning

ning of dan

-radiation (

ht Plus Sy

boratorie

2471:200

ht Plus Sy

age Direct

ective)

entation

sential req

ation:

serve the

ou obser

nto the lig

erating I

er (caution,

aution, do

tem is inte

. It is desig

standard,

tem is in

ve)

nd full co

irements

se instru

e the oper

ht emittin

structio

obey docu

ot look dire

ded to pr

ned to inte

the EasyL

ompliance

mpliance

f the abov

tions car

ating instr

aperture

entation)

tly into the

vide lightin

sely illumi

D Spotlig

with the f

ith the st

EU Direct

fully. The

ctions.

of the spo

eam!)

in stereo

ate object

t Plus Syst

llowing dir

ndards li

ves:

instrume

lights du

icroscopy

of all kind

em is a pr

ctives of t

ted below

t’s safet

ing opera

4/10

applicatio

duct of Ri

e Europe

proves th

cannot

ion (dang

EasyLED Spotlight Plus - Operating Instructions

PI_69 5/10

The EasyLED Spotlight Plus System emits high intensity visible light. As light absorbing materials

have the physical property of converting incident light into heat, damage may occur to heat sensitive

or flammable light absorbing materials. To avoid such thermal damage and the potential danger of

fire or burns, please adhere to the following instructions:

xNever cover up the EasyLED Spotlight Plus System (danger of fire!)

xNever cover up the light emitting aperture of the spotlights with your hands or other parts of your

body (danger of burns!)

xWhen illuminating heat sensitive or flammable light absorbing objects, special care must be taken

to keep an appropriate distance and select a suitable brightness level in order to avoid thermal

damage to the object.

xAll spotlights not being used in the working procedure must always be a safe distance – at least

10 cm – away from heat sensitive or flammable light absorbing materials (prevention of possible

fire hazard). Care must, therefore, be taken that these spotlights are at the above mentioned safe

distance away from, for example, dark/coloured textiles and dark/coloured wooden or plastic

surfaces

xTo avoid unnecessary strain on biological tissue by illuminating with visible light, reduce the

brightness and duration of illumination to the absolute minimum level required.

Please make sure that your EasyLED Spotlight Plus System is operated at the

voltage indicated on the rating plate (8).

iThe EasyLED Spotlight Plus System has been developed for operation in dry rooms only (see

Point 6 "Technical data").

iThe instrument must not be used in explosive areas.

iSafe disconnection from the power supply is only guaranteed by pulling out the mains plug.

iThe instrument may neither be opened nor dismantled. Technical modifications are forbidden.

Repairs must only be carried out by the manufacturer or by its authorised customer service

agencies.

iPlease ensure that every user of the system has quick access to these operating instructions.

iThe manufacturer is not liable for damage caused by failure to obey these instructions.

EasyLED Spotlight Plus - Operating Instructions

PI_69 6/10

2. Operation and use

2.1 Installation

The EasyLED Spotlight Plus System is designed for direct installation on all common microscope

and swivel arm stands. Matching adapters have either been included with the light source or are

available from your dealer (see Point 5 "Accessories").

Start by guiding the matching side of the mounting adapter (A) into the designated holder (5) on the

bottom of the control unit as far as it will go. Proceed by guiding the two fastening screws (M5)

through the groove from the bottom before screwing them in place using an Allen key (3 mm).

You are now ready to clamp the EasyLED Spotlight Plus System onto the microscope or swivel arm

stand using the mounting adapter. You may have to remove the microscope body / carrier

beforehand and refit it when installation is complete.

2.2 Power connection

Plug the barrel connector of the included power supply unit

into the designated mains connection socket (4) on the

control unit.

Please ensure to operate your EasyLED Spotlight Plus

System only with the included power supply unit.

The plug connection of the power supply unit is

interchangeable for EU, UK, US and AU. The plug

connection needs to be connected to the mains supply (100-

240 V AC, 50-60 Hz).

A B

EasyLED Spotlight Plus - Operating Instructions

PI_69 7/10

2.3 Start-up procedure

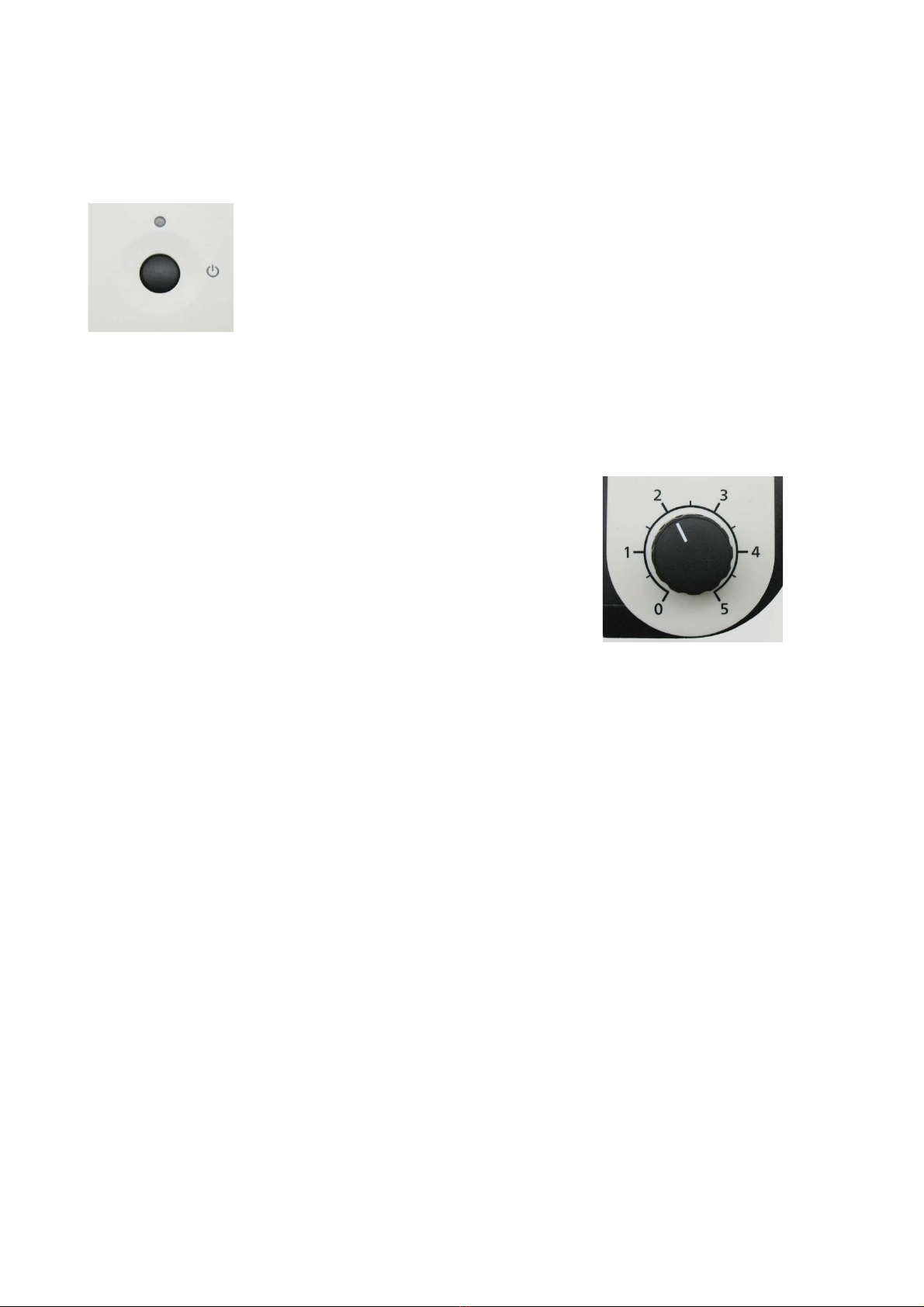

You turn the EasyLED Spotlight Plus System on/off by pressing the

switch (3).

The blue indicator light (2) will be on when the instrument is switched

on.

Please disconnect power by pulling out the power plug!

2.4 Light intensity setting

The brightness can be adjusted continuously by turning the

light intensity setting knob (7).

The scale is divided into 6 brightness levels ranging from 0

to 5.

The greatest light intensity is reached when the knob is

turned all the way to position 5.

Please note that when the brightness control is set to 0,

there is no more intensity as all spotlights are off. However,

the instrument itself is not switched off in this case.

To turn the EasyLED Spotlight Plus System off, press the

On/Off switch (3) once.

2.5 Operating mode selection (EasyLED Double Spotlight Plus System only)

You can successively select the following operating modes by pressing the switch (3) repeatedly:

LED head 1 ON, LED head 2 ON, both LED heads ON, both LED heads OFF, etc.

3. Maintenance

Your EasyLED Spotlight Plus System is maintenance free.

Disinfecting the light source during medical applications is to be avoided.

To clean the outside of the instrument, disconnect the instrument from the mains supply and use a

soft dry cloth or commercially available plastic cleaning cloths. However, never use combustible or

flammable liquids for cleaning.

EasyLED Spotlight Plus - Operating Instructions

PI_69 8/10

4. Troubleshooting

Should you be unable to correct the fault you are experiencing applying the measures listed below,

turn to your authorised dealer or the next SCHOTT dealership. More extensive repairs have to be

performed by authorised service technicians.

Type of the fault Possible cause Remedy

Lamp off Instrument not switched on

Switch the instrument on

Plug not in socket Insert the plug

No mains voltage Check mains voltage

Light intensity decreasing LED head overheated Provide sufficient cooling, and

allow the instrument to cool down

before resuming operation

5. Accessories for your EasyLED Spotlight Plus System

We offer an extensive range of accessories to complement your EasyLED Spotlight Plus System.

Only SCHOTT accessories guarantee perfect operation, safety and optimum light yield.

You can install screw on filters acting as optical filters in front of the LED head. Please refer to our

catalogue for details on the standard types of filters we carry.

We also offer mounting adapters for our EasyLED Spotlight Plus System that match microscope

stands and swivel arms. We either include these adapters with your light source, or you can order

them separately. Refer to our catalogue for a detailed description of the available models.

If not mounted to a stand or swivel arm, the instrument can also be installed to a base as a

standalone unit by means of a corresponding mounting device. More information is, again, provided

in our catalogue.

EasyLED Spotlight Plus - Operating Instructions

PI_69 9/10

6. Technical data

Properties Values

General information

Type description EasyLED Spotlight Plus / EasyLED Double Spotlight Plus

Dimensions - control unit (W x D x H) mm approx. 61 x 114 x 107

Weight - single spot kg

Weight - double spot kg

approx. 0.5

approx. 0.7

Cooling

Convection

Ambient temperature* °C + 5 ... + 40

Relative humidity* % at 31°C ambient temperature:

80%

31°C to 40°C ambient temperature:

linearly decreasing to 50%

Air pressure* hPa 800 ... 1060

Transport and storage

Temperature °C

Rel. humidity %

Air pressure hPa

-20 ... +70

10 ... 95 (non-condensing)

500 ... 1200

Degree of fouling 2

Electrical information

- Power supply unit -

Operating voltage, frequency 100 - 240 V ~

50 - 60 Hz

Power consumption, max. VA max. 6

Protection class II

Overvoltage category

- Controller -

Supply Voltage

Current

Diode

5 V DC

1.2 A

High Power LED

Power rating LED W 3

Average lifetime LED

level 5 h

50,000 (luminous flux drop to 70%)

* test conditions required by standards DIN EN 61010-1 and UL61010-1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere SCHOTT Laborausrüstung Handbücher

SCHOTT

SCHOTT KL 300 LED Bedienungsanleitung

SCHOTT

SCHOTT TitroLine KF Bedienungsanleitung

SCHOTT

SCHOTT TITRONIC universal Bedienungsanleitung

SCHOTT

SCHOTT Nexterion Slide A Bedienungsanleitung

SCHOTT

SCHOTT KL 300 LED Bedienungsanleitung

SCHOTT

SCHOTT KL 1500 HAL Bedienungsanleitung

SCHOTT

SCHOTT KL 1500 HAL/H Bedienungsanleitung

SCHOTT

SCHOTT KL 300 LED Bedienungsanleitung

SCHOTT

SCHOTT KL 200 LED Bedienungsanleitung

SCHOTT

SCHOTT KL 2500 LCD Bedienungsanleitung

SCHOTT

SCHOTT KL 1500 compact Benutzerhandbuch

SCHOTT

SCHOTT KL 2500 LED Bedienungsanleitung

SCHOTT

SCHOTT ACE Series Bedienungsanleitung

SCHOTT

SCHOTT ColdVision Bedienungsanleitung

SCHOTT

SCHOTT KL 1500 HAL Bedienungsanleitung

SCHOTT

SCHOTT ColdVision Light Source Betriebsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
