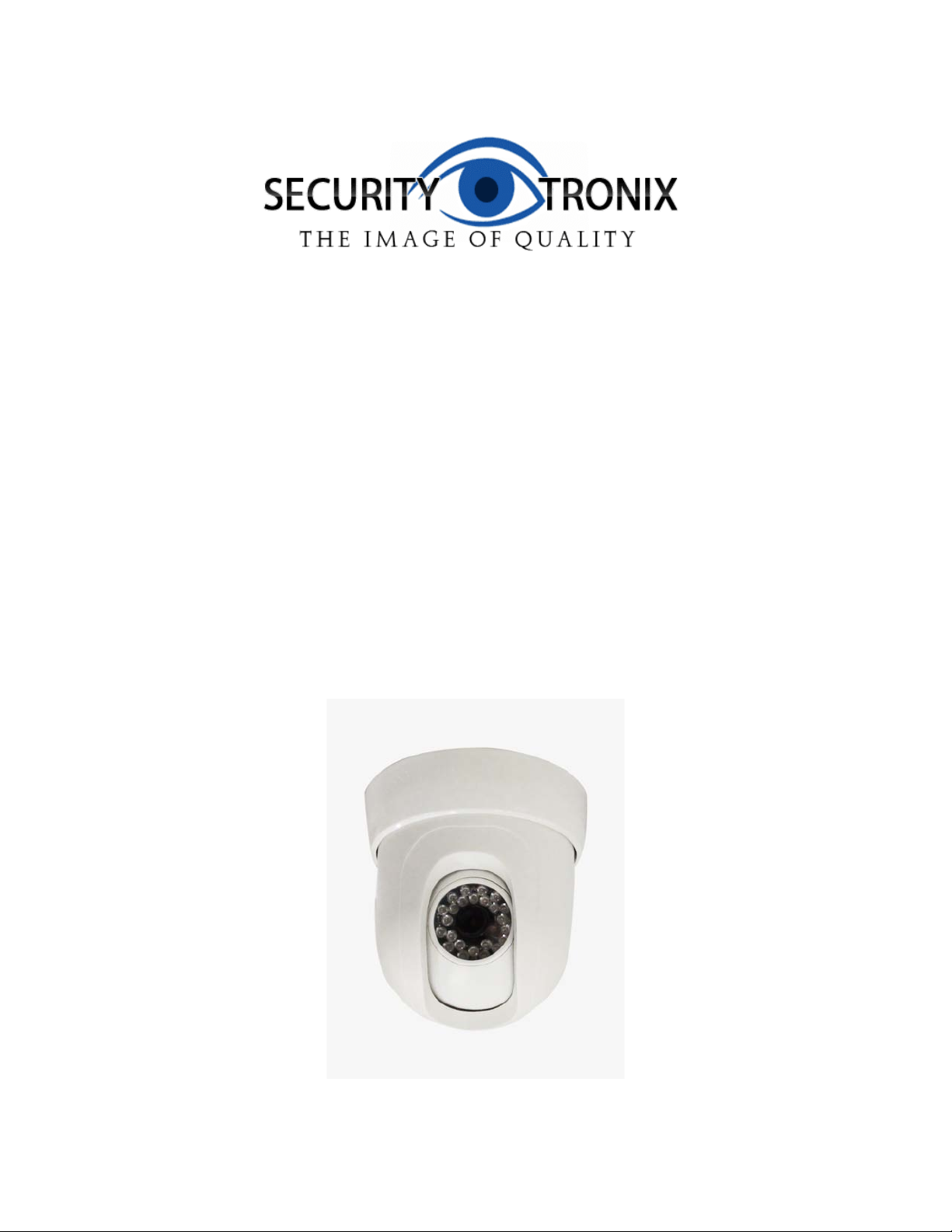

INSTALLATION MANUAL

ST-WD600PTZMINI-IR

Vandalproof Infrared Intelligent Dome PTZ

Color Camera

PACKAGE CONTENTS

This package contains:

One ST-WD600PTZMINI-IR vandalproof infrared intelligent dome color camera

One installation manual

Note: The ST-WD600PTZMINI-IR requires a minimum 12VDC 700mA power supply such as the

ST-PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-WD600PTZMINI-IR is a professional grade infrared indoor dome color camera with pan,

tilt and zoom (PTZ) capability of 600TVL of resolution. The camera’s full digital design allows the

saving of all settings in non-volatile memory. The camera features include a 4mm –9mm varifocal

lens.

SPECIFICATIONS

ST-WD600PTZMINI-IR

Specifications (Typical)

1. Image Sensor

1/3” SONY Super HAD CCD II

2. Resolution

600TVL

3. Lens

4mm –9mm varifocal lens

4. Effective Picture Elements

811x508

5. Minimum Illumination

0.001 Lux

6. Scanning System

2:1 interface

7. Video Output

1.0VP-P, 75Ω

8. Signal to Noise Ratio

>48dB

9. Synchronous System

Internal, Negative synch

10. Auto Electronic Shutter

1/60s ~ 1/100,000s

11. Gama Correction

0.45

12. Auto Gain Control

Auto

13. Power

DC12V 700mA

14. Operating Relative Humidity

95% maximum

15. Operating Temperature

14°F –113°F

16. Dimensions

5.3”x5.6”

17. Weight

3.2 lbs

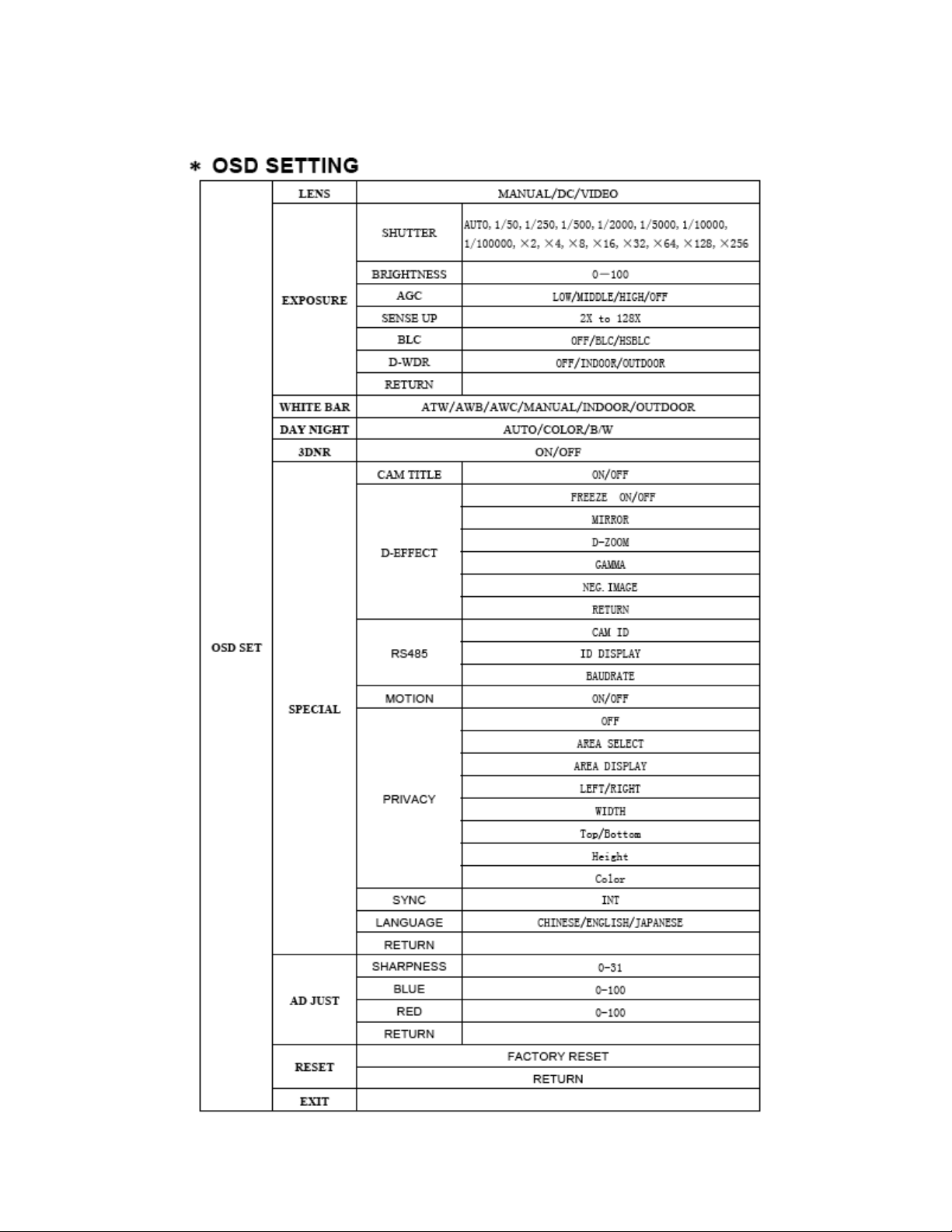

INSTALLATION AND OPERATION

CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this

unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than

specified power source.

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be

damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for

assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the camera’s power supply and video line and any high voltage

equipment and/or cables.

b. To help ensure the camera’s life and proper operation do not point the camera

towards the sun or strong light.

c. Do not install the camera in an environment where the temperature is above 113°F.

d. Do not install the camera near a magnetic field or a high-power motor.

e. Do not mount the camera near a radiator or heater.

f. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

g. A minimum 12VDC 700mA power supply must be used. AC power cannot be applied.

Using an AC or other incorrect power supply will damage the camera.

h. Only qualified installers are allowed to install, test and disassemble the camera.

i. The camera is a low voltage product. If installed outdoors proper safety and lightening

grounding are required.

This symbol is intended to alert the user to the presence of important operating and

maintenance (servicing) instructions.

This symbol is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electrical shock.

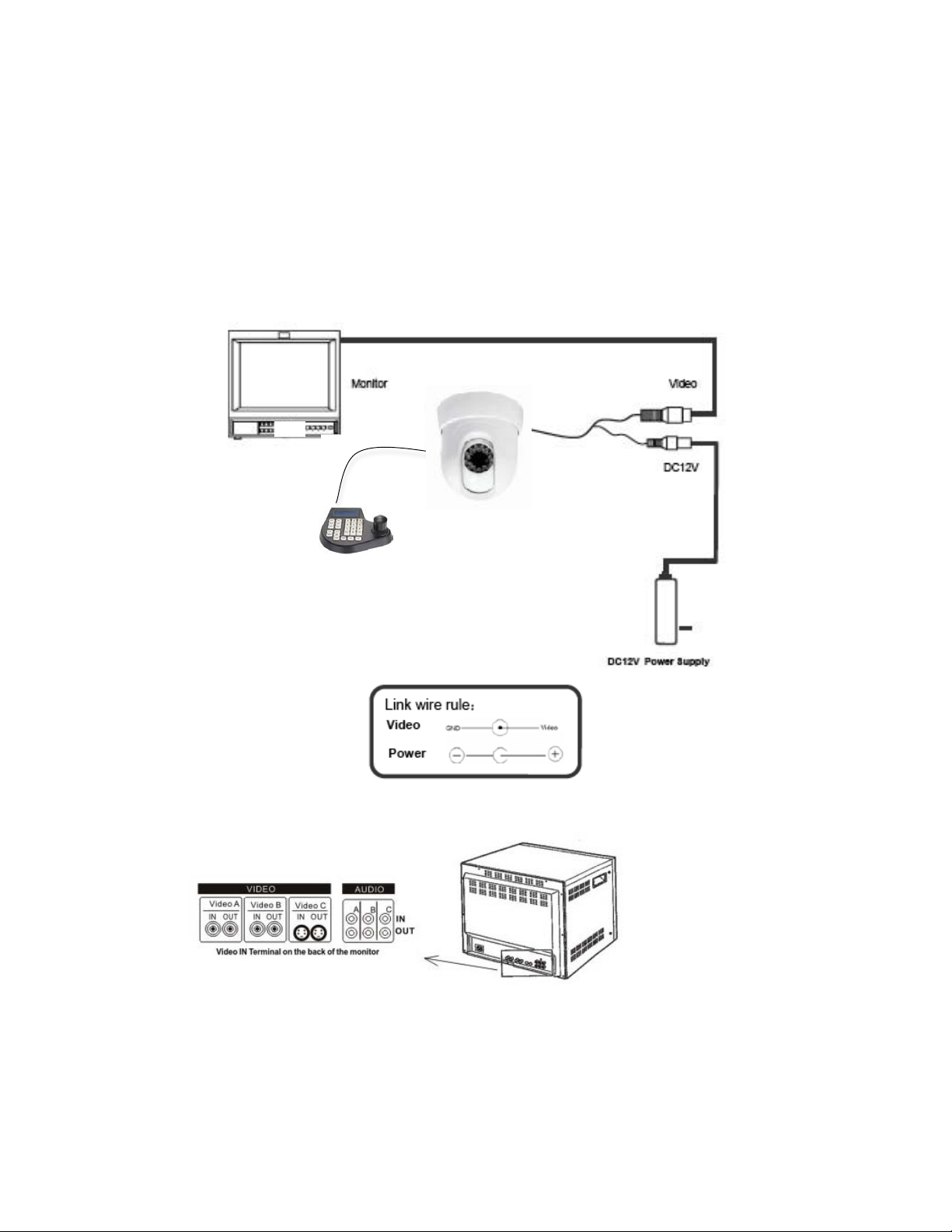

4. WIRING CONNECTIONS

a. Connect the power supply’s DC plug to the camera’s power outlet.

b. Connect the camera to the monitor with a 75Ωcoaxial video cable.

c. Connect unshielded twisted pair (UTP) control cable between the camera’s RS485

port and the PTZ controller. Be sure wire polarities are the same at each connection.

The camera’s violet wire (A) is + positive and the white wire (B) is –negative.

d. Connect power supply’s AC plug to a suitable AC power outlet.

e. Adjust the lens direction according to the required surveillance area and environment.

5. TROUBLESHOOTING

a. No picture after applying power –(i) check all plugs and cables are securely

connected to the proper connectors; (ii) ensure your power supply is providing the

correct voltage and current.

b. The picture has ripples –(i) check to see if the power supply is experiencing AC ripple,

if so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if

other peripheral equipment is causing ripple and if so make the necessary

adjustments.

c. The picture background continuously changes color –a fluorescent lamp’s magnetic

field may cause color roll, therefore, reduce the number of fluorescent lamps or

increase the distance between the camera and the lamps.

d. The picture appears smeared –(i) the power supply voltage level may be unstable,

therefore, try another power supply; (ii) ensure the cables are correctly connected

and/or the cables are of the correct impedance.

e. Other interference may require a SecurityTronix ground loop isolation filter.

f. Power is on, but the controller does not work –(i) check to make sure the DIP

switches for address and communications baud rate are properly set, (ii) check to

ensure the RS485 connections at the camera and the PTZ Controller have the same

polarity, (iii) check the integrity and continuity of the unshielded twisted pair (UTP)

control cable.

g. Additional troubleshooting assistance can be found on-line at www.securitytronix.com

in addition to support from SecurityTronix sales engineers at 1-610-429-1511.
