Shark Rocket UV422 Series Bedienungsanleitung

UV422

Series

INSTRUCTIONS

sharkclean.com

1-800-798-7398

11-800-798-7398

THANK YOU

for purchasing the Shark® Rocket® Ultra-Light Upright

PLEASE READ CAREFULLY AND KEEP

FOR FUTURE REFERENCE.

This Owner’s Guide is designed to help you get

a complete understanding of your new Shark

Rocket Ultra-Light Upright.

If you have any questions, please call the

customer service line at 1-800-798-7398.

TECHNICAL SPECIFICATIONS

Voltage: 120V., 60Hz

Watts: 500W

Amps: 4.2A

sharkclean.com

1-800-798-7398

TIP: You can ﬁnd the

model number on the

rating label which is located

behind the dust cup.

TIP: You can locate the

date code on one of the

prongs of the power

cordplug.

RECORD THIS INFORMATION

Model Number: ��

Date Code: ��

Date of Purchase (Keep receipt): ��

Store of Purchase: ��

sharkclean.com

CONTENTS

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting To Know Your Shark® Rocket® Ultra-Light Upright . . 5

Assembling Your Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the Motorized Floor Nozzle . . . . . . . . . . . . . . . . . . . . . . . 9

Choosing the Appropriate Setting . . . . . . . . . . . . . . . . . . . . . . 10

Using the Dust-Away™ Hard Floor Attachment . . . . . . . . . . . .11

Using Your Vacuum in Above-Floor Mode . . . . . . . . . . . . . . . 12

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Maintaining Your Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Emptying the Dust Cup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17

Cleaning the Filters � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18

Microﬁber Pad Care � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �19

Checking for Blockages � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �19

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

31-800-798-7398

THE MOTORIZED FLOOR

NOZZLE, WAND, AND HANDHELD

VACUUM CONTAIN ELECTRICAL

CONNECTIONS:

• These are not serviceable parts.

• Do not use to vacuum any liquids.

• Do not immerse in water when cleaning.

•

If handheld vacuum/wand is damaged,

discontinue use.

1Inspect power cord and plug for any

damage before use. DO NOT use vacuum

cleaner with a damaged cord or plug.

Turn off all controls before plugging in or

unplugging the vacuum cleaner. Store

your vacuum cleaner with the power cord

secured around the two cord hooks.

2 DO NOT use outdoors or on wet surfaces.

Use only on dry surfaces.

3Unplug from electrical outlet when not in

use and before servicing.

4If vacuum cleaner is not working as it

should, or has been dropped, damaged,

left outdoors, or dropped into water,

return it to SharkNinja Operating LLC for

examination, repair, or adjustment.

5DO NOT pull or carry vacuum cleaner by

the cord or use the cord as a handle.

6DO NOT unplug by pulling on cord. Grasp

the plug, not the cord.

7DO NOT handle plug or vacuum cleaner

with wet hands.

8DO NOT run the vacuum cleaner over the

power cord, close a door on the cord or

pull the cord around sharp corners.

9The use of an extension cord is NOT

recommended.

10 DO NOT leave vacuum cleaner when

plugged in.

11 Keep cord away from heated surfaces.

GENERAL USE

12 Use only as described in this manual.

1 3 Keep your work area well lit.

14 Keep the vacuum cleaner moving over

the carpet surface at all times to avoid

damaging the carpet ﬁbers.

15 DO NOT place vacuum cleaner on unstable

surfaces such as chairs or tables.

16 DO NOT put any objects into openings. DO

NOT use with any opening blocked; keep

free of dust, lint, hair, and anything that

may reduce airﬂow.

17 DO NOT allow the appliance to be used by

children. Close attention is necessary when

used near children. This is not a toy.

18 DO NOT use without dust cup and/or ﬁlters

in place.

19 DO NOT use if airﬂow is restricted. If the air

paths or the motorized ﬂoor nozzle become

blocked, turn the vacuum cleaner off and

unplug from electrical outlet. Remove

all obstructions before you turn on the

unitagain.

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

WARNING

To reduce the risk of injury, ﬁre, electric shock, and property damage

resulting from improper use of the appliance, carefully observe the following

instructions. This unit contains electrical connections and moving parts that

potentially present risk to the user.

sharkclean.com

20 Keep nozzle away from hair, face, ﬁngers,

uncovered feet, or loose clothing.

2 1 Only use manufacturer’s recommended

attachments.

DUST CUP/FILTERS/ACCESSORIES

Before turning on the vacuum:

22 Make sure that all ﬁlters are thoroughly dry

after routine cleaning.

23 Make sure that dust cup and all ﬁlters are

in place after routine maintenance.

24 Make sure accessories are free of

blockages and keep openings away from

face and body.

25 Only use Shark®-brand ﬁlters and

accessories (failure to do so will void

thewarranty).

GENERAL CLEANING

26 DO NOT vacuum up large objects.

27 DO NOT vacuum up hard or sharp objects

such as glass, nails, screws, or coins that

could damage the vacuum cleaner.

28 DO NOT vacuum up drywall dust,

ﬁreplace ash, or embers. DO NOT use

as an attachment to power tools for dust

collection.

30 DO NOT vacuum up smoking or burning

objects such as hot coals, cigarette butts,

or matches.

31 DO NOT vacuum up ﬂammable or

combustible materials (e.g., lighter ﬂuid,

gasoline, or kerosene) or use vacuum in

areas where they may be present.

DO NOT

vacuum

up toxic solutions (e.g.,

chlorine bleach, ammonia, or drain cleaner).

33 DO NOT use in an enclosed space

where vapors are present from paint,

paint thinner, moth-prooﬁng substances,

ﬂammable dust, or other explosive or toxic

materials.

34 DO NOT vacuum up any liquids.

35 DO NOT immerse vacuum cleaner in water

or other liquids.

36 Use extra care when cleaning on stairs.

POLARIZED PLUG

To reduce the risk of electric shock, this

vacuum cleaner has a polarized plug (one

blade is wider than the other). As a safety

feature, this plug will ﬁt into a polarized outlet

only one way. If the plug does not ﬁt fully into

the outlet, reverse the plug. If it still does not ﬁt,

contact a qualiﬁed electrician. DO NOT force

into outlet or try to modify to ﬁt.

SAVE THESE INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE

51-800-798-7398

GETTING TO KNOW YOUR

SHARK® ROCKET® ULTRA-LIGHT UPRIGHT

WELCOME!

Congratulations on

your purchase. Use this

instruction manual to

learn about your new

vacuum’s great features.

From assembly to use

to maintenance, you will

ﬁnd it all in here.

MAIN UNIT

APower Switch

BHandheld Vacuum

CDust Cup Release

DHandheld Vacuum Catch

ELED Light

FCord Hooks (not visible)

GWand Release

HWand

IOn-Board Tool Clip

JHandheld Vacuum Storage Hook

KLower Wand Release Pedal

LBrushroll Indicator Light

M Motorized Floor Nozzle

NHeadlights

OWall Mount

sharkclean.com

Dust Cup

Release

Wand

Release

Dust Cup

Release

Wand

Release

Dust Cup

Release

Wand

Release

Dust Cup

Release

Wand

Release

71-800-798-7398

ASSEMBLING YOUR VACUUM

1Insert the wand into the motorized ﬂoor nozzle connector

until you hear a click.

STEP 1

DID YOU KNOW?

The motorized ﬂoor nozzle and

handheld vacuum have LED

lights that illuminate the ﬂoor

surface being cleaned. The

lights turn on automatically in

either speed setting.

CLICK

sharkclean.com

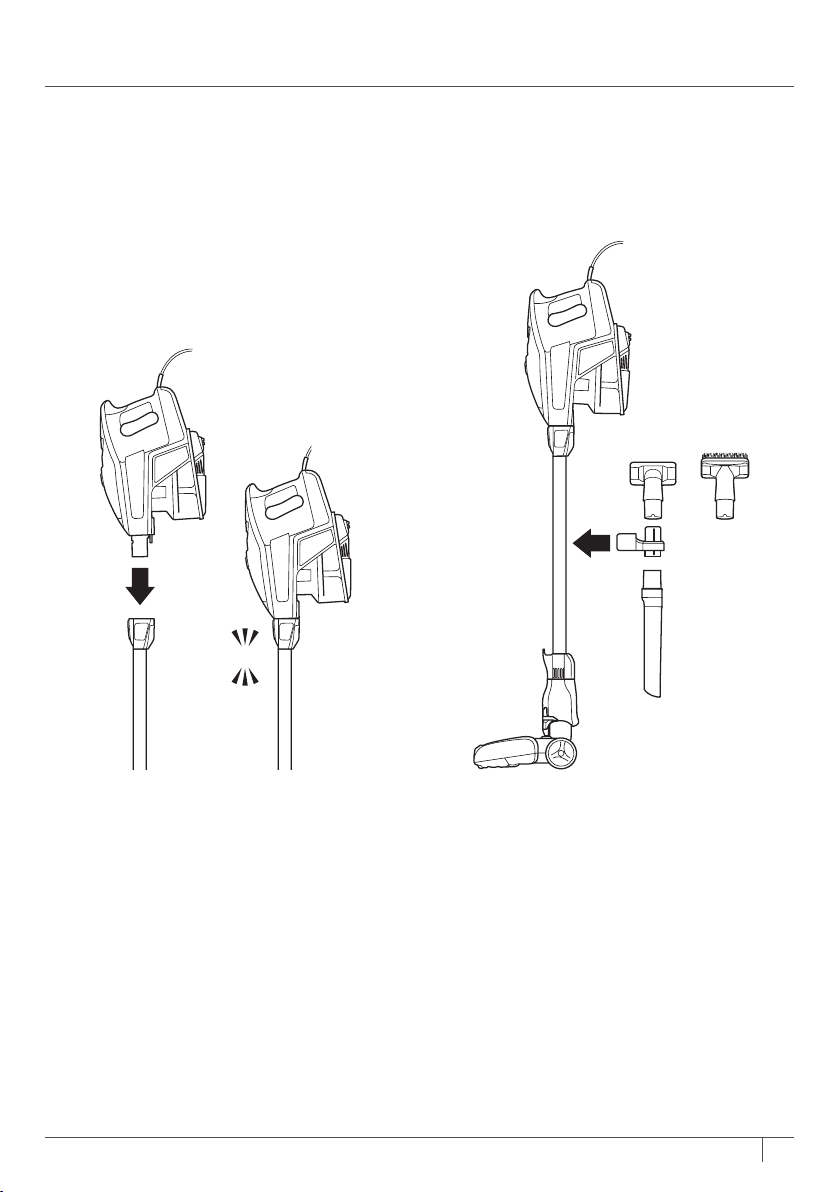

2Insert the handheld vacuum into the top of

the wand until you hear a click.

3This vacuum comes with a detachable

clip to store up to 2 accessories on

board. Snap clip onto the wand. Store

one accessory on top holder and one

accessory on bottom holder.

STEP 2 STEP 3

CLICK

91-800-798-7398

USING THE MOTORIZED

FLOOR NOZZLE

WARNING: This vacuum

does not stand up on

its own, so when taking

a break from cleaning,

rest it against a piece of

furniture or a wall, or lay

it ﬂat on the ﬂoor. Using

for an application where

the unit lacks stability

may result in personal

injury.

NOTE: Before vacuuming

your delicate area

rugs or carpet, refer

to the manufacturer’s

recommended cleaning

instructions.

1Plug the unit in and recline the wand.

WHAT DOES THE

BRUSHROLL INDICATOR

LIGHT MEAN?

Solid Green

The brushroll is on and

working as it should.

Solid Red

There is a jam in the brushroll

area. Turn your vacuum off

and remove the blockage.
