Sharkoon Quickstore Portable Bedienungsanleitung
Manual
QUICKSTORE PORTABLE USB3.0
Content
1. Features
2. Specifications
3. Parts and accessories
4. The device at a glance
5. Installing a SATA hard disk drive
6. Installing the software
7. The backup software
7.1 Start
7.2 Quick Launch
7.3 File Backup
7.4 File manager
7.5 Setup
7.5.1 Files Backup
7.5.2 Others
Dear customer!
Congratulations for purchasing this premium quality
SHARKOON product.
For a long life time and to take full advantage of this product we
recommend that you read this manual completely.
Have a good time with our product!
SHARKOON Technologies GmbH
QUICKSTORE PORTABLE USB3.0
3. Parts and accessories
• QuickStorePortableUSB3.0(A)
• USB3.0cable(B)
• Quickstartmanual(C)
• ToolsCDincl.backupsoftwareandextensivemanual(PDF/D)
Note:
If you are missing any of the items listed above, please contact
+ 49 (0) 6403 – 775 6100.
1. Features
• Suitablefor2.5"SATAharddiskdrives(9.5mmheight)
• Toolfreeassembly
• “OneClickBackup”function(onlyWindows)
• Backupsoftwareincluded
• NodriversneededforWindows,MacandLinux
2. Specifications
• Externalinterface: MiniUSB3.0(compatibletoUSB2.0
andUSB1.x)
• Internalinterface: SATA(VersionIandII)
• Datatransferrate: max.5Gbit/s
• Dimensions: 135x85x14mm(LxWxH)
• Weight: ~51g
DA B C
QUICKSTORE PORTABLE USB3.0
A – QuickStore Portable in
respectiveversion(black,
mirrored,blue,redorsilver)
B – Backupbutton:
pressing this button starts
a backup process with the
pre-denedsettings(see
chapter7)
A – Case cover lock
A – Case cover
A – SATAconnector(dataand
power)
B – HDD mounting bay
(forone2.5"-SATAHDD)
4. The device at a glance 5. Installing a SATA hard disk drive
1. Openthecasecoverlock(g.1).
fig. 1
2. Removethecasecoverfromthecasebody(g.2).
fig. 2
3. Slidea2.5"SATAHDDintotheHDDmountingbay(g.3).
fig. 3
A
A
A
A
B
B
QUICKSTORE PORTABLE USB3.0

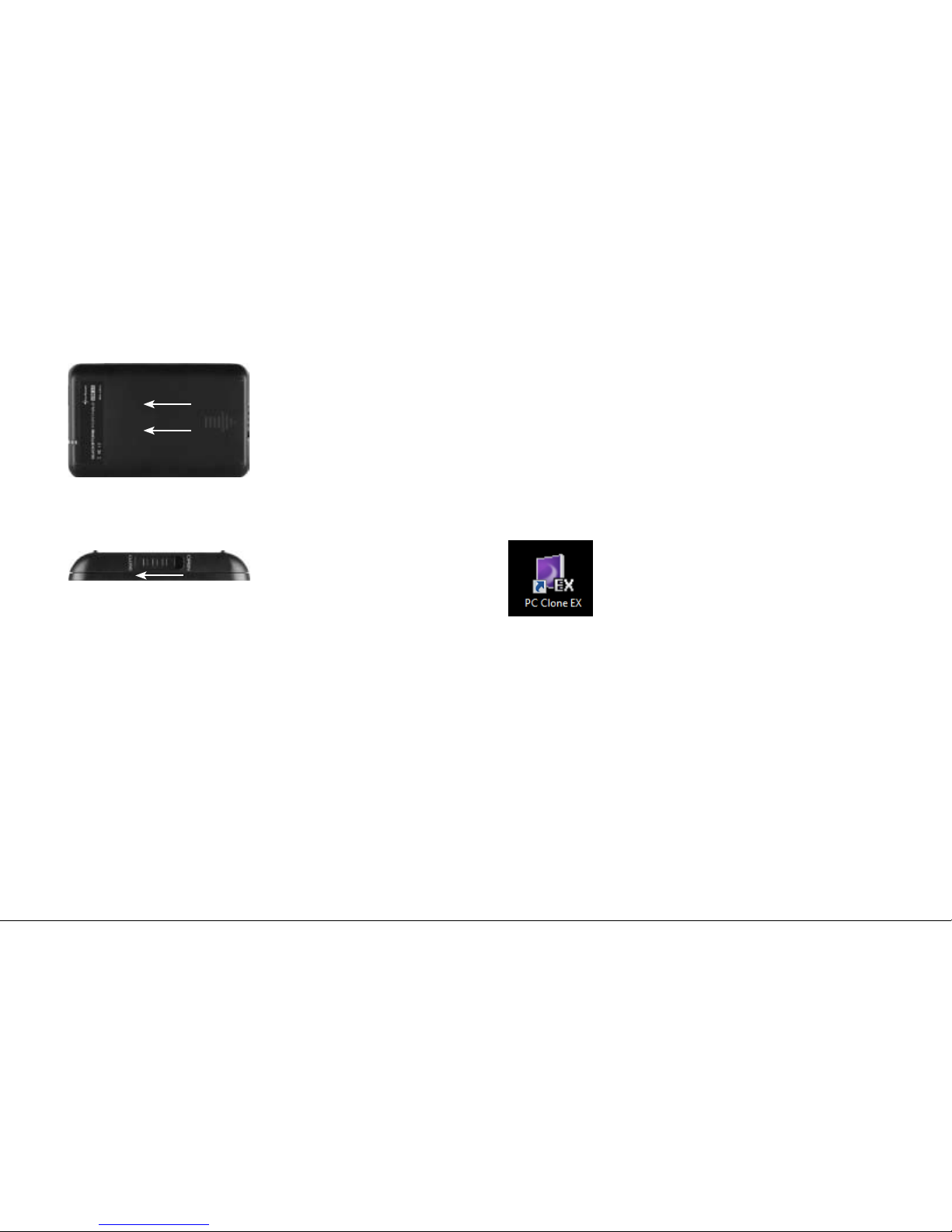

4. Placethecasecoverbackontothecasebody(g.4).
fig. 4
5. Closethelock(g.5).
fig. 5
6. UsetheincludedUSB3.0cabletoconnectthedevice'sMini
USB3.0connectortoaUSB3.0connectorofyourPC/laptop.
7. The QuickStore Portable will automatically be recognized by the
operating system and all required drivers will be installed.The
device is now ready.
Note:
Brand new HDDs built into the case must be partitioned and
formatted. Proceed as described below (e.g. Windows XP):
Start / Settings / Control Panel / AdministrativeTools / Computer
Management / Disk Management. Click the respective HDD with
the right mouse button and choose partition/format.
6. Installing the software
1. InserttheincludedDriver&ToolsCDintoyourCD/DVDdrive.
2. ChooseyourCD/DVDdrive(e.g.D:\).
3. Openthefolder“Sharkoon“.
4. Start“Setup.exe”.Theinstallationwizardwillguideyouthrough
the installation procedure.
5. After the installation is completed the following icon will appear
onyourdesktop:
6. Double-click(leftmousebutton)thisdesktopicontolaunchthe
software,themaininterfacewillopenupandanotherprogram
icon will appear in your task bar.
QUICKSTORE PORTABLE USB3.0
7. The backup software
7.1 Start
1. Click the icon in your task bar with the right mouse button
once.Thefollowingcontextmenuwillopenup:

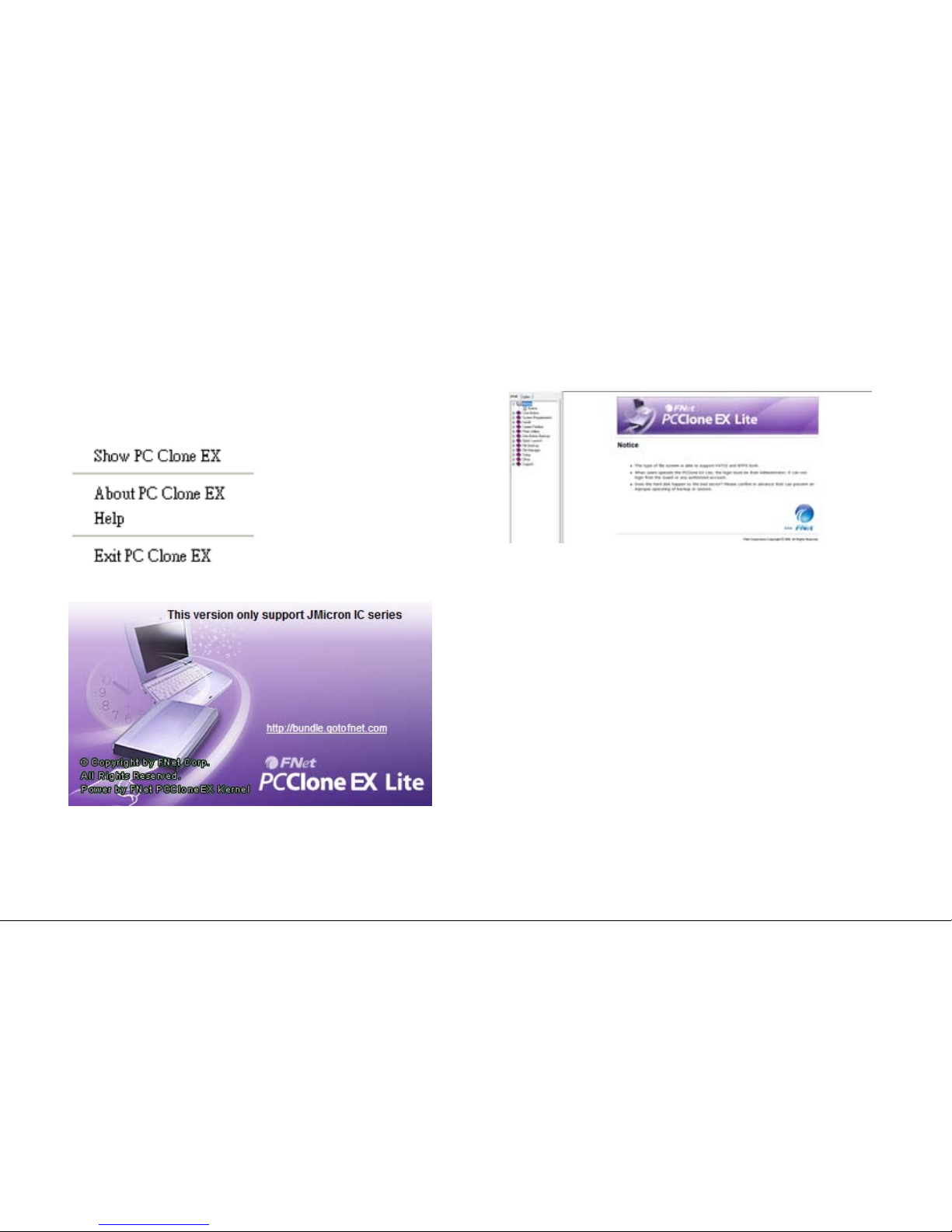

2. “About…”displaysinformationaboutthesoftware(g.6).
fig. 6
3. “Help”startsthehelpprogramofthebackupsoftware(g.7)
whereallfunctionsofthebackupsoftwarewillbeexplainedin
detail.
fig. 7
4. “ExitPCCloneEX“quitstheprogram(theiconwillberemoved
fromyourtaskbar).
5. “ShowPCCloneEX”re-openstheprograminterfaceafteryou
haveminimizedit(seebelow).
Alternatively you may re-open the program interface by double-
clicking(leftmousebutton)theicon.
QUICKSTORE PORTABLE USB3.0
7.2Quick Launch
A – QuickLaunch(7.2)
B – FileBackup(7.3)
C – FileManager(7.4)
D – Setup(7.5)
E – Showsyouinformationaboutthesoftware(see
above7.1).
F – Startsthehelpprogramofthebackupsoftware(see
above7.1)
G – Minimizetheprogramwindow.Tocompletelyquit
the program see above 7.1.
H – Start the data backup by clicking this button.
7.3 File Backup
A – All folders of your system are displayed here.
Choose the folders that shall be copied during a
backup,bytickingtherespectivecheckbox(es).
B – Selecttheexternaltargetdevicefromthedropdown
menu.
C – Start the backup by clicking the button.
D – Restorealreadyexistingbackuplesfromthe
external(backup)drive,byclickingthisbutton.
Note:
The backup files are copied to the (hidden) folder “Fnet” on the
target device.This folder must not be deleted!
D EA B C F G
G
H
A
B
DC
QUICKSTORE PORTABLE USB3.0
7.4 File manager
TheFileManagermakesiteasytogovernyourlocalfolders/les
andsupportssimilarfunctionsasknownfromtheWindows
Explorer.
7.5 Setup
7.5.1Files Backup
A – Selectbetweenthewindows"FilesBackup"(7.5.1)and
"Others"(7.5.2).
B – Decide what shall happen after the backup has been
completed:“Showcompletemessage”willshowa
summaryofthebackup;“Returnprogram”returnstothe
program;“Poweroff”willshutdownyoursystem.
C – Choose whether all or only changed files shall be secured.
D – Determine a hot key to start the backup.
E – Selectwhichsystemfoldersshallbeincludedintothe
backup.
F – Determine whether the Files Backup folder shall be hidden
and if the quick file backup shall be double confirmed or
not.
D
E
F
A
B
C
QUICKSTORE PORTABLE USB3.0
7.5.2Others
A – Decide if the program shall be started during system
boot-up.
B – Activatingthischeckboxwillalsoactivatethebackup
button on the enclosure enabling you to commence a
backup process by simply pressing the respective button
(seeabove4.).Deactivatingwillpreventunintentional
backup procedures.
Warning:
Forpotentiallossofdata,especiallyduetoinappropriatehandling,SHARKOON
assumes no liability.
Allnamedproductsanddescriptionsaretrademarksand/orregistered
trademarks of the respective manufacturers and are accepted as protected.
AsacontinuingpolicyofproductimprovementatSHARKOON,thedesign
and specifications are subject to change without prior notice. National product
specifications may vary.
The legal rights of the enclosed software belong to the respective owner. Please
observe the license terms of the manufacturer before using the software.
Allrightsreservedespecially(alsoinextracts)fortranslation,reprinting,
reproduction by copying or other technical means. Infringements will lead to
compensation.
All rights reserved especially in case of assignation of patent or utility patent.
Meansofdeliveryandtechnicalmodicationsreserved.
Disposal of your old product
Your product is designed and manufactured with high quality materials and
components,whichcanberecycledandreused.
Whenthiscrossed-outwheeledbinsymbolisattachedtoaproduct,itmeans
theproductiscoveredbytheEuropeanDirective2002/96/EC.
Please be informed about the local separate collection system for electrical and
electronic products.
Please act according to your local rules and do not dispose of your old
products with your normal household waste.The correct disposal of your old
product will help prevent potential negative consequences to the environment
and human health.
© SHARKOON Technologies 2010
www.sharkoon.com
A
B
