Sharkoon TAREA Bedienungsanleitung
Handbuch
Manual
Manuel d‘utilisation
Guia usario
Manuale d´istruzioni
Gebruiksaanwijzing
Guia usário
Instukcja obstugi
使用手冊
ユーザー マニュアル
Tarea
Content
1. Features
2. Package content
3. The case at a glance
4. Installation of a mainboard
5. Installation of a PSU
6. Installation of a HDD
7. Installation of an optical device
8. Installation of a 3.5" device
9. Installation of an add-on card
10. Installation of additional fans / optimized airflow
Dear customer!
Congratulations for purchasing this premium quality SHARKOON product.
For a long life time and to take full advantage of this product we recommend you to read
this manual completely.
Enjoy our product!
SHARKOON Technologies
Tarea
1. Features
• ATXcase
• 9x5.25"drivebays
• Top I/O with 2x USB2.0, 1x eSATA, 1x headphone and 1x microphone connector,
power and reset button
• 7slotsforadd-oncards
• Blackinteriorpainting
• Frontbezelsinmeshdesign
• Quickfastenersforopticaldrives,mainboardmountingwithinstallationopeningforcoolers
• 2openingsforwatercooling
• Cablemanagementsystem
• Fanconguration:
Case front 1x120mmfan(optional)
Side panel 2x120mmfan(optional)
Backside 1x80mmor1x120mmfan(optional)
• Dimensions:475x202x440mm(LxWxH)
• Weight:~6.2kg
2. Package content
• ATXcase"Tarea"
• Screwkit:
Screws for mainboard
mounting
Screws for PSU
mounting
Screws for drive moun-
ting(3.5"and5.25") Screws for HDD mounting
• Accessorykit:
Stand-offs for mainboard Washers Lockattachment(A)andspeaker(B)
A
B
Tarea
MountinganglesforHDDs(withdecoupling/A)and3.5"devices
(notdecoupled/B)
QuickfastenersforODDs 5.25" bezel with 3.5" opening
Note:
If you are missing any of the items listed above, please contact our customer service
immediately:
suppor[email protected] (international).
A B
Tarea
3. The case at a glance
Front view
A – LEDforHDDactivity
B– 5.25"drivebays
C– behindthemeshbezel:120mmfanbracket
View from above
Frontpanel:
A – Power and
B– Resetbutton
Casetop:
C– TopI/Owith:
a– 1x headphone and microphone
connector
b– 2xUSB2.0and
c – 1xeSATAconnector
Sideview(closed/left)
A–Fanbrackets(2x120mm)
a
b
c
A
A
A
B
B
C
C
D
Tarea
Sideview(opened/left)
A – Drive bays for 5.25" devices
B– Mainboardmountingpanelwith:
a – Installation opening for CPU
coolers and
b – Cable management system
Backside
A – Opening for I/O shield
B– 120mmfanbracket
C – Slot bezels
D – Openings for water cooling
E – PSU bracket
F – Thumb screws
Bottomview
A – Case feet
B– AirintakeforPSU
a
b
A
A
B
B
C
D
E
FF
F
F
A A
AA
B
Tarea
Note:
For more information on how to install the intended devices, refer to their respective
documents.
4. Installation of a mainboard
1. Open the case by loosening the thumb screws on the case’s back side and removing the left
sidepanel.Laydownthecasesidewiseonanevensurface.
2.The mainboard’s mounting panel inside the case provides various drillings to x the
stand-offs(g.1).
g.1
Themainboardcontainsspecialscrewopenings(g.2).
g.2
Tarea
Place the mainboard to the mounting panel. A stand-off must be screwed into every drilling
of the mounting panel visible through the mainboard’s screw openings.
3. Remove the mainboard and screw the stand-offs into the respective drillings of the
mountingpanel(g.3).
(Stand-offs)
g.3
4.PresstheI/Oshield(deliveredwiththemainboard)intotheI/Oshieldopeninginthecase’s
back side.
5.Placethemainboardbackontothestand-offsandscrewthemainboardtothem(g.4).
(Screwsformainboardmounting)
g.4
Tarea
6. Plug the connectors of the case’s front bezel to the respective connectors of the mainboard
(alsorefertoyourmainboard’smanualforfurtherinformation).
Note:
The eSATA cable connected to the front eSATA connection should not exceed 50 cm of
length otherwise transmission errors may occur! With premium quality eSATA cables this
maximum length may be exceeded.
5. Installation of a PSU
1. Set up the case in front of you and put the PSU from the inside against the PSU bracket on
thecase’sbackside(g.5).
g.5
2.ScrewthePSUtothecasefromtheoutside(g.6).
(ScrewsforPSUmounting)
g.6
Tarea
6. Installation of a HDD
1. Remove the case’s right side panel.

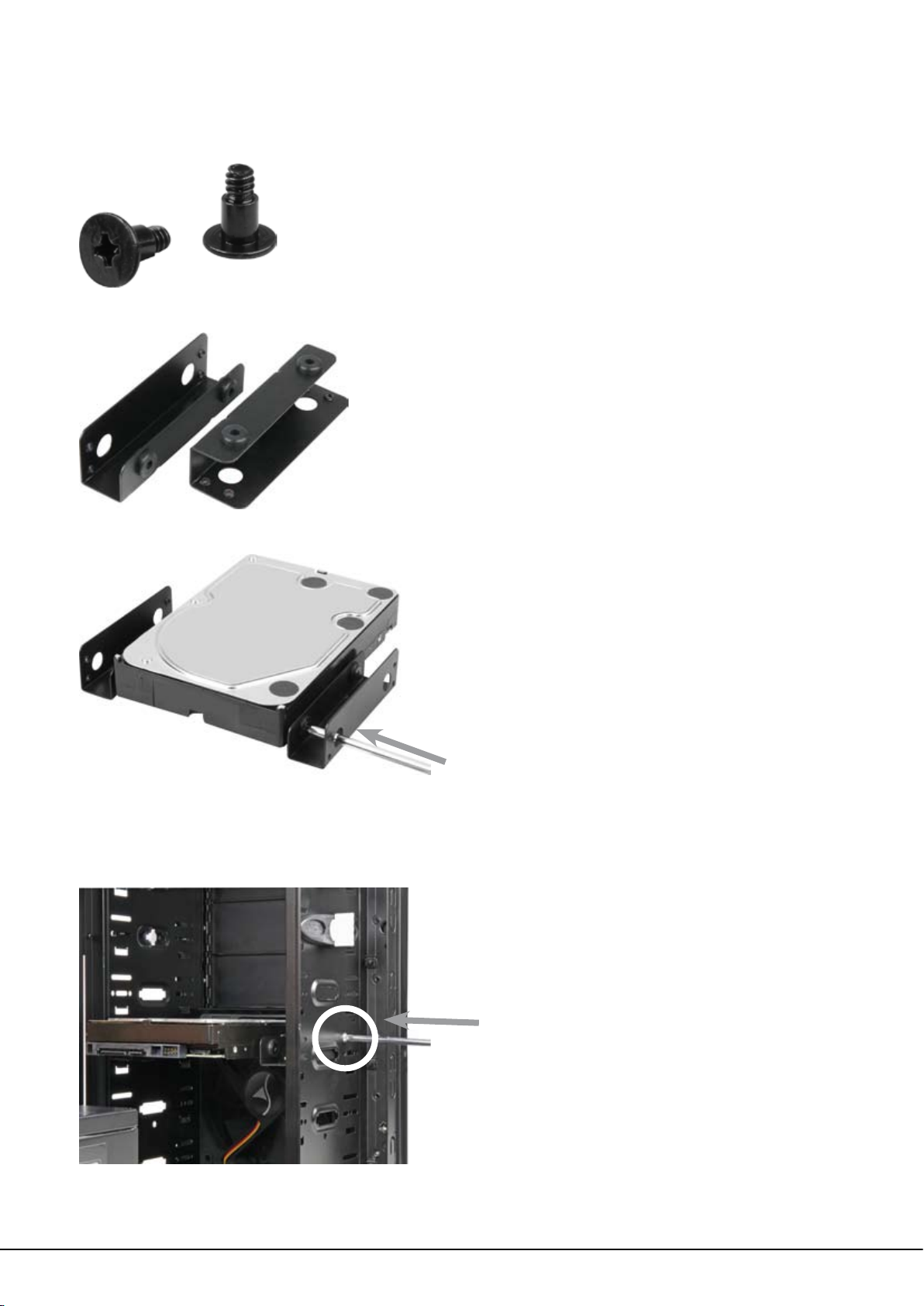

2.AttachthedecoupledmountinganglestotheHDDfrombothsides(g.7).
(ScrewsforHDDmounting)
(Decoupledmountingangles)
g.7
3. Slide the HDD with attached mounting angles into the case’s respective drive bay and
screwitfrombothsides(g.8).
g.8
4. Connect the HDD to the power supply and the mainboard.
