Shoprider Eclipse 778EL Bedienungsanleitung

778EL

Instruction Manual

Table of Contents

Introduction 2

EMI Warning 3

Safety Guidelines 5

Features 7

Free Wheel Mode 10

Operating Your Scooter 11

Battery Charging & Maintenance 15

Inspection & Maintenance 17

Trouble Shooting 20

Warranty 21

Specifications 22

Options 23

Introduction

Congratulations on the purchase of your Shoprider scooter.

Please carefully read this owner’s manual before attempting to use

your scooter. After reading the manual if you still have any questions

or concerns please feel free to contact your local authorized dealer.

Model: 778EL

Serial #: ________________________

Date Purchased: ________________________

Dealer Information: ________________________

EMI Warning

Electromagnetic Interface (EMI) From Radio Wave Sources

Powered motorized scooters may be susceptible to electromagnetic interference

(EMI), which is interfering electromagnetic energy (EM) emitted from sources

such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way

radios, and cellular phones. The interference (from radio wave sources) can

cause a powered scooter to release its brakes, move by itself or move in

unintended directions. It also can permanently damage the powered scooter's

control system.

The sources of radiated EMI can be classified broadly into three types:

1. Hand-held portable transceivers (transmitters-receivers) with an antenna

mounted directly on the transmitting unit. Examples include: citizens band

(CB) radios, "walkie-talkies", fire and police transceivers, cellular telephones

and other personal communication devices. **NOTE: some cellular

telephones and similar devices transmit signals while they are ON, even when

not being used.

2. Medium-Range mobile transceivers, such as those used in police cars, fire

trucks, ambulances and taxis. These usually have the antenna mounted on

the outside of the vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast

transmitters (radio and TV antenna towers) and amateur (HAM) radios.

**NOTE: So far as we know, other types of hand-held devices, such as

cordless phones, laptop computers, AM/FM radios, TV sets, CD players,

cassette players and small appliances, such as electric shavers and hair

dryers, are not likely to cause problems to your powered scooter.

Powered Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio sources

(transceivers) are of special concern. It is possible, unintentionally, to bring high

levels of EM energy very close to the powered scooter's control system while

using these devices. This can affect powered scooter movement and braking.

Therefore, the warnings listed below are recommended to prevent possible

interference with the control system of the powered scooter.

Warnings

The warnings listed below should reduce the chance of unintended brake release

or powered scooter movement, which could result in serious injury.

1. Do not operate hand-held transceivers (transmitters-receivers) such as

citizens band (CB) radios, or turn on personal communication devices, such

as cellular phones, while the powered scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid

coming close to them.

3. If unintended movement or brake release occurs, turn the powered scooter

OFF as soon as it is safe to do so.

4. Be aware that adding accessories or components, or modifying the powered

scooter, may make it more susceptible to EMI (NOTE: There is no easy way

to evaluate the overall immunity of the powered scooter.)

5. Report all incidents of unintended movement or brake to the powered scooter

dealer, and note whether there are sources of EMI nearby.

Safety Guidelines

The user needs to be familiar with the operation of this scooter before

using. Please read the following notes carefully to ensure safety at all

times. Always make certain your scooter is in full working order before

use.

1. Do not ride your scooter without reading this instruction manual first.

2. Do not exceed the maximum gradient outline for your scooter.

3. Do not carry passengers or exceed the maximum weight.

4. Do not mount or dismount your scooter, unless it has come to a full stop

and is turned off.

5. Do not switch your scooter on with the forward/reverse lever depressed.

6. Do not mount or dismount your scooter unless the speed adjustment dial is

set to minimum.

7. Do not backup your scooter onto uneven inclines or surfaces. Be cautious

when traveling on slopes.

8. Do not drive your scooter in a confined space unless the speed adjustment

dial is set to minimum.

9. Do not turn suddenly at full speed, especially on uneven or hilly ground.

Failure to observe this may result in tipping of your scooter.

10. Do not drive your scooter unless the seat is locked into driving position.

11. Do not drive your scooter over deep, soft terrain (Loose gravel, soft dirt).

12. Do not operate your scooter when under the influence of alcohol or certain

drugs, which may impair your safety.

13. Do not climb curb cut outs that exceed your scooter's capacity. Do not turn

when negotiating curbs. Always approach curb cut outs at low speed and

straight.

14. Always stop fully before changing direction (forward / reverse)

15. Always keep your feet on the scooter when driving.

16. Always proceed carefully while riding your scooter, especially when

approaching a ramp or hill.

17. Always proceed carefully while riding on uneven surfaces.

18. Do not sit on your scooter while being transported in a moving vehicle.

Always tie-down your scooter and transfer yourself to a vehicle seat.

19. Do not drive your scooter in deep water or clean with a high-pressure

hose.

Features

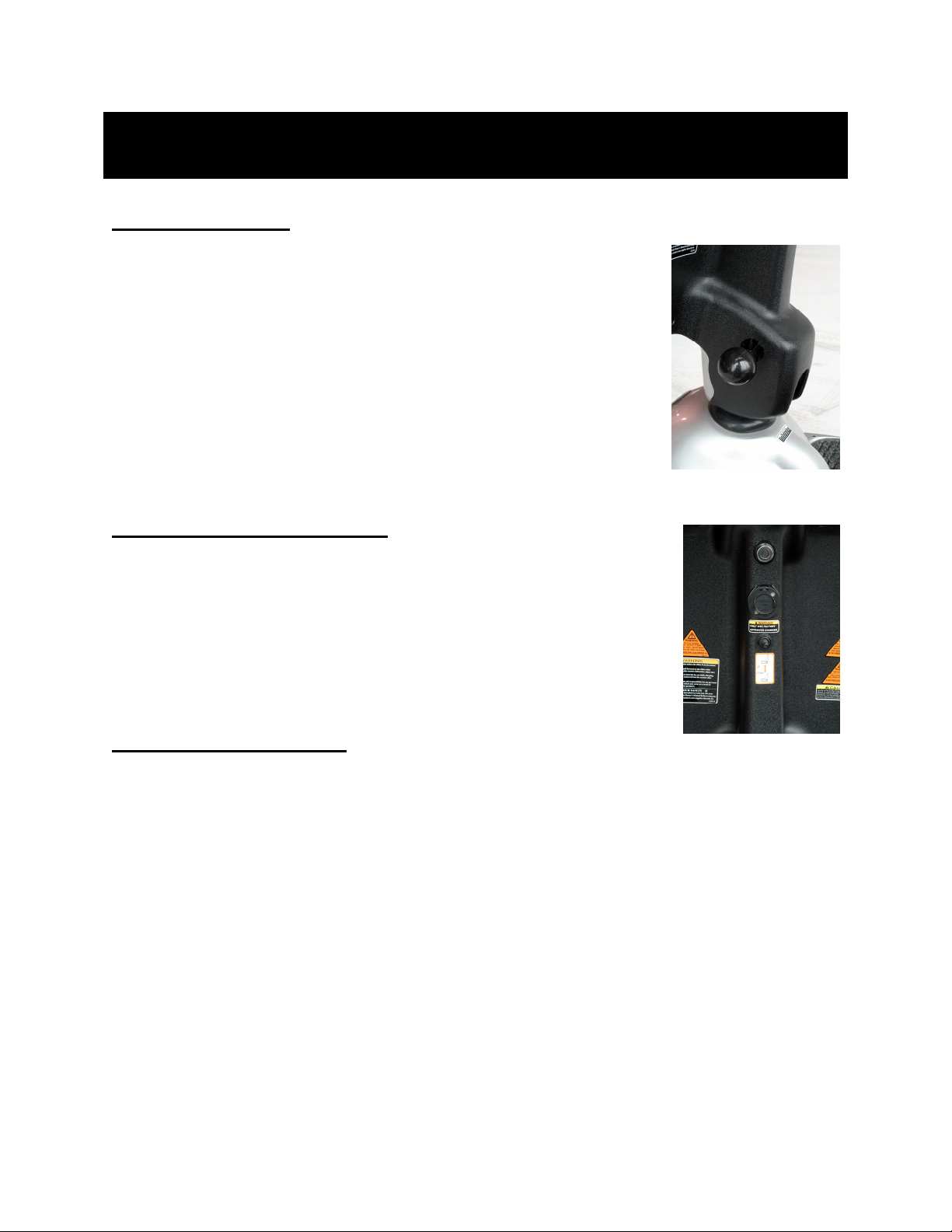

Tiller Adjustment

The tiller of your scooter is uniquely designed to allow you to

position it to a comfortable driving position.

Your scooter’s tiller is very versatile, and can be adjusted to

five different positions. To decide which position best fits

your needs, carefully pull the large black ball that is located

on the left side, at the base of tiller, and gently lower or raise

the tiller. Once you are satisfied with the position of the tiller,

simply release the black ball and the tiller will automatically

lock for your safety.

Using the Electric Seat Lift

Your scooter comes equipped with an electric seat lift for easy

height adjustment. To raise or lower your seat to your desired

position, simply move the switch, located on the inside of the

tiller, up to raise the seat or down to lower the seat. Once you

release the switch, the seat will automatically lock to your

desired position.

Scooter Light Package

Your scooter comes complete with a full light package. This package includes a

front headlight, left and right turn signals plus a hazard light for emergencies.

Front Headlight – To turn on and off your front headlight, simply press the round

blue button located on the right side of the tiller, just under your forward lever. To

shut off the headlight, press the blue button again.

Left and Right Turn Signals – When making a turn always use your left and

right turn signals. The turn signal switch is located on the top of your tiller just

above your speed dial control. Simply flip the switch to the right or left to activate

your turn signals. When done turning, just flip the switch back to its center

position.

Hazard Lights – If your scooter breaks down or you need assistance, press the

red button located on the left side of the tiller, just under the reverse lever. Once

you have received assistance, press the red button again to turn it off.

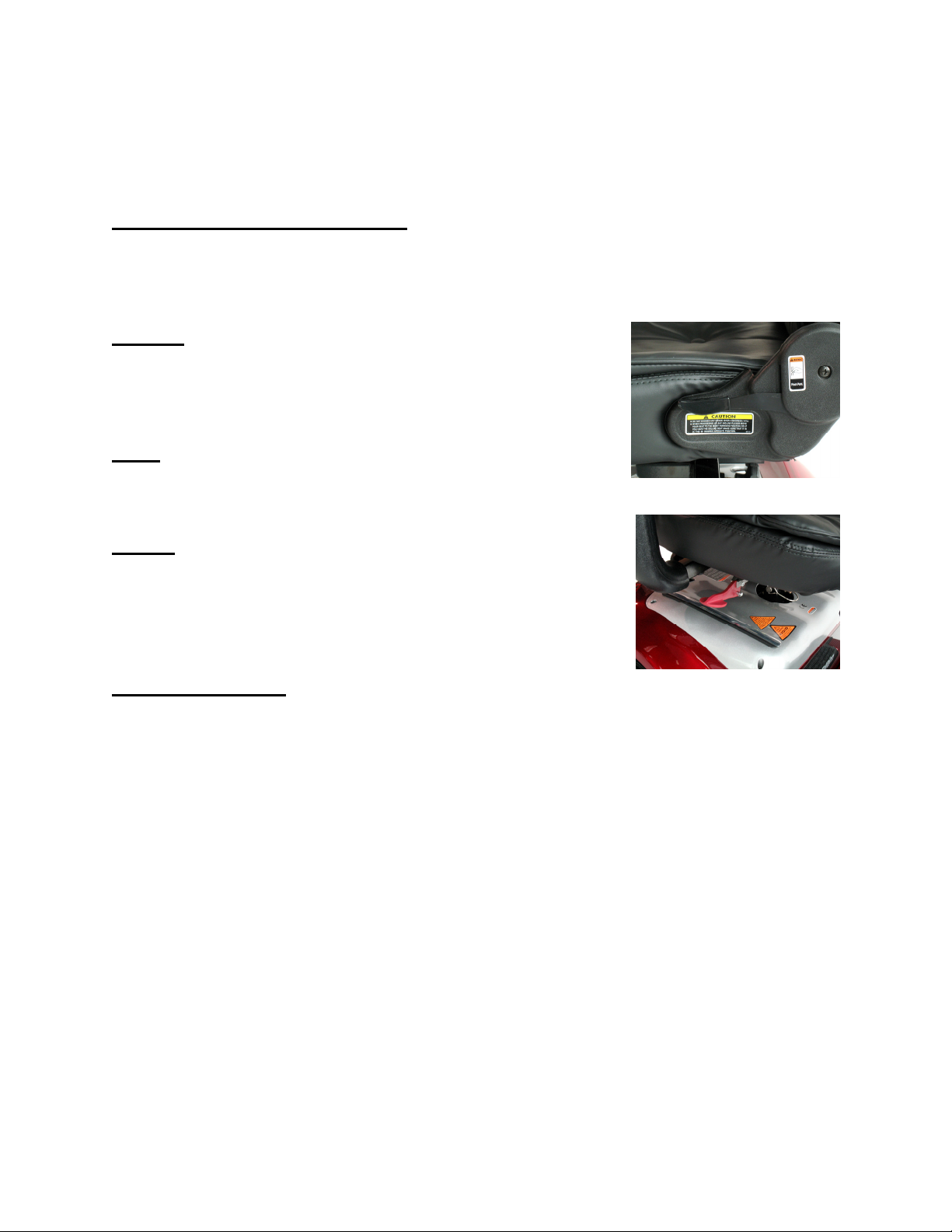

Adjusting Your Scooter Seat

Your scooter has a fully adjustable seat for your comfort. Your deluxe captain

seat will recline, slide up and back, and will swivel for your convenience.

Recline - To manually recline your seat, simply pull

your lever located on the lower left side of the seat and

you will be able to adjust it to fit your desired

convenience.

Slide - To move closer or farther away from the tiller,

depress the black lever located under the center of the

seat and slide to your desired position.

Swivel - To turn your seat left or right, depress the red

lever located on the lower right side of the seat and you

will easily be able to adjust the seat to the desired

position.

Control Features

Your controls are located on the handle bar console, and they are:

1. On-Off Switch: Located in the center of the tiller console. Insert the key and

turn it. You will notice the digital bar on the battery state indicator moves towards

the right. Your scooter is ready to drive.

To switch off your machine, turn the key counter clockwise. Make sure to remove

the key when the vehicle is unattended.

CAUTION: Do not switch to ‘off’ when scooter is moving. Failure to observe this

will result in the motor brake being applied suddenly, and placing you in a

dangerous situation.

You should only switch ‘off’ when in motion in the case of an emergency.

Continual use in this mode may cause undue stress to the drive system,

and damage the main electronic speed control unit. Be extremely cautious

on slopes. Sit upright in your seat or your scooter may become less stable.

2. Battery Indicator Gauge: Located at the top of your console. When your

scooter is switched on the bar on the gauge will move across the scale from the

left towards the right, indicating full charge batteries. As the power is used up in

your batteries the red bars will move towards the left indicating the state of

charge at the precise time. When the red bars are completely over to the right,

the batteries are fully charged. When the red bars start to disappear, your

batteries are losing power. It is wise to recharge your batteries when the two red

bars remain. (See Batteries and Battery Charging section of this manual).

3. Speed Adjustment Dial: This allows you to pre-select your desired speed.

The dial is proportional to speed, and can be set anywhere between 1 and 10

increments. Turn the dial knob counter-clockwise to "minimum" to decrease

speed, and clockwise towards "maximum" to increase your speed.

NOTE: When attempting to climb slopes, you will need to set the dial to "high"

setting. Remember the higher the number you set your speed dial to, the faster

your scooter will travel.

4. Free-Wheel Switch: Located on the back right side underneath the rear

shroud, push the release switch down to disengage the brakes. This will enable

you to free wheel the scooter and push it around.

Thumb Lever Control

Located under the handle bar grips. Your speed for forward and reverse motion

is controlled here. The right thumb lever moves your scooter in a forward motion,

and also controls the rate of speed by the proportional amount of pressure

applied.

The left thumb lever moves the scooter in a reverse motion and controls the rate

of speed by the amount of pressure applied. Releasing the lever will return itself

to the neutral position, and you will stop gently.

You will note that you can obtain the reverse of this procedure by pulling the

levers backwards with your thumb.

CAUTION: If you are not an accomplished outdoors powered vehicle driver,

we strongly recommend that you first practice in an open, safe area, free

from traffic, preferably with a companion who can assist you.

Inhaltsverzeichnis

Andere Shoprider Roller Handbücher

Shoprider

Shoprider Start GK3 Bedienungsanleitung

Shoprider

Shoprider TE-9 Bedienungsanleitung

Shoprider

Shoprider Perrero S-888SLR Bedienungsanleitung

Shoprider

Shoprider GK10 Bedienungsanleitung

Shoprider

Shoprider QT3 Bedienungsanleitung

Shoprider

Shoprider Dasher 9 Bedienungsanleitung

Shoprider

Shoprider 888SE Explorer Bedienungsanleitung

Shoprider

Shoprider LITTLE BEAUTY Bedienungsanleitung

Shoprider

Shoprider Echo 3 SL7-3 Bedienungsanleitung

Shoprider

Shoprider Grande TE-9AS Bedienungsanleitung

Shoprider

Shoprider Recreational Scooter GR889 Bedienungsanleitung

Shoprider

Shoprider VIKING 3 Bedienungsanleitung

Shoprider

Shoprider Paris GK9 Bedienungsanleitung

Shoprider

Shoprider TE-889SLF Bedienungsanleitung

Shoprider

Shoprider Torino S-778XLSBN Bedienungsanleitung

Shoprider

Shoprider FS777 GETABOUT Bedienungsanleitung

Shoprider

Shoprider Scooter Bedienungsanleitung

Shoprider

Shoprider Venturer Bedienungsanleitung

Shoprider

Shoprider QT-8 LITTLE BEAUTY Bedienungsanleitung

Shoprider

Shoprider GK10 Bedienungsanleitung

Shoprider

Shoprider TE-778NR Bedienungsanleitung

Shoprider

Shoprider Solares FS777 Bedienungsanleitung

Shoprider

Shoprider SUNRUNNER 3 888B-3 Bedienungsanleitung

Shoprider

Shoprider Altea SL7-3 Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung

Shoprider eclipse 778EL Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken
