Sibata 080130-042 Bedienungsanleitung
CODE 080130-042
080130-045
080130-047
Thank you for purchasing this product.
This operation manual describes precautions that are
important for preventing accidents as well as the
procedures used to handle the product.
To ensure safety, read this operation manual and the
attached warranty thoroughly before use, and use the
product correctly.
After reading this operation manual and the warranty,
keep them in a safe place where they can be referred
to at any time.
Particle Size Separator for
Round Filter
OPERATION MANUAL
１ Product Overview
The particle size separator uses the inertial impaction method to differentiate particle sizes into large and small size and sampl
e
them. Large particle size is sampled on a filter with slits and small size particle are sampled on a backup filter. This particle siz
e
separator is attached to SIBATA High Volume Air Sampler, Model HV-500F and HV-500R which used φ110mm round filter.
Each Characteristic of Size Classification as follow:
080130-042 SPM Particle size separator for rectangular filter ･･･････････10μm and more 100％ cut
080130-045 PM10 Particle size separator for rectangular filter ･･････････10μm 50％ cut
080130-047 PM2.5 Particle size separator for rectangular filter ･････････2.5μm 50％ cut

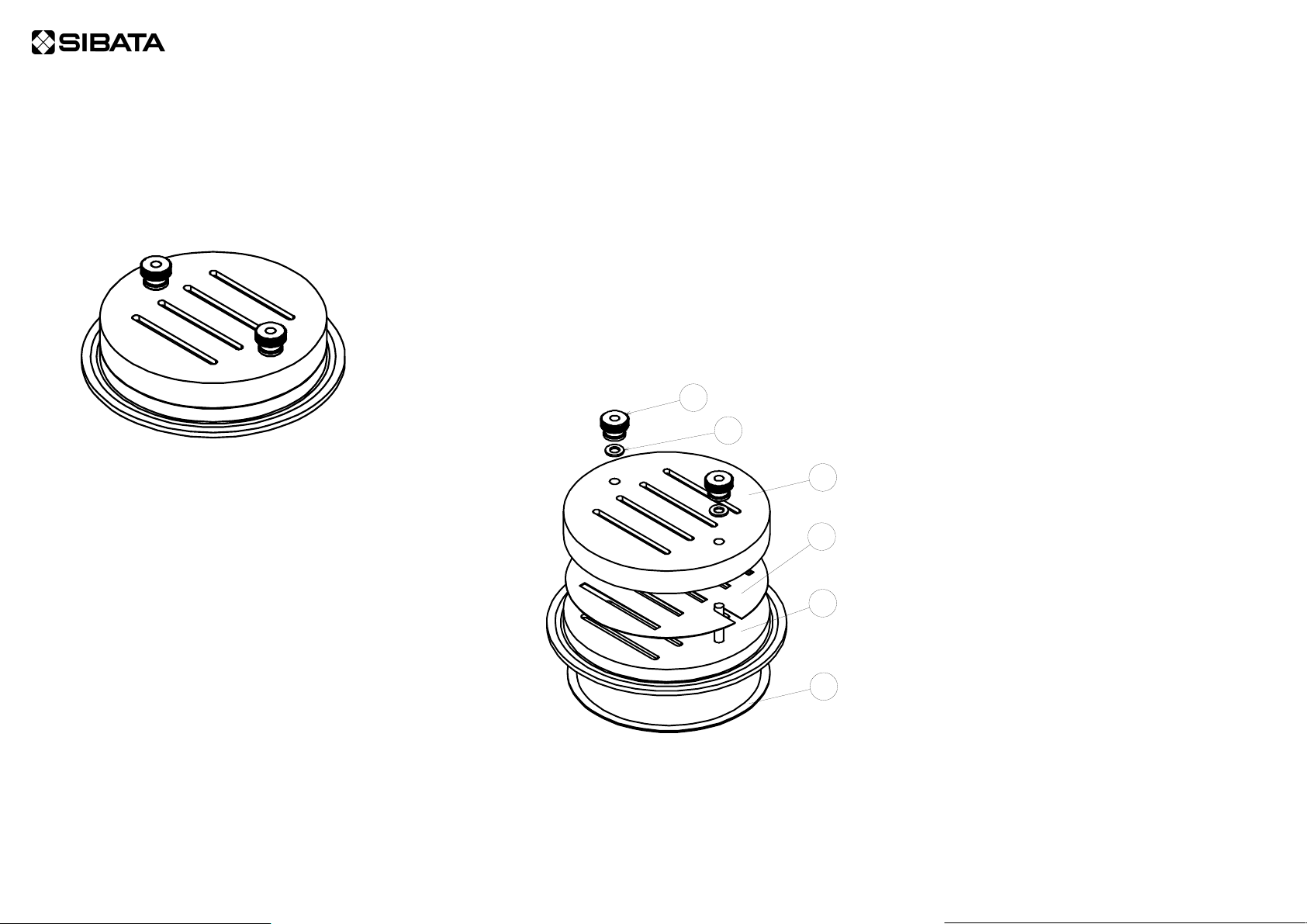

２ Name and Composition of Parts
① Nut with knurling ･･･････････････････２ pcs.
② Washer ････････････････････････････２ pcs.
③ Separator･･････････････････････････１ unit
④ Filter with slit ･･････････････････････10 sheets
⑤ Base unit ･･････････････････････････１ unit
⑥ PTFE packing ･･････････････････････１ pc.
１
２
３
４
５
６
３ Assembling of particle Size Separator
Set the filter with slit between the base unit and separator and tighten a nut with knurling after put in a washer.
７ Warranty and Repair
This product shall be repaired free-of-charge should it
malfunction within one year of purchase. When asking for
repair, be sure to directly contact the dealer of purchase.
Consumables provided with this product fall outside of th
e
scope of this Warranty. Repair of the product itself als
o
shall fall outside of the scope of this Warranty if any of
the following causes it to malfunction:
Faults or damage resulting from incorrect use
Faults or damage resulting from repairs or
modifications implemented by parties other than Sibata
Faults or damage resulting from fires or natural
disasters, such as earthquakes
Faults or damage occurring after purchase due to
relocation, movement, falling, or vibration
Faults or damage resulting from the use of consumabl
e
items not specified by Sibata
『Do not disassemble the product』The warranty will
be voided if the product is disassembled or
reconstructed in any way. It may cause damage and
expose you to unnecessary risks.
12.01.24K(01)
５ Specifications
Item Code 080130-042 080130-045 080130-047
Name of Part SPM Particle size separator PM10 Particle size separator PM2.5 Particle size
separator
Characteristic of Size
Classification
10μm and more
100% cut 10μm 50％ cut 2.5μm 50％ cut
Suction Flow Rate 500L/min
Plane Size φ130 mm
Height 31mm 36mm 20mm
Weight Approx. 0.4kg Approx. 0.5kg Approx. 0.3kg
First, set a φ110mm filter on a Clip ring, then set a PTFE packing and a Particle size separator (a filter with slit is
attached) on the Clip ring. Finally, set the Particle size separator on an N type adaptor, and hold (screw to fix) it
with a Clip holder.
４ How to Attach the Particle Size Separator to High Volume Air Sampler
N type adaptor
Clip ring ( a parts of Filter clip)
PTFE packin
g
Particle size separator
φ110mm Filter (Backup filter)
Clip holder
６ Consumables
Item Code Description
080130-032 Glass fiber filter GB100R-110B with slit 100 sheets/box
Note)Shape, dimensions, specifications, and other product
information are subject to change without notice in th
e
interest of product improvement to the extent that
product functions and applications will not be impaired.
SIBATA SCIENTIFIC TECHNOLOGY LTD.
1-1-62, Nakane, Soka, Saitama, 340-0005 Japan
TEL : 81-48-933-1574 FAX : 81-48-933-1587
URL : http://www.sibata.co.jp
