Sigfox WSSFCEX-PPS Bedienungsanleitung
WSSFCEX-PPS -MN-EN-01
SEP-2020
SKU
WSSFCEX-PPS
HW Ver.
1.2
FW Ver.
1.2
Item Code
WSSFCEX-PPS-9-10
SIGFOX GAGE PROCESS PRESSURE SENSOR, ATEX EXD APPROVAL ZONE 1/2, RANGE 0-10 BARG,
ACCURACY 0.5%, PROCESS CONNECTION 1/2" NPT-MALE, 316SS, TYPE AA BATTERY 1.5VDC, RC2-
RC3-RC4-RC5 ZONES
WSSFCEX-PPS-8-10
SIGFOX GAGE PROCESS PRESSURE SENSOR, ATEX EXD APPROVAL ZONE 1/2, RANGE 0-10 BARG,
ACCURACY 0.5%, PROCESS CONNECTION 1/2" NPT-MALE, 316SS, TYPE AA BATTERY 1.5VDC, RC1-
RC6-RC7 ZONES
WSSFCEX-PPS-G-1000
SIGFOX GAGE PROCESS PRESSURE SENSOR, ATEX EXD APPROVAL ZONE 1/2, RANGE 0-1000
BARG, ACCURACY 0.5%, PROCESS CONNECTION 1/2"NPT-MALE, 316LSS, TYPE AA BATTERY
1.5VDC, RC1-RC2-RC3-RC4 ZONES
STEP 1: Select RC
1. Select RC zone
RC zones selection 1, 2, 4,... is RCZ1, RCZ2, RCZ4,... (refer to section
6)
USER GUIDE FOR EX D APPROVED
SIGFOX PROCESS PRESSURE
SENSOR WSSFCEX-PPS
This document is applied for the following products
0. Configuration Check List
STEP 2: Check ID and PAC
Use Modbus Configuration Cable to read the ID and PAC values
Refer to register address 8 and 10 (DEC)
STEP 3: Configure the sensor's operating parameters
Configure parameters like cycle send data, alarm, a, b,...
Refer to the configuration section 5 and section 6
STEP 4: Add device to Backend Sigfox
refer to section 5.2 for details
STEP 5: Installation
refer to section 7 for details
Document Ver.
Release Date
Change log
1.0
SEP-2020
- First version for WSSFCEX-PPS
1.1
FEB-2022
- Update information of WSSFCEX-PPS-G-1000
WSSFCEX-PPS is the Sigfox Integrated Process Pressure Sensor with Exd approval for installation in Zone 1, Zone 2 or
Safe Zone, and it has different kinds of measurements, such as Gage/Absolute/Sealed Gage, range -1 .. + 700 bar, high
accuracy, and stability. With Ultra-low-power design and smart firmware allow the sensor can last up to 10 years with
single C battery (depends on configuration). It can supports all regions of Sigfox network in over the World, RC1, RC2,
RC3, RC4, RC5, RC6, RC7. Typical applications are pressure monitoring of oil pipeline, gas pipeline, LPG tank, CNG
tank, etc.
1. Change Log
2. Introduction
Sensor
Advanced PIEZO technology
Measurement range
Select from -1 .. + 1000 bar Gage/Absolute/Sealed Gage
Over pressure protection
1.5 x Span
Accuracy & Stability
0.5% of span, < 0.3% span/year
Wetted parts & Measuring Fluids
304SS/316SS, Any fluid which is workable with materials 304SS/316SS
Fluid Working temperature
0 .. + 80 oC
Process connection
1/2” NPT-male as standard, others please consult factory
Sigfox zones
select RC2-RC3-RC4-RC5 or RC1-RC6-RC7
Antenna
N-male type external Antenna
Battery
02 x AA Type 1.5VDC as standard, working time up to 10 years (depends
on configuration). 02 x Battery AA 3.6V is also available as optional.
ATEX Certificates
IMQ 14 ATEX 005 X, TÜV CY 18 ATEX 0206158 X and IECEx DEK
15.0048X
Marking
ATEX II 2G Ex db IIC T5/T6 Gb and ATEX II 2D Ex tb IIIC T100/T85°C Db
Directive
ATEX 2014/34/EU
Standards
IEC-EN60079-0 IEC-EN60079-1 IEC-EN60079-31
Applicable zones
Zone 1 - 21 (gas) and Zone 2 - 22 (dust)
Ambient working temperature
-40oC..+85oC
Housing
Cast aluminium, powder coated, IP66
Mounting
wall mounting holes
Product dimensions
H100xW100xD80 (excluded antenna)
Net weight
1.5 kgs
Packaging dimension
W160 x D150 x H250 mm
Gross weight
< 1.6 kgs
3. Specification
4. Dimensions

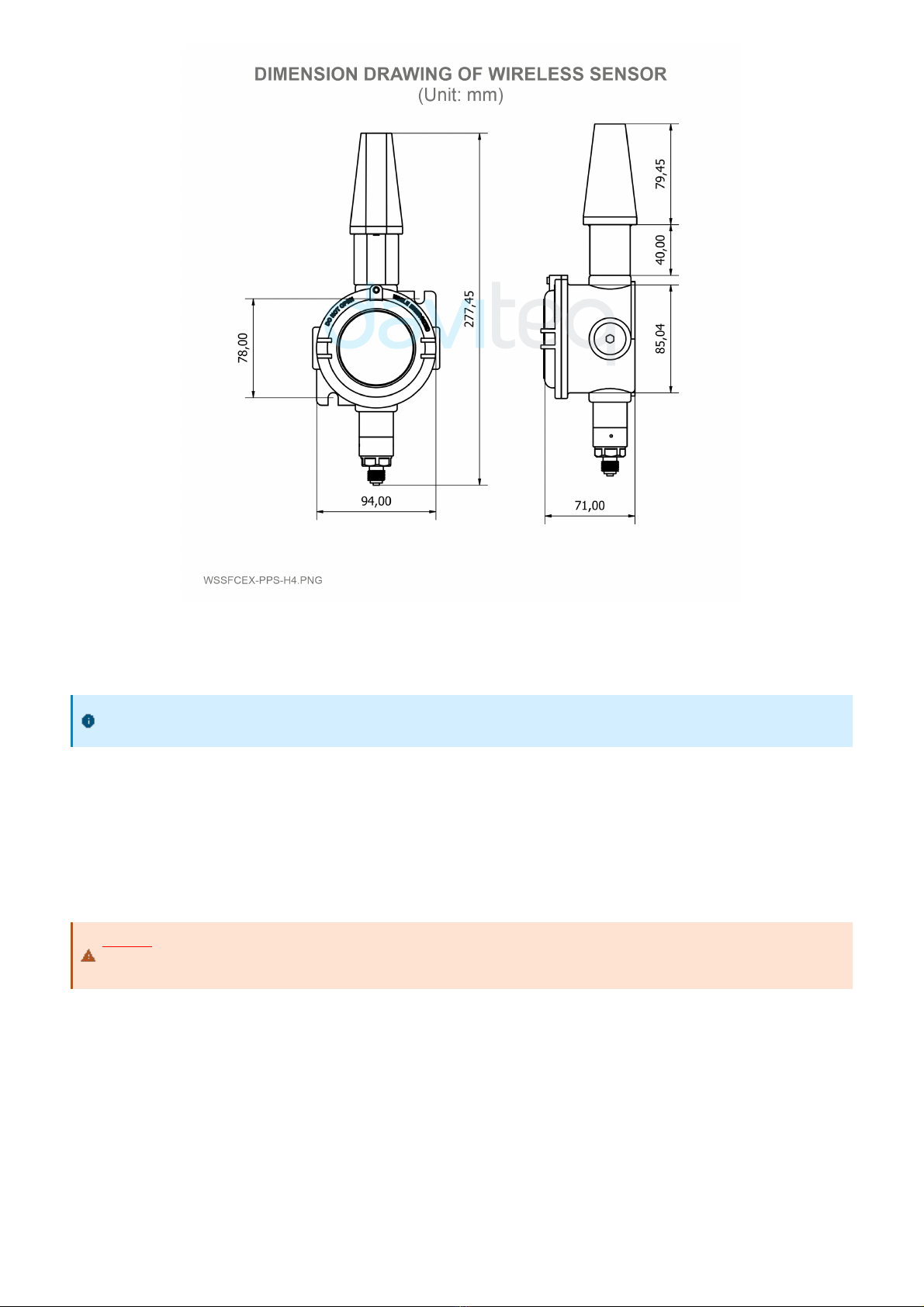

4.1 WSSFCEX-PPS with 0-10 barg version
After 1 minute 30 seconds later the device will send the first data packet and at the same time wait for the downlink
packet from the Base Station.
Then during the operation, there are 03 cases of sending data to base station:
1. When the sensor sampling time interval is reached, the Sigfox node will read the data from Input or sensor
and performing the calculation. After that it will check calculated value with alarm thresholds. If the calculated
was out off the threshold values (Lo or Hi), called alarm, and the number of times of alarm did not pass the limit
of number of alarms, then it will send data to Base station immediately;
2. When the sending time interval is reached, it will send data to Base station immediately, regardless of value;
3. By using the magnet key, the Sigfox node can be triggered to send data to base station immediately. There
will be a beep sound from the buzzer meaning the data has been sent. (Buzzer will be updated in the latest
version)
5. Operation Principle
Upon power on, the Sigfox node has 60 seconds to wait for off-line configuration (via cable with ModbusRTU
protocol)
NOTE:
Once sending the data to base station by this alarm event, the timer of sending time interval will be reset;
EVENT
PRE-CONDITION
ACTION
LED STATUS
BUZZER STATUS
ACTIVITIES
POST-
CONDITION
FORCE_DATA
Any state
Move Magnet Key
to contact point of
REED SWITCH.
Buzzer beep 1
time, move
Magnet Key away.
Blink SKY BLUE
Beep 1 time
See FW specs
Back to previous
state
PARAMETERS_UPDATE
Any state
Move Magnet Key
to contact point of
REED SWITCH.
Buzzer beep 1
time, hold Magnet
Key 5s.
Buzzer beep 2
times.
Blink PURPLE
Beep 2 times
See FW specs
Back to previous
state
Whenever the data is sent to base station, the LED will lit with color codes as below:
RC1: RED colour
RC2: GREEN colour
RC4: BLUE colour
NOTE:
Once sending the data to base station by the magnet key, the timer of sending time interval will be reset;
The shortest time interval between the two manual triggers is 15s. if shorter than 15s, there will be no data
sending.
5.1 LED meaning
There are 3 configuration menus: tx_repeat, downlink_flag, radio configuration.
We use the button to enter the menus as follows:
Press and hold the button 2s -> When the Red LED is on, it means entering the tx_repeat configuration menu. Then
release to configure it.
Press to configure. After pressing if the Red LED flashes once, tx_repeat = 0 (send 1 time). After pressing if the Red
LED blinks twice, it is tx_repeat = 1 (send 3 times).
Press and hold the button 5s -> When the Green LED is on, it means entering the downlink_flag configuration
menu. Then release to configure it.
Press to configure. After pressing if the Green LED flashes once, it is downlink_flag = 0 (downlink is not allowed).
After pressing if the Red LED blinks twice, it is downlink_flag = 1 (downlink is allowed).
Press and hold the button 10s -> Blue LED is on, it means entering the Radio Configuration menu. Then release to
configure it.
Press to configure. After pressing if the Blue LED blinks once, it is Radio Configuration = 1. After pressing if the
Blue LED flashes twice, it is Radio Configuration = 2. After pressing if the Blue LED flashes 4 times, it is Radio
Configuration = 4.
There are 3 ways to exit the menu:
Press and hold for 3s, the LED turns off to exit the menu;
Wait 30 seconds, then exit the menu;
Take out the battery, it all starts over (outside the menu)).
The RF transmit power will be automatically set as the max value as allowed by the Zone.
Sigfox Radio Configuration (RC) defines the radio parameters in which the device shall operate: Sigfox operating
frequencies, output power, spectrum access mechanism, throughput, coexistence with other radio technologies, etc.
Each radio configuration includes 4 uplink classes: 0u, 1u, 2u, and 3u.
5.2 Button Function
5.2.1 Menu configuration
5.2.1.1 tx_repeat
5.2.1.1 downlink_flag
5.2.1.1 radio configuration
5.2.2 Exit the menu:
5.3 RC technical details
The Sigfox network globally works within the ranges from 862 to 928 MHz. But not all RCs require such a wide range of
operation.
RC1
RC2
RC4
Uplink center frequency (MHz)
868.130
902.200
920.800
Downlink center frequency (MHz)
869.525
905.200
922.300
Uplink data rate (bit/s)
100
600
600
Downlink data rate (bit/s)
600
600
600
Sigfox recommended EIRP (dBm)
16
24
24
Specifics
Duty cycle
1% *
Frequency
hopping **
Frequency
hopping **
* Duty cycle is 1% of the time per hour (36 seconds). For an 8 to 12 bytes payload, this means 6 messages per hour,
140 per day.
** Frequency hopping: The device broadcasts each message 3 times on 3 different frequencies. Maximum On time
400 ms per channel. No new emission before 20 s.
*** Listen Before Talk: Devices must verify that the Sigfox-operated 200 kHz channel is free of any signal stronger
than −80 dBm before transmitting.
Sigfox’s high limit EIRP recommendation is included in each column although regulations sometimes allow for more
radiated power than the Sigfox recommendation.
Sigfox’s recommendation is set to comply with the Sigfox technological approach of:
Low current consumption
Balanced link budget between uplink and downlink communication

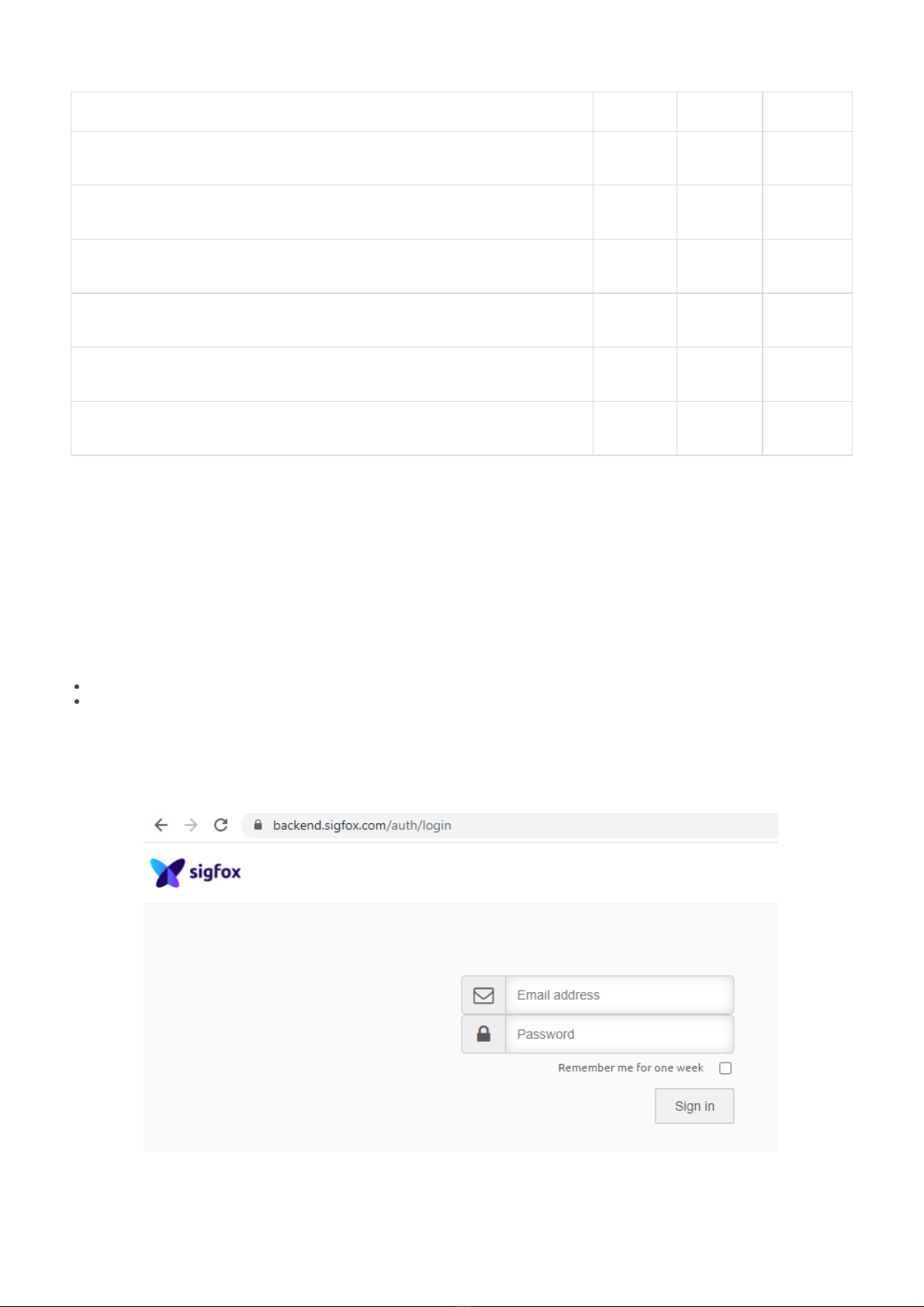

Step 1: Log in to the sigfox backend website
Step 2: Click on Device
5.4 Add a device to the Backend Sigfox
When the sensor sampling time interval is reached, for example 2 minutes, the Sigfox node will wake up and switch ON
the power supply to supply the energy to external sensor to start the measurement. Depends on the type and
characteristic of external sensor, the sensor will take a certain time to finish the measurement.
Once reading the value, it can be scaled to any engineering value by the following formula:
Y = aX + b
Where:
X: the raw value from sensor
Y: the calculated value will be sent to Sigfox base station in the payload data.
a: constant (default value is 1)
b: constant (default value is 0)
So, if there is no user setting for a and b ==> Y = X
The Y value will be compared with Lo and Hi threshold. Please refer below the graph of alarm processing.
5.5 Process of measurement
