Siqura SA-PD24 Bedienungsanleitung

Unpack

Connector Definition

Installation Notices Connectors

Opening the housing

Mounting

SA-PD24

2MP Corrosion proof compact PTZ dome, 20x zoom

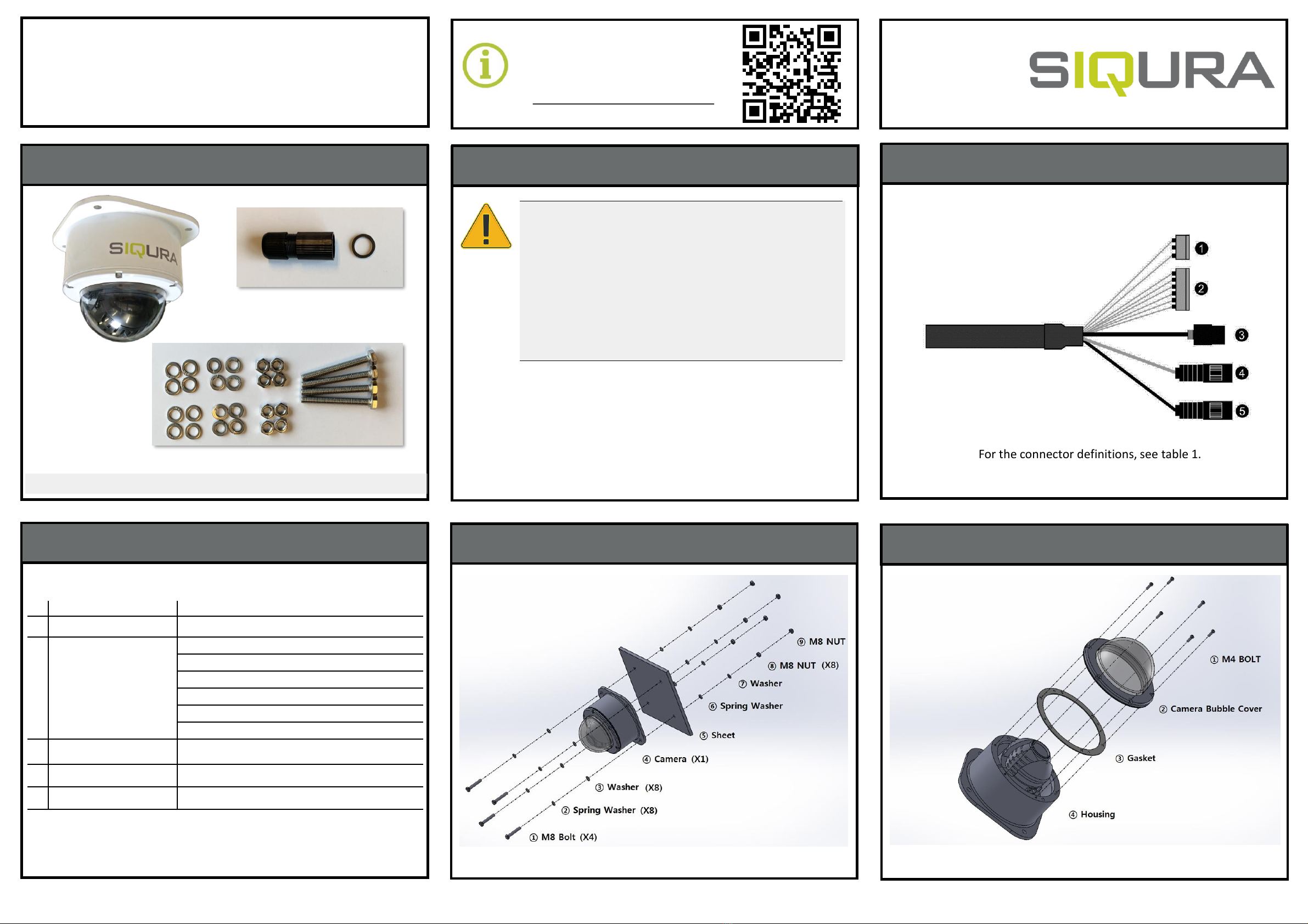

Quick Start Guide

Find additional manuals, the datasheet,

the EU Declaration of Conformity, and

the latest firmware for this product at:

Siqura.com/downloads/software

SA-PD24 Camera Unit

Note 1: Subject to modification. Actual product and accessories may differ in appearance.

CAUTION:

INSTALLATION SHALL BE PERFORMED BY QUALIFIED PERSONNEL ONLY.

INSTALLATION SHALL BE IN ACCCORDANCE WITH LOCAL PROCEDURES.

THE CAMERA CONTAINS BATTERIES. DISPOSE OF USED BATTERIES IN

ACCORDANCE WITH LOCAL REGULATIONS.

IF YOU USE AN EXTERNAL POWER SUPPLY, CONTACT SIQURA TO MAKE SURE

THAT THE POWER SUPPLY HAS THE PROPER POWER SPECIFICATIONS.

MAKE SURE THAT THE POWER SUPPLY COMPLIES WITH LPS REQUIREMENTS.

WHEN INSTALLING THE CAMERA, HOOK UP THE CAMERA WITH THE ANTI-DROP

CHAIN OF THE PENDANT TO THE ANTI-DROP RING (SEE FIGURE 1). FOR MORE

INFORMATION, CONTACT SIQURA.

THE CAMERA IS TO BE CONNECTED ONLY TO POE NETWORKS WITHOUT

ROUTING TO THE OUTSIDE PLANT.

For the connector definitions, see table 1.

Version 1.0 (20191015)

SA-PD24 QSG

No.

Connector

Definition

Power (3

-pin terminal)

12 Vdc or 24 Vac power connection

I/O (6

-pin terminal)

Pink

Alarm Input 1

Gray

Alarm Input 2

Green

Alarm Input 3

Blue

Alarm Input 4

Brown

GND

Yellow

Alarm Output

-45 Port

10/100Mb Fast Ethernet network and PoE

Stereo Jack

Audio Output

Stereo Jack

Audio Input

Table 1 Connector definitions

M8 bolts, washers and nuts

RJ45 water protection (IP66/67)

Replacing the bubble Accessing the camera Auto detect with SDM2

1st time camera login Browser-based viewer Browser-based Viewer

IP = dhcp

Network Switch

DHCP

Siqura.com/downloads/software

SDM2-vx.xx-setup.zip

admin

qwer1234

x6W@oM0a!9#

Modify user with

strong password

x6W@oM0a!9#F

IP = 192.168.30.1

Netmask: 255.255.255.0

IP = 192.168.30.220

Network Switch

DHCP
