SWM320A
Door-Window sensor
User manual
IMPORTER: SUOMEN TURVAKAUPPA OY
www.turvakauppa.com
SWM320A User manual V2.0
2 / 8
1
Overview
Door-Window Detector (SWM320A) adopts design of split magnetic sensor，
to be used to detect a status of doors and windows in real time. According to
changes in status of the doors and windows, you can achieve intelligent lighting or
burglar alarm. It brings convenience to your home life, and also protects the security
of your property.
Notice! Information in this manual may change according to BASE application system
updates.
Please check the latest version from our website www.safewith.me
If a Door-Window Detector which is added to gateway detects that the doors or
windows open or close, you can let intelligent gateway open/close a lamp or send out
an alarm and push this message to a smart terminal such as a smart phone in time.
Please refer to 'BASE User Guide' for the detailed operation.
2
Features
• Three status recognition.
• Low standby current, long battery life.
• MC-DE3 wireless communication protocol, safe, reliable and convenient.
• Wireless distance is more than 100 meters.
• Easy to connect to BASE intelligent security system.
3
Illustration
Number
Name
1 LED
2 Button
3 Mainframe
4 Magnet
SWM320A User manual V2.0
3 / 8
4
Installation Instruction
4.1 Installation location
• If installed on a door, the bigger part is usually mounted on the door frame.
• If installed on a window, the bigger part is usually mounted on the windows frame.
• The distance between the bigger part and the magnet should be less than 8mm
after the installation.
• The detector is suitable the situation which is no height difference between the
door (window) and the door frame (window frame).
Figure 1 Door frame and door not level.
Figure 2 Door/Window frame and door/window are level.
SWM320A User manual V2.0
4 / 8
4.2 Replace battery
1)Remove the battery
cover of mainframe 2)Remove the battery 3)Cover the battery
cover
5 Operation instruction
5.1 First use

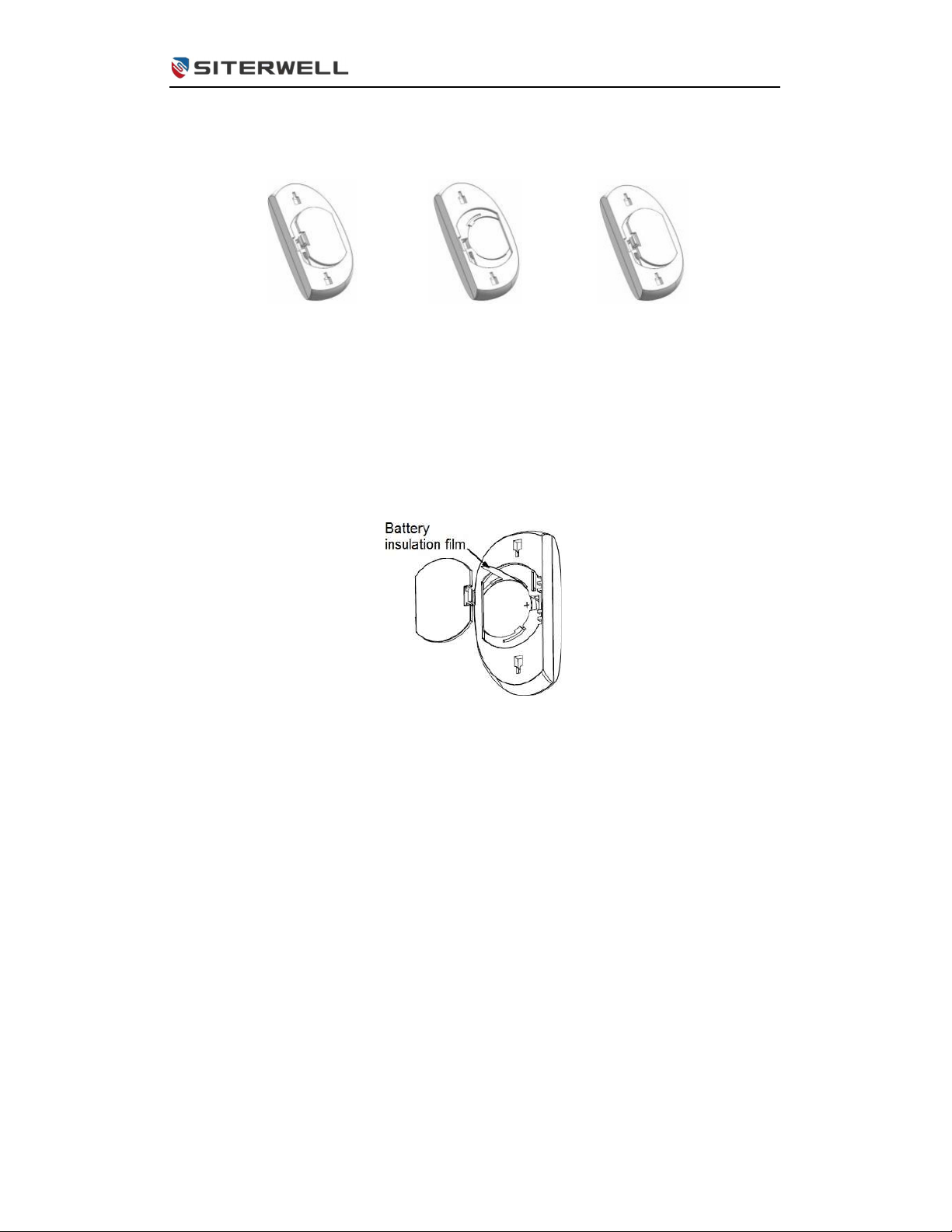

For the first use, you need to remove the battery insulation film as shown below.
5.2 Adding to BASE smart home ecosystem
SWM188A (gateway) needs to be added to the BASE system first, please refer to
the 'BASE User Guide' for details
SWM320A User manual V2.0
5 / 8
Step 1
Step 2
Step 3
5.3 Status Description
• Red indicator flashes once: Door (Window) open or close.
• Green icon in APP: Normal status.(Door closed)
• Red icon in APP: Door open.
SWM320A User manual V2.0
6 / 8
6 Technical Specifications
Power input
DC3V(CR2450×1)
Standby current
≤5μA
Trigger current
≤30mA
Frequency
868MHz
Wireless distance
≥100meters
environment
0~55
℃
, ≤95%RH Non-condensate
Environmental standards
RoHS，REACH
Size
〈Mainframe〉68×34×20mm
〈Magnet〉62×12×19mm
7 Troubleshooting
Number
Problems Reasons Solutions
1
The icon in APP doesn’t
change while door
(window) open or close.
Gateway doesn’t
connect to the Wi-Fi
network.
Check Wi-Fi or
reconfigure the
network.
Distance between
detector and gateway
is too large.
Adjust the installation
location.
2
The indicator doesn’t
flash while door (window)
open or close.
Distance between
mainframe and
magnet is too large
(more than 8mm).
Adjust the installation
location.
Battery exhausted.
Replace battery.
3
The communication
distance between
Low battery power.
SWM320A User manual V2.0
7 / 8
detector and gateway
wireless is short (<100m).
4
The red light is always on.
Product broken.
Contact the dealer to
repair or replace the
product.
SWM320A User manual V2.0
8 / 8
Statement
The information in the User's Manual is absolutely correct at the time of publication,
however we are not responsible for the application of this document. The application
mentioned in this document is for illustration purposes only. We do not guarantee or
represent that these applications without further modifications are appropriate and that
we also have the right to modify the product without any notice. For the latest
information, please refer to our website http://www.china-siter.com。
SITERWELL ELECTRONICS CO.,LIMITED
Address: No.666 Qingfeng Road, Jiangbei District,
Ningbo, Zhejiang
Phone: 0086-574-87729576
Postcode: 315000
Web:
Maahantuoja:
www.china-siter.com
Suomen Turvakauppa Oy, Kaarina
Finland.
