SKIPPER DM-D100 Installation manual Dolog replacement
Page 2 of 11
Date: 2018.04.18
INTRODUCTION
This document describes how to install a SKIPPER DL850 100mm sensor into an
excisting DOLOG 2X (DOLOG 21/22/23) tank.
The Rev 01 of KIT-DOLOG-M1-SA is a plastic adaptor replacing the heavy steel adaptor
from rev 00
The sensor replacement is recommended to be performed in dry dock. It is possible to
replace the sensor with vessel aoat.
The replacement will require new DL850 Operator unit, transceiver unit and sensor. For
Operator unit and Transceiver unit installation instruction, please see respective manuals.
This procedure will mainly cover replacement of DOLOG sensor.
DL850S27DR-SB consist of:
• DL850S27DR-ZB Sensor DL850 270kHz wiuth plugged cable end

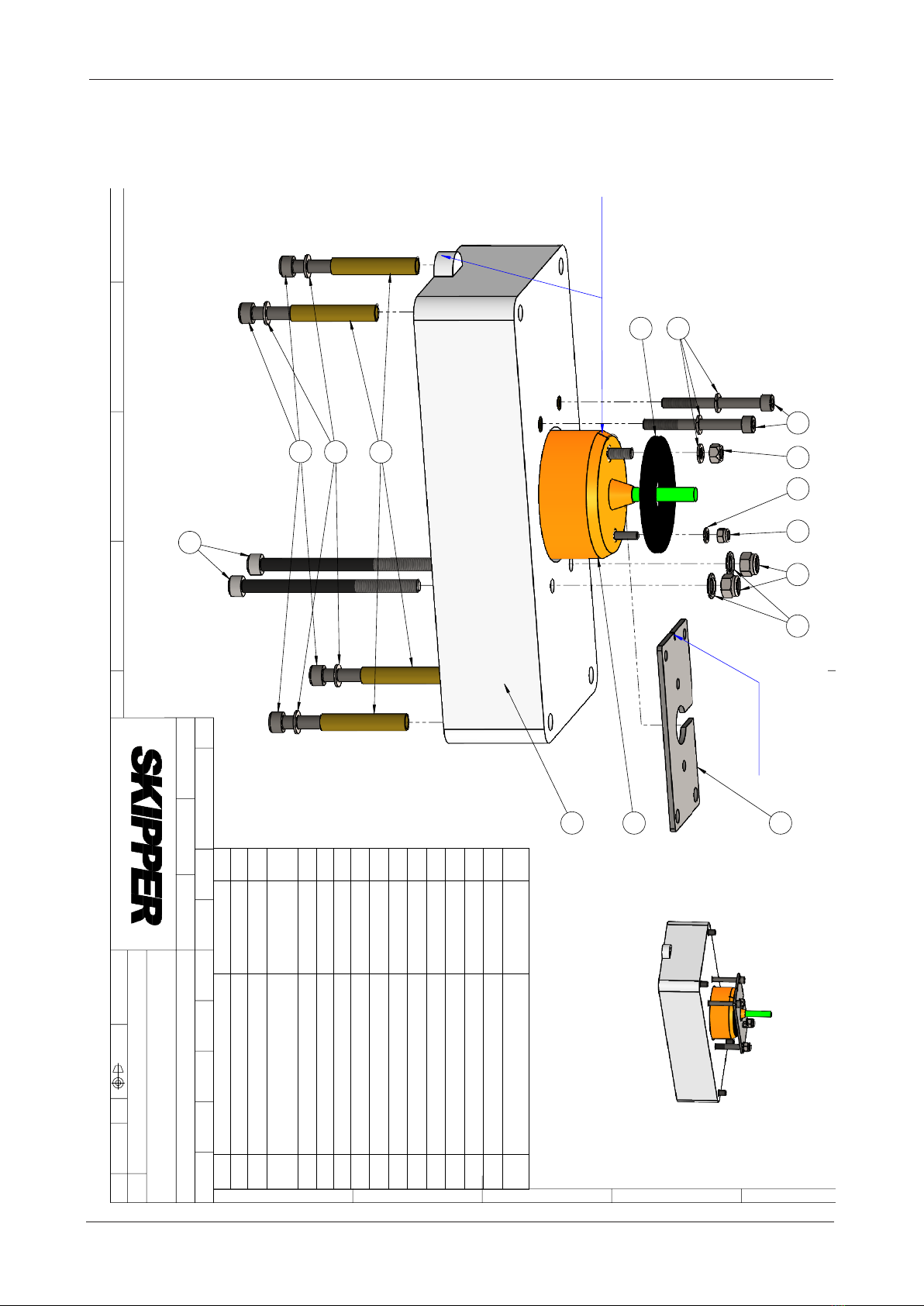

• KIT-DOLOG-M1-SA Kit DOLOG 2X

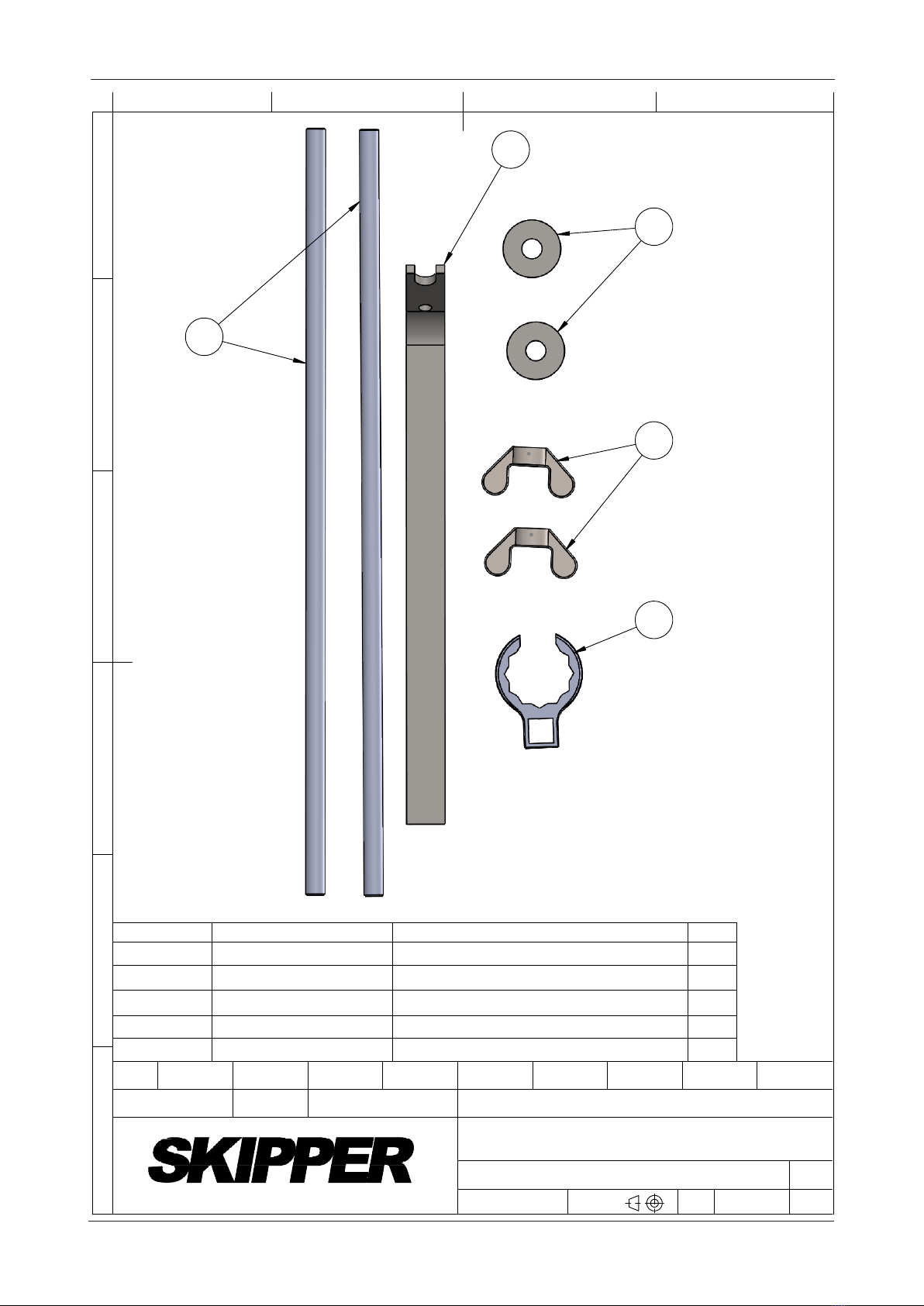

• KIT-DOLOG-T1-SA. Kit Mounting tools DOLOG 2X
TABLE OF CONTENTS
Introduction 2

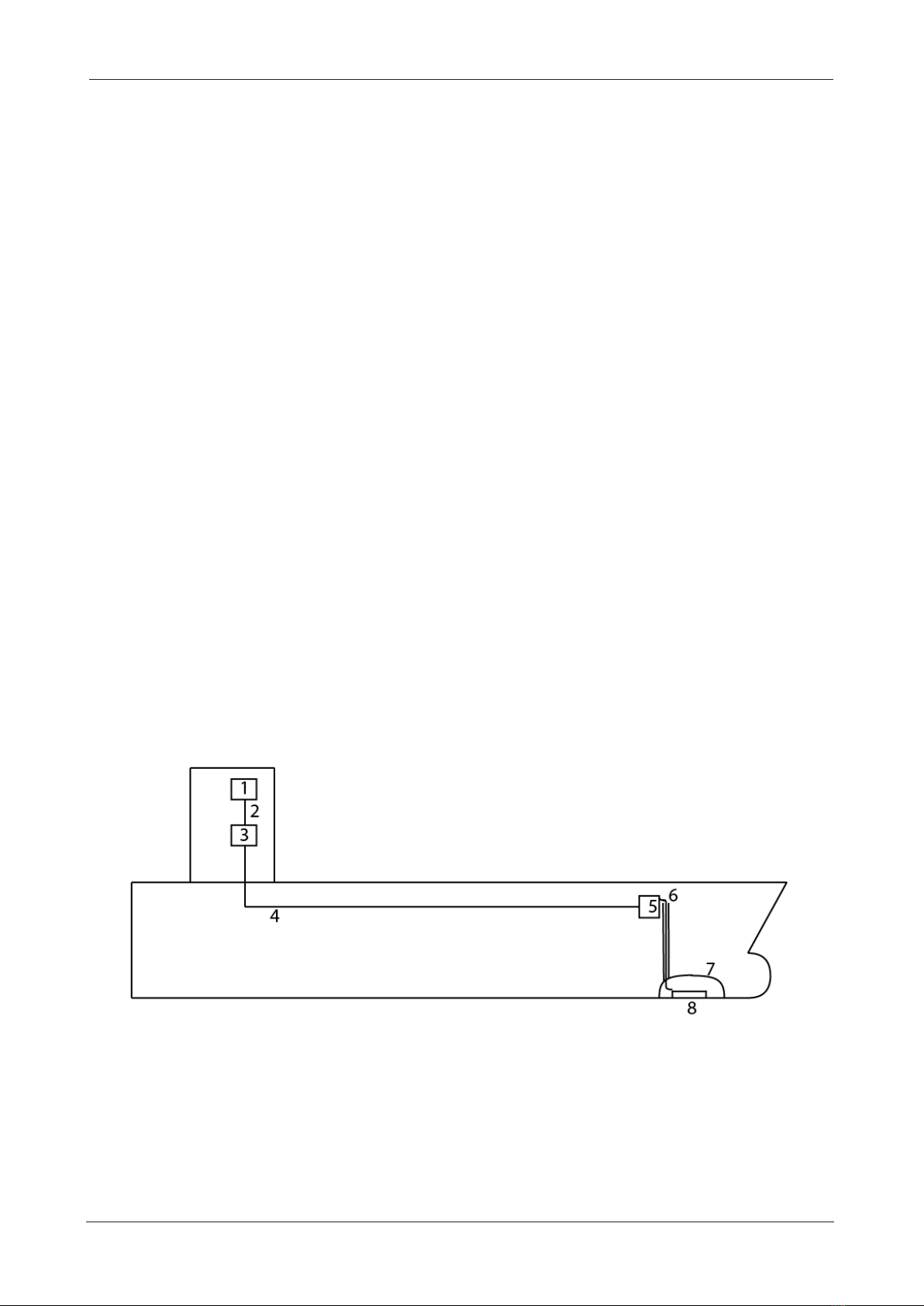

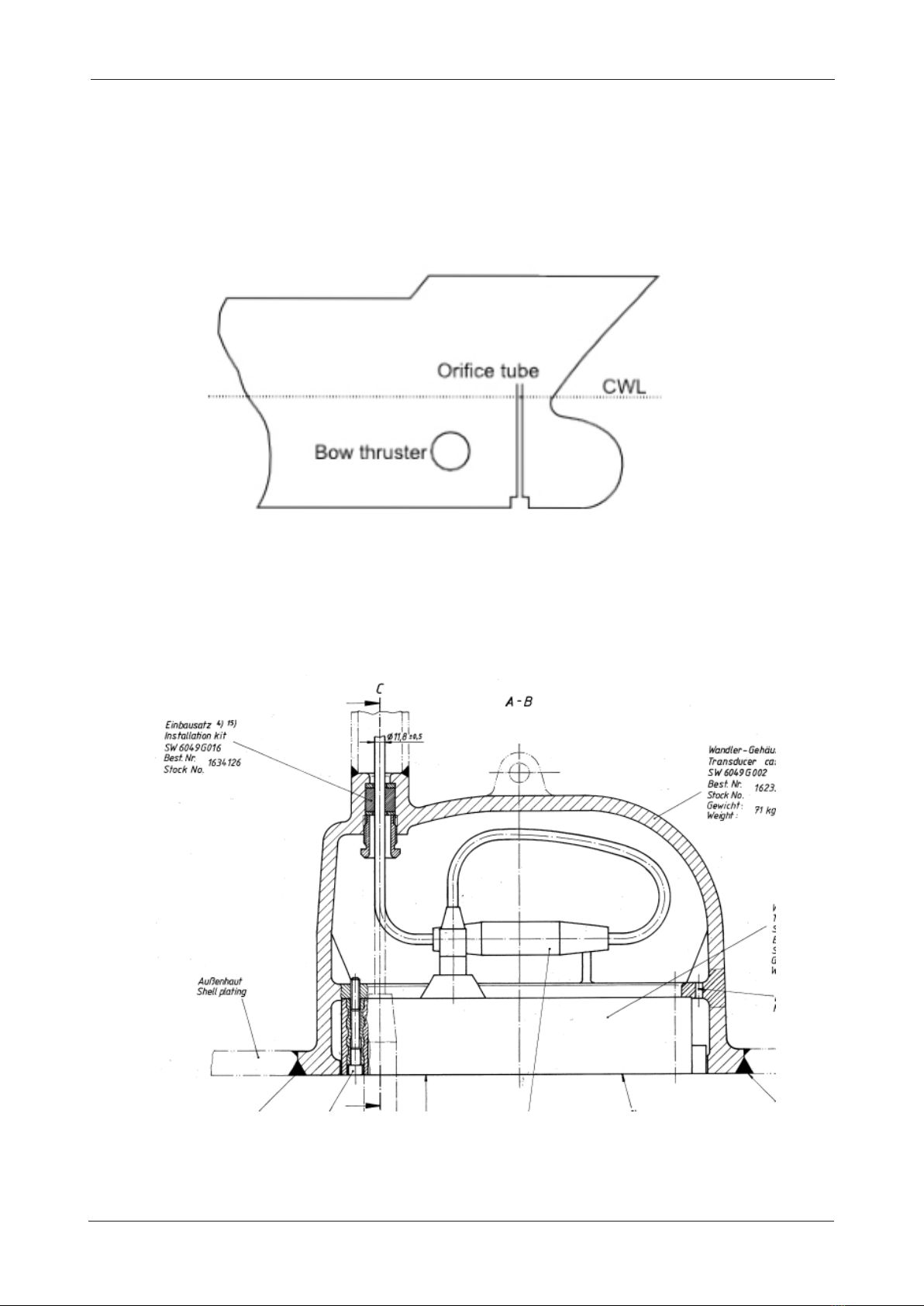

Prepare speed log replacement 3
Installing sensor adaptor kit 5
Remove old dolog sensor 6
Prepare sensor for installation 7

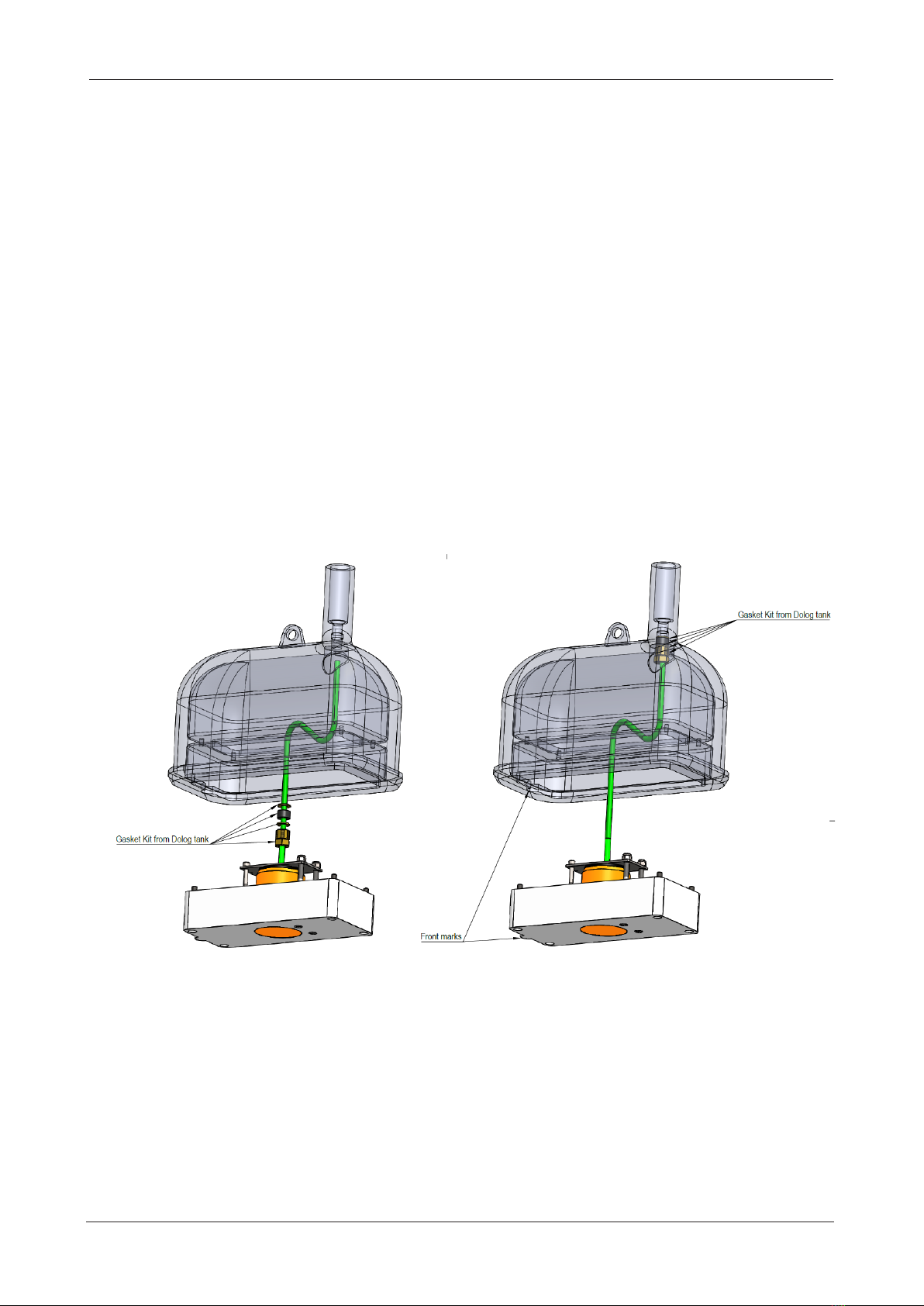

Install sensor into dolog tank 8
Connect sensor cable 9
