Slerj SSR-1 Bedienungsanleitung

SSR-1 User’s Manual

Revision E

27 Feb 2018

SSR-1 User’s Manual

Rev E, 27 Feb 2018

CONTENTS

1Introduction ............................................................................................................................. 4

1.1 Description....................................................................................................................... 4

1.2 Features ............................................................................................................................ 4

2Getting Started......................................................................................................................... 4

2.1 Package Contents ............................................................................................................. 4

2.2 The SSR-1 Hardware ....................................................................................................... 5

2.3 Connecting the SSR-1...................................................................................................... 6

2.4 Using the SSR-1............................................................................................................... 9

3Functional Overview ............................................................................................................. 10

3.1 Serial Channels............................................................................................................... 10

3.2 Record Function............................................................................................................. 10

3.3 User Interface Module.................................................................................................... 14

3.4 Real-Time Clock............................................................................................................ 14

3.5 Digital I/O ...................................................................................................................... 14

4Interactive Shell..................................................................................................................... 15

4.1 System Commands......................................................................................................... 16

4.2 File Commands .............................................................................................................. 16

4.3 Device Configuration..................................................................................................... 17

4.4 Capturing the Shell......................................................................................................... 18

5Control Protocol .................................................................................................................... 20

5.1 Message Format ............................................................................................................. 20

5.2 General Messages........................................................................................................... 21

5.3 Configuration Messages................................................................................................. 31

5.4 Error Codes .................................................................................................................... 53

6Time Tagged Archives .......................................................................................................... 54

6.1 Data Packet..................................................................................................................... 54

6.2 Time Correlation Packet................................................................................................. 55

6.3 The STTP Utility............................................................................................................ 56

7Specifications......................................................................................................................... 58

7.1 Electrical......................................................................................................................... 58

7.2 Mechanical..................................................................................................................... 59

8Revision History.................................................................................................................... 60

SSR-1 User’s Manual

Rev E, 27 Feb 2018

Reproduction in whole or in part is prohibited without the prior written consent of the copyright

owner. The information presented in this document does not form part of any quotation or

contract, is believed to be accurate and reliable and may be changed without notice. No liability

will be accepted by the publisher for any consequence of its use. Publication thereof does not

convey nor imply any license under patent or other industrial or intellectual property rights. Slerj

assumes no responsibility or liability whatsoever for any failure or unexpected operation

resulting from misuse, neglect, improper installation, repair, improper handling, or unusual

physical or electrical stress including, but not limited to, exposure to parameters beyond the

specified maximum ratings or operation outside the specified range.

All brands and product names in this publication are registered trademarks or trademarks of their

respective holders.

SlerjTM is a trademark of Slerj, LLC.

Warranty

The SSR-1 Serial Data Recorder is warranted against defects in materials and manufacturing for

a period of one year from the date of purchase. In the event of a product failure due to materials

or workmanship, Slerj will, at its discretion, repair or replace the product. For warranty service,

return the defective produce to Slerj, shipping prepaid, for prompt repair or replacement. Slerj,

its suppliers, and its licensors shall in no event be liable for any damages arising from the use of

or inability to use this product. This includes business interruption, loss of business information,

or other loss which may arise from the use of this product.

SLERJ PRODUCTS ARE NOT DESIGNED, INTENDED, AUTHORIZED OR WARRANTED

TO BE SUITABLE FOR USE IN LIFE-SUPPORT APPLICATIONS, DEVICES OR

SYSTEMS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF SLERJ PRODUCTS

IN SUCH APPLICATIONS IS UNDERSTOOD TO BE UNDERTAKEN SOLELY AT THE

CUSTOMER’S OWN RISK. Should a customer purchase or use Slerj products for any such

unauthorized application, the customer shall indemnify and hold Slerj and its officers,

employees, subsidiaries, affiliates, and distributors harmless against all claims, costs damages

and attorney fees which could arise.

SSR-1 User’s Manual

Rev E, 27 Feb 2018

1Introduction

1.1 Description

The SSR-1 is a flexible and robust serial data recording device that takes care of the details of

storing data so that you can focus on your application. Up to three streams of serial data can be

recorded simultaneously, and each channel is configurable with a variety of serial and storage

options. Streams can be recorded automatically at power up, on command through a digital or

PWM input, or using software commands.

1.2 Features

Simultaneously records three asynchronous serial channels

Two RS-232 channels and one 5V TTL compatible channel

(Version available with 3.3V CMOS channels instead of RS-232. Contact us for details.)

Up to 230.4k baud recording on all channels

(A high-speed version is available supporting 921.6k baud recording on all channels)

Wide supply voltage (4.5 to 32VDC)

Small size: 1.65 x 1.23 x 0.45 inches (42 x 32 x 12 mm)

Supports MicroSD and MicroSDHC cards

FAT12, FAT16, and FAT32 file system support

Long File Name support

Support for raw and time-tagged recording

Battery backed real time clock powered by an onboard button cell battery

Flexible record control: digital input, PWM input, software controlled, or automatic

User shell for configuration and file system operations

Binary control protocol for machine automation

Flexible recording modes (overwrite/append, user defined path and file names, etc.)

2Getting Started

2.1 Package Contents

The Serial Recorder is packaged with:

The SSR-1 Serial Recorder

Mating connector (Molex 87568-2093) with 9 inch ribbon cable

Lithium button cell battery (U.S. shipments only)

A FAT32 formatted MicroSD card with

oSSR-1 Users Guide,

oputtytel terminal emulator,

osttp time tagged archive parser with source code, and

oan example Windows® control protocol utility with source code.

SSR-1 User’s Manual

Rev E, 27 Feb 2018

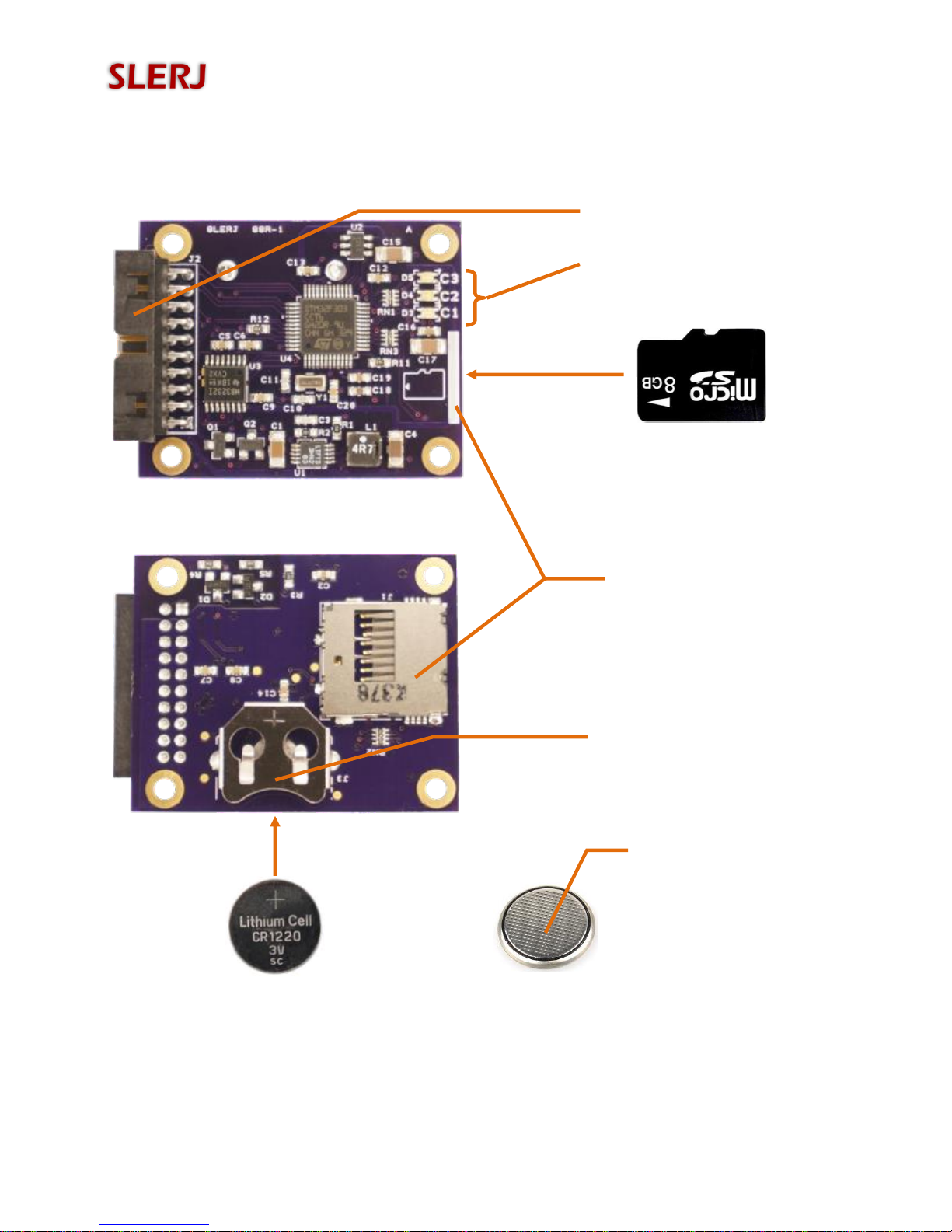

2.2 The SSR-1 Hardware

Figure 1. Top View

Figure 2. Bottom View

Main Connector

MicroSD Card Slot

(push-push type connector)

Channel Status

LEDs

Coin Battery Holder

Insert battery

as shown.

This is the negative side of

the battery. It must make

contact with the printed

circuit board.

Insert card as

shown in slot

beneath board.

SSR-1 User’s Manual

Rev E, 27 Feb 2018

WARNING: Improper removal of the backup battery can damage the SSR-1. To

remove the battery, use a blunt stick to push the battery out of the holder.

DO NOT PRY OR PULL THE BATTERY.

CAUTION: Like most electronic components, the SSR-1 can be damaged by

electrostatic discharge. Observe typical precautions for handling electrostatic

discharge sensitive devices.

2.3 Part Numbers

SSR-1 part numbers follow the following form:

SR1__T_

The standard configuration is SR122T.

H –high-speed variant support 921.6k baud recording

22 –channels 1 and 2 are RS-232

CC –channels 1 and 2 are 3.3V CMOS (not 5V tolerant)

(Unless otherwise noted, all specifications and notes in this document apply

to the 22 version. Contact us for questions on the CC version.)

SSR-1 User’s Manual

Rev E, 27 Feb 2018

2.4 Connecting the SSR-1

The pins of the main connector are shown in Figure 3 and described in Table 1. The default

configuration of the SSR-1 provides access to the user shell (see Section 4 Interactive Shell, for

details) on channel 1 and causes channels 2 and 3 to record when the digital input command pin

(DI, pin 15) is pulled to ground. All channels default to 115200 baud, 8 data bits, no parity, and

1 stop bit.

WARNING: Channels 1 and 2 are RS-232 voltage level compatible, and channel 3

is 5 Volt tolerant, TTL compatible, 3.3V CMOS. Do not connect an RS-232 device

to channel 3 of the SSR-1.

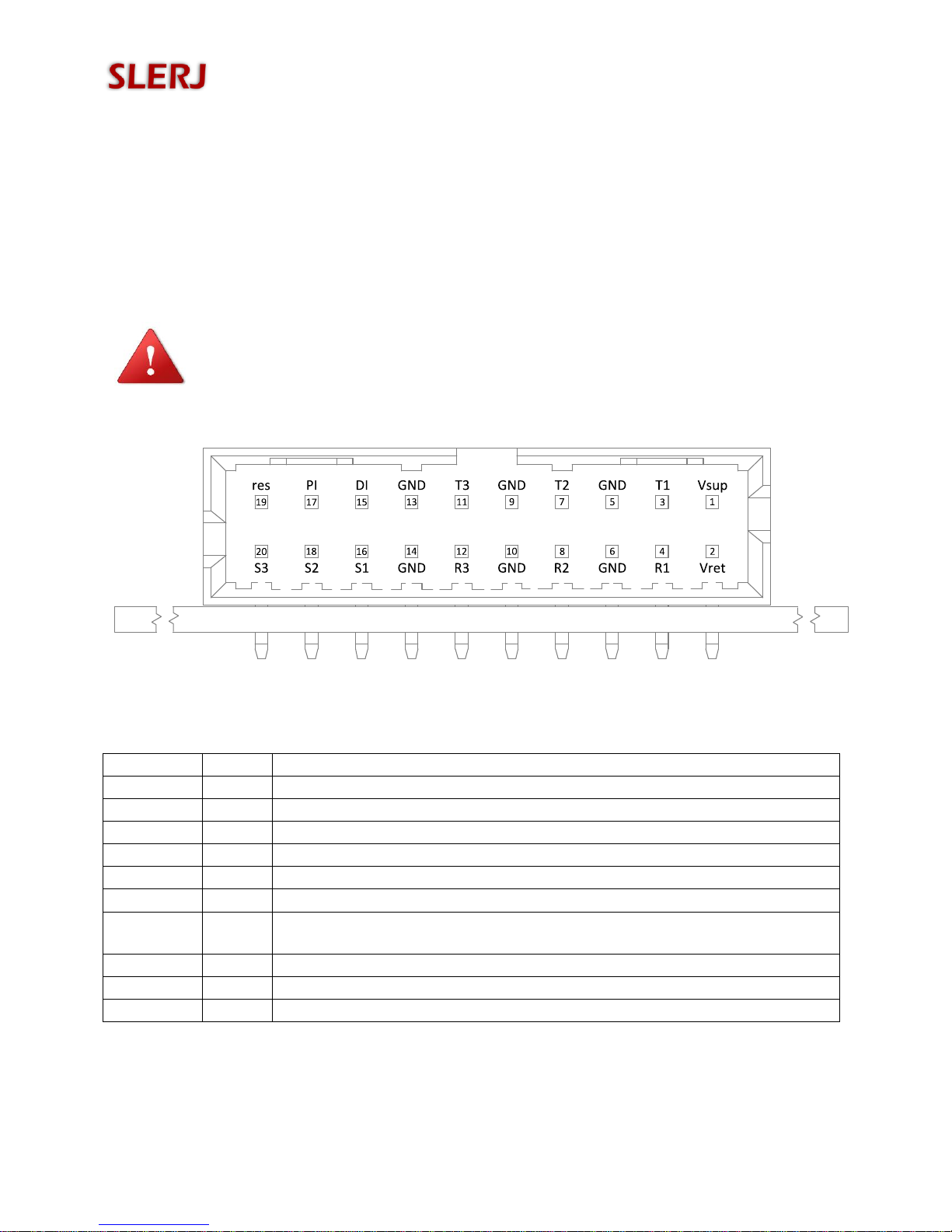

Figure 3. Main Connector (View looking into the face of the connector)

Table 1. Main Connector Pins

Pin 1

Description

Vsup

Supply voltage (4.5-32 VDC).

Vret

Supply return (tied to GND onboard the SSR-1).

3,7 2

T1,T2

Asynchronous serial transmitter output for channels 1 and 2.

4,8 2

R1,R2

Asynchronous serial receiver input for channels 1 and 2.

11 3

Asynchronous serial transmitter output for channel 3.

12 4

Asynchronous serial receiver input for channel 3.

16,18,20 3

Status indication for channel x. High level indicates that the channel is

recording.

15 4

Digital input record command.

17 4

PWM input record command.

19 4

res

Reserved.

1See Section 7.2 Electrical for detailed electrical specifications.

2RS-232 compatible.

33.3V CMOS output

45V tolerant, TTL compatible, 3.3V CMOS input. Internally pulled up to 3.3 VDC.

SSR-1 User’s Manual

Rev E, 27 Feb 2018

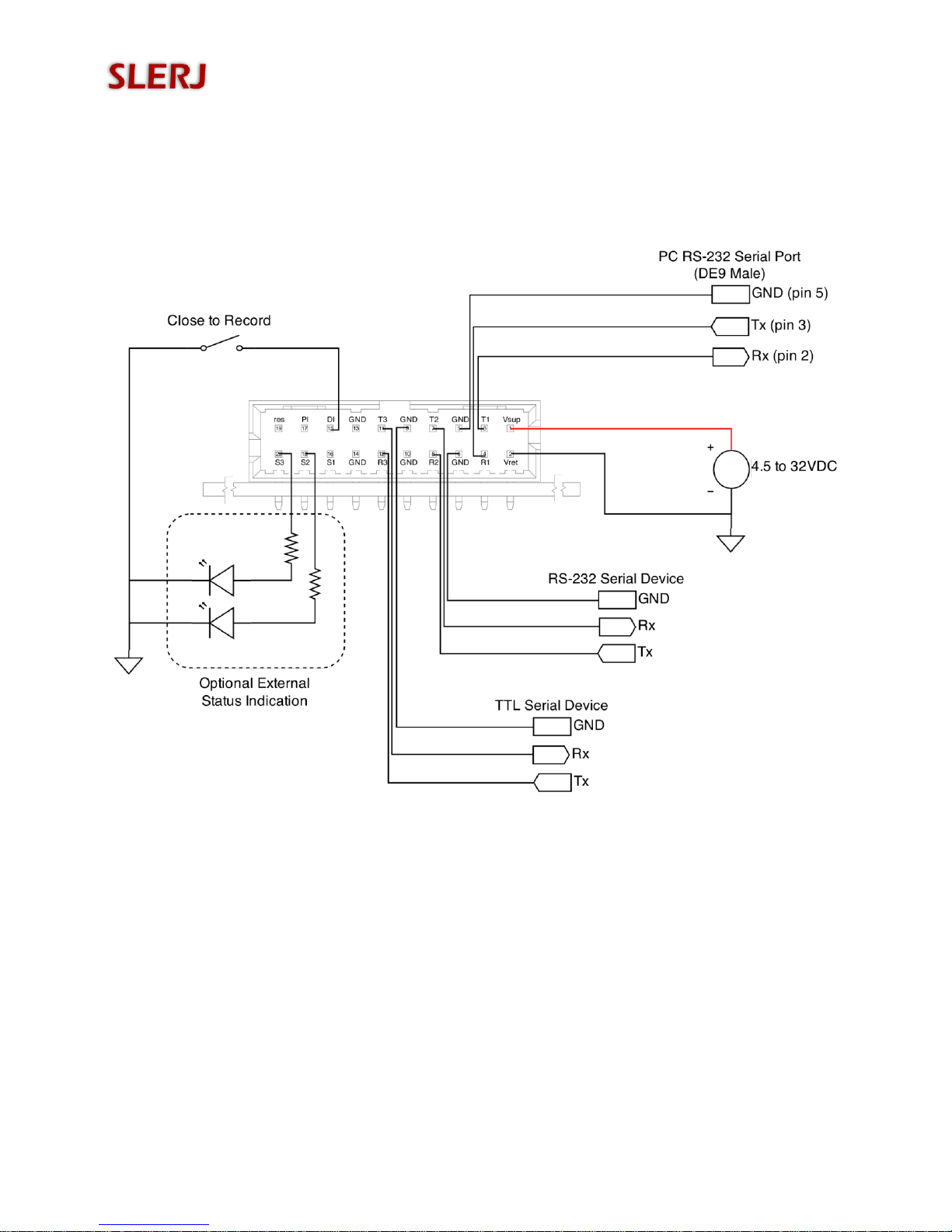

Wiring for a typical application is shown in Figure 4. The default SSR-1 configuration is

assumed. In the figure, channel 1 is connected to a standard PC serial port for shell access,

allowing configuration and file system operations via a terminal application on the PC. Channel

2 records data from an RS-232 device and channel 3 records data from a TTL compatible device

when the Close to Record switch is closed.

Figure 4. Typical application wiring using the default SSR-1 configuration

SSR-1 User’s Manual

Rev E, 27 Feb 2018

2.5 Using the SSR-1

The SSR-1 is shipped in default configuration, which sets all channels to 115200 baud, 8 data

bits, no parity, and 1 stop bit. Channels 2 and 3 are configured to record when DI is pulled low.

Channel 1 is configured to present the user shell.

On power up, the SSR-1 displays a boot loader announcement and device details. If a channel is

attached to the user shell, it will present the user shell prompt. A typical power-on sequence

would produce output similar to:

Details of the shell interface are provided in Section 4 Interactive Shell. As an example of shell

usage, consider changing the command source for channel 3 to +dig so that the device records

when the DI pin is high. In the following sequence, <enter> means pressing the Enter/Return

key to execute the command in the shell. With the SSR-1 shell connected to a terminal program,

type

config <enter>

to show the current SSR-1 configuration.

To change the command source for channel 3 to +dig, type

config 3 src +dig <enter>

Verify that the configuration has been changed using:

config 3 <enter>

To save the modified configuration in on-board non-volatile memory so that it is preserved

across power cycles, type:

config save <enter>

To confirm that the configuration has been saved, reboot the SSR-1 and verify configuration

using:

reset <enter>

config <enter>

Note that ‘cfg’ is an alias for ‘config’ and can be used as a shortcut.

Slerj Boot Loader v1.0.0

MK:Slerj

HW:SSR1

MG:1608747

MD:SSR-1

SN:1

MV:22T

SSR-1 Shell [Firmware 1.2.1]

SSR-1 User’s Manual

Rev E, 27 Feb 2018

3Functional Overview

The SSR-1 consists of three asynchronous serial channels, a data recording subsystem, a user

interface module, a real-time clock, and digital input/output for status and control.

3.1 Serial Channels

The behavior of each serial channel is independent and is defined by a number of configurable

parameters, which can be changed using the interactive shell or the control protocol, documented

in Sections 4 and 5, respectively. Those parameters are:

Baud rate –600 to 230400 baud, inclusive

Parity –Even, odd, or none

Stop –1, 1.5 or 2 stop bits.

Echo –(Boolean) Echoes received characters out through the transmitter.

Function

odisabled –The channel is not used.

orecord –The channel will record received data when commanded.

oshell –The channel will be tied to the interactive user shell function of the user

interface module.

ocontrol –The channel will be tied to the control protocol function of the user

interface module.

Note that the user interface module can be attached only to a single channel. If one of the

channels is assigned to either the SHELL or CONTROL functions, no other channel may be

assigned to SHELL or CONTROL.

3.2 Record Function

In addition to the basic serial channel parameters above, when a channel is assigned to the

RECORD function, several other configurable parameters apply:

Command Source

Command Source determines how the channel is commanded to record. Options include

a discrete digital signal, a PWM signal, or software controlled through the user interface

module (shell or control protocol). Command Source for a channel can be set to one of

the following:

o-soft –The channel records when the Soft Command parameter (defined in the

next major bullet) is true. With -soft, Soft Command is set to false at startup, and

the DI and PI pins are ignored.

o+soft –The channel records when the Soft Command parameter is true.

With +soft, Soft Command is set to true at startup, and the DI and PI pins are

ignored. This selection for Command Source causes the channel to automatically

record at startup.

Inhaltsverzeichnis

Beliebte Andere Handbücher anderer Marken

GO Industries

GO Industries 38017 Bedienungsanleitung

Cissell

Cissell 30LBCMAN2 Bedienungsanleitung

RIDGID

RIDGID K-60SP Bedienungsanleitung

Gage Bilt

Gage Bilt GB751SH-5 Bedienungsanleitung

OVE

OVE SIERRA 60 Bedienungsanleitung

ReelCraft

ReelCraft 7800 OLB21 Bedienungsanleitung

Body Armor 4x4

Body Armor 4x4 ECO-SERIES Bedienungsanleitung

ROBLIN

ROBLIN DROP Benutzerhandbuch

EMG

EMG EMG-ACB BARREL Service-Handbuch

MiniSolar

MiniSolar MT-150 Bedienungsanleitung

Parkside

Parkside PSZ 250 B2 Bedienungsanleitung

ABB

ABB REM 610 Produkthandbuch

Parkside

Parkside 55992 Betriebsanleitung

Skyjacker

Skyjacker F250 Bedienungsanleitung

IBM

IBM IBM SYSTEM Z Installationsanleitung

Grech Motors

Grech Motors G28 Bedienungsanleitung

NOVAK

NOVAK BATTERY CARE SHEET Leitfaden

Telemotive

Telemotive blue PiraT Mini Benutzerhandbuch
