SMITH SYSTEM 56000E Bedienungsanleitung

Document #: 179688

REVISED: 10/2020

Assembly Instructions

Flowform Pedestal Table

If you have damaged or missing components,

please contact customer service at 1-800-328-1061

Document #: 179688

REVISED: 10/2020

Hardware and Components

PEDESTAL TOP MOUNT

(PN: 60014)

QTY. 2

PEDESTAL BASE

(PN: 60014)

QTY. 1

PEDESTAL FELT

(PN: 60016)

QTY. 1

#10 X 5/8”FLAT-HEAD

WOOD SCREW

QTY. 6

PEDESTAL TOP

(PN: 70017)

QTY. 1

PEDESTAL COLUMN

(PN: 60015)

QTY. 1

1/8”ALLEN WRENCH

QTY. 1

5/16”-18 X 3/4”FLAT-HEAD

BOLT

QTY. 2

#10-32 X 1/2”FLAT-HEAD

BOLT

QTY. 4

Document #: 179688

REVISED: 10/2020

Special Notes:

•TOOLS REQUIRED:

•Drill w/#2 Phillips driver bit, or #2 Phillips head screwdriver.

•OPTIONAL TOOLS:

•Drill w/#3 Phillips driver bit, or #3 Phillips head screwdriver.

•Check that all components are accounted for and undamaged before assembling.

•Please assemble the product in a clean and dry area.

•Clean the product with a mild cleaner and a damp cloth.

Document #: 179688

REVISED: 10/2020

Assembly Instructions

1. Place column standing up on a clean smooth surface that will not harm the paint finish.

The column should be in this position.

2. Position the top mount plate onto the top of the column as shown, lining up the three

screw holes. First, install the 5/16”-18 x 3/4” Flat-Head Bolt into the top mount plate

and the top of the column, but do not fully tighten it yet. Then install the two #10-32 x

1/2” Flat-Head Bolts from the underside of the column to the top mount plate. Now

tighten all bolts to secure the top mount plate.

BOTTOM

(ON FLOOR)

TOP

Document #: 179688

REVISED: 10/2020

3. Flip the column over so that it is resting on the top mount plate.

4. OPTIONAL: Place base with bottom side facing up (this side has a large hole with

countersink for the 5/16”-18 x 3/4” Flat-Head Bolt. Peel off paper backing to felt and

attach the felt to the bottom side of the base. Felt should have an 1/8” gap from the edge

of the base all the way around.

Helpful Hint: Peel off part of the backing of felt at the triangular piece and stick to base.

Pull off the backing on one side completely and attach it to the base carefully. Then do

the same on the other side.

Helpful Hint: Do this step if you will be using the table on a hard surface such as wood

flooring. The felt is not recommended to be used on carpet.

Document #: 179688

REVISED: 10/2020

5. Position the base onto the bottom of the column as shown, lining up the three screw

holes. First, install the 5/16”-18 x 3/4” Flat-Head Bolt into the base and the bottom of the

column, but do not fully tighten it yet. Then install the two #10-32 x 1/2” Flat-Head Bolts

from the underside of the column to the base. Now tighten all bolts to secure the base.

6. Place wood top on clean smooth surface upside down with the pilot holes facing up.

Place top mount plate on top and line up the holes. Install #10 x 5/8” Flat-Head Wood

Screws through the top mount plate into the wood top.

Document #: 179688

REVISED: 10/2020

7. Flip table over.

ASSEMBLY COMPLETE

Inhaltsverzeichnis

Andere SMITH SYSTEM Inneneinrichtung Handbücher

SMITH SYSTEM

SMITH SYSTEM Flex Trapezoid 01340 Bedienungsanleitung

SMITH SYSTEM

SMITH SYSTEM Graphic Arts Table 27344 Bedienungsanleitung

SMITH SYSTEM

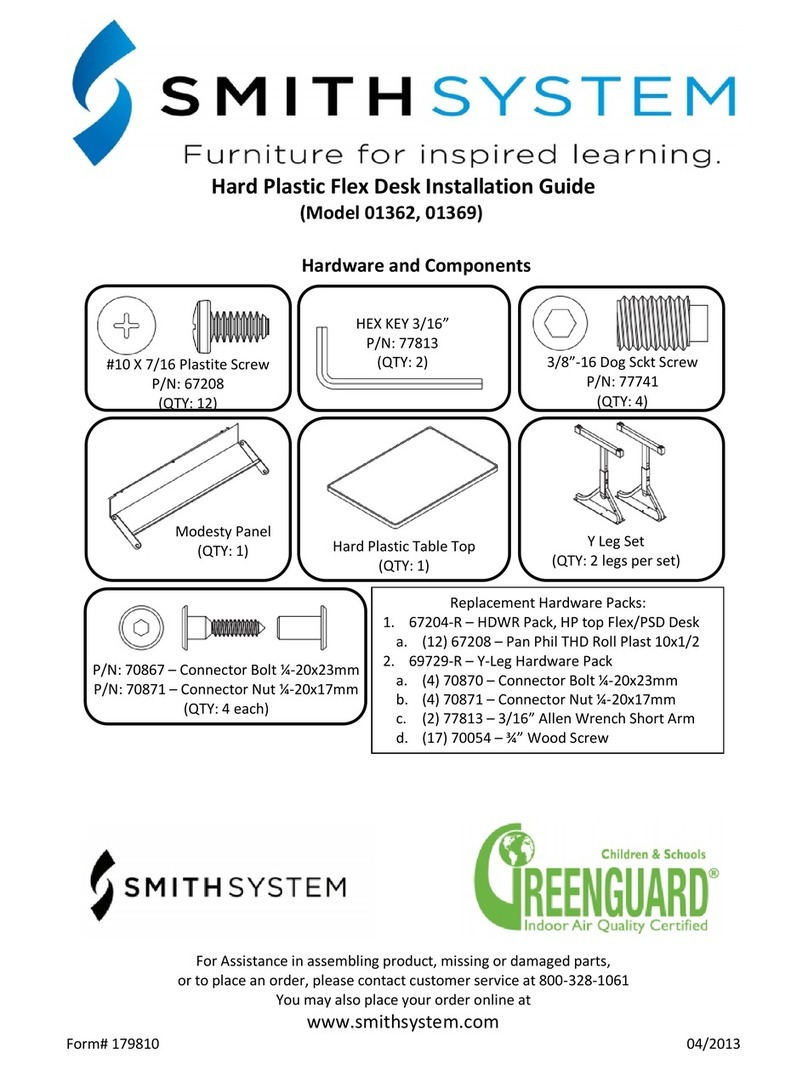

SMITH SYSTEM 01362 Bedienungsanleitung
