mportant information - safety
General information
ead this installation guide and the safety instructions carefully
before installing this Somfy product. All the instructions given
must be followed closely and this guide must be stored in a
safe place throughout the service life of your product.
These instructions describe how to install and commission this
product.
Any installation or use outside the field of application specified
by Somfy is forbidden.
This invalidates the warranty and discharges Somfy of all
liability, as does any failure to comply with the instructions
given herein.
Somfy cannot be held responsible for any changes in
standards which come into effect a>er the publication of these
instructions.
General safety instructions
• This product is not designed to be used by persons (including
children) whose physical, sensory or mental capacity is
impaired, or persons with little experience or knowledge, unless
they are under supervision or have received instructions on
using this product by a person responsible for their safety.
• Do not let children play with this product.
• Do not immerse the product in liquid.
• Do not drop, drill or dismantle this equipment, as this will
invalidate the warranty.
• Do not expose this equipment to high temperatures or leave it
in direct sunlight.
15
Copyright © 2016 Somfy SAS. All rights reserved.
ntroduction
Congratulations on your purchase of the new Somfy opening
sensor.
Connected to TaHoma or Connexoon, this sensor lets you know if
your door or window is properly closed, wherever you are.
The sensor will also warn you in the event of any intrusion.
If used with TaHoma, you can also make used of the advanced
functions. For example, if you have a heating system that is
compatible with TaHoma, if your sensor detects an open window,
you can set the system to switch your heating on in freeze-
protection mode to avoid high energy use.
Contents
* 3 pre-glued bases.
3 replacements.
Description Qty
Opening and impact sensor 1
C 123 battery 1
Adhesive strips 6*
16 Copyright © 2016 Somfy SAS. All rights reserved.

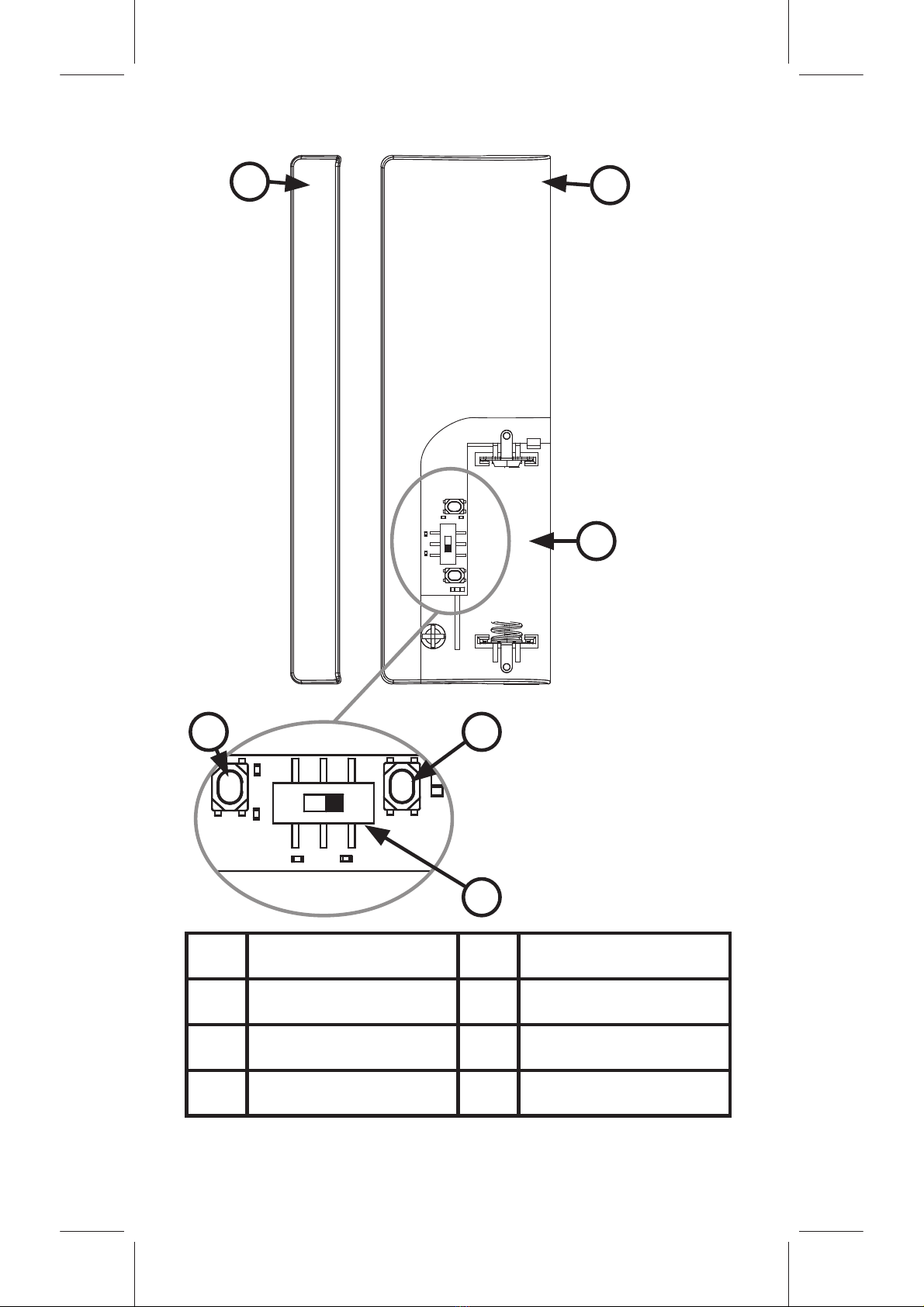

C P
Description Description
1 Unit 4 Calibration button
2 Magnet 5 Programming button
3 Battery housing 6 Mode selector switch
C P
1
2
3
4
6
5
17
Copyright © 2016 Somfy SAS. All rights reserved.
Fitting the battery
To open the unit, press on the grey section located on the side of
the opening and impact sensor unit to unclip the front of the case.
Insert the battery the correct way ("+" side on the "+" side and "-"
side on the "-" side).
Do not replace the front of the case before adding the
opening and impact sensor to the TaHoma system and
configuring it.
18 Copyright © 2016 Somfy SAS. All rights reserved.
Adding to TaHoma / Connexoon system
TaHoma
On the TaHoma interface, select the tab.
- Select the Configuration tab.
- Select the "IO" tab, then select "Add".
- Follow the procedure shown on the screen.
- AFTE finishing the pairing, the green indicator light will
switch off.
Connexoon
To add the opening and impact sensor to a Connexoon Box, the
two devices need to be paired.
Press the P OG button on the opening and impact sensor
and hold for 2 seconds.
Press the P OG button on the Connexoon Box and hold for
0.5 seconds.
The opening and impact sensor has now been added to the
Connexoon Box.
Do not replace the front of the case before configuring
the opening and impact sensor.
P
19
Copyright © 2016 Somfy SAS. All rights reserved.
2 cm Max
nstallation
There are 2 options for installing your opening and impact sensor
depending on the configuration of your door/window.
Unit on the moving part and the magnet on the
frame of the door or window.
This enables opening detection if you have a
TaHoma Box or a Connexoon Box, and opening and
impact detection if you have a TaHoma Box with
the TaHoma security extension.
Installing the opposite way round from method A,
depending on the configuration on your door/
window.
This enables opening detection if you have a
TaHoma Box or a Connexoon Box.
In the case of a type A or B installation,
the two parts (unit and magnet) must be in
alignment, with a maximum space of 3cm
between the two elements.
If, during installation, you find
there is vertical offset between
the unit and the magnet, this
should not exceed 2cm.
A
B
20 Copyright © 2016 Somfy SAS. All rights reserved.
Mounting
Easy installation using adhesive strips
• Clean the surface where the unit and the magnet will be
mounted.
• Affix the elements following the chosen installation method
(A or B).
Mounting with screws
• Press on the upper section of the
unit and magnet to unclip the front
panel.
• Place the back panel (of the unit or
magnet) into the chosen position and
the screw holes with a pencil.
• Use fixing screws (3mm diameter
and 19mm in length) and suitable
plugs (3mm diameter and 25mm in
length) to fix the opening and impact
sensor to the surface.
• Firmly secure the back section
of the opening and impact sensor
in place.
Configuration
To use the opening and impact sensor in the various settings
previously mentioned, use the following configurations.
21
Copyright © 2016 Somfy SAS. All rights reserved.
C P

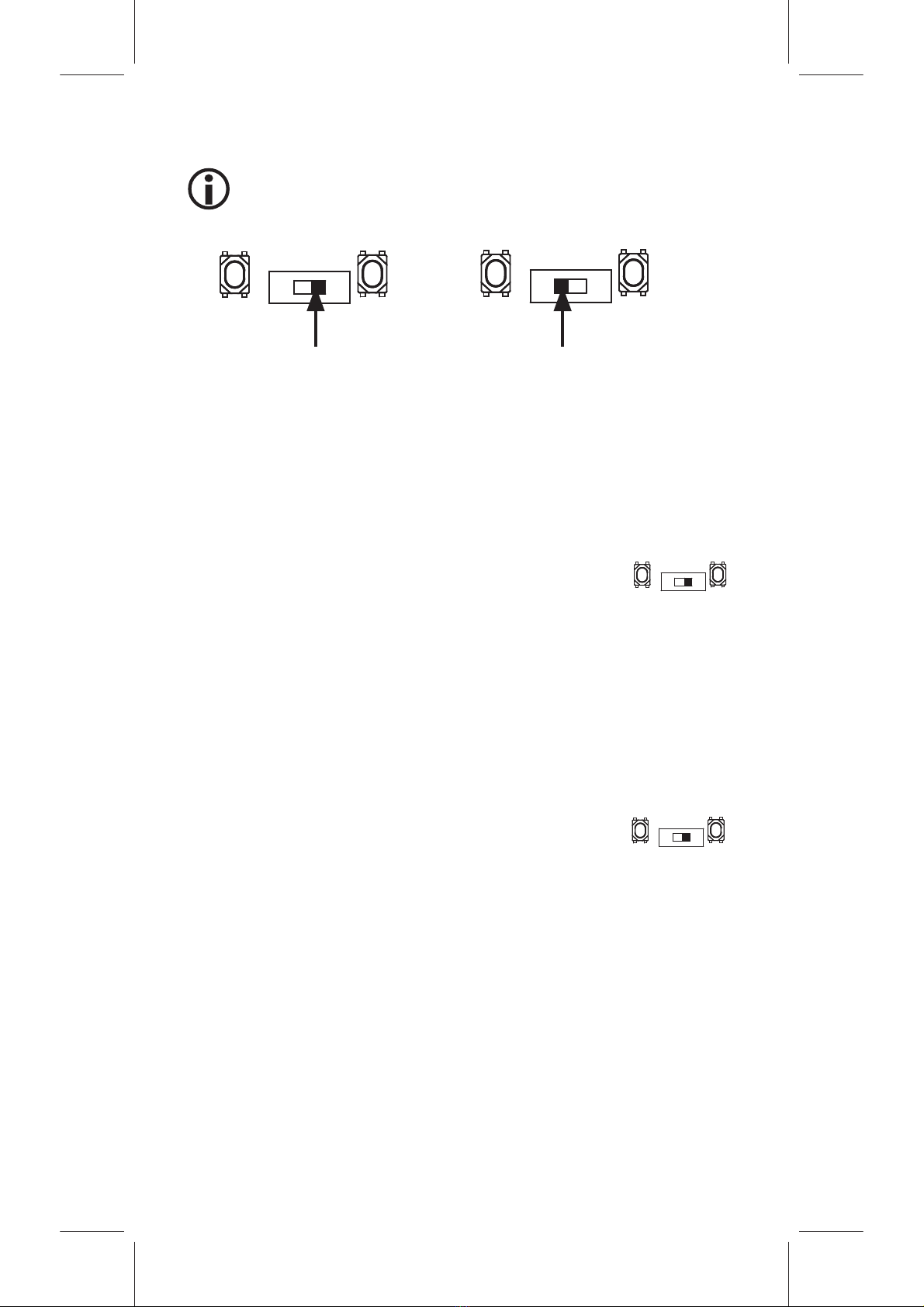

Activation / Deactivation of magnet
The mode selector indicates the activation/deactivation of
the magnet.
• Opening detection
Used to detect intrusions into your home.
In the case of a type A or B installation, set the
mode selector to the "Magnet activated" position
(default position).
Close the cover.
The opening and impact sensor is now operational.
• Opening and impact detection
For detecting intrusion attempts and intrusions into your home.
Set the mode selector to the “Magnet activated”
position (default position), the proceed to the
impact “learning” mode (see p22).
This step enables the unit to recognise intrusion attempts.
C P C P
Magnet activated
(Default position)
Magnet deactivated
C P
22 Copyright © 2016 Somfy SAS. All rights reserved.
Opening and impact "learning" mode
This enables the opening and impact sensor to recognise:
- an intrusion attempt: impact "learning"
This is accomplished through the following 3 steps (closed
window):
1) Press the calibration button (C) and hold for 3 seconds.
2) The red indicator light will light up for 10 seconds: close the
unit cover whilst the light is on.
3) The red indicator light will blink rapidly: this is the learning
step.
- Impact "learning": force/shake the door/window to simulate
an intrusion attempt.
If there is an error, the red indicator light will blink twice
every five seconds.
Carry out an intrusion or intrusion attempt test once this
stage is finished to check that the opening and impact
sensor is functioning correctly.
C
C P
23
Copyright © 2016 Somfy SAS. All rights reserved.
Resetting the opening and impact sensor
To delete the opening and impact sensor from the TaHoma,
unclip the front panel of the unit, and press the programming
button (P) for 10 seconds, the indicator light will switch on then
switch off.
To reset the opening and impact sensor settings, unclip the front
panel of the unit and press the calibration (C) button for
10 seconds, the indicator lighting will switch on then switch off.
Somfy hereby declares that this product is in
compliance with the requirements of Directive
2014/53/EU. The full text of the Declaration of
Conformity is available at www.somfy.com/ce.
Recycling
Do not dispose of this product with the household
waste. Please take it to a collection point or an
approved centre to ensure it is recycled correctly.
Ensure batteries are separated from other types
of waste and are recycled via your local recycling
centre.
The images contained in this booklet are for illustrative
purposes only.
