Sunis Outdoor WireFree™RTS Sun Sensor

Introduction

Part Number:

9020412

The Sunis Outdoor WireFree™ RTS Sun Sensor provides control of your RTS motorized

awnings, pergolas, exterior screens and rolling shutters based on current sun light levels.

The precise sun level can easily be selected with 8 possible levels of light sensitivity.

Note: The sun function can be enabled/disabled via a Somfy Soliris RTS transmitter.

A transmitter must be provided with each installation to enable/disable the sun function.

Sensor Cover

Alignment

Arrows

Included:

A. Sunis RTS sensor with built

in mounting base

B. 2 AA alkaline batteries

C. 2 mounting screws

Programming

Button (PROG)

Inside Cover

Green LED

Level 5-8

Red LED

Level 1-4

+ Sun

Level

- Sun

Level

Red Battery

LED

Green Battery

LED

Battery

Tray

C.B.

Continued On Next Page

Battery Installation

Note: The Sunis Outdoor WireFree™ RTS

Sun Sensor must be mounted to an

outside vertical wall. The mounting

location is critical (Fig. 3). Mount the

Sunis facing the direction the

window covering protects from the sun.

Ensure it is clear from obstruction that

could shade the covering during the day.

Continued On Next Page

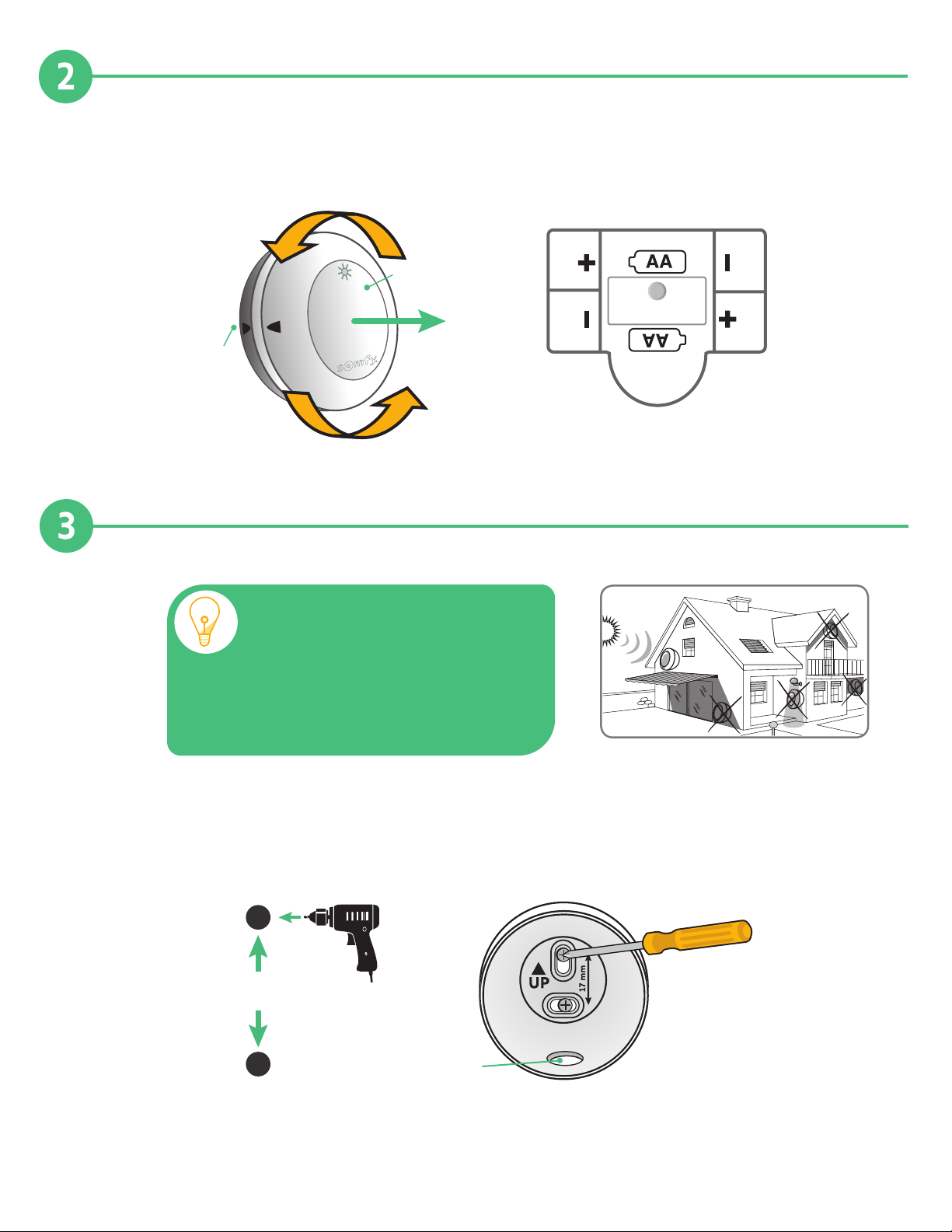

1. Rotate the top cover clockwise to align the arrows on the base and sensor cover.

Then open the sensor by lifting the sensor top from the mounting base. (Fig. 1)

2. Install the batteries paying attention to the polarity shown on the base. (Fig. 2)

Mounting

Mounting the Sunis Outdoor Wirefree™RTS Sun Sensor to an outside wall

1. First, Drill two holes 17mm apart (Fig. 4). Remember to use the correct bit type for the wall material.

2. Mount the Sunis Outdoor WireFree™ RTS Sun Sensor base with the up arrow facing up and the drain hole

facing directly down (Fig. 5) If appropriate consider using wall anchors.

Sensor Cover

Align

Arrows

Fig. 1

Fig. 2

Fig. 3

17 mm

Drain

Hole

Fig. 4 Fig. 5

Programming

Continued On Next Page

Pairing a Sunis Outdoor WireFree™RTS Sun Sensor to

the Shading Solution

1. Press the programming button on the RTS transmitter

for 3+ sec until the window covering moves.

2. Press the Programming button on the Sunis. (Fig. 6)

The green Prog LED will light and the window covering will move.

The Sunis has been paired with the motor.

To delete/remove the sensor - Repeat steps 1 and 2 above.

To delete all sensors when adding a new sensor, follow

steps 1 and 2 above except on step 2 hold the prog

button until the covering moves twice. This clears all sensors.

Then, repeat steps 1 and 2 normally to add the new sensor.

Programming

Button (PROG)

Back of RTS

Transmitter

Programming

Button (PROG)

Fig. 6

Note: A Soliris transmitter must be programmed to the awning, pergola, exterior screen

or rolling shutter to allow the user to Enable/Disable the sun function. If a sensor is

removed or damaged, it must be cleared from the motor memory.

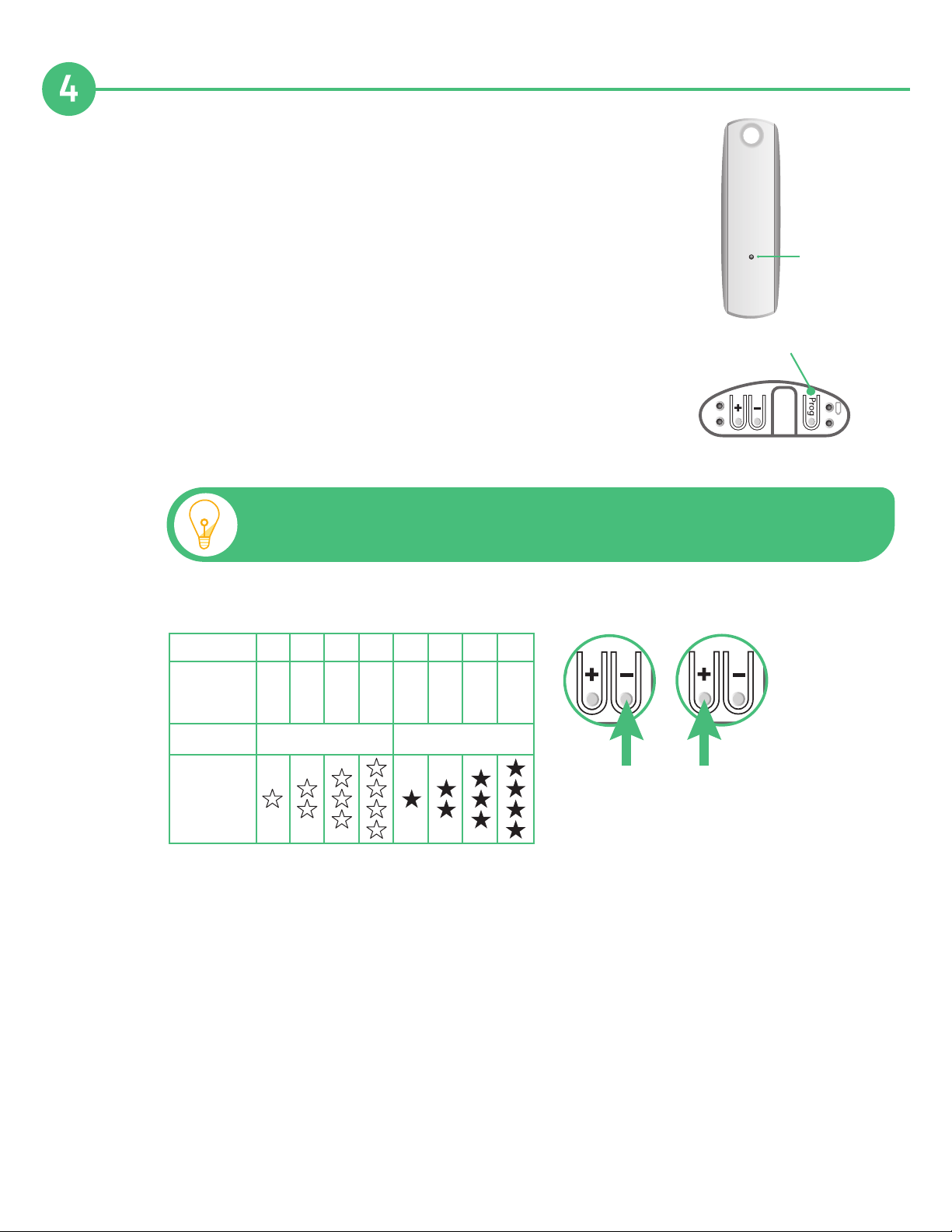

Setting Sun Threshold Level

The Sun Threshold level can be adjusted up or down by a short press of the + or - button. For

levels 1 to 4 the Red LED will blink 1 to 4 times to conﬁrm the level. For levels 5 to 8 the Green

LED will blink.

Thresholds

Sunlight

Intensity

(kLux)

LED active

Number of

Flashes

1 2 3 4 5 6 7 8

1 5 10 20 40 55 75 100

Red Green

Increase

Threshold

Decrease

Threshold

This device complies with Part 15 of the FCC Results. Operation is subject to the following two conditions:

1. The device may not cause harmful interference, and 2. This device must accept any interference received, including that which may cause undesired

operation.

NOTE: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio television reception, which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following measures listed on somfy.com

Operation: Demo Mode

WARNING: Changes or modiﬁcations not

expressly approved by the manufacturer could

void the user’s authority to operate the equipment.

AS WITH ANY PRODUCT INVOLVING GENERATION OF ELECTRICAL POWER, CAUTION MUST BE USED AT ALL TIMES.

PLEASE CAREFULLY READ AND FOLLOW ALL OF THE INSTRUCTIONS.

Note: Visit https://store.somfysystems.com/ to

purchase an additional or replacement product.

Demo Mode allows the Sunis Outdoor WireFree™ RTS Sun Sensor to be more easily tested by

reducing the delay times.

1. Pressing the + & - together will cause the Sunis to cycle in or out of Demo Mode.

2. The Red and Green LEDs will alternate when entering Demo Mode and blink together when exiting.

3. The Sunis will automatically time out of Demo Mode in 3 min.

Green

LED

Red

LED

Time Delays

Normal Mode

Demo Mode

No Sun

15-30 min

15 sec

Sun

2 min

10 sec

C-0060 02/2022
