SOMFY Sonesse 30 rts Bedienungsanleitung

Sonesse 30 RTS

EN Instructions

FR Notice

ES Instrucciones

IT Istruzioni

Sonesse 30 RTS EN

ORIGINAL INSTRUCTIONS

These instructions apply to all Sonesse 30 RTS drives, the different versions of which

are available in the current catalogue.

CONTENTS

Prior information...........................................................................................

1.1.

Field of application............................................................................

1.2.

Liability ...............................................................................................

Installation......................................................................................................

2.1.

Assembly ............................................................................................

2.2.

Compatible power supplies (for US only).......................................

2.3.

Wiring .................................................................................................

2.4.

Commissioning ..................................................................................

2.5.

Tips and advice on installation.........................................................

Use and maintenance ....................................................................................

3.1.

Mode selection: Roller or Tilting Mode..........................................

3.2.

Controlling Up, Down, My: in Roller mode ....................................

3.3.

Controlling Up, Down, My: in Tilting mode....................................

3.4.

Favourite position (my) ....................................................................

3.5.

Sun disappearing position ................................................................

3.6.

Sun function.......................................................................................

3.7.

Adjusting the speed...........................................................................

3.8.

Tips and advice on operation...........................................................

Technical data ................................................................................................

EN Sonesse 30 RTS

GENERAL INFORMATION

Safety instructions

DANGER

Indicates a danger which may result in immediate death or

serious injury.

WARNING

Indicates a danger which may result in death or serious

injury.

PRECAUTION

Indicates a danger which may result in minor or moderate

injury.

CAUTION

Indicates a danger which may result in damage to or

destruction of the product.

Sonesse 30 RTS EN

1.PRIOR INFORMATION

1.1.Field of application

The Sonesse 30/24 drives are designed to drive all types of interior blinds and

projection screens up to 2 Nm except pantographs.

The installer, who must be a motorisation and home automation professional, must

ensure that the motorised product is installed in accordance with the standards in

force in the country in which it is installed such as EN13120 relating to interior blinds.

1.2.Liability

Before installing and using the drive, please read these instructions carefully.

In addition to the instructions provided in this guide, please also comply with the

instructions provided in the attached Safety instructions document.

The drive must be installed by a home motorisation and automation

professional, in accordance with Somfy’s instructions and the applicable

regulations in the country of installation.

Any operation of the drive outside the field of application described above is

prohibited. Such use, and any failure to comply with the instructions given in this guide

and in the attached Safety instructions document, absolves Somfy of any liability and

invalidates the warranty.

After installing the drive, the installer must inform his customers of the operating and

maintenance conditions for the drive and must provide them with the operating and

maintenance instructions, and the attached Safety instructions document. Any After-

Sales Service operation on the drive must be performed by a home motorisation and

automation professional.

Never begin installing without first checking the compatibility of this product with the

associated equipment and accessories. If in doubt when installing this product and/or

to obtain additional information, contact a Somfy representative or visit the website

www.somfy.com.

EN Sonesse 30 RTS

2.INSTALLATION

WARNING

•

These instructions are mandatory for the home motorisation and

automation professional installing the drive.

•

Comply with current standards and legislation in the country of installation.

CAUTION

•

Never drop, knock or puncture the drive or immerse it in liquid.

•

Install an individual control point for each drive.

•

To insure optimized silent operation, the gaps between the drive, the

accessories, the tube and the tube end piece must be minimized.

•

Never cut or remove the cable label.

2.1.Assembly

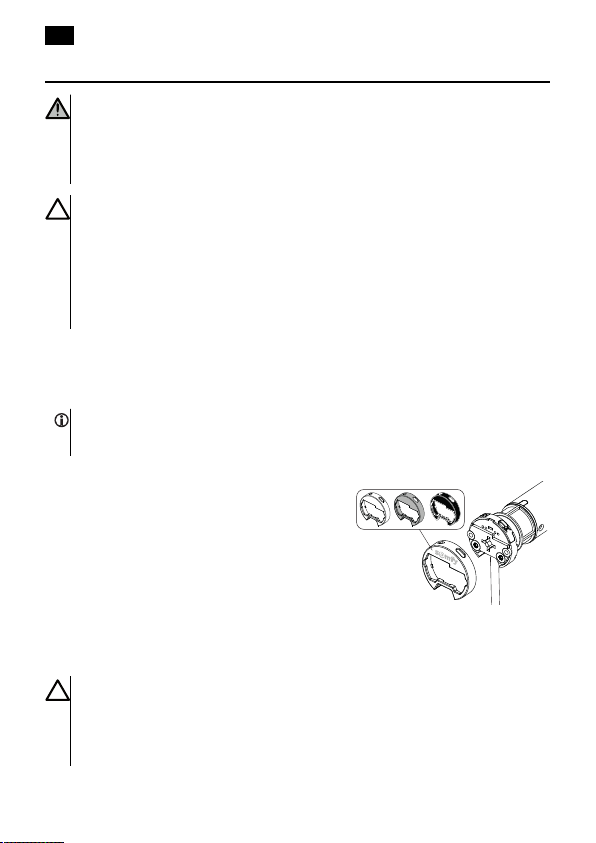

2.1.1.Replace the head cover with a different color (Optional)

NOTICE

Head has interchangeable covers to fit with the fabric.

1] Unclip the cover.

2] Clip the new cover on the head.

2.1.2.Preparing the drive

CAUTION

•

Sonesse 30 RTS : interior diameter of the tube has to be Ø27.7 mm or

greater.

•

The crown is mandatory.

Sonesse 30 RTS EN

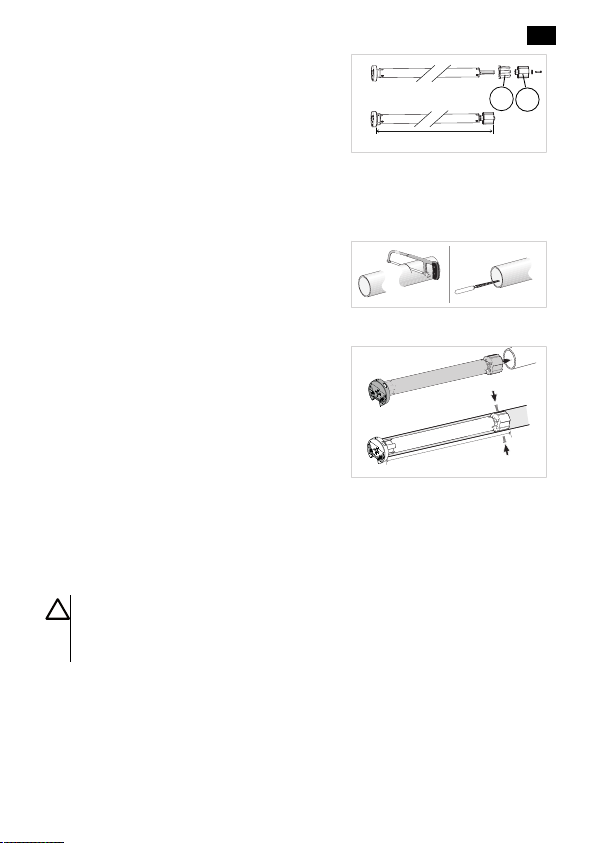

1] Fit the accessories required to integrate

the drive into the tube:

Fit the crown (a) and the wheel (b) to

the drive.

2] Measure the length (L) between the inner

edge of the drive head and the rim of the

wheel.

2.1.3.Preparing the tube

1] Cut the tube to the required length.

2] Deburr the tube and remove the debris.

1] 2]

2.1.4.Assembling the drive-tube

1] Slide the drive into the tube. For tubes

with a smooth interior, position the cut

notch on the crown.

2] The wheel must be locked in place to

prevent any movement in the tube.

▪

This can be achieved by fastening the tube to the wheel using self-tapping

screws, or steel pop rivets, placed between 5mm and 15mm from the outer

edge of the wheel, regardless of the tube.

▪

or by using a wheel lock, for non-smooth tubes.

CAUTION

The screws or pop rivets must only be fastened on the wheel and not on the

drive.

EN Sonesse 30 RTS

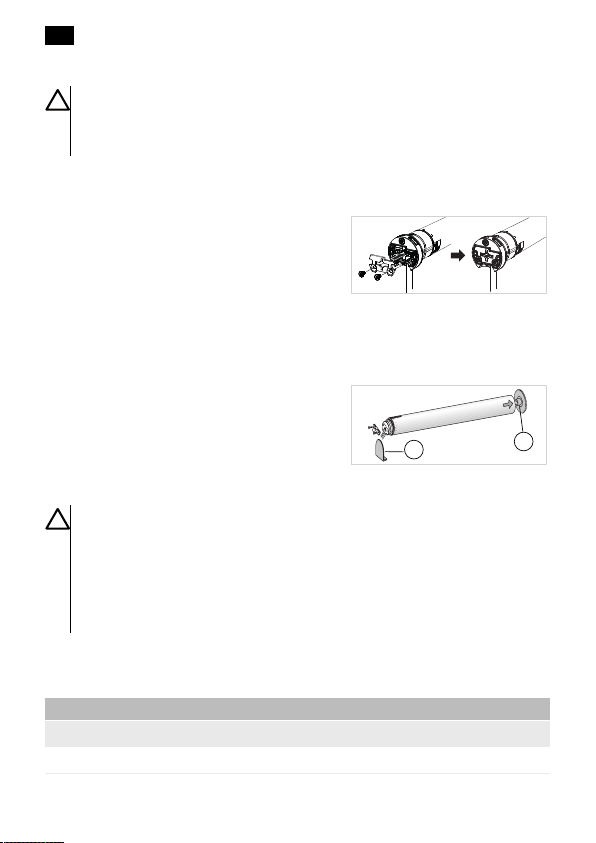

2.1.5.Installing the drive-tube assembly

CAUTION

•

The motorised product must not be compressed between the brackets.

•

Do not use the plastic cross without the metal bracket adapter.

▪

The drive can be fixed directly onto the drive bracket (the screw holes are

spaced 29mm apart). Use 2screws (3.5 x 9mm). A manual tightening torque of

1.5Nm is recommended.

▪

Or the drive can be fixed with an integrated

drive plate (check in the catalogue to find

the reference which fits perfectly with your

bracket). Use the 2 screws (3 x 6 mm)

delivered with the motor plate. A manual

tightening torque of 0,9 N m is

recommended. This solution improves the

light gap.

1] Screw the bracket adapter to the drive

head.

2] Install and fix the drive-tube assembly

onto the end bracket (c) and onto the

drive bracket (d).

CAUTION

•

Ensure that the drive-tube assembly is secured onto the end bracket. This

operation prevents the tube-drive assembly from coming out of the end

bracket attachment.

•

Light gap reduced: Do not pinch cable or be careful they are not in contact

with moving parts.

2.2.Compatible power supplies (for US only)

References Designations

1870196 5 motors / Somfy Control Distribution panel

1870192 10 motors / Somfy Control Distribution panel

Sonesse 30 RTS EN

References Designations

1870197 15 motors / Somfy Control Distribution panel

1870198 20 motors / Somfy Control Distribution panel

1870259 Somfy Power Panel

2.3.Wiring

WARNING

To ensure electrical safety, this Class III drive must be powered by a «SELV»

voltage source (Safety Extra Low Voltage).

PRECAUTION

•

Cables routed through a metal wall must be protected and insulated by

sleeving or sheathing.

•

Secure the cables to prevent any contact with moving parts.

•

If the drive is used outdoors and if the power supply cable is of the H05-VVF

type, run the cable in a UV-resistant duct, e.g. trunking.

•

The drive cable cannot be removed. If it is damaged, return the drive to the

After-Sales department.

CAUTION

•

Leave the drive power supply cable accessible: the product must be easily

replaceable.

•

Always make a loop in the power supply cable to prevent water from

entering the drive.

CAUTION

•

The product is intended for being supplied by Class II output of an external

power supply.

•

Do not use an extension cord. If the power supply cord is too short, have a

qualified electrician install an outlet near the motorised product.

Connect the drive to the power supply:

▪

Black wire: -

▪

Red wire: +

EN Sonesse 30 RTS

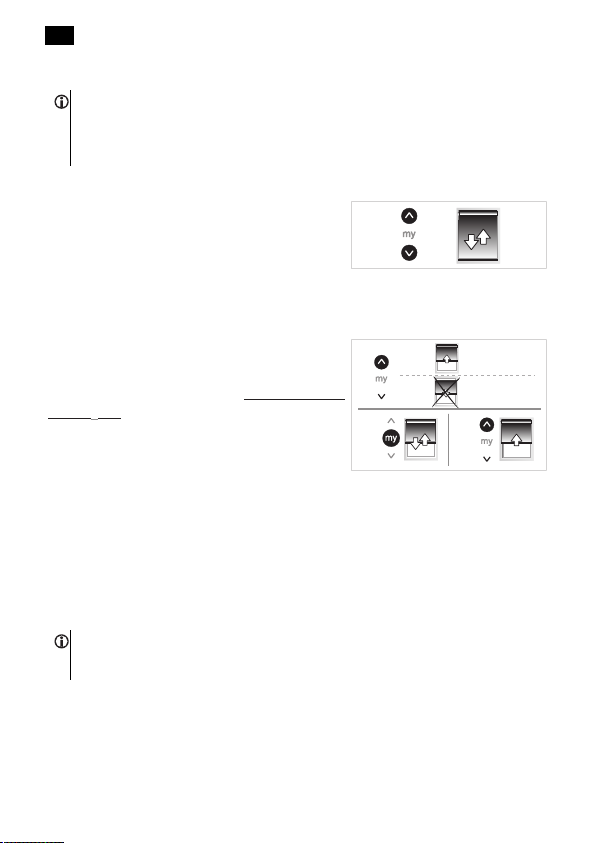

2.4.Commissioning

NOTICE

- Orange LED blinks continuously in setting mode.

- Green LED blinks once when any order from paired remote is received.

2.4.1.Pre-programming the control point

Press the Up and Down buttons simultaneously

on the control point:

→The motorised product moves up and down,

green LED blinks 5 times and the control point is

temporarily programmed.

2.4.2.Checking the direction of rotation

Press the Up button on the control point:

a] If the motorised product rises, the direction of

rotation is correct: move onto Setting the end

limits [}10]

b] If the motorised product lowers, the direction

of rotation is incorrect: move onto the next step.

b1] Press the My button on the control point until

the motorised product moves up and down: The

direction of rotation has been modified and green

LED blinks 5 times.

b2] Press the Up button on the control point to

confirm the direction of rotation.

b1] b2]

2.4.3.Setting the end limits

NOTICE

The end limits can be set in any order.
