OPERATOR’S MANUAL

E-Series

Ultraviolet Hand Lamps

9/20 AM15036-4

PRINTED IN U.S.A.

www.Spectro-UV.com

4 Dubon Ct., Farmingdale, NY 11735

866-230-7305

WARNING

UV light emitted from this product. Avoid eye and skin exposure to

unshielded products.

FOR PROFESSIONAL EXAMINATION USE ONLY

OPERATION

1. Connect the plug to a power outlet that complies with the electrical

requirements specified on the lamp’s label. The E-Series lamps are

available in 120V/60Hz, 230V/50Hz, 240V/50Hz or 100V/50-60Hz versions.

2. The power supply cord is the disconnect for this unit.

3. To turn on the 120V and 100V models, press and hold the dimple on the

rocker switch(es) for approximately 5 seconds to power the tube(s). To power

the 230V/FE and FBE and 240V/FA models, press the rocker switch to the

ON (I) position. The 230V models designed to produce two wavelengths have

a 3-position power switch. The tube(s) should become energized and emit

a steady light. The light may initially flicker, especially if the lamp is cold, but

should stabilize after a few seconds.

4. To turn off the 120V and 100V models, press down on the opposite side

of the switch. Press the rocker switch to the OFF (O) position on the 230V

and 240V models.

IMPORTANT SAFETY INSTRUCTIONS (Read all instructions prior to lamp usage)

• Never use this lamp in any manner not specified in these instructions.

• Do not use if a tube, cord or plug is not fully serviceable.

• We recommend using Spectroline UV-absorbing protective eye and face wear

(i.e., UVS-30 spectacles, UVG-50 goggles or UVF-80 face shield).

• FOR LABORATORY USE ONLY

NOTE: For even greater comfort and convenience, all E-Series hand

lamps are now equipped with a carrying handle. To increase fluorescent

contrast, all 4-, 5-, and 6-watt E-Series lamps may be used with

Spectroline CM-Series UV viewing cabinets.

OPERATOR SERVICING

The following servicing instructions are intended for limited maintenance

of the lamp. Do not perform any servicing other than that contained in

these instructions. Return the lamp to the factory for maintenance not

covered in this section.

HOUSING AND FILTER MAINTENANCE

The aluminum lamp housing is designed for protection of the

internal parts. Using a soft cloth, immediately clean spills from the

housing with water and a mild detergent and wipe dry. Take care not to

allow any liquids to leak into electrical components. Periodically clean the

filter with a glass cleaner and a soft cloth.

TUBE AND REFLECTOR MAINTENANCE

To clean the tubes and/or reflectors, remove the tubes

according to the instructions outlined in the ‘‘TUBE REPLACEMENT’’

section below. Using a soft cloth, the reflectors may be cleaned

with a glass cleaner, while the tubes may be cleaned with a mild

detergent solution. Wipe dry with a soft cloth.

TUBE REPLACEMENT

If a tube fails to operate correctly, review the procedures outlined

in the ‘‘OPERATION’’ section. If the problem persists and it is found

necessary to replace a tube, unplug the lamp from its power source

before proceeding.

WARNING

To avoid the risk of electrical shock, always unplug the lamp from

its power source before cleaning or servicing.

1. Lay the lamp housing on a flat, level surface.

2. Remove the 2 screws that secure the endcap opposite the power

cordset. For lamps without a filter, proceed to Step #4.

3. Slide the filter assembly off the lamp housing’s open end, and set aside.

4. Grasp the tube by the metal bases located at each end. Applying

even pressure, gently rotate the tube a quarter of a turn until

it loosens. The tube may now be easily removed from its

sockets.

5. Install the new tube by reversing the above procedure.

6. Where applicable, replace the filter assembly by reversing the

procedure in Step #3.

7. Replace the endcap removed in Step #2 and test the function of the

new tube.

8. If installation of the new tube fails to yield correct lamp operation,

check to make sure the two pins at each end of the tube

are properly connected with the two copper contacts in each socket.

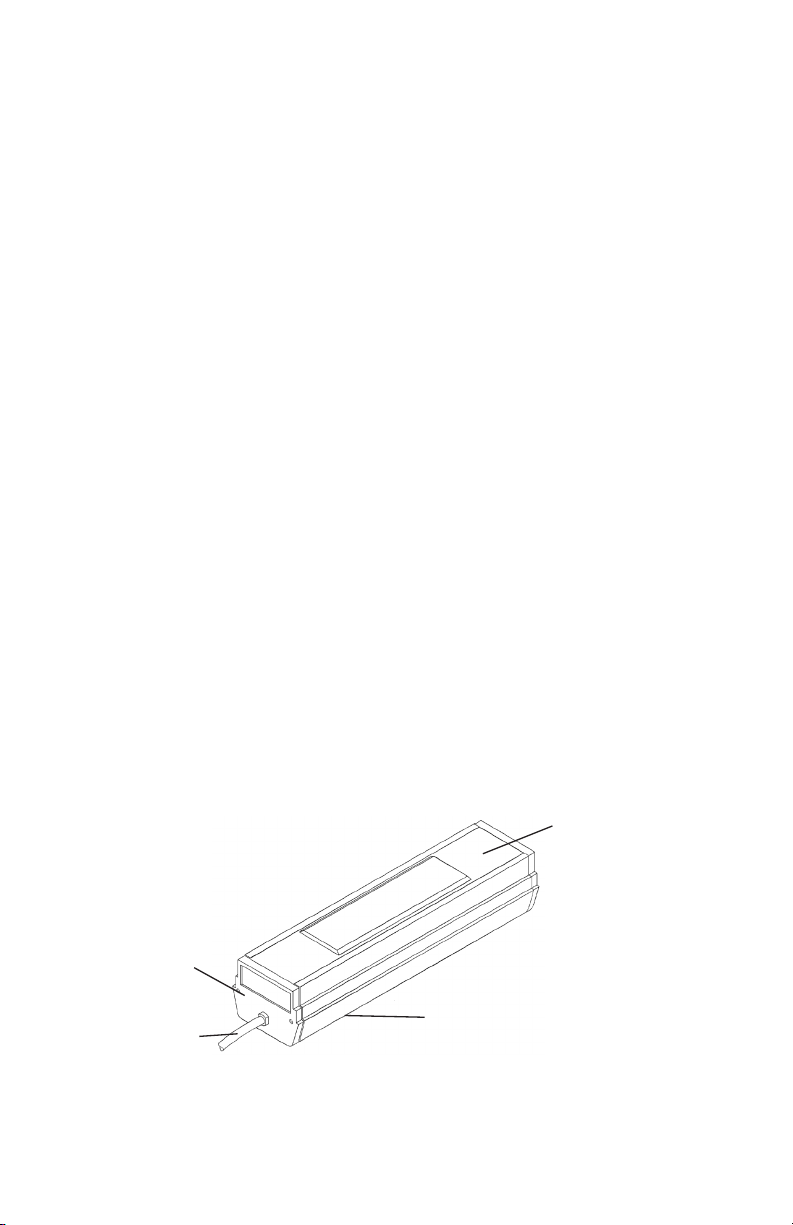

LAMP WITH

FILTER ASSEMBLY

Endcap

On/Off Power Switch(es)

(top of unit)

Filter Assembly

Power Cord

FILTER REPLACEMENT

If it is necessary to replace the filter assembly, follow Step #3 in the ‘‘TUBE

REPLACEMENT’’ section to remove the old filter. Install the new filter by

reversing this procedure.

ENVIRONMENTAL CONDITIONS

The E-Series UV lamps are designed to be safe under the following

conditions:

• Indoor use;

• Altitude up to 2,000 m (6,562 ft.);

• Temperature 5°C to 40°C (41°F to 104°F);

• Maximum relative humidity 80% for temperatures up to 31°C (88°F)

decreasing linearly to 50% relative humidity at 40°C (104°F);

• Mains supply voltage fluctuations not to exceed ±10% of the nominal

voltage;

• Installation Category II;

• Pollution Degree 2.

WARRANTY

The warranty policy for the E-Series lamps is provided on the Certificate

of Limited Warranty enclosed separately with each unit.

NOTE: For assistance of any kind, including help with a lamp under warran-

ty, contact the Customer Service Department at Spectro-UV. Call toll-free

1-866-230-7305. Give full details of the difficulty and include the model

and serial numbers of the unit and date of purchase.

If return of the lamp to the factory is deemed necessary, shipping

instructions will be provided. If an estimate of charges for non-

warranty work or other service work is required, a quote will be

furnished upon evaluation of the unit. Out-of-warranty service work will not

be performed without customer approval.

SHIPPING

Carefully pack the lamp in the original shipping container and packing

materials. Insure it for full value and ship it prepaid to the factory.

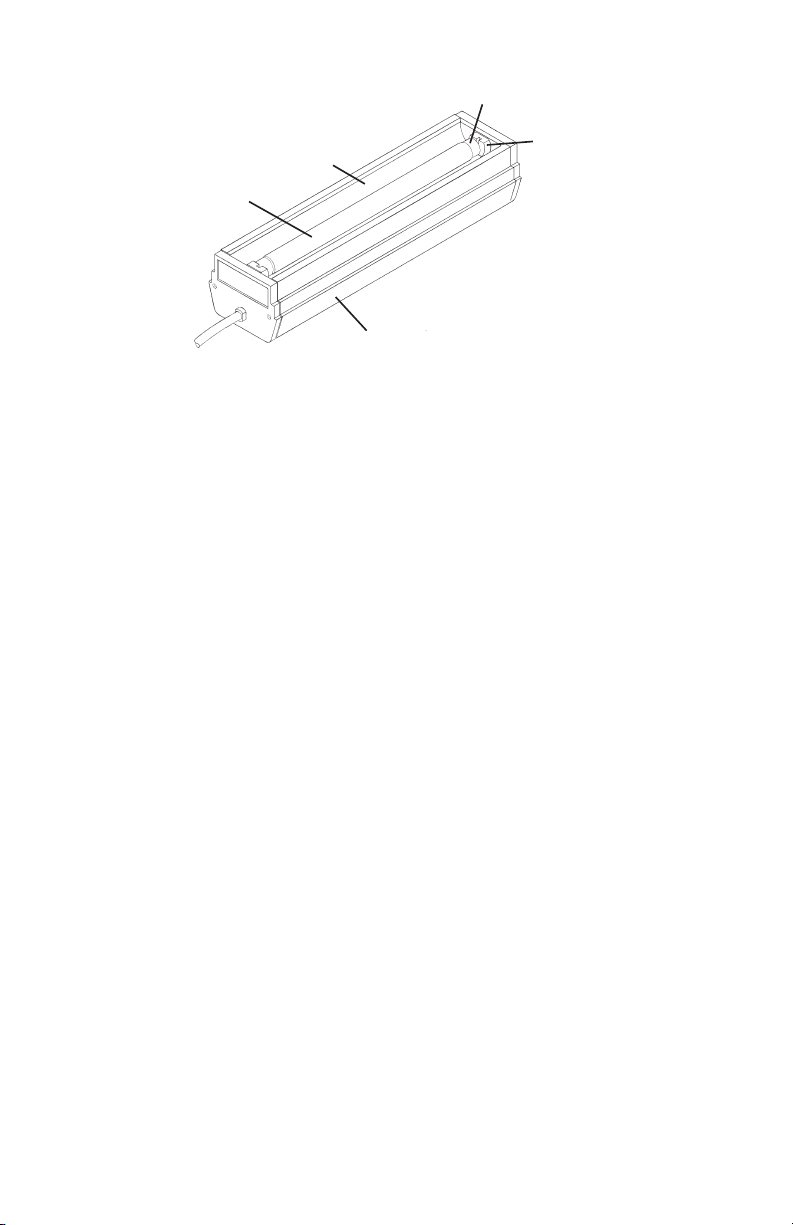

LAMP WITHOUT

FILTER ASSEMBLY

Lamp Housing

Socket

Tube Base

Reflector

Tube

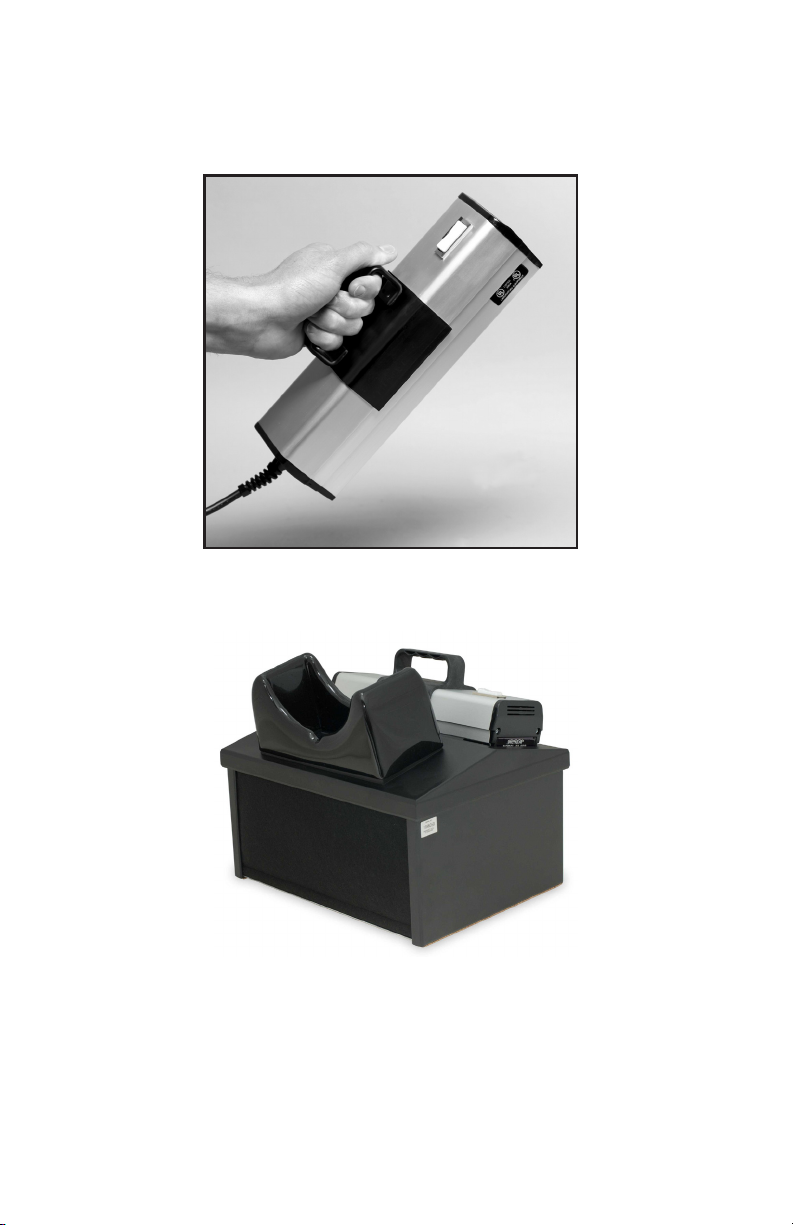

ACCESSORIES

LAMP WITH CARRYING HANDLE

CM-26A UV VIEWING CABINET

E-SERIES ELECTRICAL SPECIFICATIONS

MODELS1

/FE2/FBE2/FA3/FC4/J4WAVELENGTH TUBE FILTER

EA-140¹; /FE²; /FBE²; /FA3; /FC4UV-A BLE-220B

EA-160; /FE; /FBE; /FA; /FC; /J4UV-A BLE-480B

ENF-240C; /FE; /FBE; /FA; /FC; /J UV-A & UV-C BLE-270W

BLE-2537S

2F001

ENF-260C; /FE; /FBE; /FA; /FC; /J UV-A & UV-C BLE-6T365

BLE-6254S

2F006

ENF-280C; /FE; /FBE; /FA; /FC; /J UV-A & UV-C BLE-8T365

BLE-8T254

2F018

1All domestic models (without /FA, /FE, /FBE, /FC, /J) are 120V, 60Hz and 0.2 amps.

2All /FE, /FBE models are 230V, 50Hz and 0.2 amps. All these units conform to CE standards.

3All /FA models are 240V, 50Hz and 0.2 amps.

4All /FC, /J models are 100V, 50-60Hz and 0.2 amps.

*Dual tube units of the same wavelength are 0.4 amps.

Long Wave (UV-A): 365nm Medium Wave (UV-B): 312nm Short Wave (UV-C): 254nm

LAMP CONTAINS MERCURY

Manage in Accord with Disposal Laws

See: www.lamprecycle.org

www.Spectro-UV.com

4 Dubon Ct., Farmingdale, NY 11735

866-230-7305
