Spectrum Technologies 3412 Bedienungsanleitung

Catalog # 3412

User manual

Technologies, Inc.

Spectrum

RED / FAR RED METER

Thank you for purchasing a Field ScoutTM Red / Far Red Me-

ter. This manual describes its features and operation.

Using the Meter

1. Press the ON/OFF button to turn the meter on or off.

When first turned on, the display will show the current

battery level.

2. Press the READ button to take a light reading. The meter

will measure the incident light for 0.3 seconds and display

the mean.

3. Press the MODE button to switch between displaying the

Red / Far Red Ratio, and the Red and Far Red readings.

4. The sensor assembly can be rotated to provide accurate

readings while maintaining visibility of the display screen.

5. Turn the meter off after use to conserve battery power.

Changing the Battery

The Field Scout Red / Far Red Meter uses a standard 9V bat-

tery. To change the battery:

1. Slide open the door on the back of the meter.

2. Remove the old battery from the compartment, and insert

the new battery. Be sure to orient the battery to match the

image on the bottom of the compartment.

3. Place the battery cover on the case and slide it closed.

Accuracy

The Field Scout Red / Far Red Meter is accurate to ±5%.

Red light is measured at 660nm, 40nm FWHM (±20nm).

Far Red light is measured at 730nm, 30nm FWHM (±15nm).

For support, or to place an order, call:

Spectrum Technologies, Inc

12360 S. Industrial Dr. East

Plainfield, IL 60585

(800)248-8873 or (815) 436-4440 between 7:30 am and 5:00 p.m. CST

e-mail: [email protected].

www.specmeters.com

Red and Far Red Light

Plants sense the amount of light in the ranges around 660 na-

nometers (red) and 730 nanometers (far red), and use the ratio

between the two to direct growth. Though plants differ in the

details of their reaction, in general a low Red / Far Red ratio

results in elongation and lower leaf area compared to a higher

ratio.

The Field Scout Red / Far Red Meter measures the light in

these two ranges, and displays the values in units of µmol m-2

s-1 (the number of photons in units of micromoles, striking an

area one meter square each second).

In addition, the meter displays the Red / Far Red Ratio, elimi-

nating the need for computation.

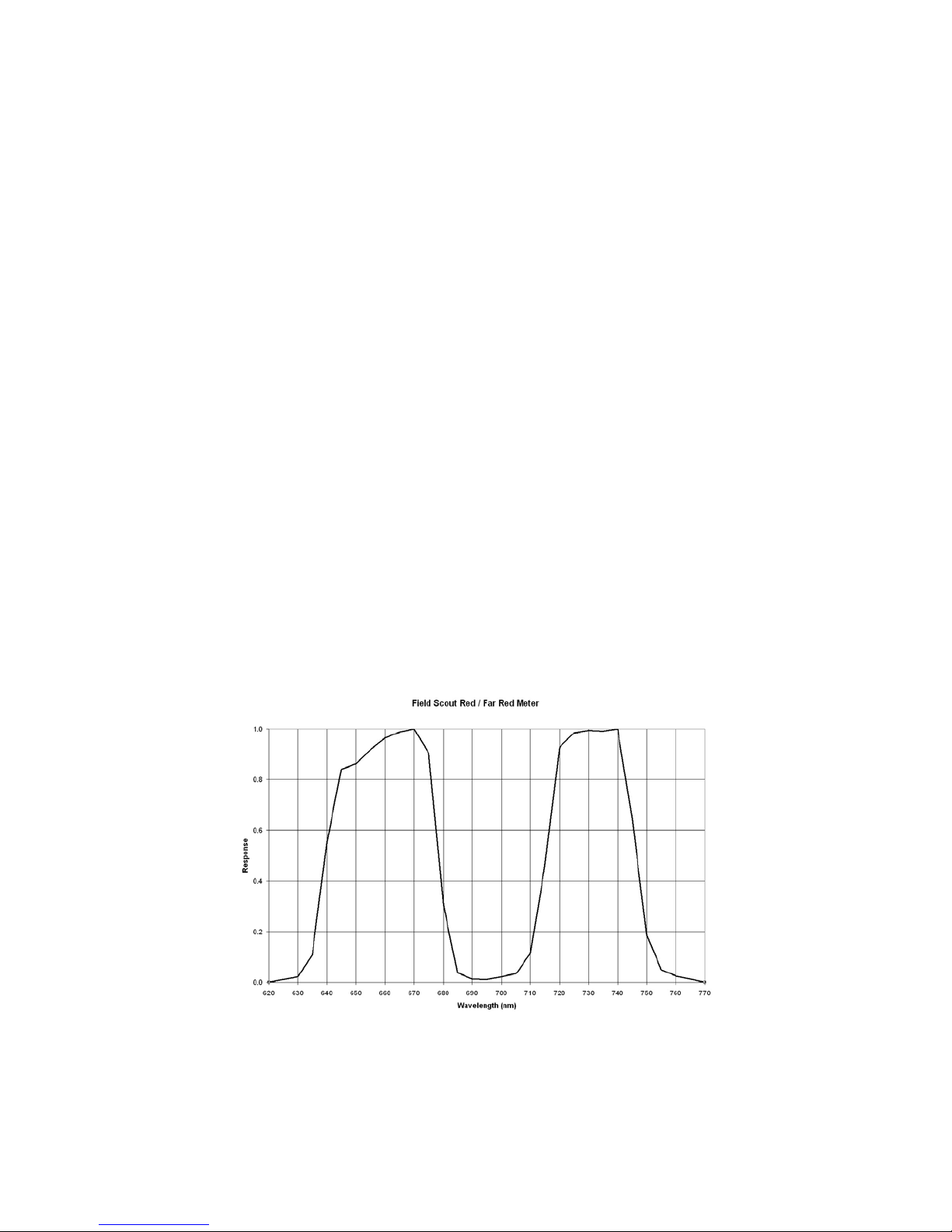

The chart below displays the spectral response of the Field

Scout Red / Far Red Meter.

For customer support, or to place an order, call

12360 S. Industrial Dr. East

Plainfield, IL 60585

(800) 248-8873 or (815) 436-4440

FAX: (815) 436-4460

E-Mail: [email protected]

www.specmeters.com

Technologies, Inc.

Spectrum

Warr anty

The Field ScoutTM Red / Far Red Meter is warranted to be

free from defects in materials and workmanship for a

period of 1 year from the date of original purchase.

During the warranty period, Spectrum will, at its option,

either repair or replace products that prove to be defective.

This warranty is void if the product has been damaged by

customer error or negligence, or if there has been an

unauthorized modification.

Returning Products to Spectrum

Before returning a failed unit, you must obtain a Returned

Goods Authorization (RGA) number from Spectrum. You

must ship the product(s), properly packaged against

further damage, back to Spectrum (at your expense) with

the RGA number marked clearly on the outside of the

package. Spectrum is not responsible for any package that

is returned without a valid RGA number or for the loss of

the package by any shipping company.
