User’s Manual
Model No. HNSC05700
WARNING:To reduce
the risk of serious injury, read these
warnings before using the scooter.
1. Read and follow all instructions.
2. It is the owner’s responsibility to
ensure that all users of the scooter
are adequately informed of all
warnings and instructions.
3. Inspect the scooter and tighten or
replace any loose or missing parts
before each use. In addition, make
sure that the handles and the stem
are securely locked in position, the
wheels rotate freely, the brake is in
working order and free of all debris,
and the wheel bolts are secure.
4. The scooter should not be used by
children under the age of eight. A
responsible adult must always
supervise young riders.
5. Always wear protective equipment,
including a helmet, knee pads, wrist
guards, elbow pads, and closed-toed
shoes, when using the scooter.
6. Never ride on streets, roadways, or
driveways that enter vehicle traffic
routes. Never ride on wet or uneven
surfaces, at night, or when visibility
is poor.
7. Never tow a rider with a bicycle,
motorcycle, or vehicle.
8. Locate the warning decals on the
scooter, and read the warnings
before using the scooter.
9. Save this User’s Manual for future
reference.
10. This scooter should not be used by
persons weighing more than 200
pounds.
11. Braking from high speeds or pro-
longed braking on inclines can cause
excessive wear of the rear wheel and
brake. Exercise caution when select-
ing your area of use.
12. To prevent burns, avoid touching the
brake after prolonged use.

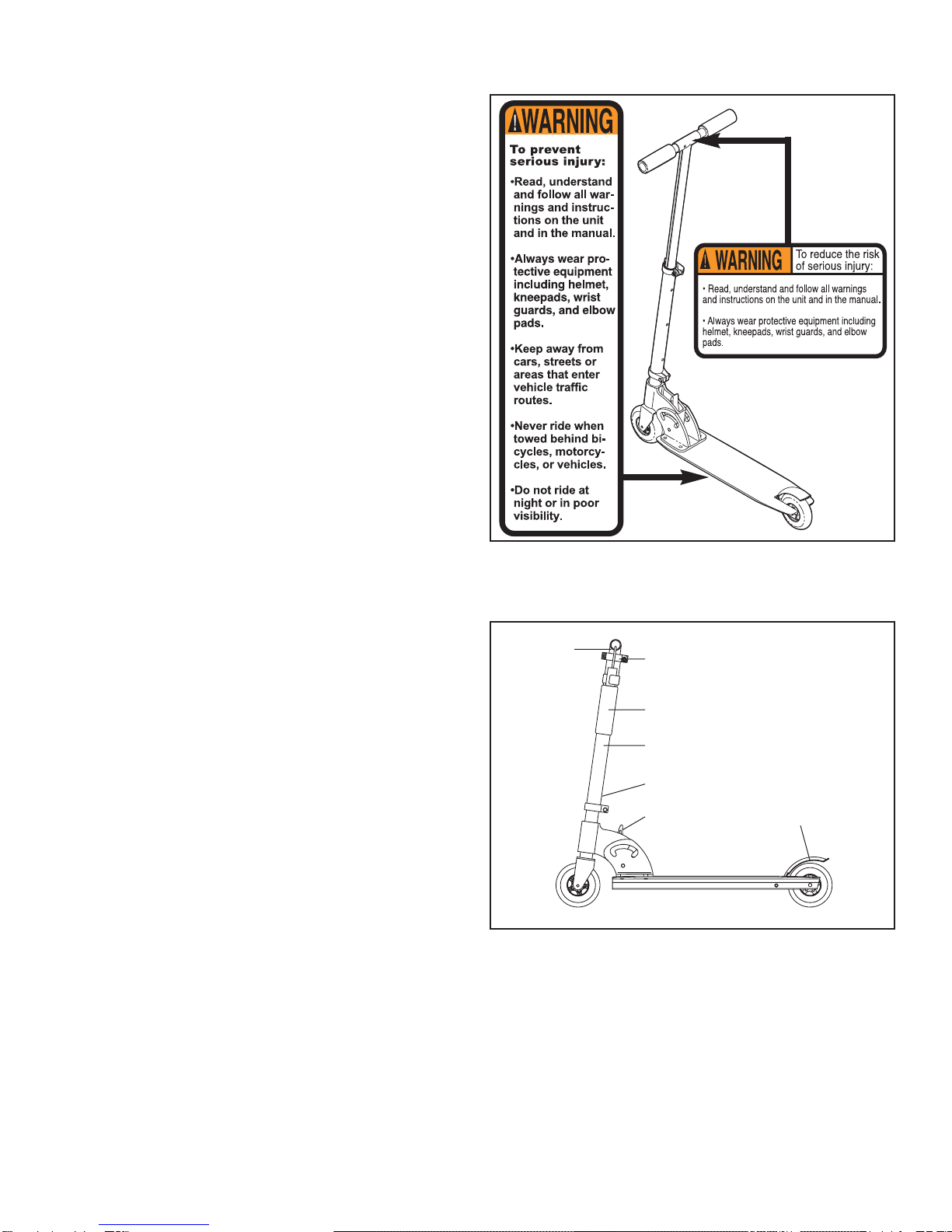

Warning Decal Placement
Setup
The decals shown at the right have been placed on the
scooter. If a decal is missing or illegible, please call our
Customer Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time, to order a free replacement decal. Apply the replace-
ment decal in the location shown.
Before using the scooter, make sure that the scooter is set up
as described and that all parts are securely tightened.
1. Firmly press the thumb tab and pivot the upright up until it
locks in a nearly vertical position.
2. Insert the handles into the stem until the lock pins are visi-
ble in the holes in the stem.
3. Open the quick-release lever. Depress the push pin on the
stem, and slide the stem up until the push pin is visible in
one of the holes in the upright. With the stem at the desired
height, close the quick-release lever so that it is snug
against the upright. If the quick release is not snug, see
ADJUSTING THE QUICK RELEASE on the next page.
Thumb Tab Rear Brake
Stem Quick Release
Handle
Push Pin
Upright
Storage

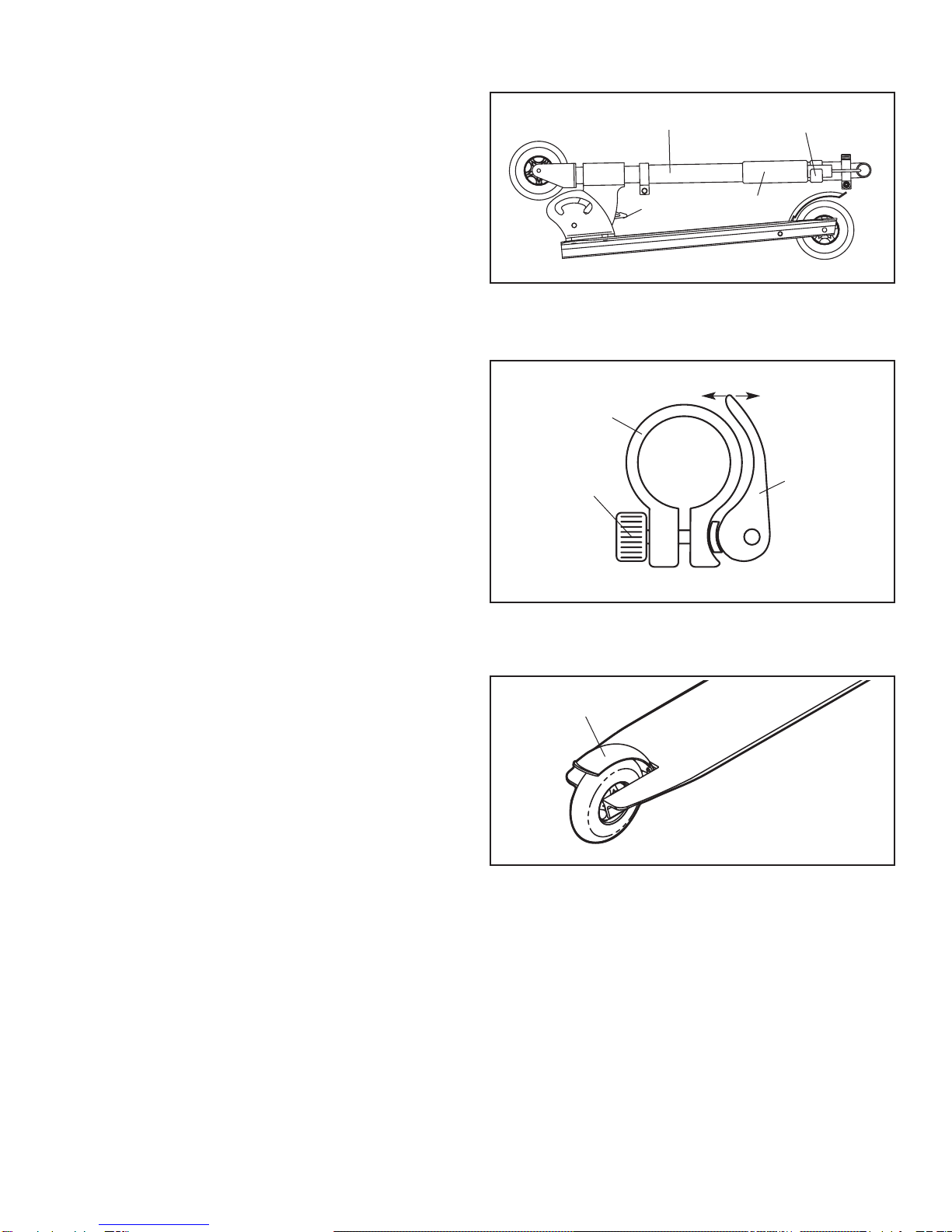

1. Open the quick-release lever. Depress the lock pin on the
stem and slide the stem down into the upright. Close the
quick-release lever.
2. Depress the lock pins and remove the handles from the
stem. Press the handles into the storage clip on the upright.
3. Pull the thumb tab and pivot the upright down until it locks
in the horizontal position.
Thumb Tab
Storage Clip
Handle
Upright
Adjusting The Quick Release
If the quick release doesn’t hold the stem snug in place, you
will need to adjust it. Open the quick-release lever. Turn the
adjustment nut clockwise one half turn while keeping the lever
from turning. Close the lever. Repeat this procedure until the
stem is held snug in place.
If the quick release is too snug to close, it will need to be
adjusted. While the quick-release lever is open, turn the adjust-
ment nut counterclockwise one quarter turn while keeping the
lever from turning. Close the lever. Repeat this procedure until
the stem is held snug in place and the quick release is closed.
Adjustment
Nut
Open
Close
Lever
Quick
Release
Brake Maintenance
Road debris and abraded material from the rear wheel may
accumulate under the brake. Clean the underside of the brake
periodically to ensure maximum braking capability.
The rear brake is capable of reaching high temperatures.
Exercise caution when handling the scooter after extended
periods of braking or after braking on steep inclines.
Brake
Part No. 167414 R0101A Printed in China © 2001 ICON Health & Fitness, Inc.
No.Qty. Description
1 1 Deck
2 1 Head Tube
3 1 Fork
4 1 Upright
5 1 Stem
6 2 Handle
7 2 Foam Pad
8 2 Handle Cap
9 3 Lock Pin
10 1 Handle Cord
11 1 Quick Release
12 1 Upright Clamp
13 1 Bearing Nut
14 1 Bearing Cap
15 2 Bearing
16 2 Bearing Race
17 2 Bushing
18 1 Pivot Union Bolt Set
19 1 Front Union Bolt Set
20 2 Rear Union Bolt Set
21 2 Wheel
22 2 Rear Wheel Spacer
23 1 Brake Spring
24 1 Brake
25 1 Head Tube Spring
26 1 Storage Clip
27 2 Front Wheel Spacer
28 1 Lock Pin
* 1 User’s Manual
*The user’s manual is not shown
Note: Specifications are subject to change with-
out notice.

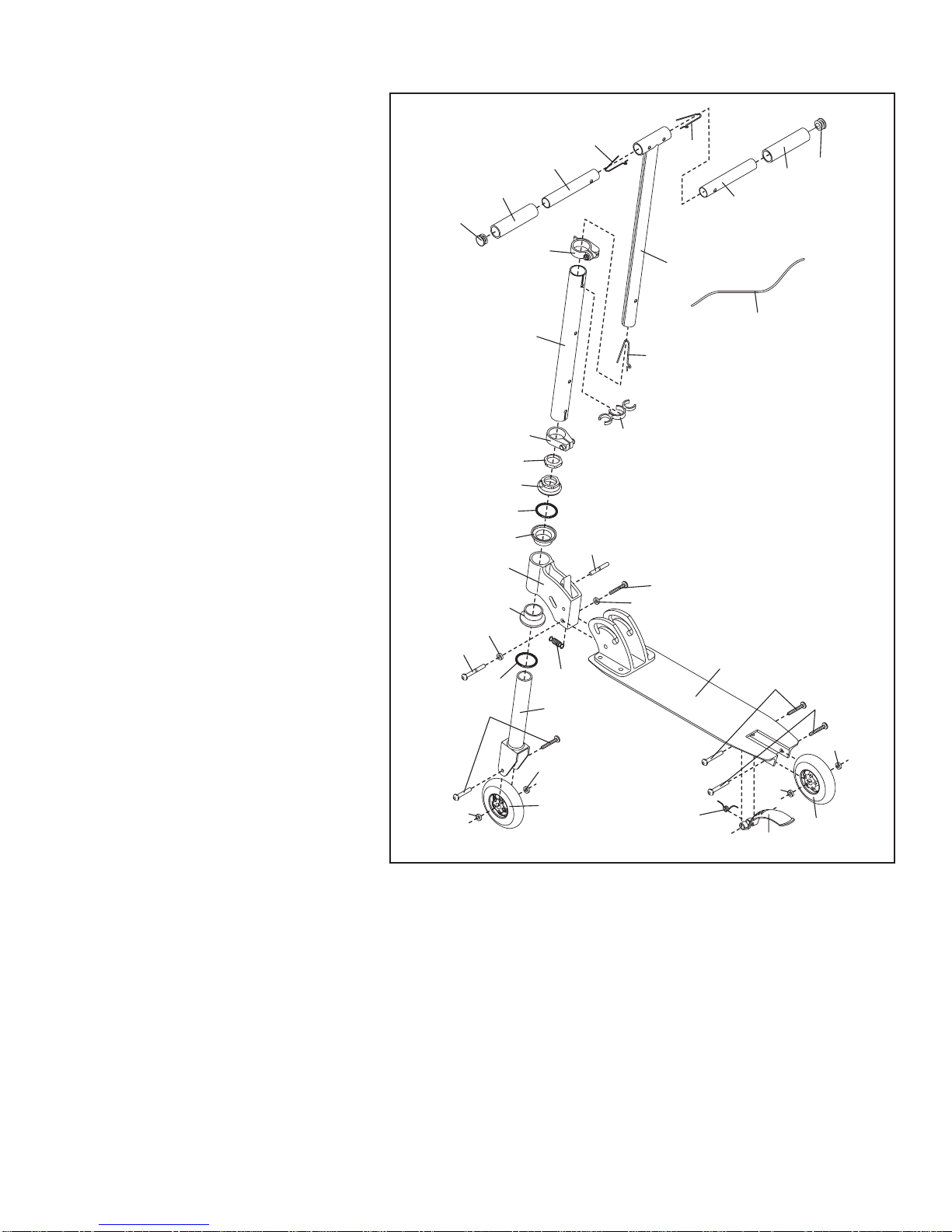

Part List/Exploded Drawing—Model No. HNSC05700 R0101A
1
2
3
4
5
6
67
7
8
8
9
9
10
11
12
9
13
14
15
15
16
16
17 17
18
18
19
20
21 21
23 24
25
26
20
27
27
22
22
28
Ordering Replacement Parts
To order replacement parts, call toll-free 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding
holidays). When ordering parts, please mention the model number (HNSC05700) and the number and description of the parts
needed.
