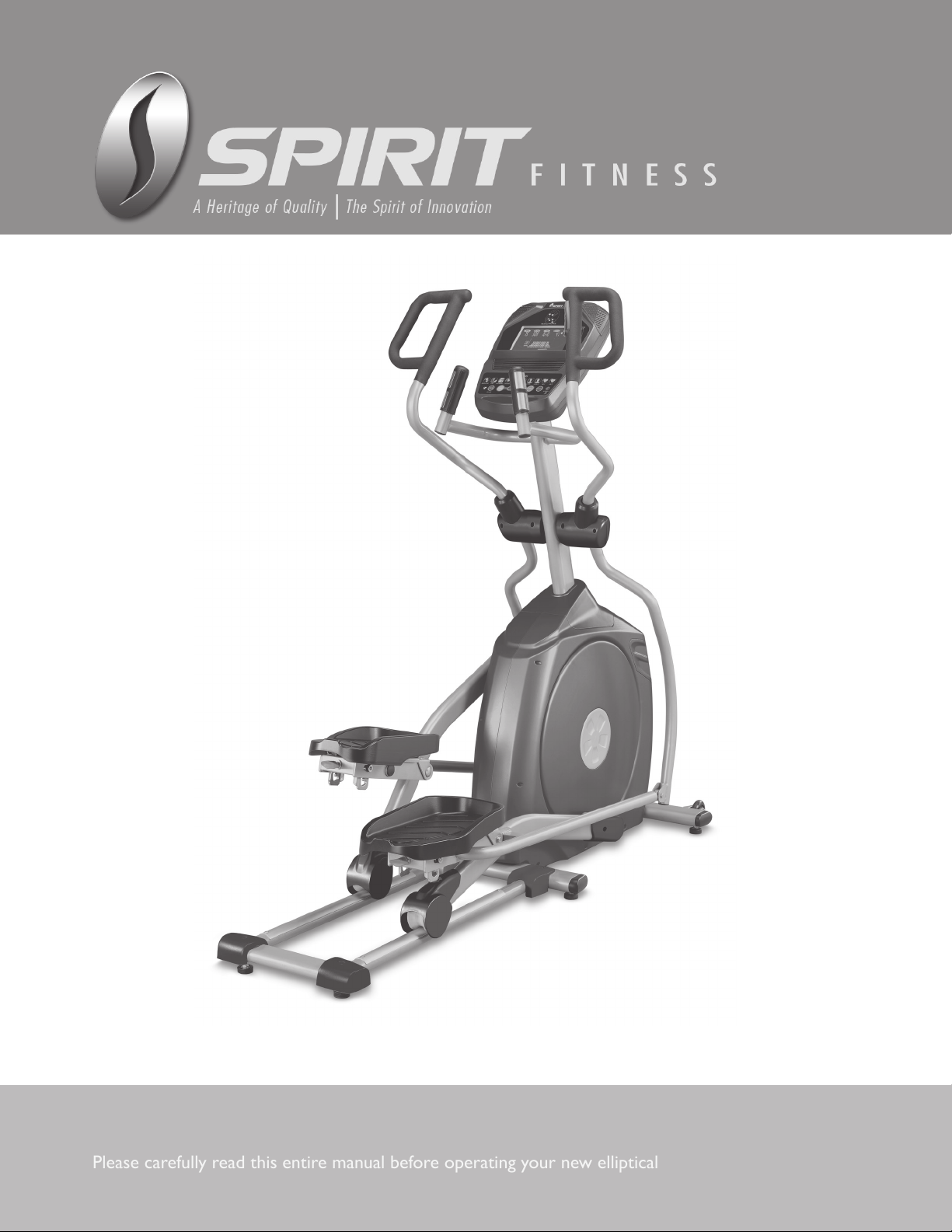

Please carefully read this entire manual before operating your new elliptical

OWNER’S MANUAL

Elliptical Trainer

XE295

Table of Contents

Product Registration

Important Safety Instructions

Important Electrical Instructions

Important Operation Instructions

XE295

Assembly Instructions

Product Features

Operation of Your Console

Programmable Features

Using A Heart Rate Transmitter

General Maintenance

Manufacturer’s Limited Warranty

ATTENTION

This elliptical is intended for residential use only and is warranted for this

application. Any other application voids this warranty in its entirety.

Elliptical Trainer

XE295

Elliptical Trainer

XE295

Record Your Serial Number

Please record the serial number of this tness product

in the space provided below.

Serial Number

The self-addressed product registration card must be completed in full and returned to Spirit

Fitness.You can also go to https://www.spirittness.com/residentialwarrantyregistration.html

to register online.

Thank you for your purchase of this quality group elliptical from Spirit Fitness.Your new

elliptical was manufactured by one of the leading tness manufacturers in the world and is

backed by one of the most comprehensive warranties available.Through your dealer, Spirit Fitness

will do all we can to make your ownership experience as pleasant as possible for many years to

come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this

elliptical is your administrator for all Spirit Fitness warranty and service needs.Their responsibility

is to provide you with the technical knowledge and service personnel to make your experience

more informed and any difculties easier to remedy.

Please take a moment at this time to record the name of the dealer, their telephone number,

and the date of purchase below to make any future, needed contact easy.We appreciate your

support and we will always remember that you are the reason that we are in business. Please

complete and mail your registration card today and enjoy your new elliptical.

Yours in Health,

Spirit Fitness

Congratulations on your new elliptical and welcome to the Spirit Fitness family!

Name of Dealer

Dealer Phone #

Purchase Date

XE295_20130808

Product Registration

Elliptical Trainer

XE295

Important Safety Instructions

WARNING - Read all instructions before using this appliance.

If using the optional power supply:

DANGER - To reduce the risk of electric shock disconnect your Spirit Fitness elliptical from the

electrical outlet prior to cleaning and/or service work.

WARNING - To reduce the risk of burns, re, electric shock, or injury to persons, install

the elliptical on a at level surface with access to a 110-volt, 15-amp grounded outlet with only

the elliptical plugged into the circuit.

DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER,WITH ONLY

ONE OUTLET ON THE END:

Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet and

elliptical may result.

Keep children away from the elliptical.There are obvious pinch points and other

caution areas that can cause harm.

Keep hands away from all moving parts.

Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working

properly, call your dealer.

Keep the cord away from heated surfaces.

Do not operate where aerosol spray products are being used or where oxygen is

being administered. Sparks from the motor may ignite a highly gaseous environment.

Never drop or insert any object into any openings.

Do not use outdoors.

To disconnect, turn all controls to the off position, then remove the plug from

the outlet.

Do not attempt to use your elliptical for any purpose other than for the purpose it is

intended.

The hand pulse sensors are not medical devices.Their purpose is to provide you with an

approximate measurement in relation to your target heart rate. Use of a chest transmitter

strap (sold separately) is a much more accurate method of heart rate analysis.Various

factors, including the user’s movement, may affect the accuracy of heart rate readings.The

pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on

your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Elliptical Trainer

XE295

Important Electrical Instructions

WARNING!

NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten

percent (10%) or more, the performance of your elliptical may be affected. Such

conditions are not covered under your warranty. If you suspect the voltage is low, contact your

local power company or a licensed electrician for proper testing.

NEVER expose this elliptical to rain or moisture.This product is NOT designed for use out-

doors, near a pool or spa, or in any other high humidity environment.The operating

temperature specication is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing

(no water drops forming on surfaces).

Elliptical Trainer

XE295

NEVER operate this elliptical without reading and completely understanding the results of

any operational change you request from the computer.

Understand that changes in resistance do not occur immediately. Set your desired resistance

level on the computer console and release the adjustment key.The computer will obey the

command gradually.

NEVER use your elliptical during an electrical storm. Surges may occur in your household

power supply that could damage elliptical components. Unplug the elliptical during an

electrical storm as a precaution.

Use caution while participating in other activities while pedaling on your elliptical; such as

watching television, reading, etc.These distractions may cause you to lose balance which may

result in serious injury.

Do not use excessive pressure on console control keys.They are precision set to function

properly with little nger pressure.

Important Operation Instructions

Elliptical Trainer

XE295

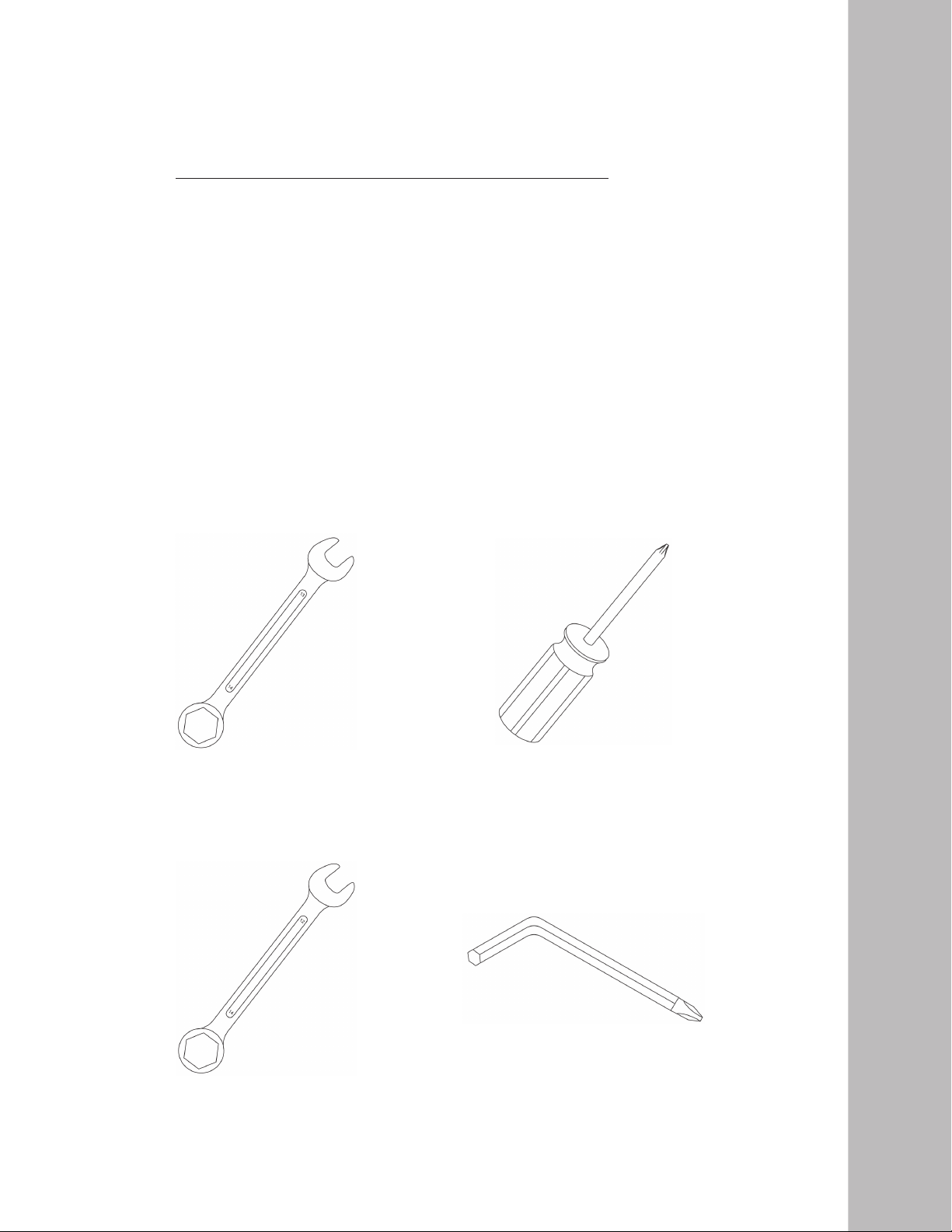

#155. 13/14mm

Wrench

#157. Phillips Head

Screw Driver

#158. 12/14mm

Wrench

#177. Combination M5 Allen Wrench &

Phillips Head Screw Driver

Assembly Tools

1. Using a razor knife (Box Cutter), cut the banding straps that wrap around the carton. Reach under the bottom

edge of the carton and pull it away from the cardboard underneath, separating the staples that join the two

together. Lift the box over the unit and unpack.

2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are

found, or parts are missing, contact your dealer immediately.

3. Locate the hardware package. The hardware is separated into four steps. Remove the tools rst. Remove the

hardware for each step as needed to avoid confusion.The numbers in the instructions that are in parenthesis

(#) are the item number from the assembly drawing for reference.

Pre-Assembly

XE295

Assembly Instructions

To assist you in assembling your new Spirit Fitness elliptical, we have posted an assembly video at the

following link: http://www.spirittness.com/customerservice/video/ellipticalvideos.html

Assembly Video

Elliptical Trainer

XE295

1. Locate the Console Mast (12) and Console Mast Cover (72); slide the Cover onto the Mast as far as it will

go. Make sure the Console Mast Cover (72) is facing the correct way.

2. At the top opening of the Main Frame (1), there is a Computer Cable (53) tied to a twist tie wire. Feed

the twist tie wire and Computer Cable (53) into the bottom of the Console Mast (12) and out of the

opening at the top.

3. Install the Console Mast (12) into the receiving bracket on the top of the Main Frame (1). Be extremely

careful not to pinch the cables between the tubing. If the cable gets pinched, this may affect the electrical

functions of the console. NOTE: there is one bolt already installed in the receiving bracket that will engage

with the slot at the bottom of the Console Mast.This needs to be tightened last, after the three other

console mast bolts.

4. Place a Split Washer (152) onto the Hex Head Bolt (105) and hand tighten through the left side of the

console mast. Place a Curved Washer (153) onto each Hex Head Bolt (103) and thread both into the

front of the console mast tube. Fasten these front bolts as tight as possible with the wrench (155). Next

rmly tighten the two left side bolts with the same wrench.

5. Connect the two Hand Pulse Cables (47), Resistance Cable (49), and Computer Cable (53) to the back of

the console (43). Do not force the connectors; they will only t one way and are different sizes to prevent

confusion. Store the excessive cable in the Console Mast tube (12).

6. Attach the Console (43) to the bracket of the Console Mast tube with four Phillips Head Screws (116).

Tighten the screws with the Phillips Head Screw Driver (157).

7. Attach the Rear Floor Support (15) to the Rails (2& 3) with two Button Head Socket Bolts (176) and

Curved Washers (153) on each side.Tighten using the Combination M5 Allen Wrench & Phillips Head

Screw Driver (177).

8. Slide the Rail Assembly into the Main Frame (1). Insert one Button Head Socket Bolt (176) through each

side and attach a Flat Washer (137) and a Nyloc Nut (130) to each joint on the inside.

HARDWARE

STEP 1: Rail Assembly & Console Mast

#137. 3/8” x 19 x 1.5T

Flat Washer

(2 pcs)

#152. 3/8” x 2T

Split Washer

(1 pc)

#153. 3/8” x 23 x 2T

Curved Washer

(6 pcs)

#176. 3/8” x 2-1/4”

Button Head Socket Bolt

(6 pcs)

#103. 3/8” x 3/4”

Hex Head Bolt

(2 pcs)

#105. 3/8” x 2-1/4”

Hex Head Bolt

(1 pc)

#116. M5 x 10mm

Phillips Head Screw

(4 pcs)

#130. 3/8” x 7T

Nyloc Nut

(2 pcs)
